3-Axis Vertical Machining Centre SPINNER MVC 1600
Ref. No.199
- Brand
- SPINNER
- Model
- MVC 1600
- Condition
- used

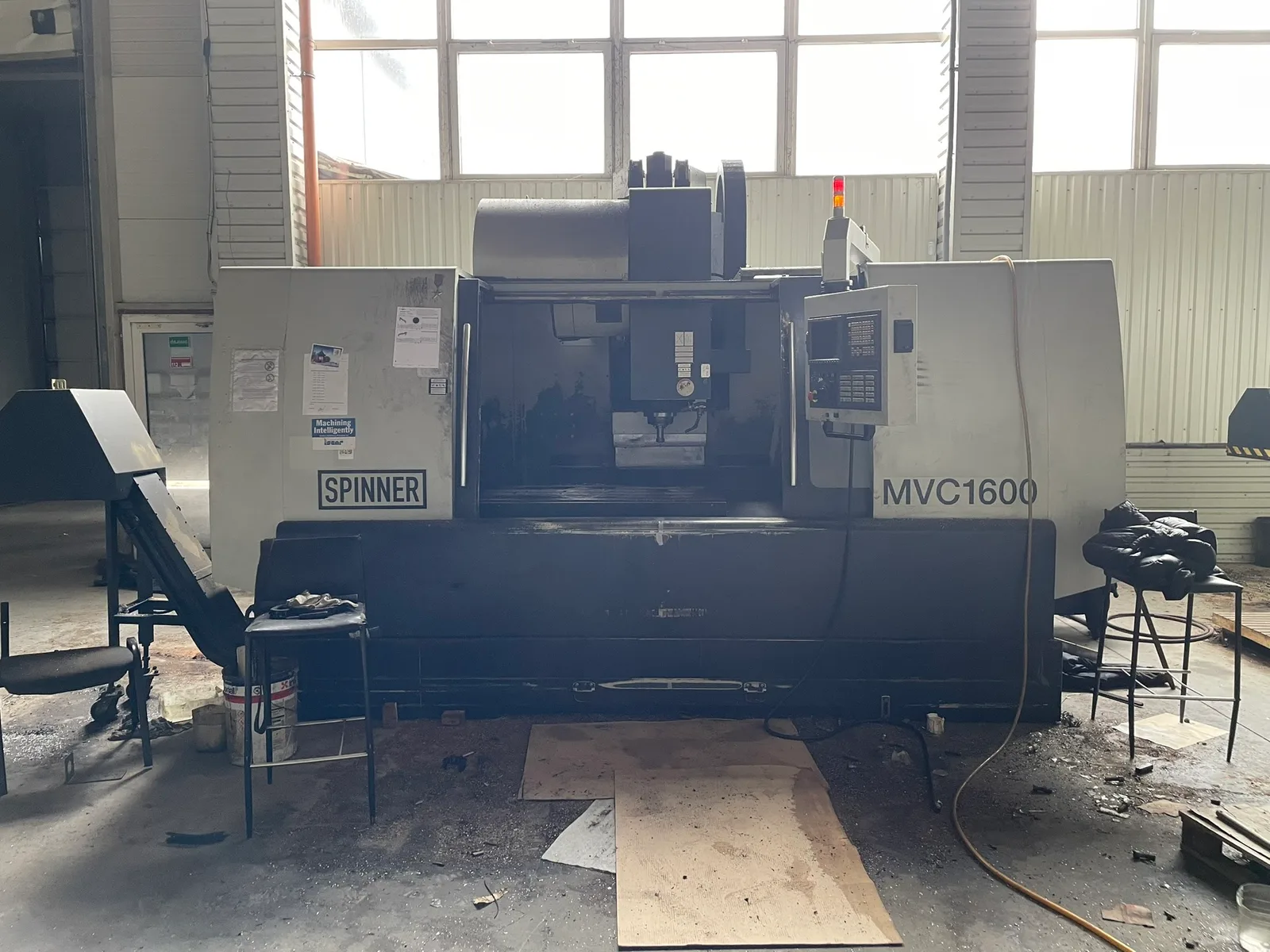

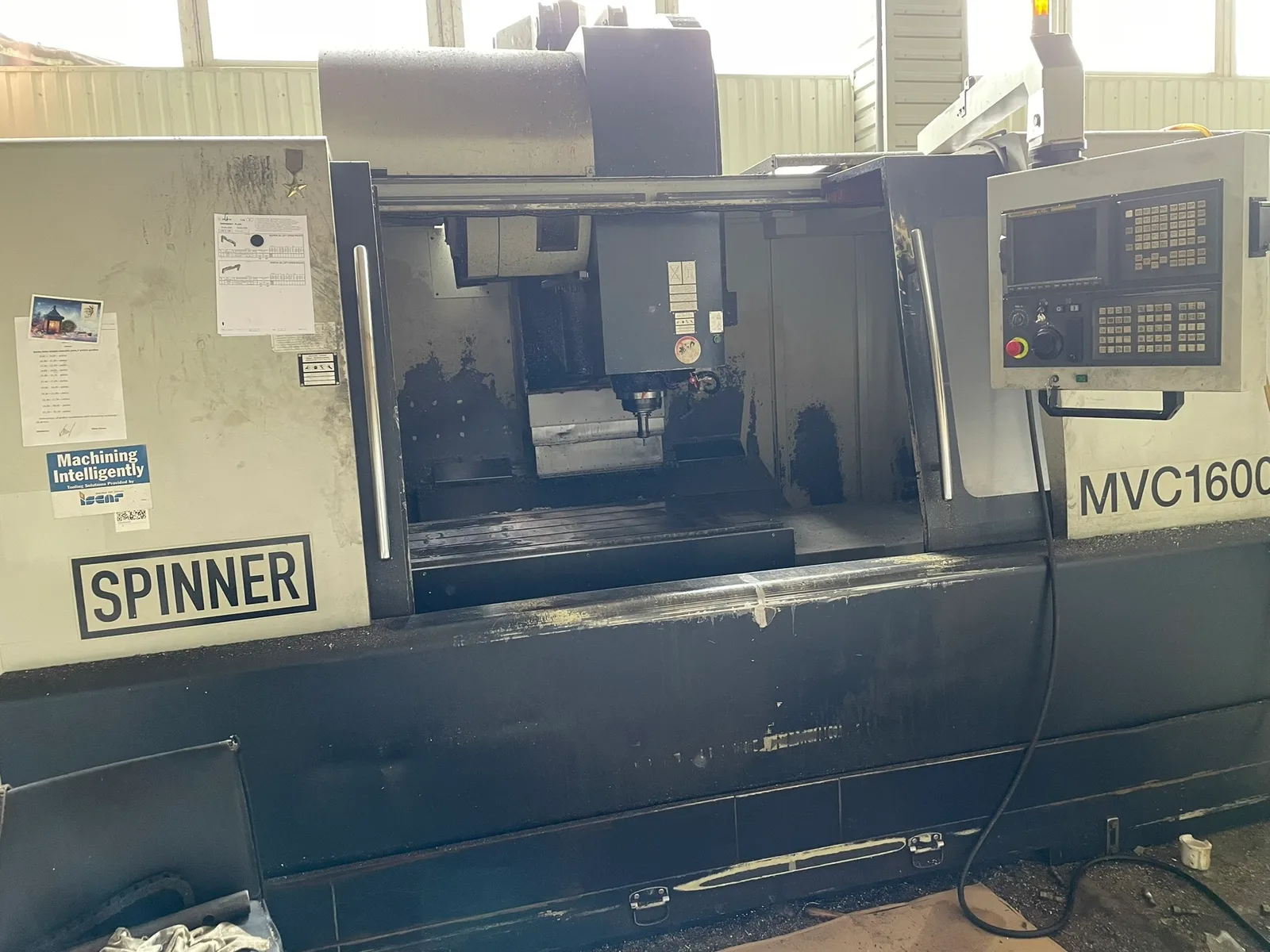

Spinner MVC 1600 3-Axis Vertical Machining Center.
Year of manufacture 2006.

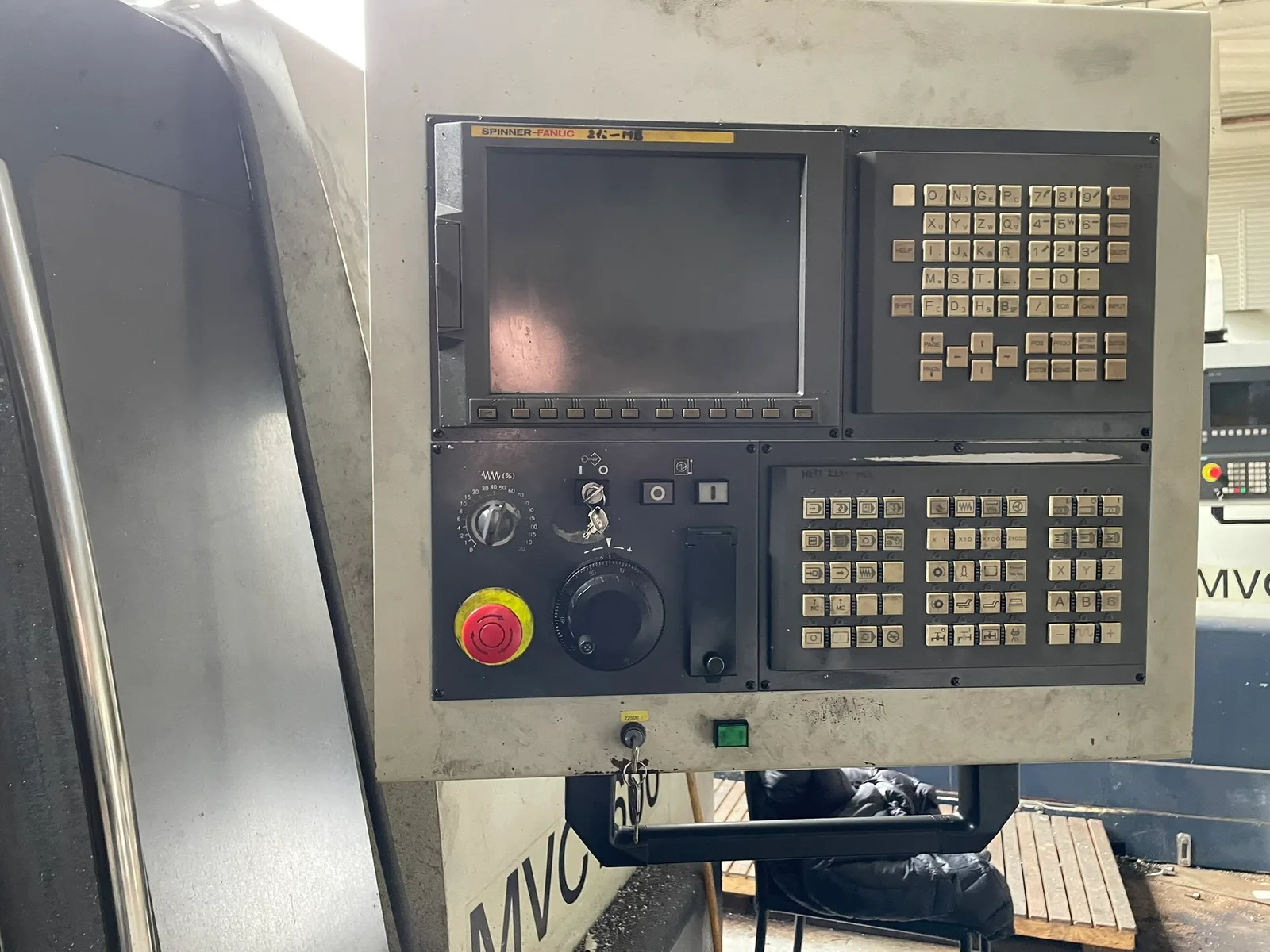

control:Fanuc
X-axis travel 1600 mm.
Y-axis travel 810 mm.
Z-axis travel 700 mm.
Rapid traverse rate 18 / 18 / 15 m/min (X/Y/Z).
Maximum spindle speed 10,000 rpm.
Spindle motor power 22 kW (22,000 W).
Torque range 109–1052 Nm.
Spindle taper size SK 40.

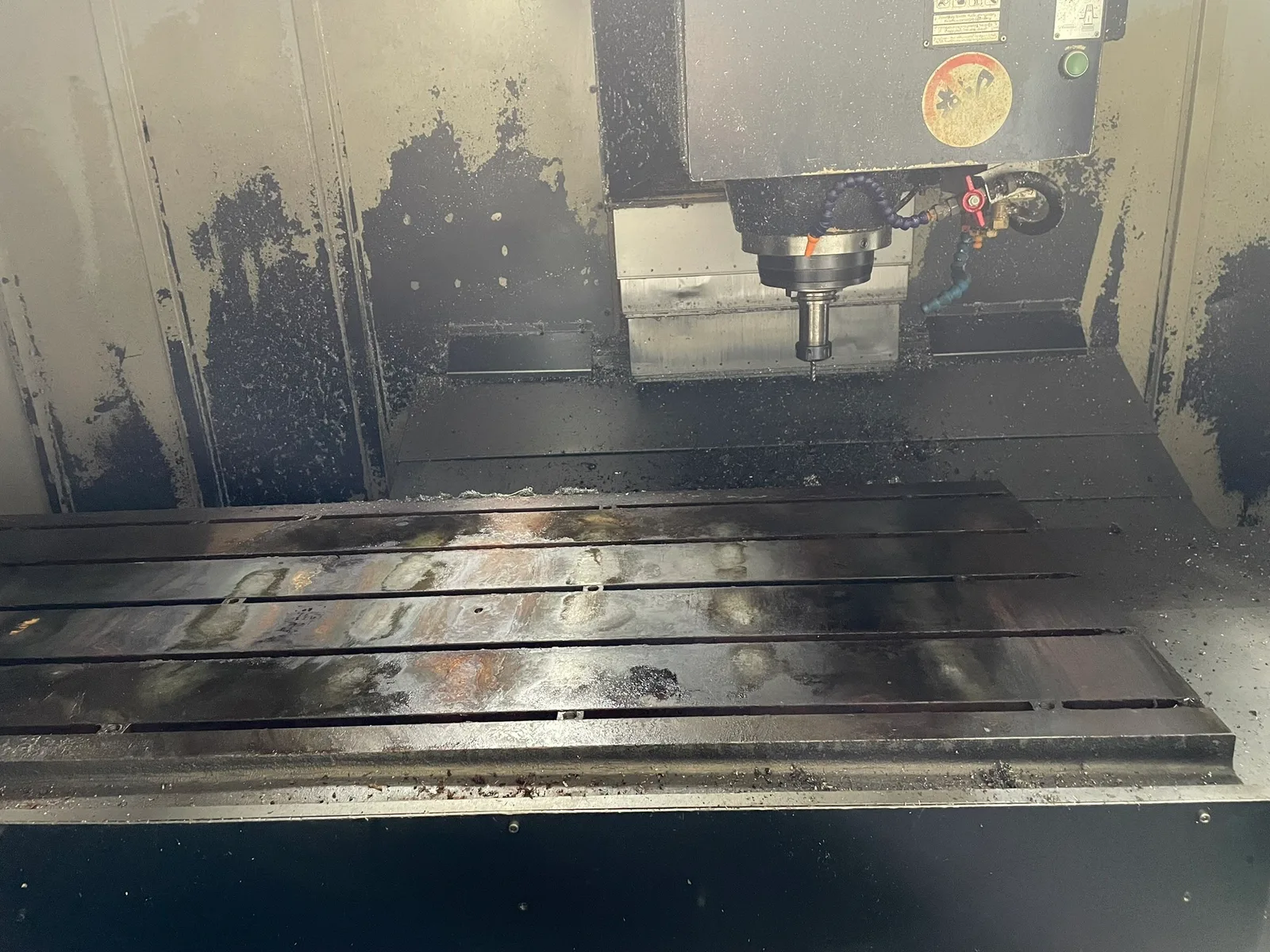

Table dimensions 1800 × 810 mm.
Maximum workpiece load capacity 2000 kg.
Tool magazine capacity 24 pockets.
Total machine setup 3 axes.
Optional 4th axis configuration is available.
Electrical requirements 400 V, 50 / 60 Hz.
Total machine weight 8,000 kg.
Machine specifications
- Manufacturer
- SPINNER
- Model
- MVC 1600
- Condition
- used
- Cnc Control
- — None —
- Year Of Manufacture
- 2006
