Horizontal Machining Centres
4-Axis Horizontal Machining Center
Ref. No.268
- Brand
- MORI SEIKI
- Model
- NHX 5000
- Condition
- used

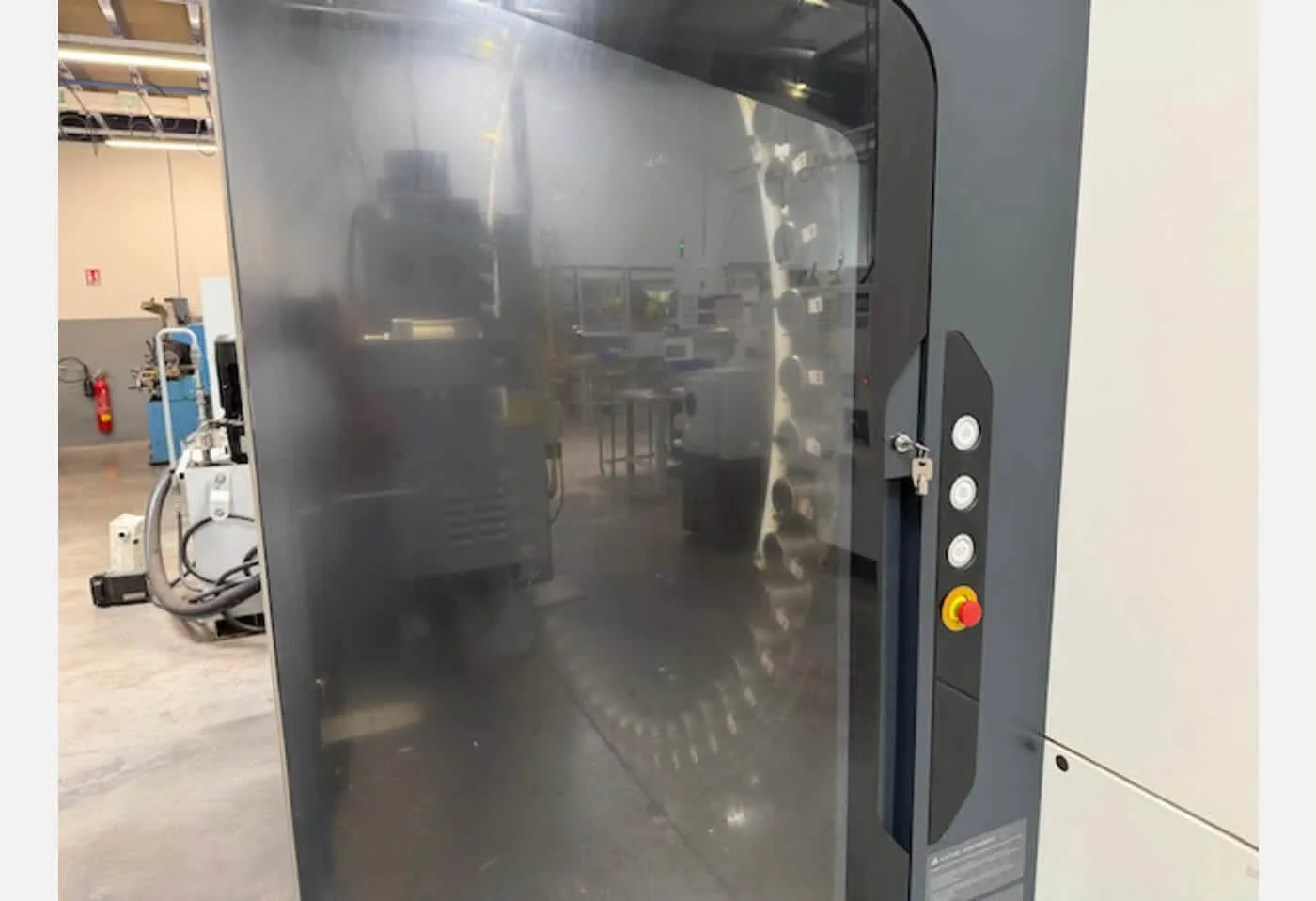

4-Axis Horizontal Machining Center
Brand:MORI SEIKI
Model:NHX 5000
Year:2017
Control:CELOS
Number of Axes:4

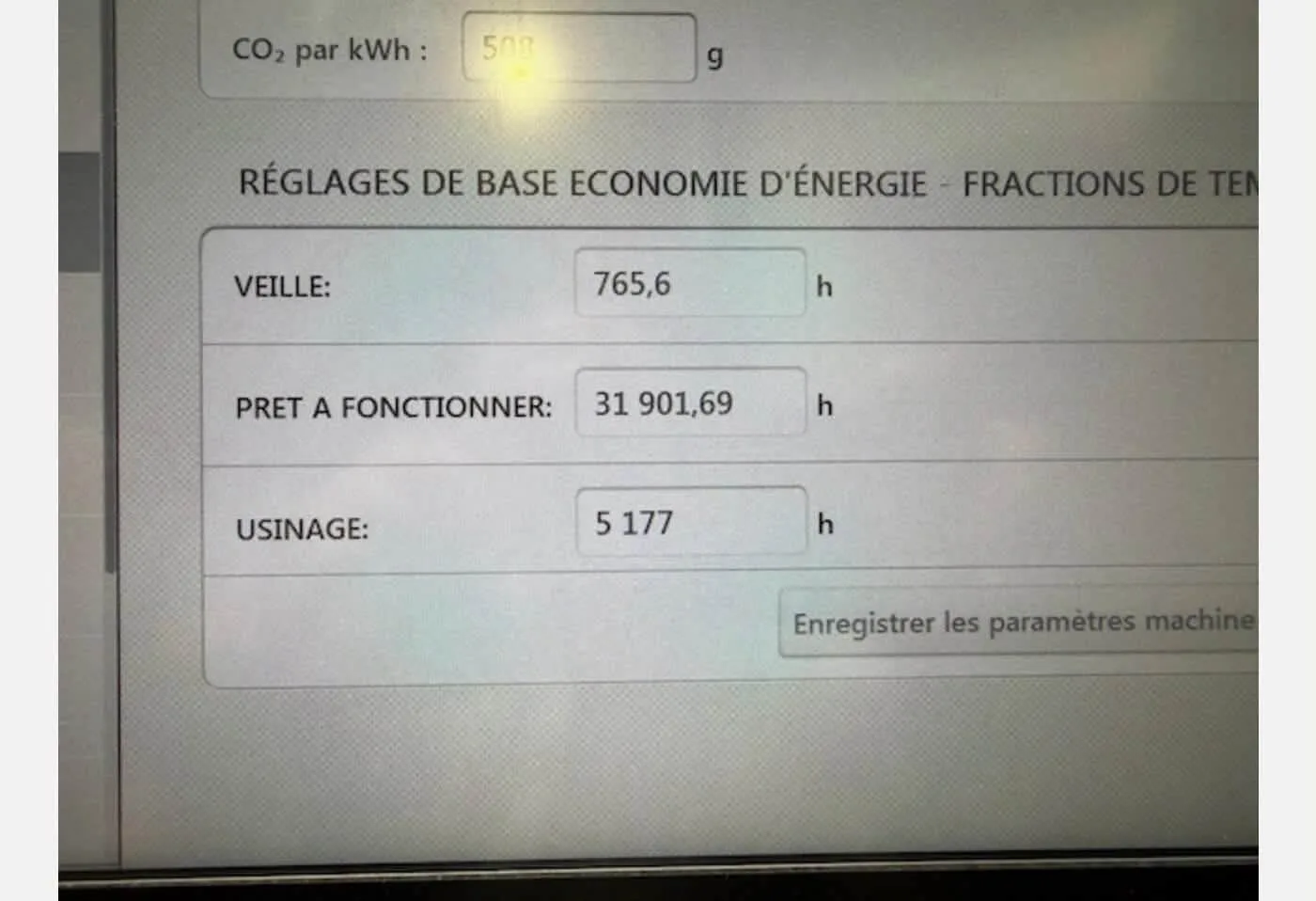

Machining Hours:5,177 h
Table Size:500 × 500 mm
Maximum Table Load:500 kg
Maximum Workpiece Diameter:800 mm
Maximum Workpiece Height:1,000 mm
Indexing Time:1.3 s
Spindle Speed:15,000 rpm
Spindle Taper:SK 40
Front Bearing Diameter:80 mm
B-Axis:360,000 Positions
X-Axis Travel:730 mm
Y-Axis Travel:730 mm
Z-Axis Travel:880 mm
Tool Holder:BT 40
Tool Magazine Capacity:80 Tools
Tool-to-Tool Change Time:1.95 s
Maximum Tool Weight:30 kg
Number of Pallets:2
Pallet Change Time:9 s
Features:

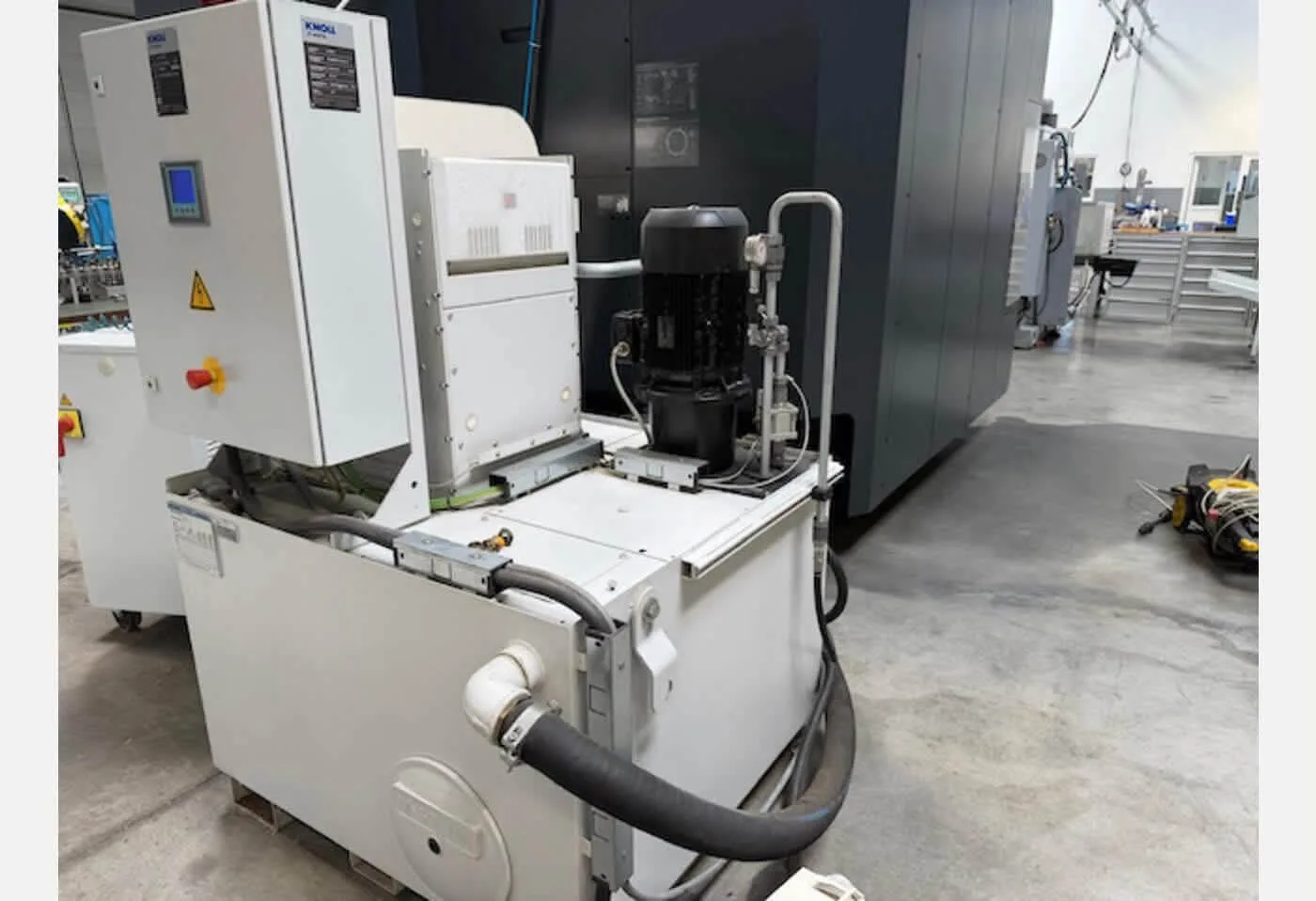

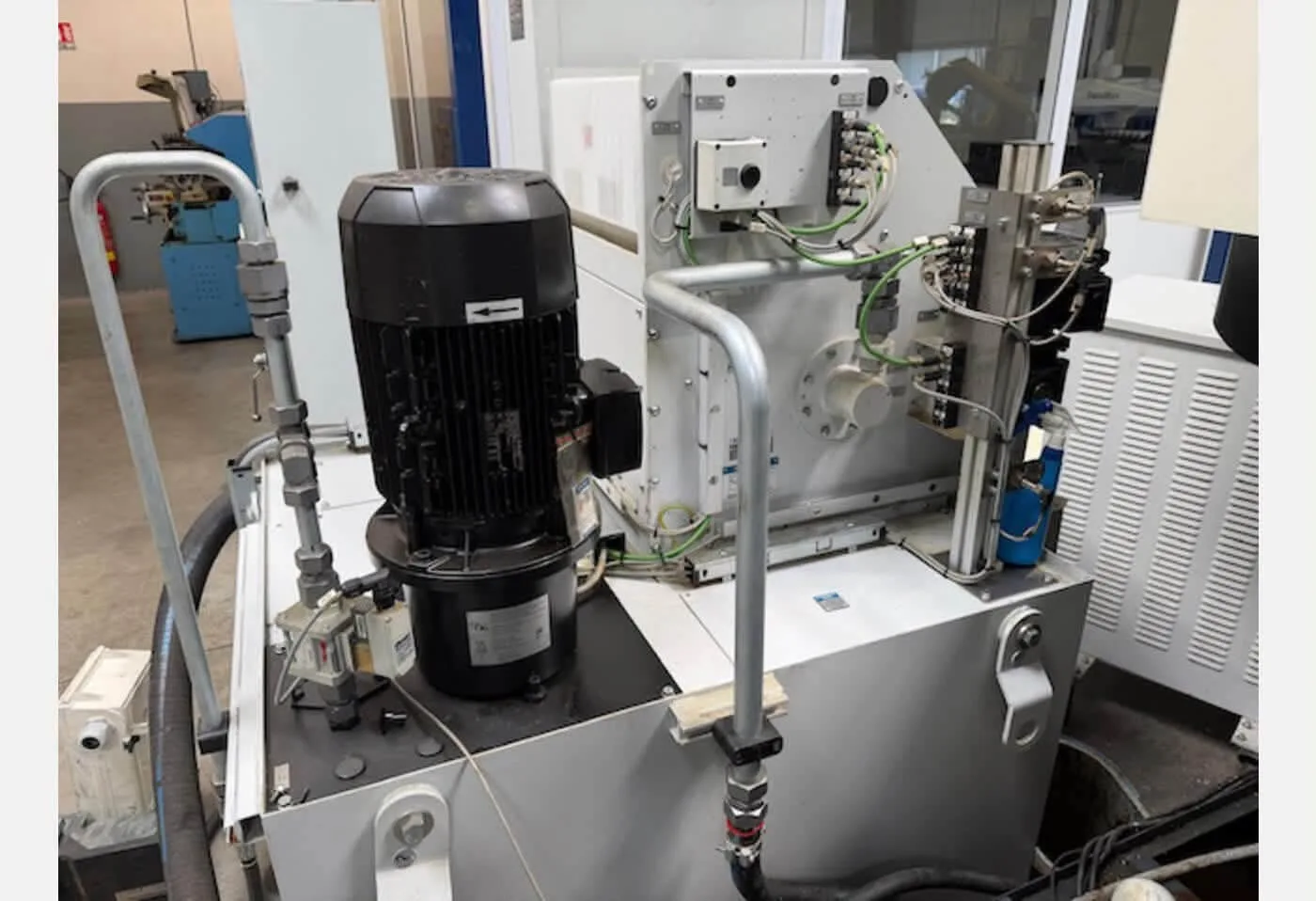

- High-Pressure Unit with KNOLL Paper Filtration
- Set of Tool Holders
- Automatic Centering and Measuring System
- Tool Breakage Detection System
- Automatic Tool Length Measurement
- Chip Conveyor with Rear Discharge
Machine specifications
- Manufacturer
- MORI SEIKI
- Model
- NHX 5000
- Condition
- used
- Year
- 2017
- Brand
- MORI SEIKI
- Model
- NHX 5000
- B Axis
- 360,000 Positions
- Control
- CELOS
- Category
- CNC Machines
- Features
- High-Pressure Unit with KNOLL Paper Filtration, Set of Tool Holders, Automatic Centering and Measuring System, Tool Breakage Detection System, Automatic Tool Length Measurement, Chip Conveyor with Rear Discharge
- Table Size
- 500 × 500 mm
- Subcategory
- Horizontal Machining Centres
- Tool Holder
- BT 40
- Machine Name
- 4-Axis Horizontal Machining Center
- Indexing Time
- 1.3 s
- Spindle Speed
- 15,000 rpm
- Spindle Taper
- SK 40
- X Axis Travel
- 730 mm
- Y Axis Travel
- 730 mm
- Z Axis Travel
- 880 mm
- Number Of Axes
- 4
- Machining Hours
- 5,177 h
- Number Of Pallets
- 2
- Maximum Table Load
- 500 kg
- Pallet Change Time
- 9 s
- Maximum Tool Weight
- 30 kg
- Front Bearing Diameter
- 80 mm
- Tool Magazine Capacity
- 80 Tools
- Maximum Workpiece Height
- 1,000 mm
- Tool To Tool Change Time
- 1.95 s
- Maximum Workpiece Diameter
- 800 mm
