Gantry / Planner Type Machining Centres
5 AXIS PORTAL MACHINING CENTER zayer KPU 6500
Ref. No.200
- Brand
- Zayer
- Model
- KPU 6500
- Condition
- used
5 AXIS PORTAL MACHINING CENTER
Control:Heidenhain 430
X-Axis:6210 mm
Y-Axis:3440 mm
Z-Axis:1103 mm
Passage Between Columns:2500 mm
Spindle Taper:DIN 69871 - AD 50
Spindle Speed:35 - 6000 rpm
Spindle Type:Automatico Milesimal 0.001
Main Motor Power:37 kW
Table Dimensions:6500 x 1800 mm
Max. Admitted Weight:10000 kg

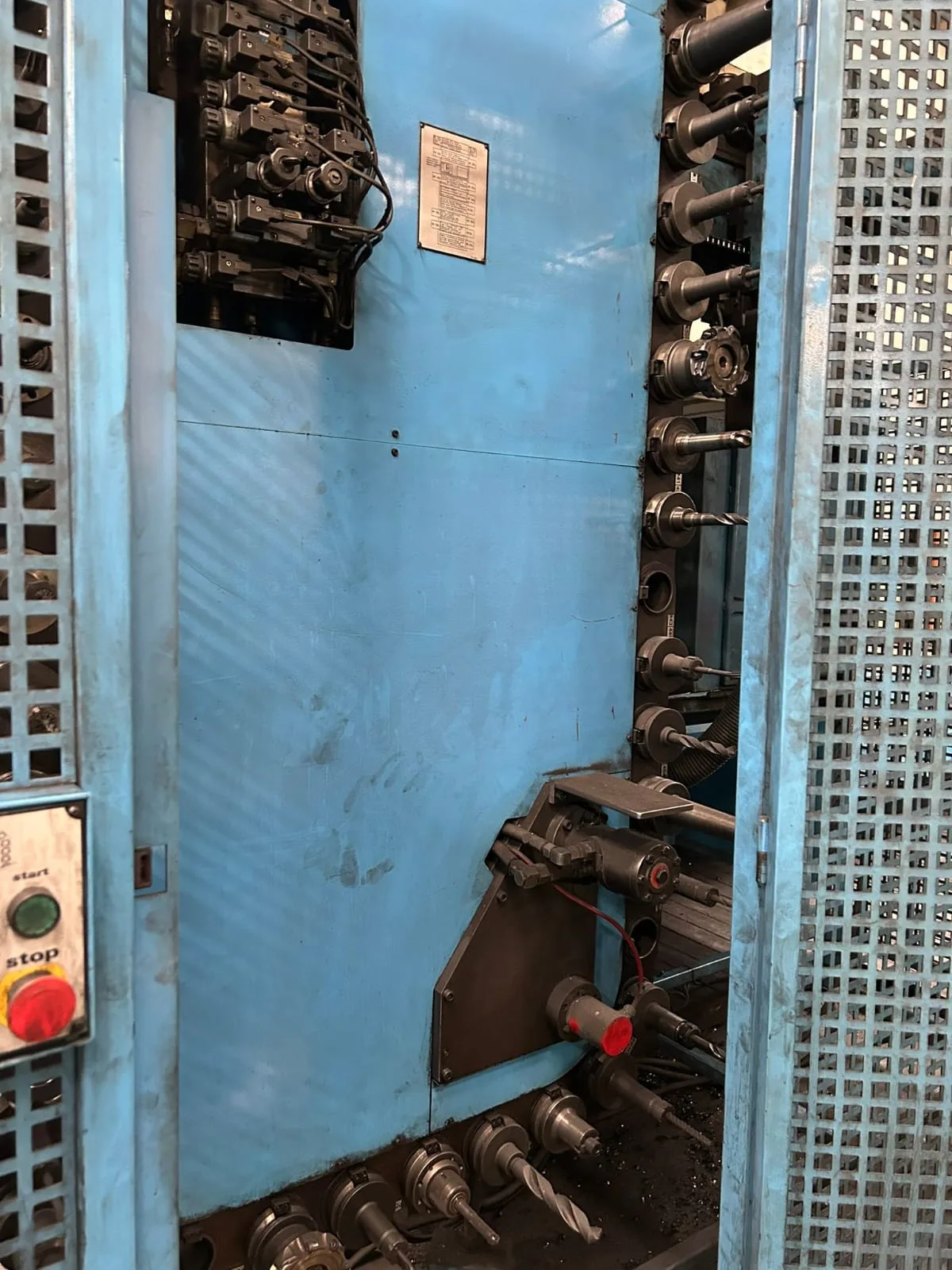

Tool Changer:60 Positions
Chip Extractor:2 de Cadena
Cooling By Tool:Yes
Machine specifications
- Manufacturer
- Zayer
- Model
- KPU 6500
- Condition
- used
- Control
- Heidenhain 430
- Machine Type
- 5 AXIS PORTAL MACHINING CENTER
- Spindle Type
- Automatico Milesimal 0.001
- Tool Changer
- 60 Positions
- Spindle Speed
- 35 - 6000 rpm
- Spindle Taper
- DIN 69871 - AD 50
- Chip Extractor
- 2 de Cadena
- Cooling By Tool
- Yes
- Main Motor Power
- 37 kW
- Table Dimensions
- 6500 x 1800 mm
- Max Admitted Weight
- 10000 kg
- Passage Between Columns
- 2500 mm
