Five Axis Machining Centres

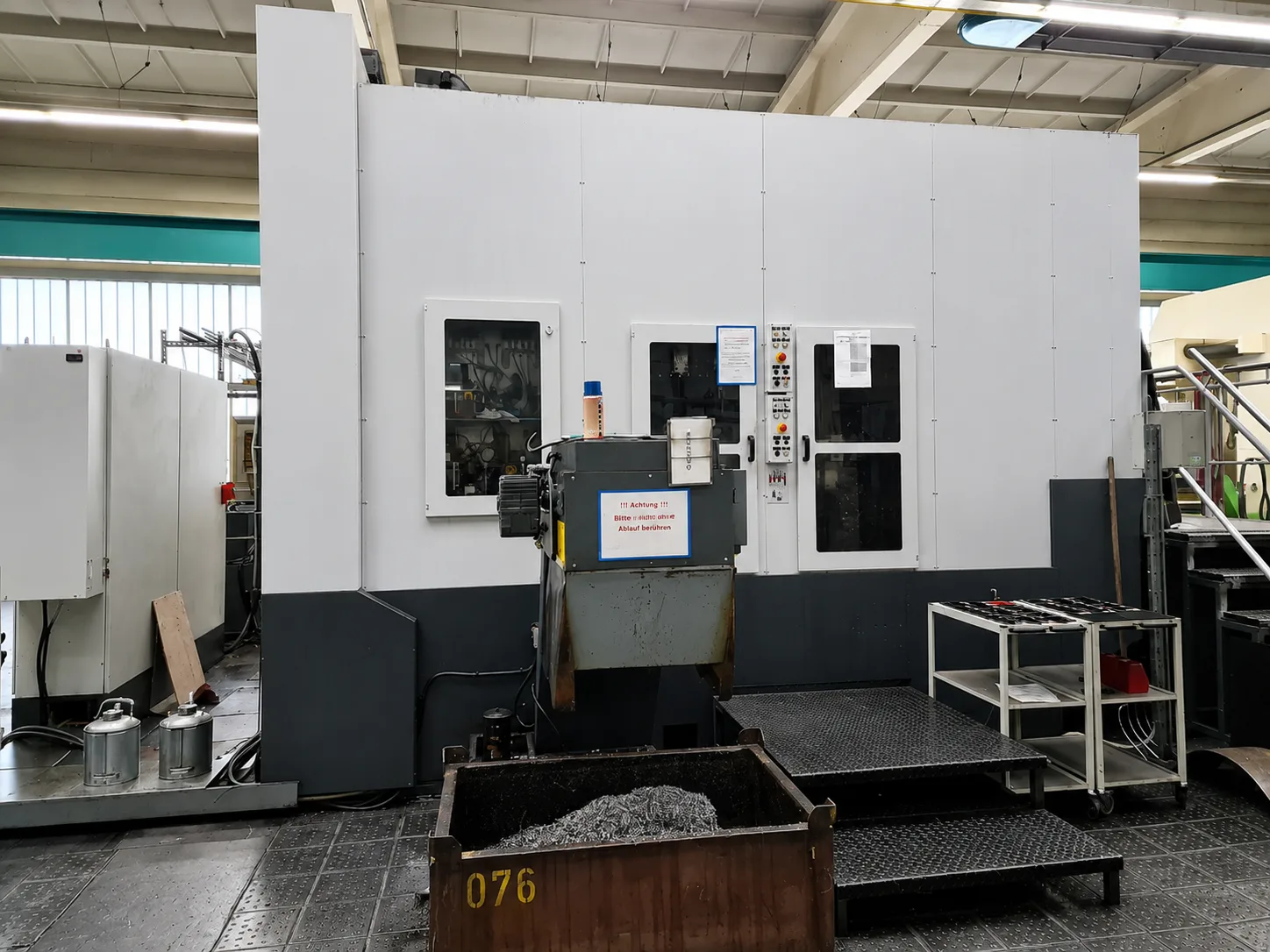

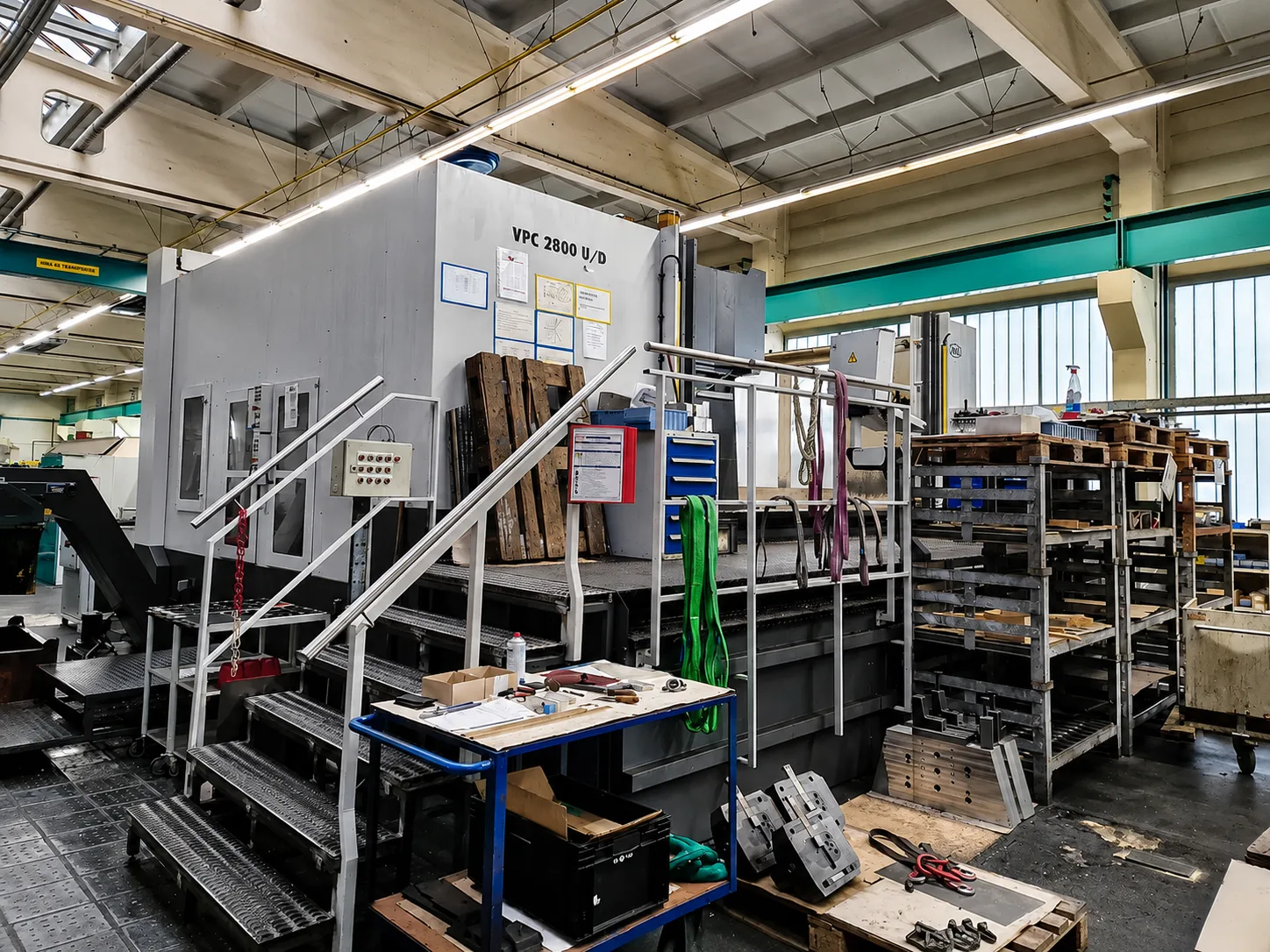

AXA VPC-2800U 5-Axis CNC Vertical Turning & Machining Center (Universal)

Ref. No.182

Year of manufacture 2012.

X-axis travel vertical 3,900 mm.

Y-axis travel 2,940 mm.

Z-axis travel 1,100 mm.

B-axis swivel range 90 degrees (freely interpolating).

Rapid traverse X-axis 30 m/min.

Rapid traverse Y-axis 30 m/min.

Rapid traverse Z-axis 25 m/min.

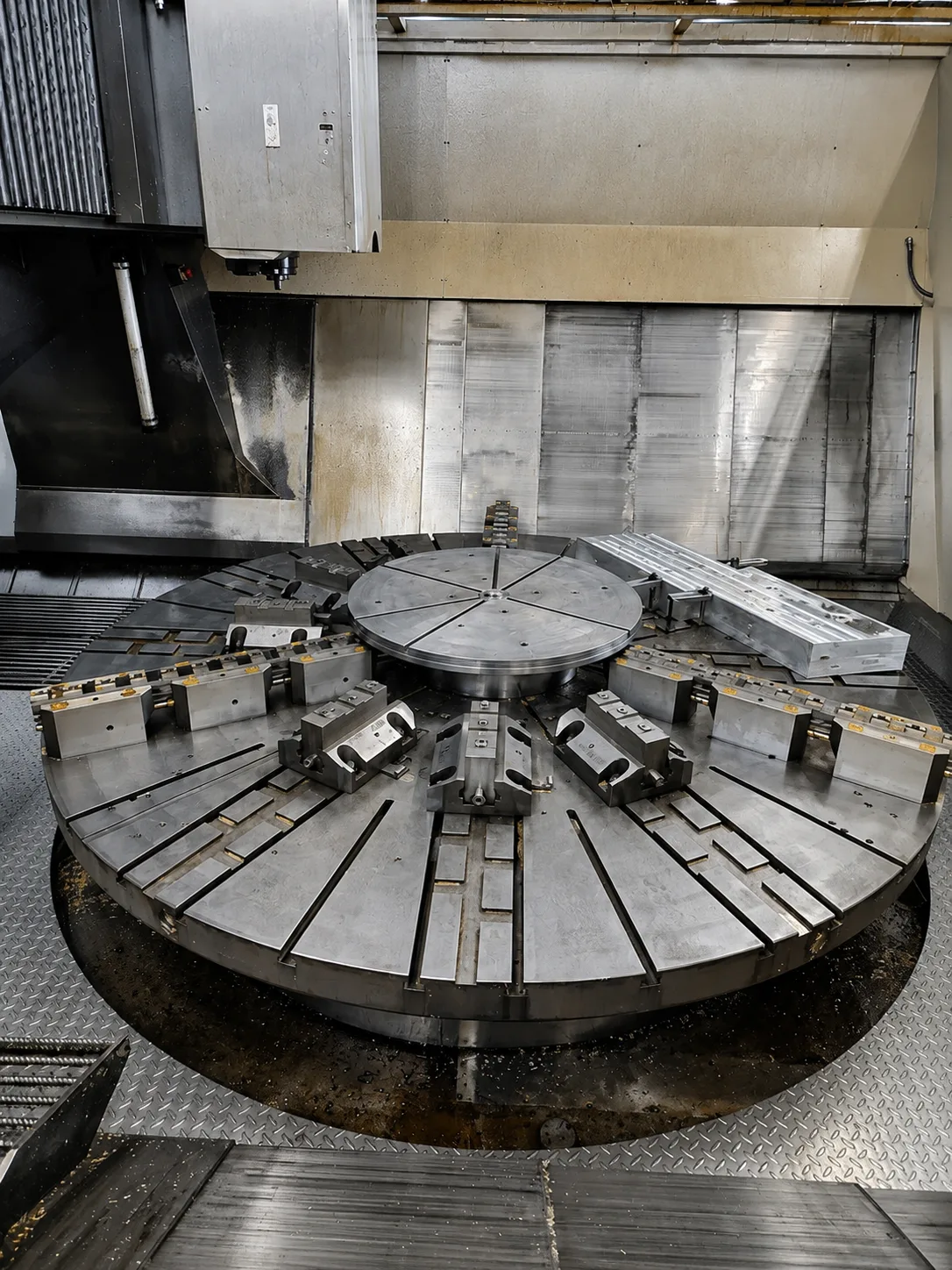

CNC rotary table clamping surface diameter 2800 mm.

Spindle speed range 30-7500 rpm.

Spindle power max. ED 100% 63 kW.

Spindle torque max. ED 100% 191 Nm.

Tool holder taper SK50.

Standard drive No. 140.

Tool changer with 60 positions.

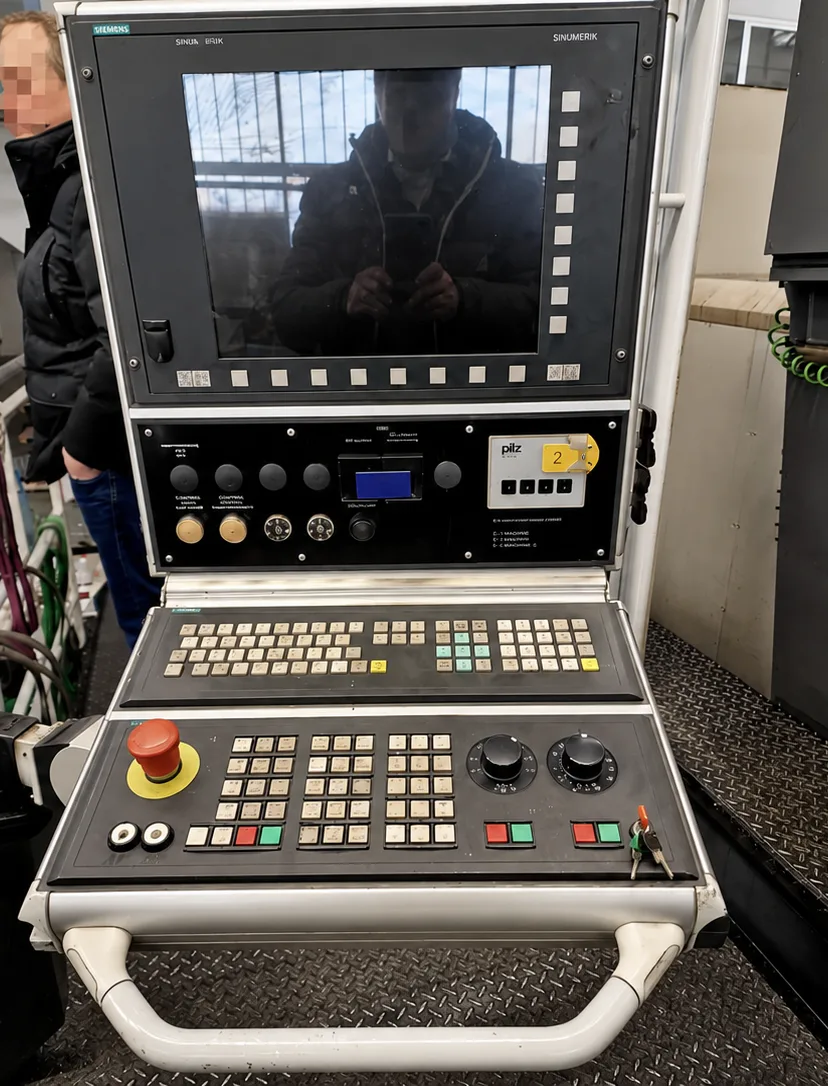

Siemens control system.

Machine is NOT equipped with turning function.

Machine specifications
