Spiral Bevel Gear Generators

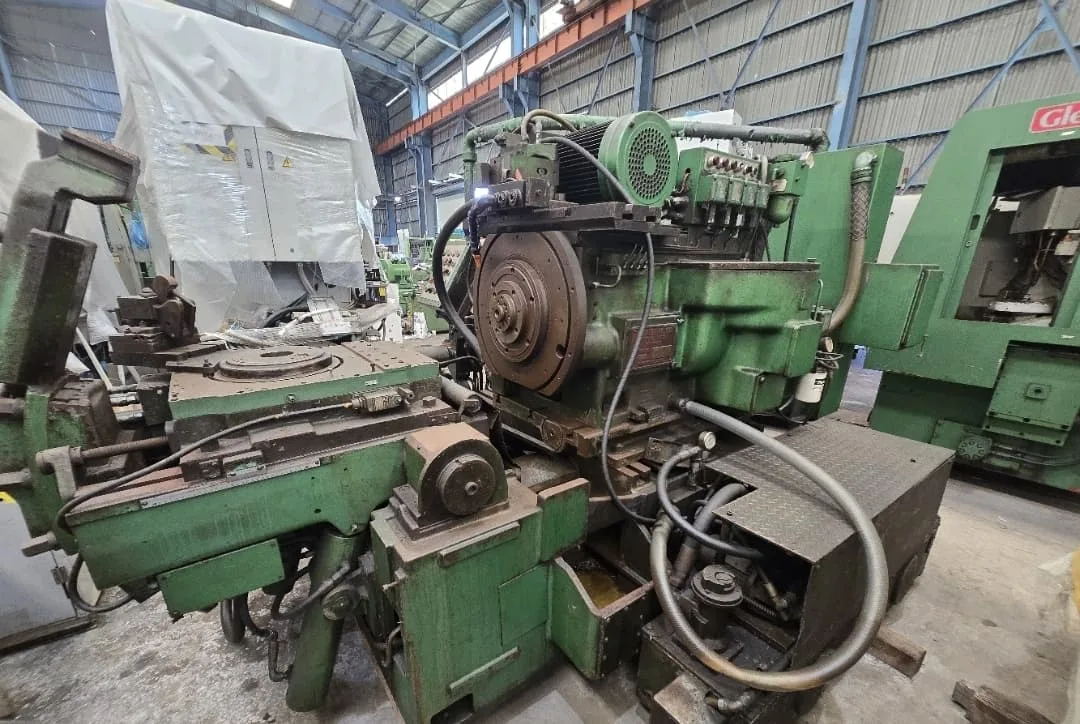

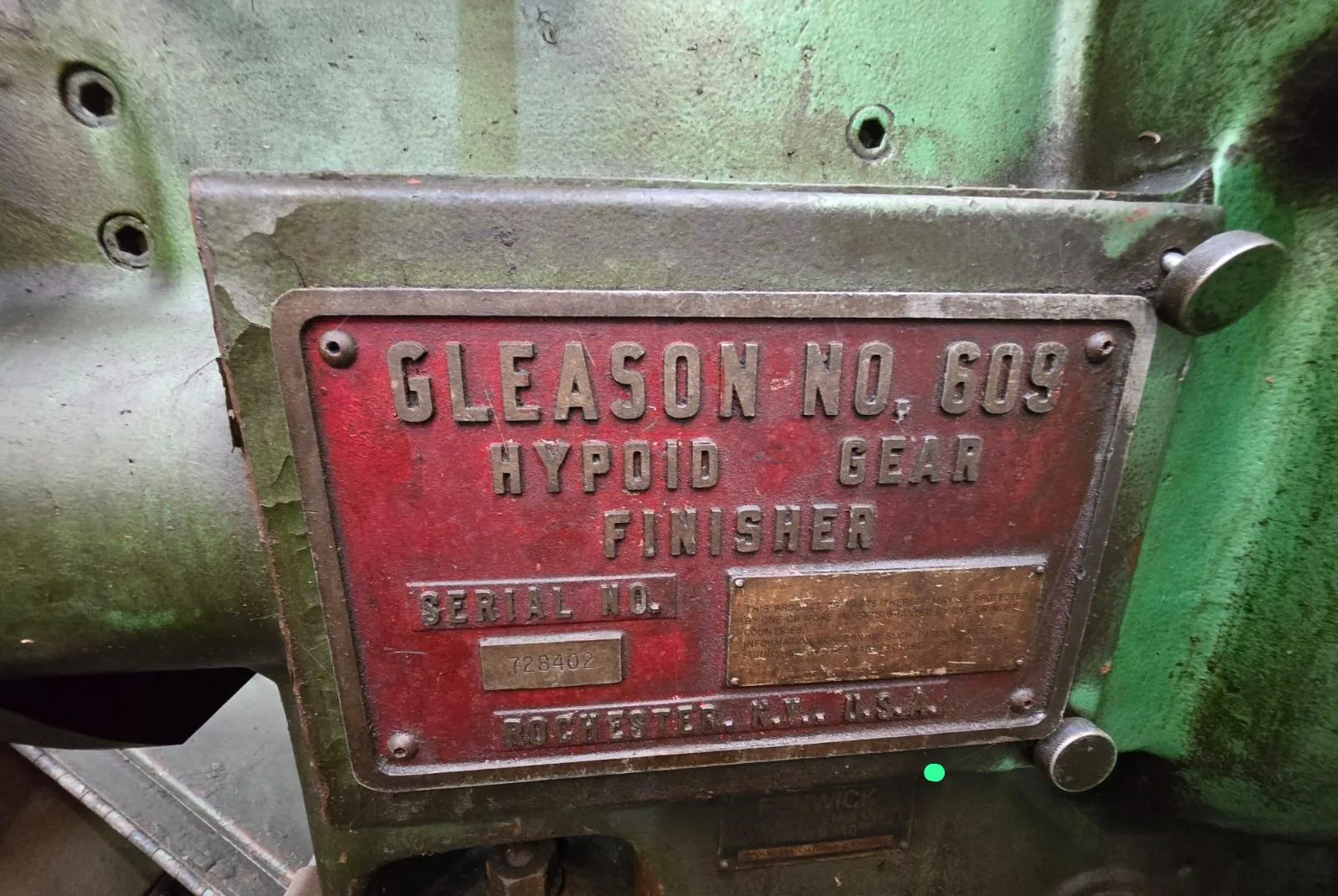

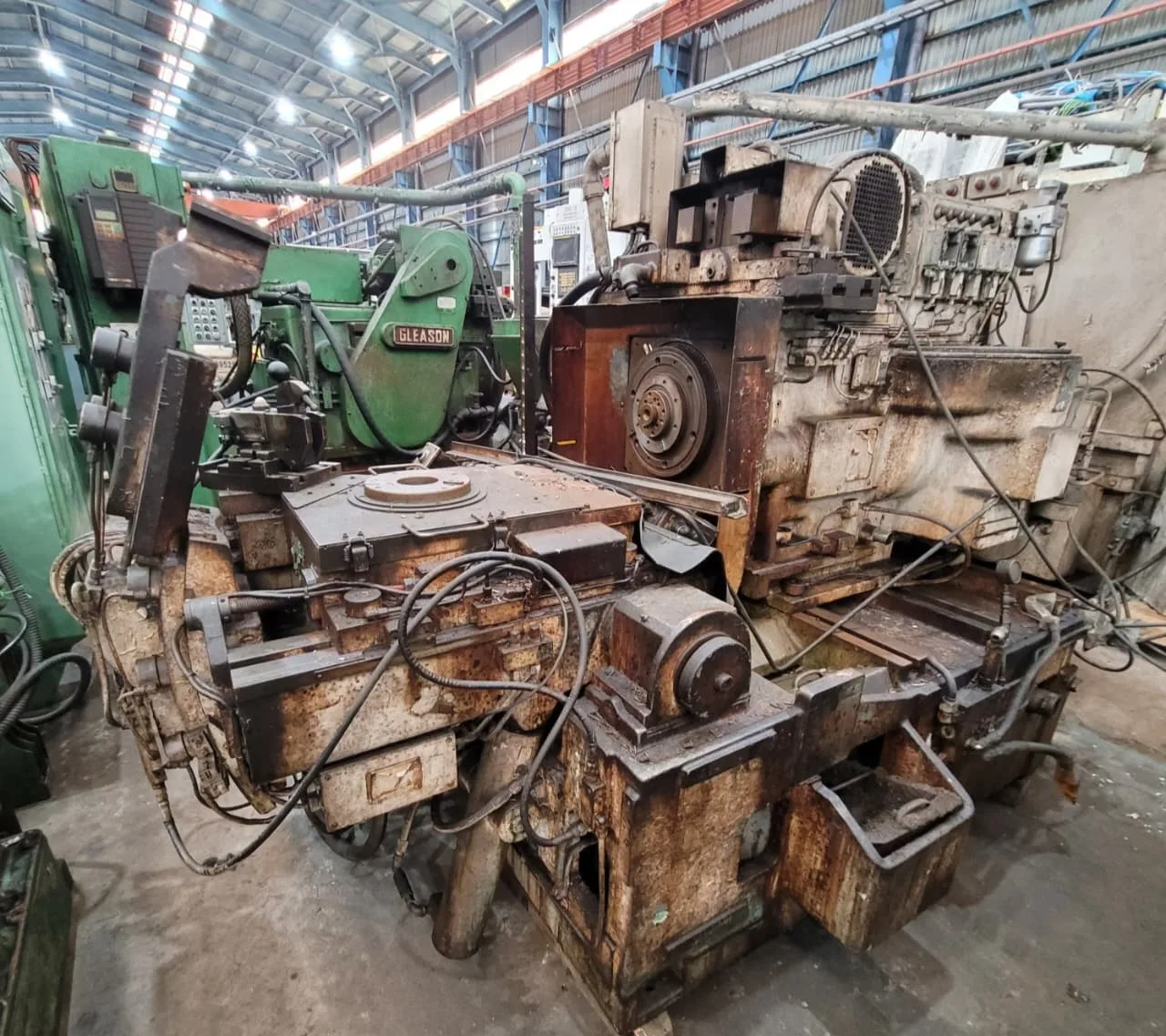

BEVEL GEAR GENERATOR – GLEASON 609
Ref. No.94
- Brand
- GLEASON
- Model
- 609
- Condition
- used
Max Gear Diameter:508 mm
Max Face Width:76.2 mm
Max Cone Distance:254 mm
Gear Ratio:10:1
Spindle Speed:6.8 – 16.5 RPM
Number of Teeth:20 – 75
Cutter Diameter:9 – 18 inch
Main Motor:5 HP
Hydraulic Motor:7.5 HP
Machine Weight:16000 lbs
Machine specifications
- Manufacturer
- GLEASON
- Model
- 609
- Condition
- used
- Machine Type
- Bevel Gear Generator
