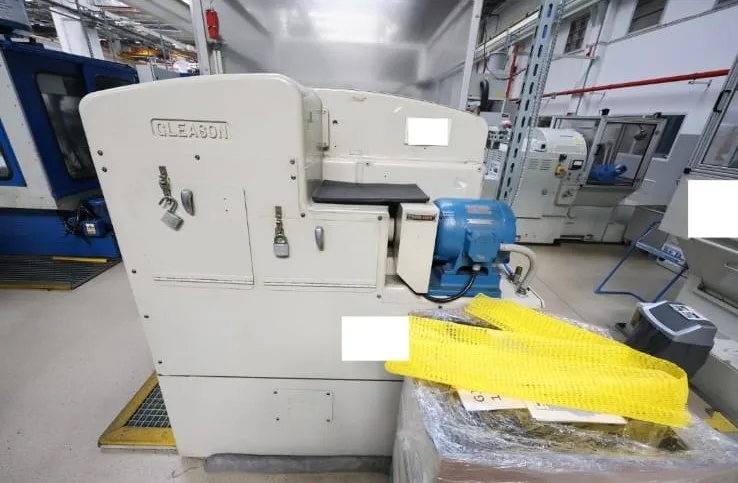

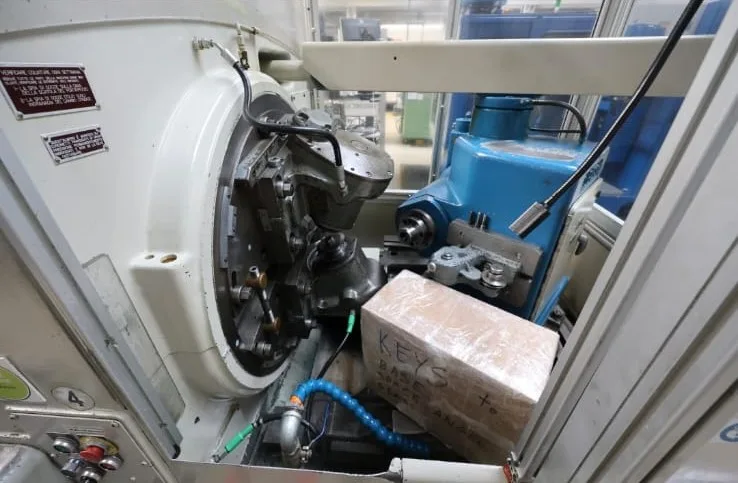

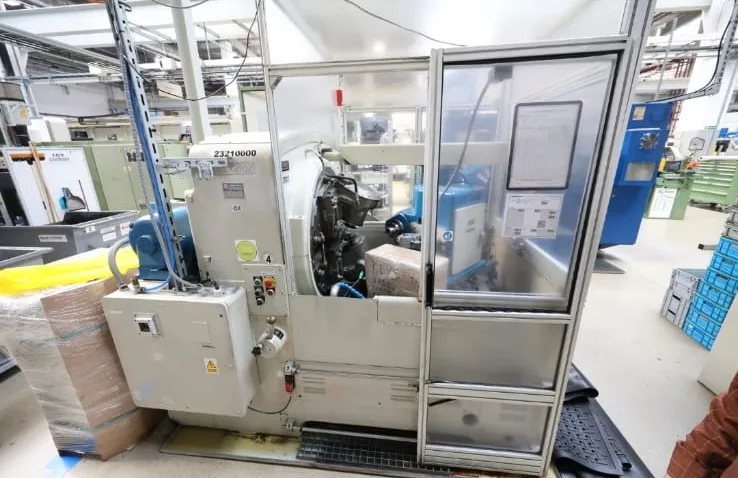

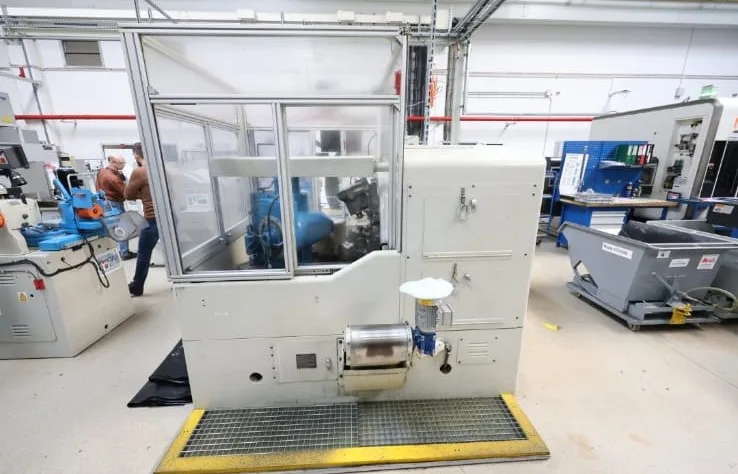

Bevel Gear Generator - Straight No. 104
Ref. No.140
- Brand
- GLEASON-PFAUTER
- Model
- No. 104
- Condition
- used
Cone distance min./max. 0-108 mm.
Pitch angle min/max 5°/84°.
Pitch diameter (1:1 ratio) 152 mm.
Pitch diameter (10:1 ratio) 216 mm.
Diametral pitch (finest/coarsest) 1.3/8.5 Mod.
Face width gear wheel max. 35 mm.
Knife spindle - Speed range 41-121 U/min.
Working spindle speed range 0-33.33 U/min.
Weight 9025 kg.
Machine specifications
- Manufacturer
- GLEASON-PFAUTER
- Model
- No. 104
- Condition
- used
- Type
- Straight Bevel Gear Generator
- Brand
- GLEASON-PFAUTER
- Model
- No. 104
- Weight Kg
- 9025
- Diametral Pitch Mod
- 1.3/8.5
- Pitch Angle Min Max
- 5°/84°
- Cone Distance Min Max
- 0-108 mm
- Pitch Diameter 1 1 Ratio
- 152 mm
- Face Width Gear Wheel Max
- 35 mm
- Knife Spindle Speed Range
- 41-121 U/min
- Pitch Diameter 10 1 Ratio
- 216 mm
- Working Spindle Speed Range
- 0-33.33 U/min
