Bevel Gear Generator - Straight No. 104 CNC
Ref. No.139
- Brand
- GLEASON-PFAUTER
- Model
- No. 104 CNC
- Condition
- used

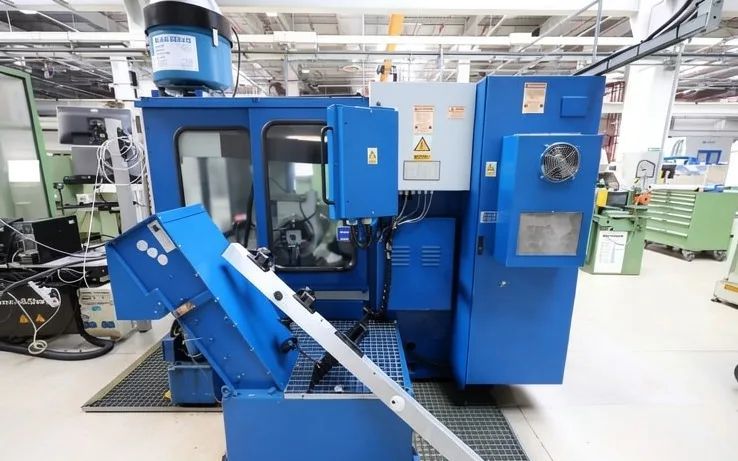

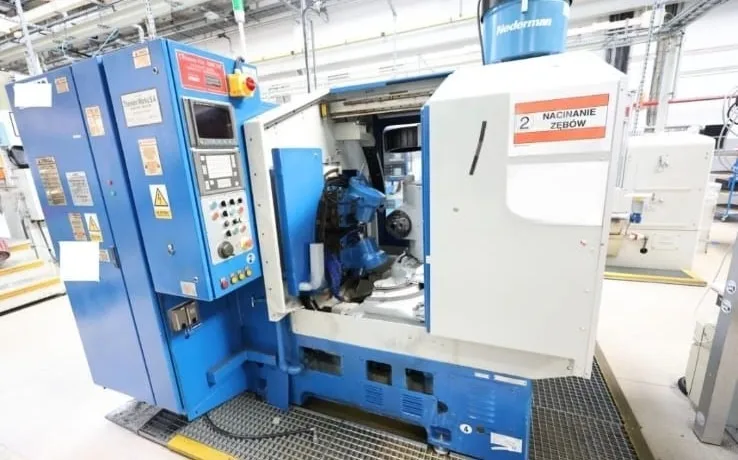

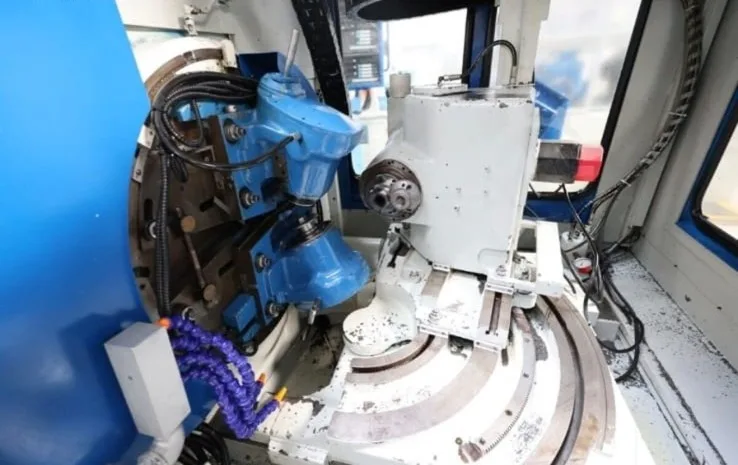

Bevel Gear Generator - Straight GLEASON-PFAUTER No. 104 CNC.
Cone distance min./max. 0-108 mm.
Pitch angle min/max 5°/84°.

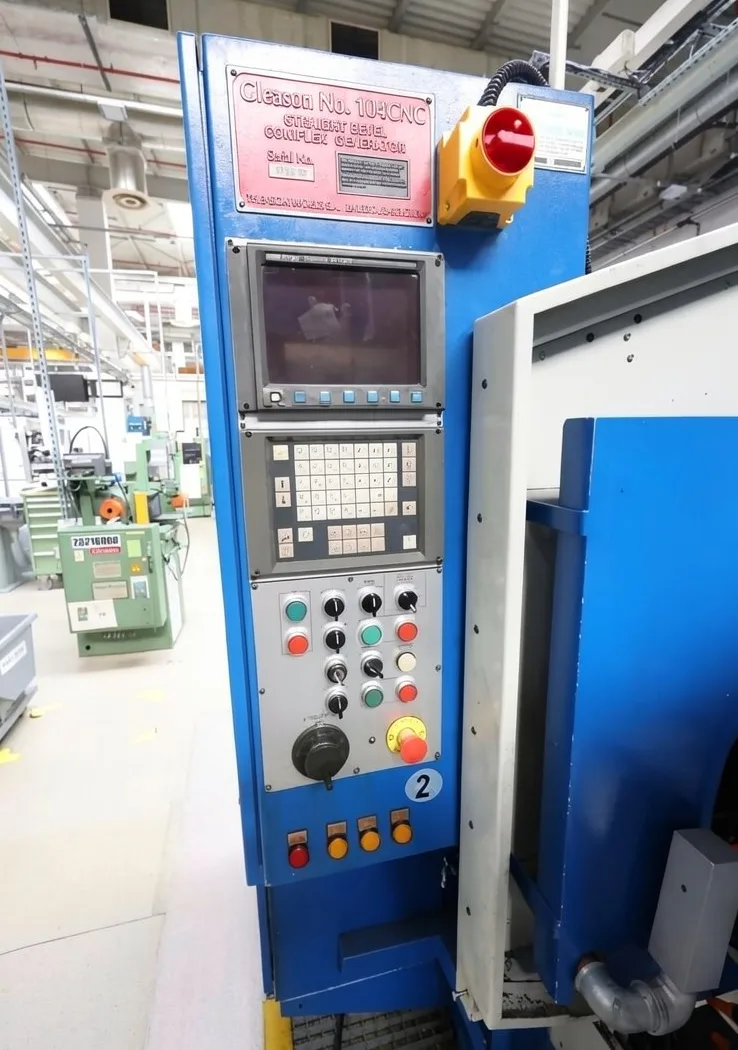

Control GE Fanuc Series 0-GC.
Pitch diameter (1:1 ratio) 152 mm.
Pitch diameter (10:1 ratio) 216 mm.
Diametral pitch (finest/coarsest) 1.3/8.5 Mod.
Face width gear wheel max. 35 mm.
Knife spindle - Speed range 41-121 U/min.
Working spindle speed range 0-33.33 U/min.
Weight 9025 kg.
Machine specifications
- Manufacturer
- GLEASON-PFAUTER
- Model
- No. 104 CNC
- Condition
- used
- Machine Name
- GLEASON-PFAUTER No. 104 CNC
- Machine Type
- Bevel Gear Generator - Straight
- Control System
- GE Fanuc Series 0-GC
