Vertical Machining Centres
CNC 5 AXIS VERTICAL MACHINING CENTRE VALUTECH WALDRICH-COBURG
Ref. No.191
- Brand
- WALDRICH-COBURG
- Model
- VALUTECH
- Condition
- used

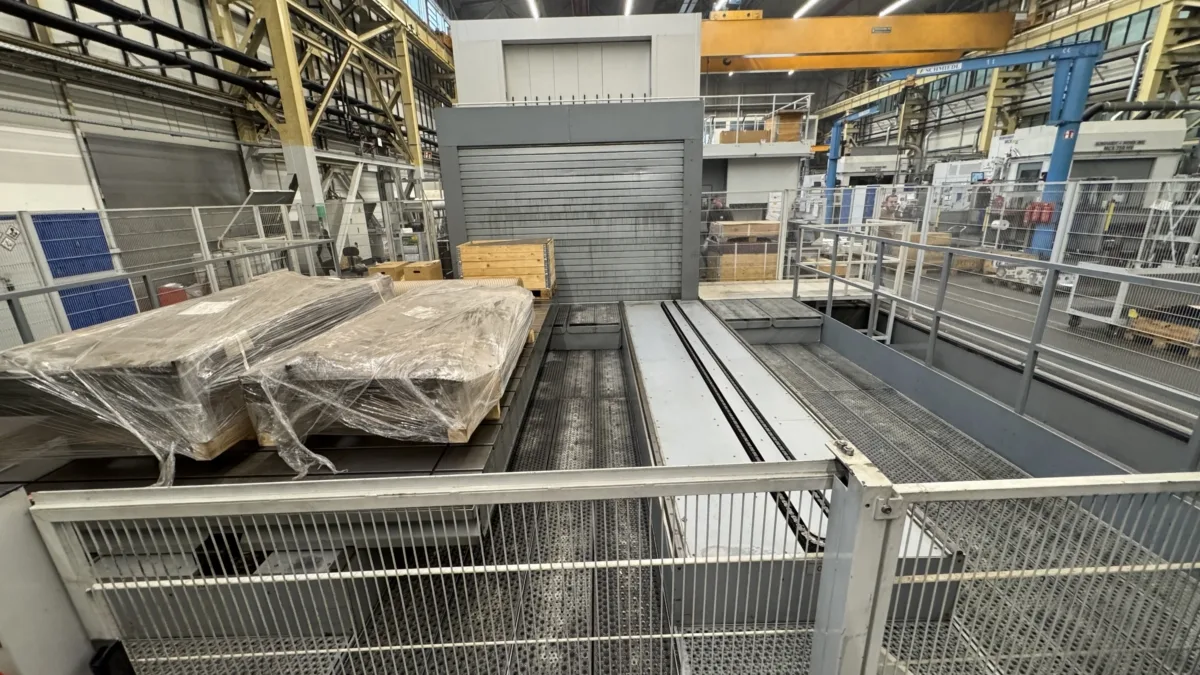

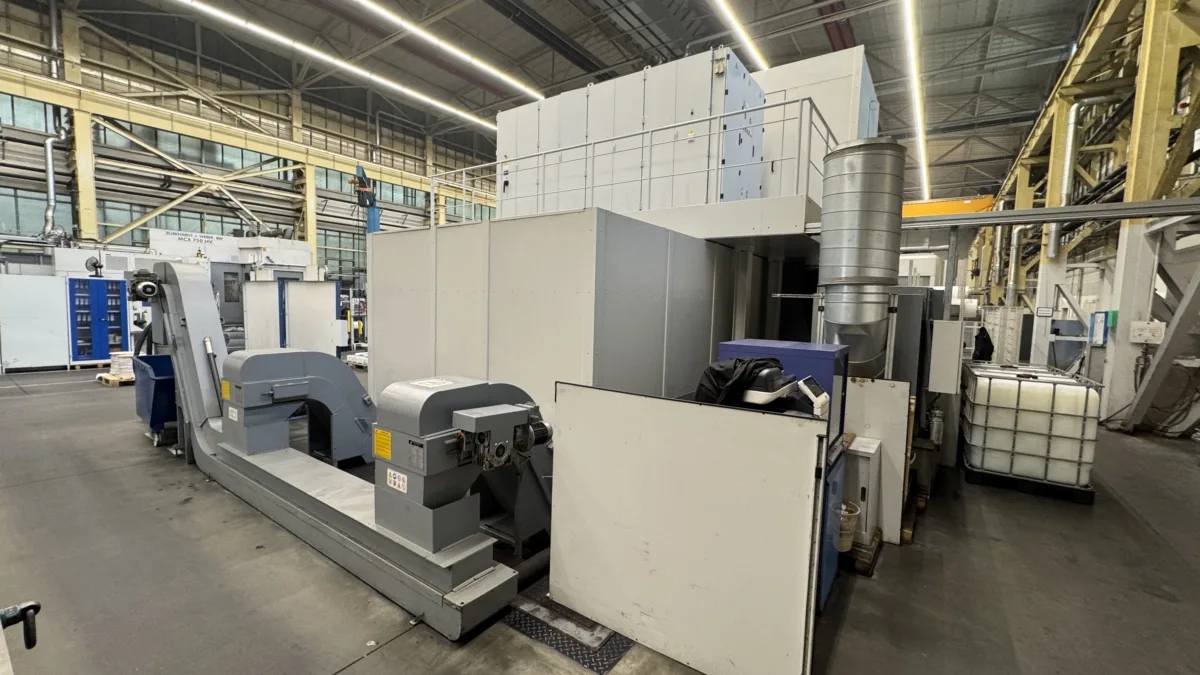

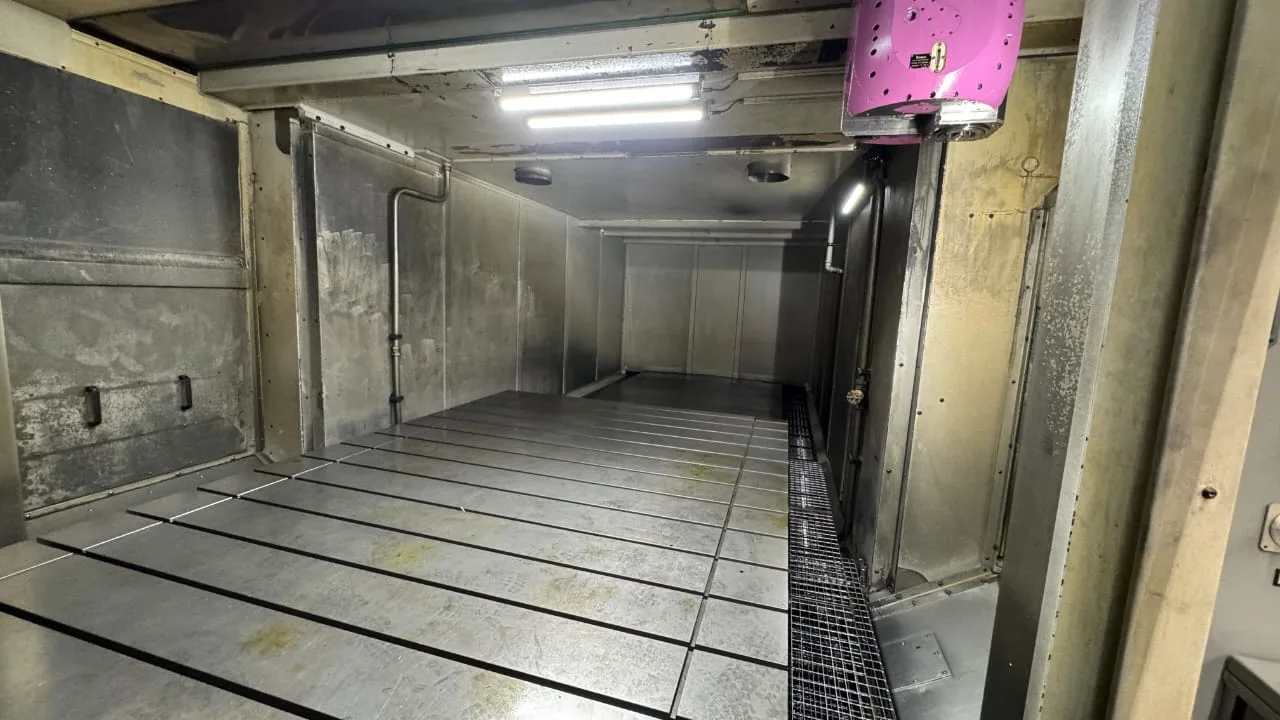

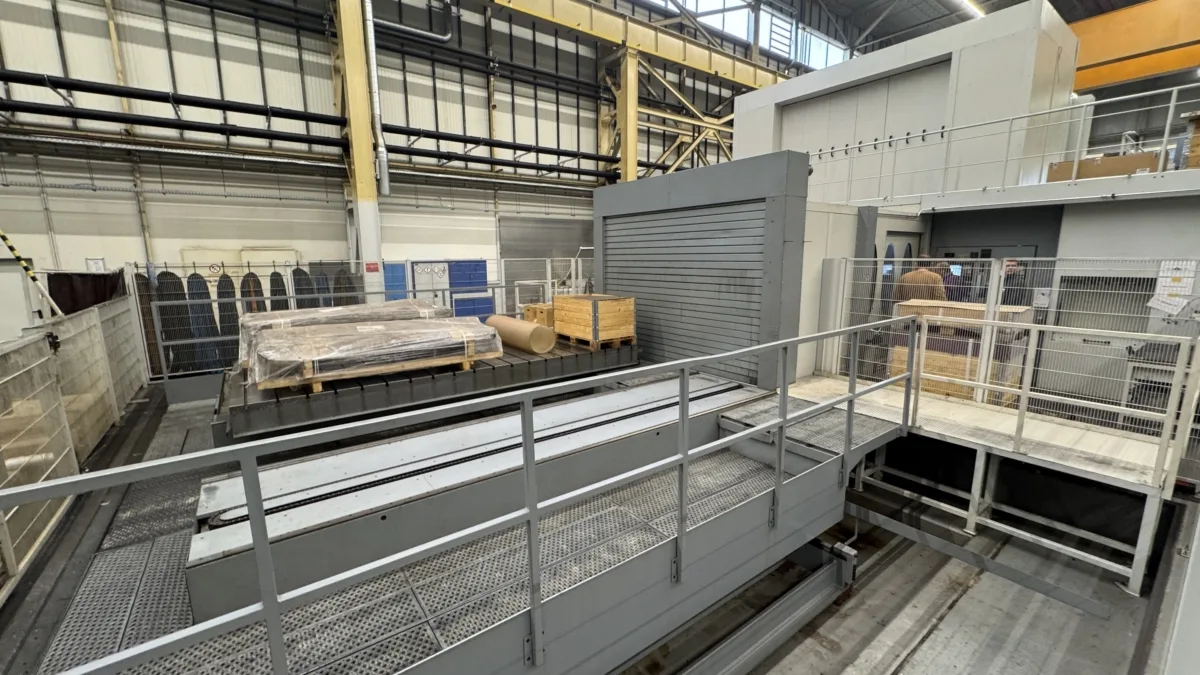

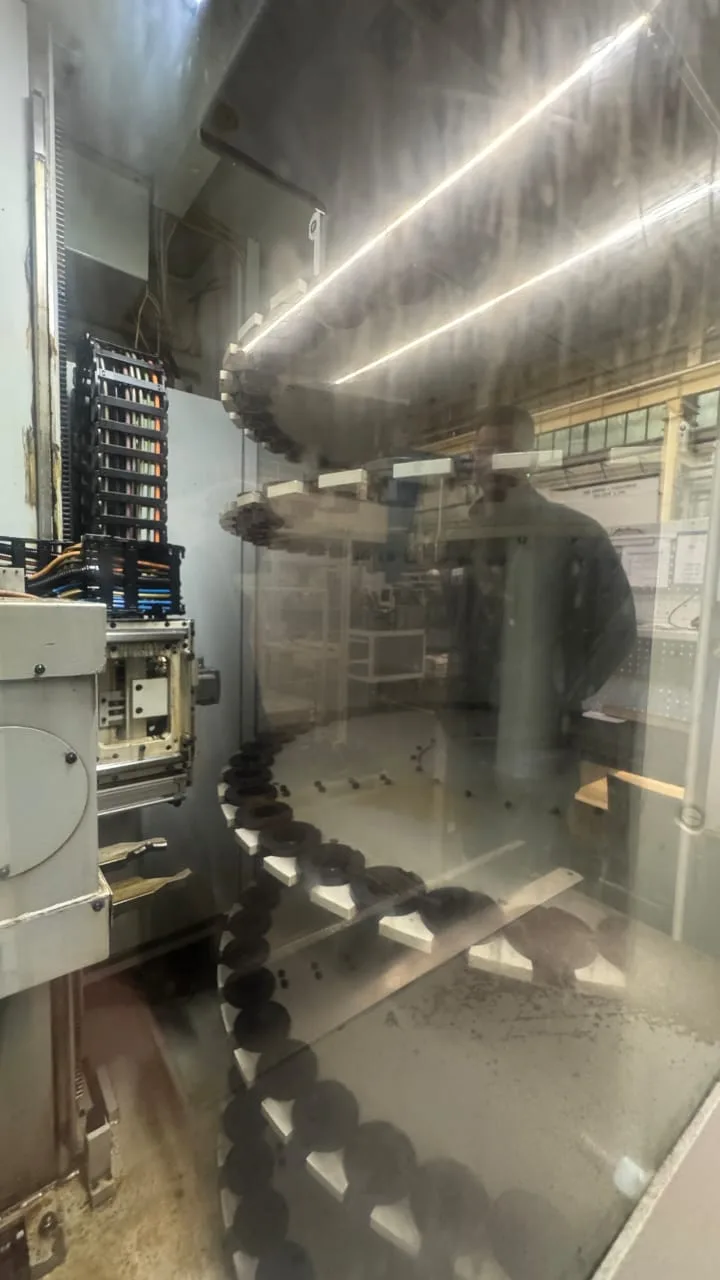

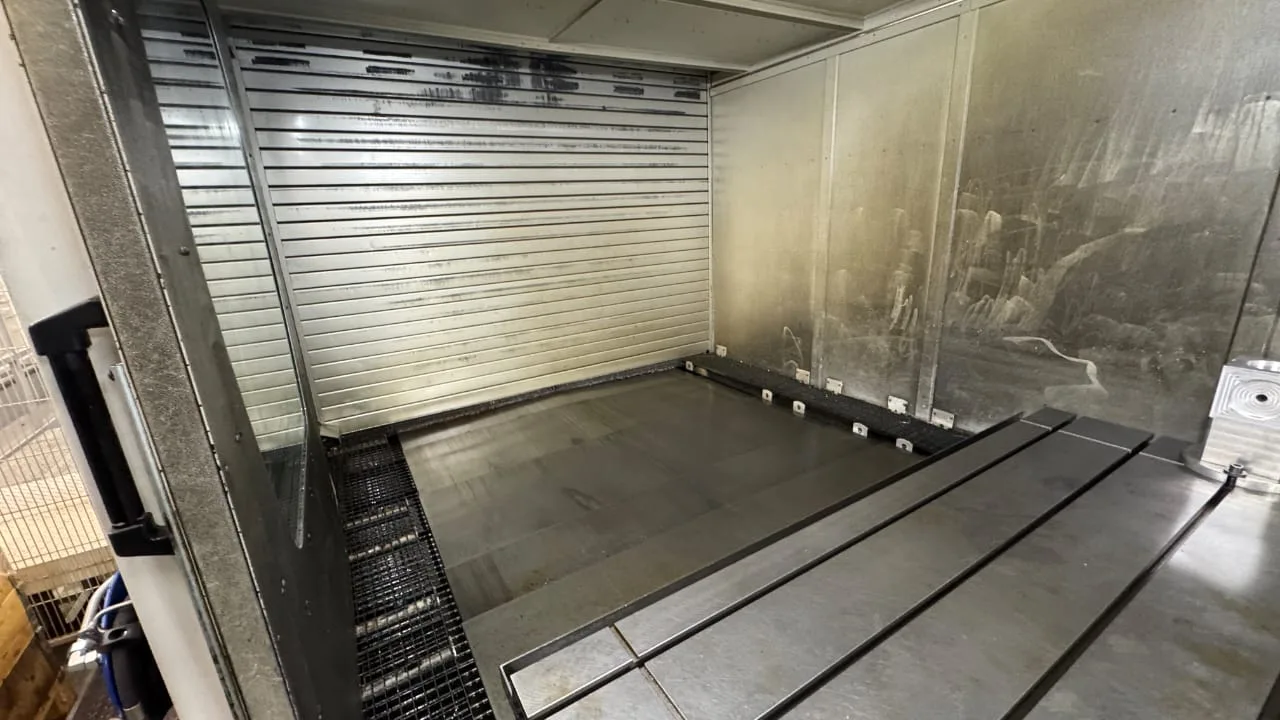

WALDRICH-COBURG VALUTECH – CNC 5 Axis Vertical Machining Centre
Machine Specifications
Control System:Siemens 840D
Pallet Changer:Included

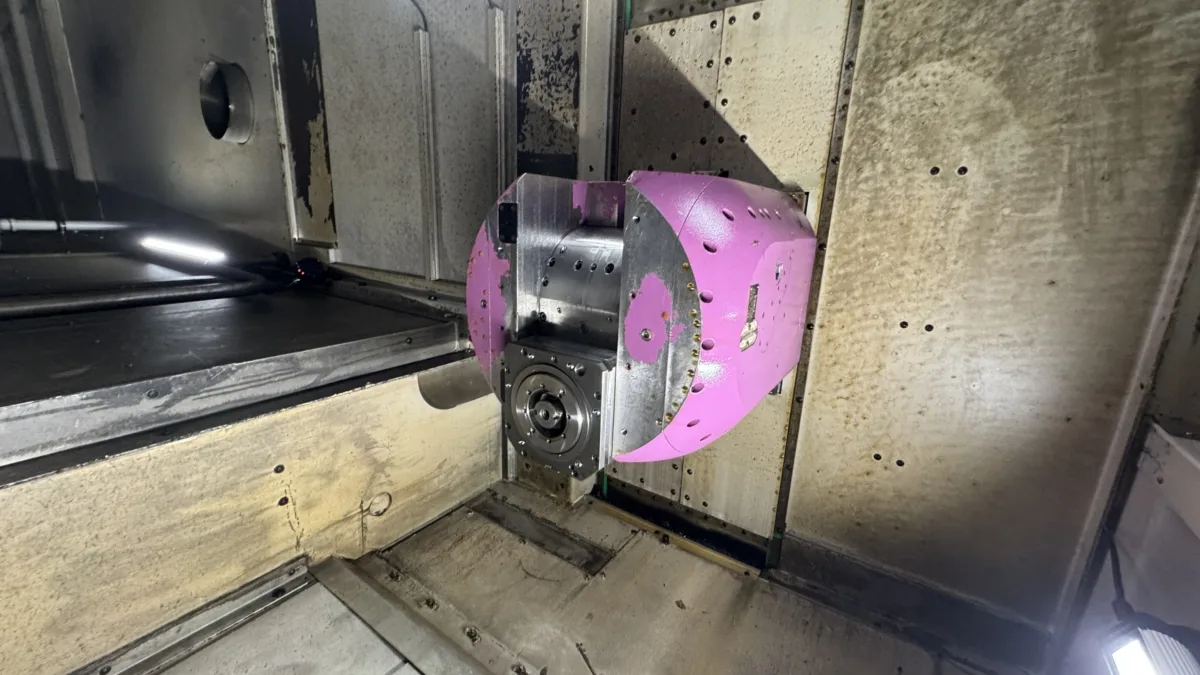

New Machining Head Installed:2021
Axis Travel & Capacity
X-Axis Travel:6,000 mm
Y-Axis Travel:3,500 mm
Z-Axis Travel:1,500 mm

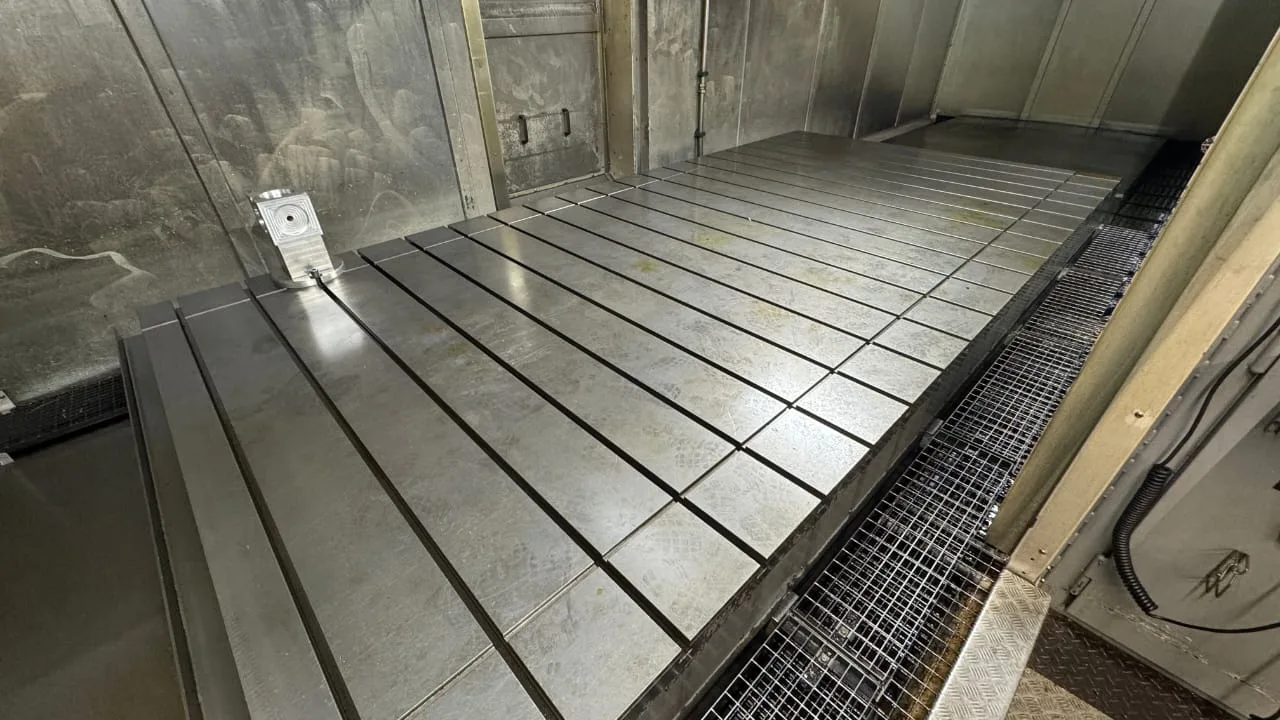

Table Length:5,000 mm
Table Width:2,500 mm
Distance Between Columns:3,000 mm
Tool Magazine & Spindle
Automatic Tool Changer Capacity:200 Tools
Maximum Tool Weight:30 kg
Tool Taper:HSK A 100
Maximum Tool Diameter:250 mm
Maximum Tool Length:500 mm
Spindle Speed Range:5 – 6,000 RPM
Axis Configuration
C-Axis:-10° to 370°
B-Axis:5° to -95°
Machine Weight
Total Weight:160 Tons
Machine specifications
- Manufacturer
- WALDRICH-COBURG
- Model
- VALUTECH
- Condition
- used
- Brand
- WALDRICH-COBURG
- Model
- VALUTECH
- Machine
- CNC 5 Axis Vertical Machining Centre
- Condition
- Excellent working condition
