CNC 8-Axis Gear and Profile Grinding Machine
Ref. No.228
- Brand
- Samputensili (Italy)
- Model
- S400 GT
- Condition
- used

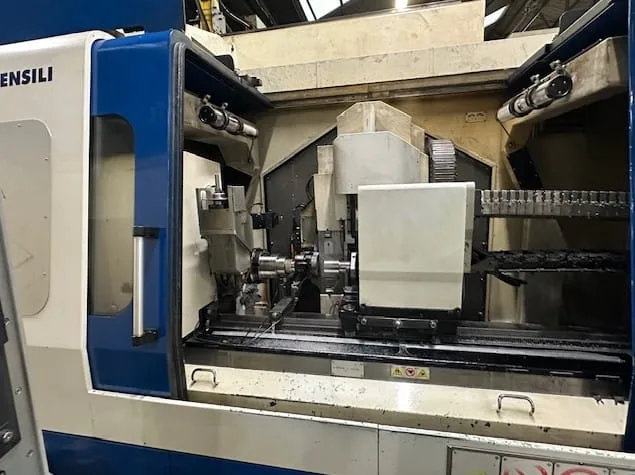

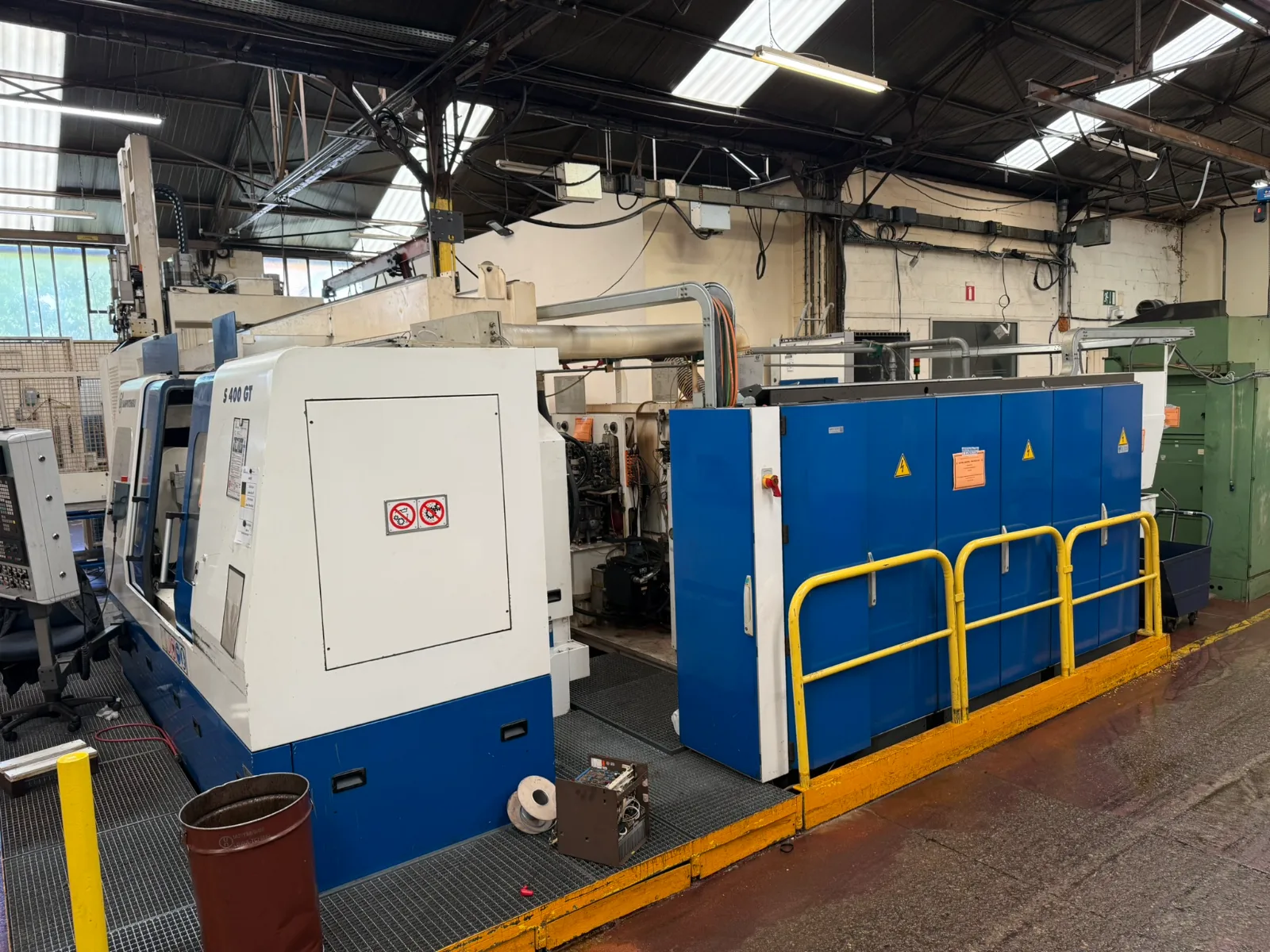

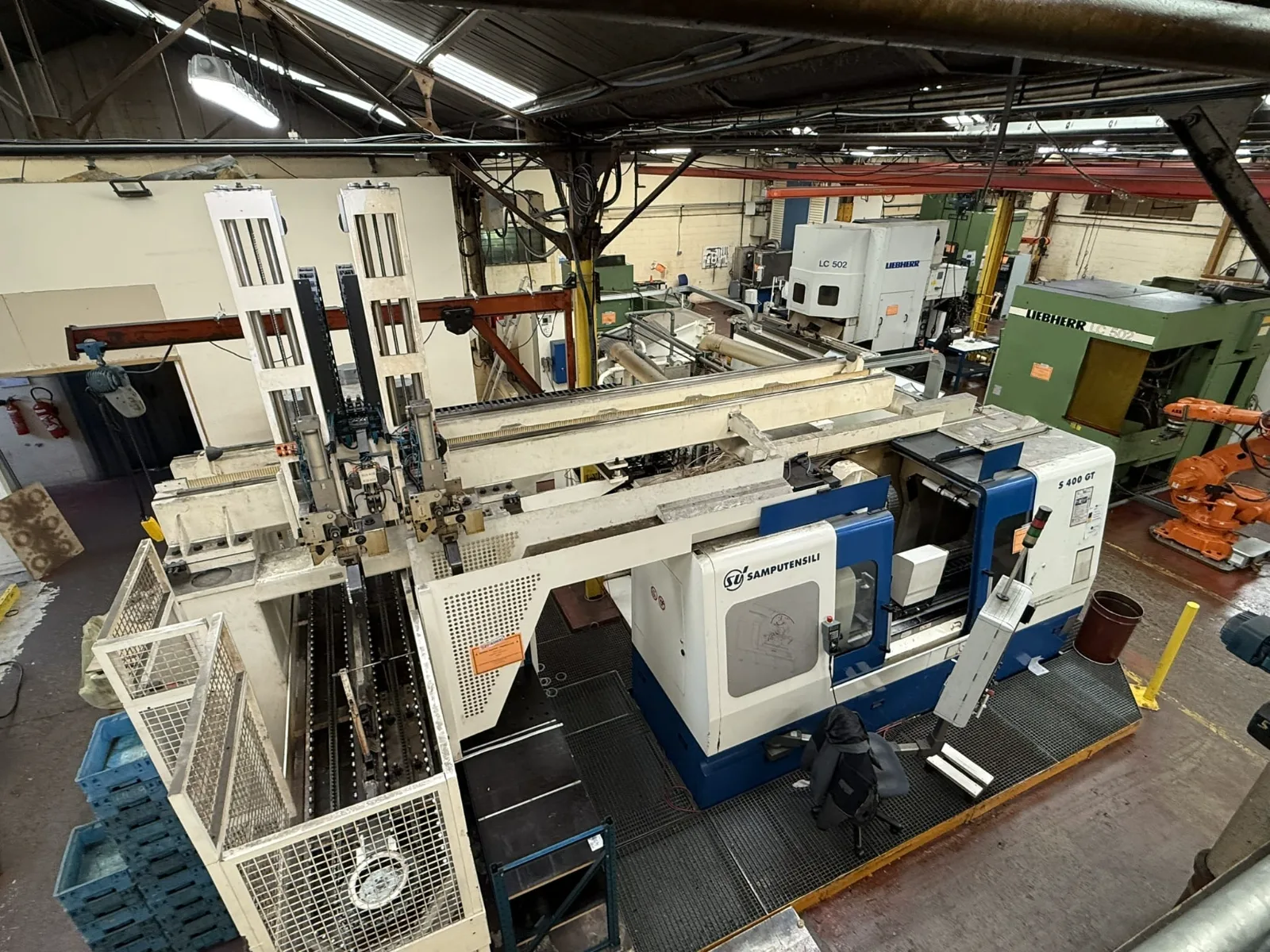

CNC 8-Axis Gear and Profile Grinding Machine
Brand:Samputensili (Italy)
Model:S400 GT
Year:2004

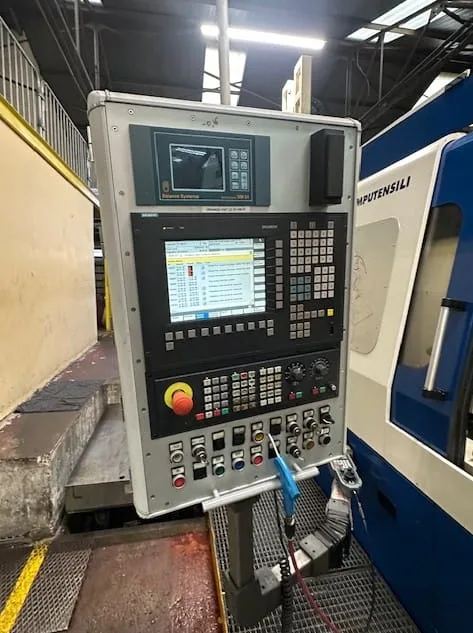

Control:Siemens 840D
Maximum Part Length:900 mm
Maximum Part Diameter:400 mm
Maximum Face Width:750 mm
Maximum Module (Continuous Generation of Crushing Screw): 6
Maximum Profile Depth:
- With Dressing Wheel:0.5 - 20 mm
- With Electrocoated Profiled Wheel:0.5 - 40 mm
Grinding Wheel Diameter:80 - 280 mm
Grinding Spindle Speed:0 - 15000 rpm
Workpiece Spindle Speed:0 - 1000 rpm
Dressing System Spindle Speed:0 - 4000 rpm
Main Motor Power:36 kW
Total Power Requirement:1000 kVA
Features:
- Production of Profiles and Endless Screws
- Gear Profiling by Multi-Axis
- Gear Profiling by Shaped Wheel
- Compatible with CBN Wheels
- Maximum 4 CBN Wheels on the Same Spindle
- Automatic Roughing and Finishing Wheel Management
Condition:Very Good
Accessories:Full Set Included
Machine specifications
- Manufacturer
- Samputensili (Italy)
- Model
- S400 GT
- Condition
- used
- Year
- 2004
- Brand
- Samputensili
- Model
- S400 GT
- Control
- Siemens 840D
- Category
- CNC Machines
- Features
- Production of Profiles and Endless Screws, Gear Profiling by Multi-Axis, Gear Profiling by Shaped Wheel, Compatible with CBN Wheels, Maximum 4 CBN Wheels on the Same Spindle, Automatic Roughing and Finishing Wheel Management
- Condition
- Very Good
- Accessories
- Full Set Included
- Subcategory
- CNC Gear Grinding Machines
- Machine Name
- CNC 8-Axis Gear and Profile Grinding Machine
- Main Motor Power
- 36 kW
- Country Of Origin
- Italy
- Maximum Face Width
- 750 mm
- Maximum Part Length
- 900 mm
- Maximum Part Diameter
- 400 mm
- Grinding Spindle Speed
- 0 - 15000 rpm
- Grinding Wheel Diameter
- 80 - 280 mm
- Total Power Requirement
- 1000 kVA
- Workpiece Spindle Speed
- 0 - 1000 rpm
- Dressing System Spindle Speed
- 0 - 4000 rpm
- Maximum Profile Depth With Dressing Wheel
- 0.5 - 20 mm
- Maximum Module Continuous Generation Of Crushing Screw
- 6
- Maximum Profile Depth With Electrocoated Profiled Wheel
- 0.5 - 40 mm
