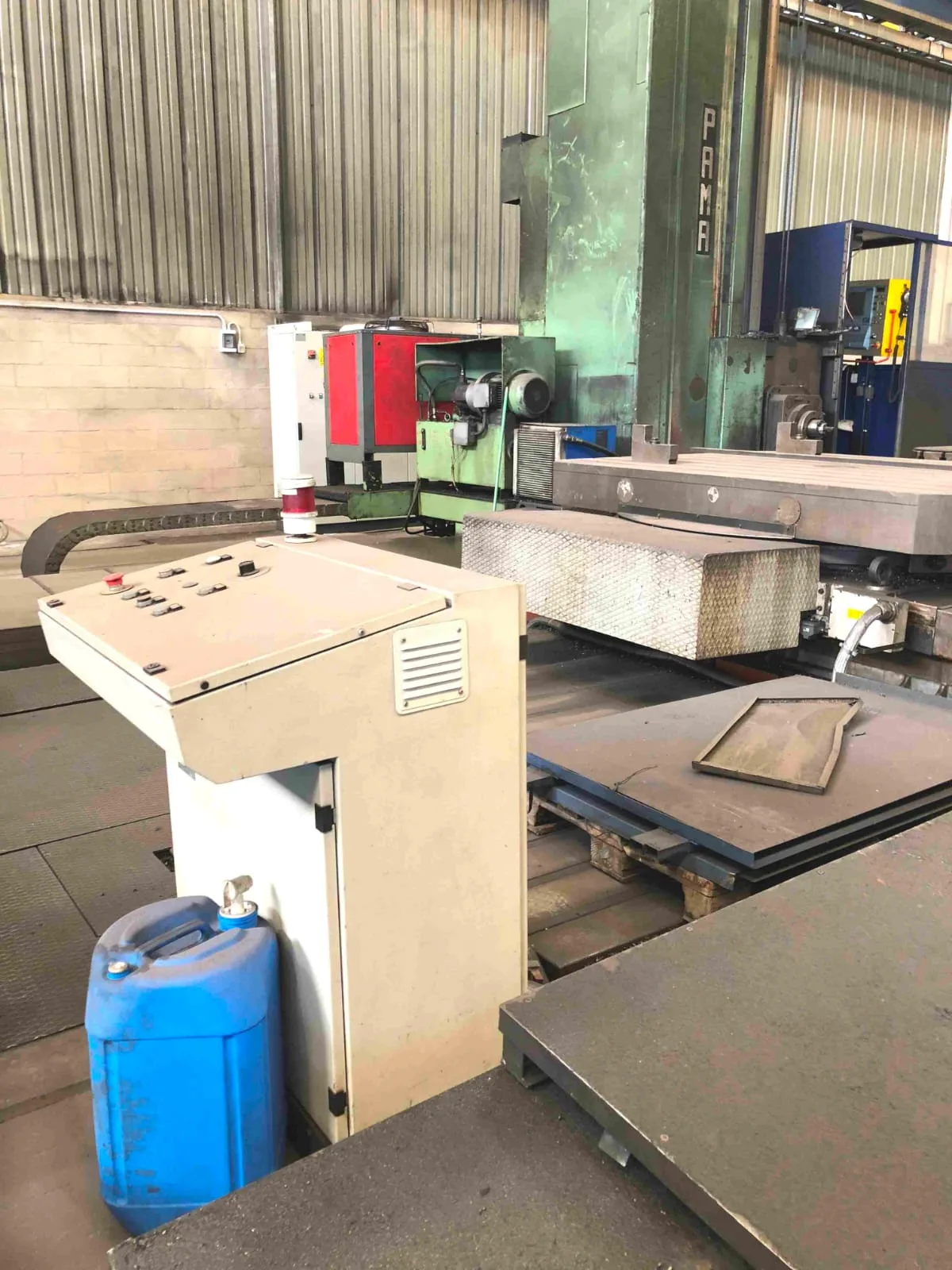

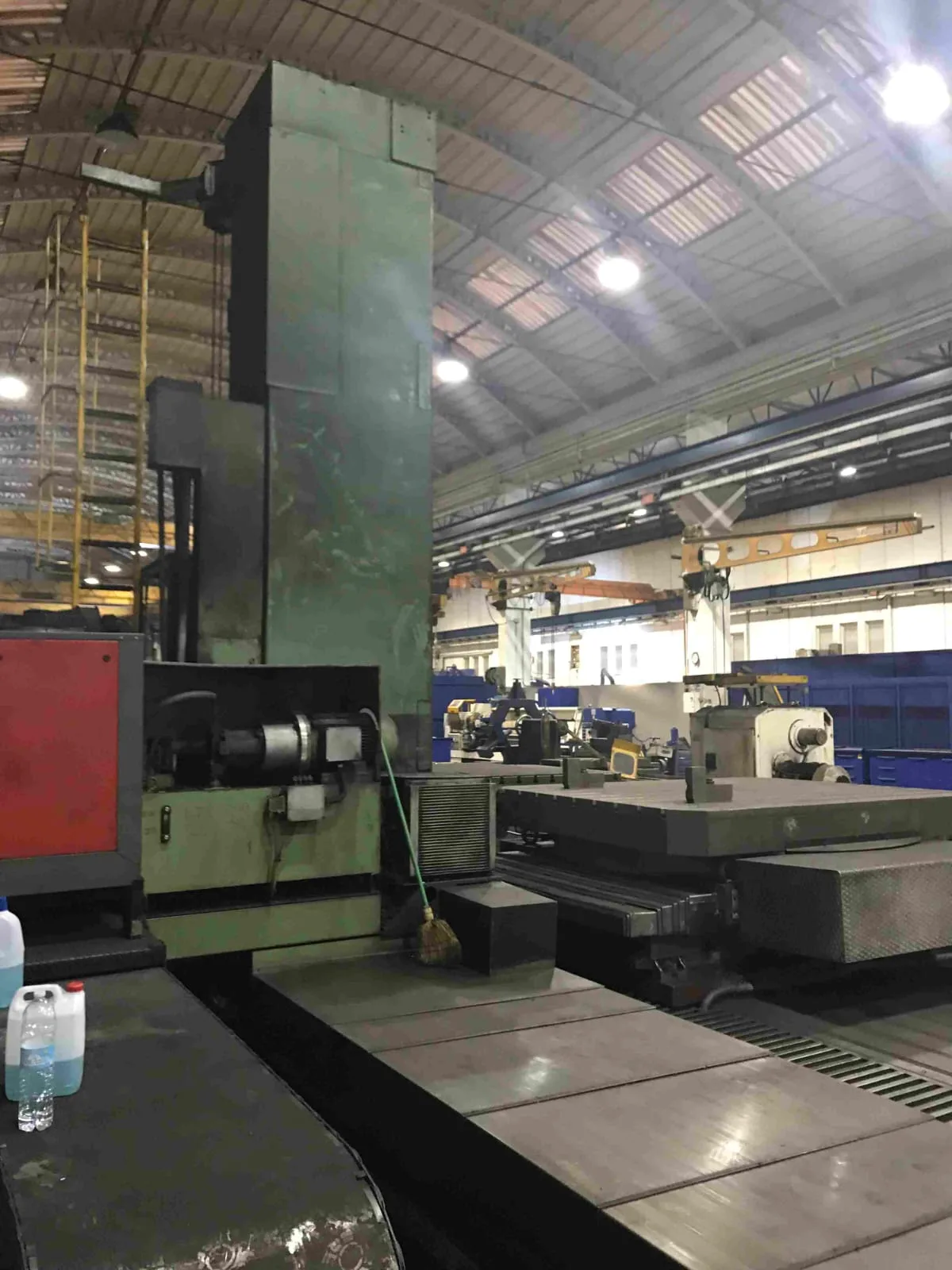

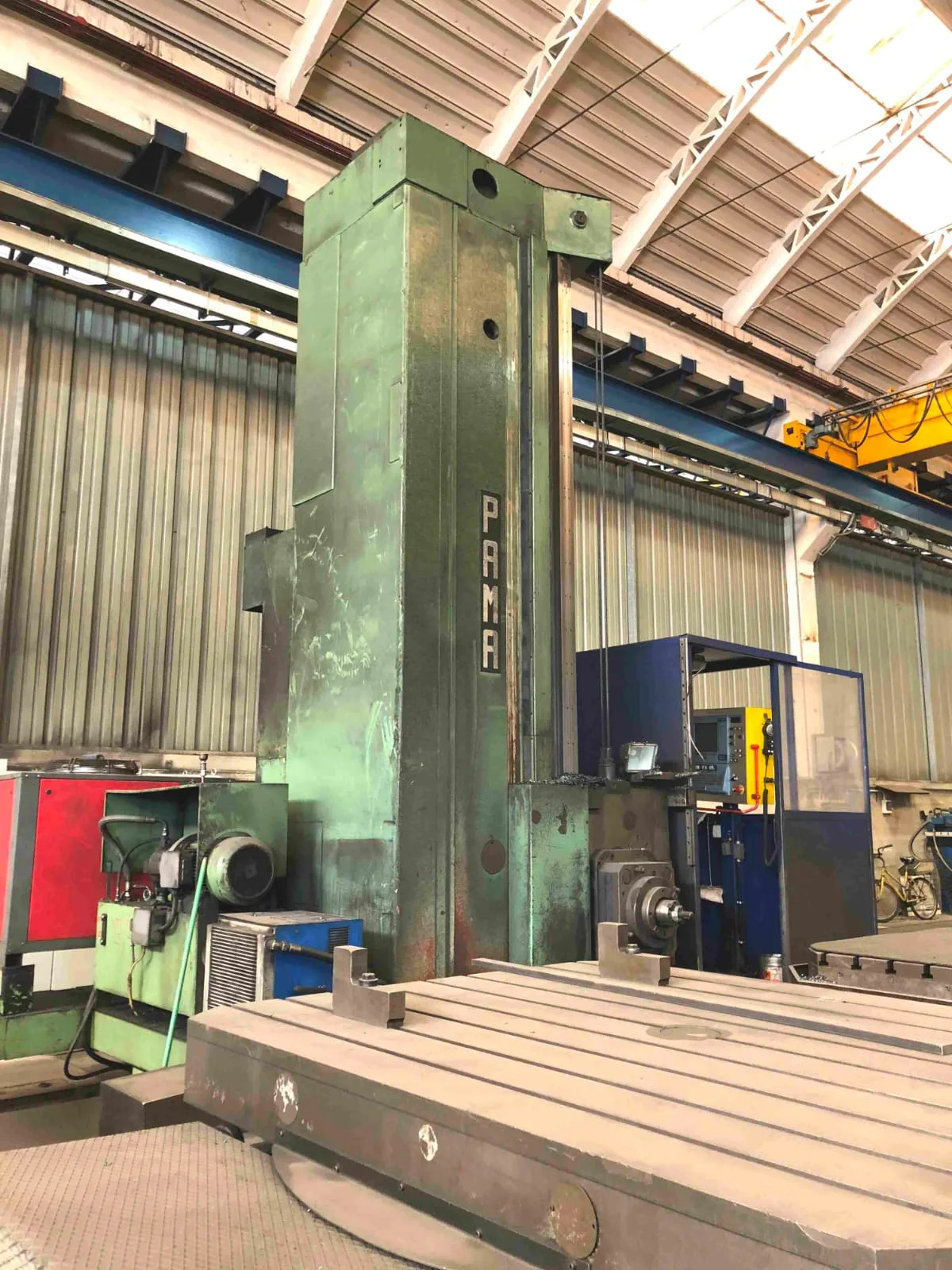

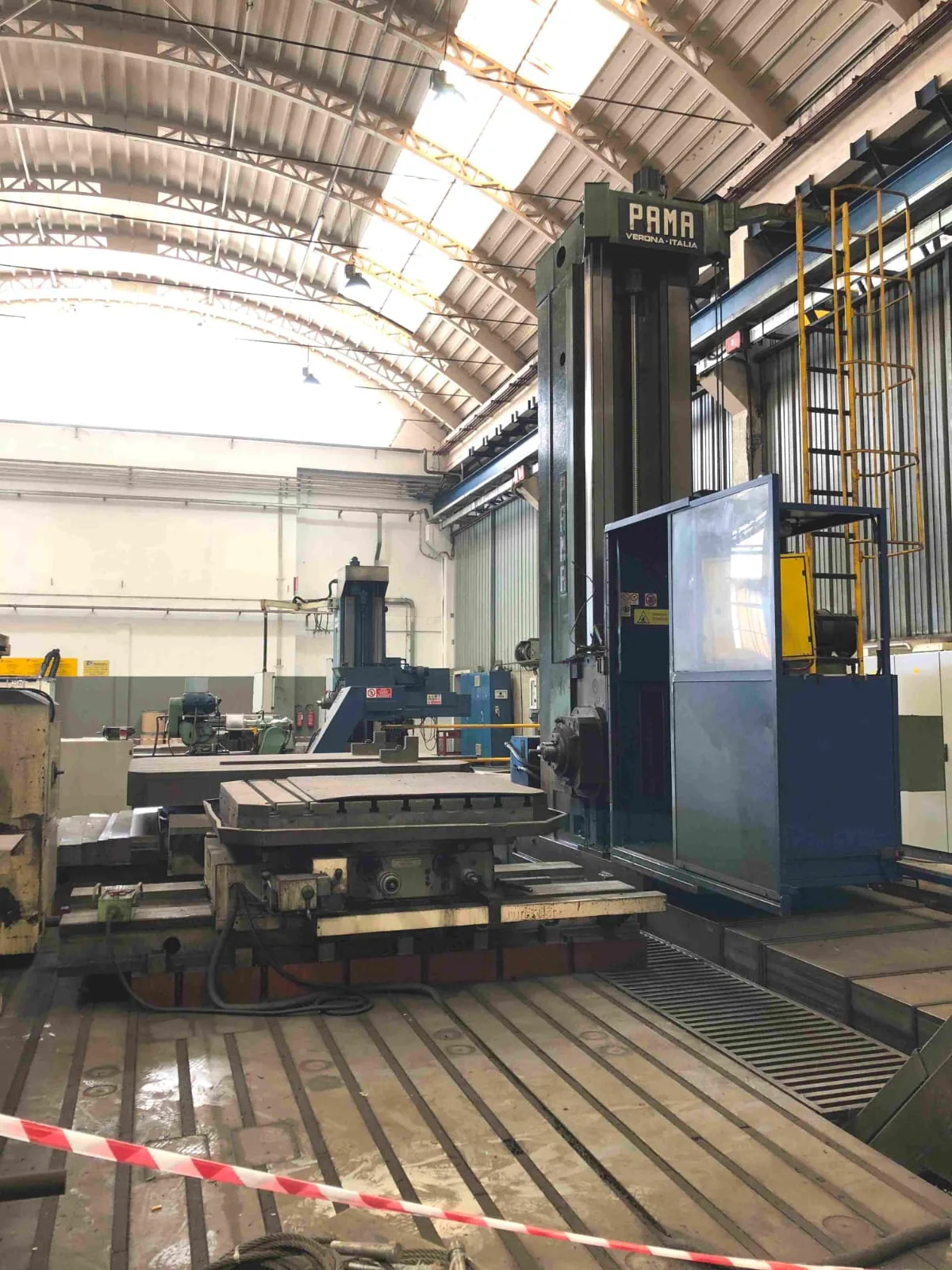

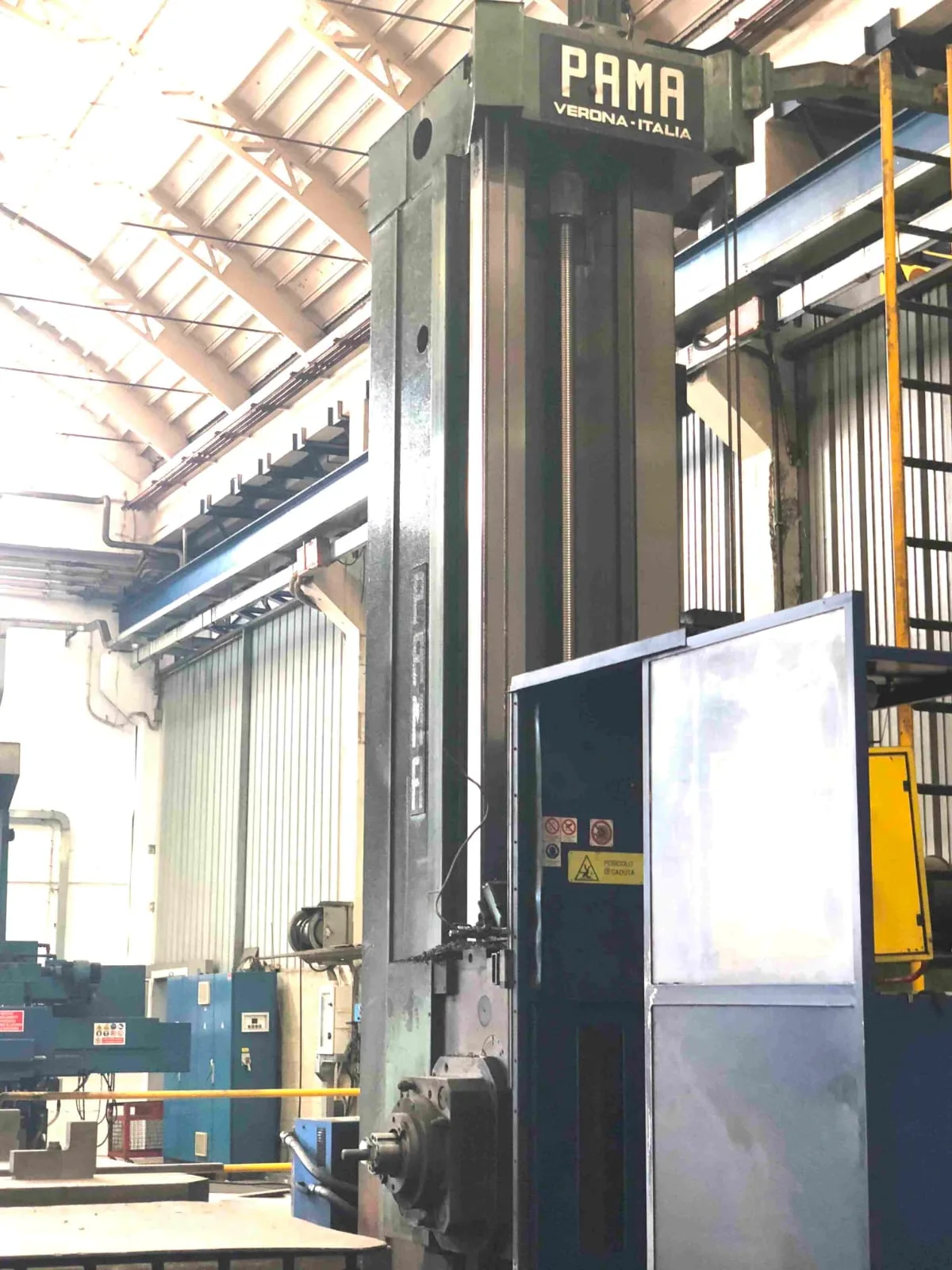

CNC Floor Type Horizontal Boring Machine PAMA AP 130 M
Ref. No.225
- Brand
- PAMA
- Model
- AP 130 M
- Condition
- used
Pama AP 130 M CNC FLOOR TYPE BORER
Column travel (x):5.000 mm.
Head vertical travel (y):3.200 mm.
Spindle travel (z):Iso 50 - 1.000 mm.

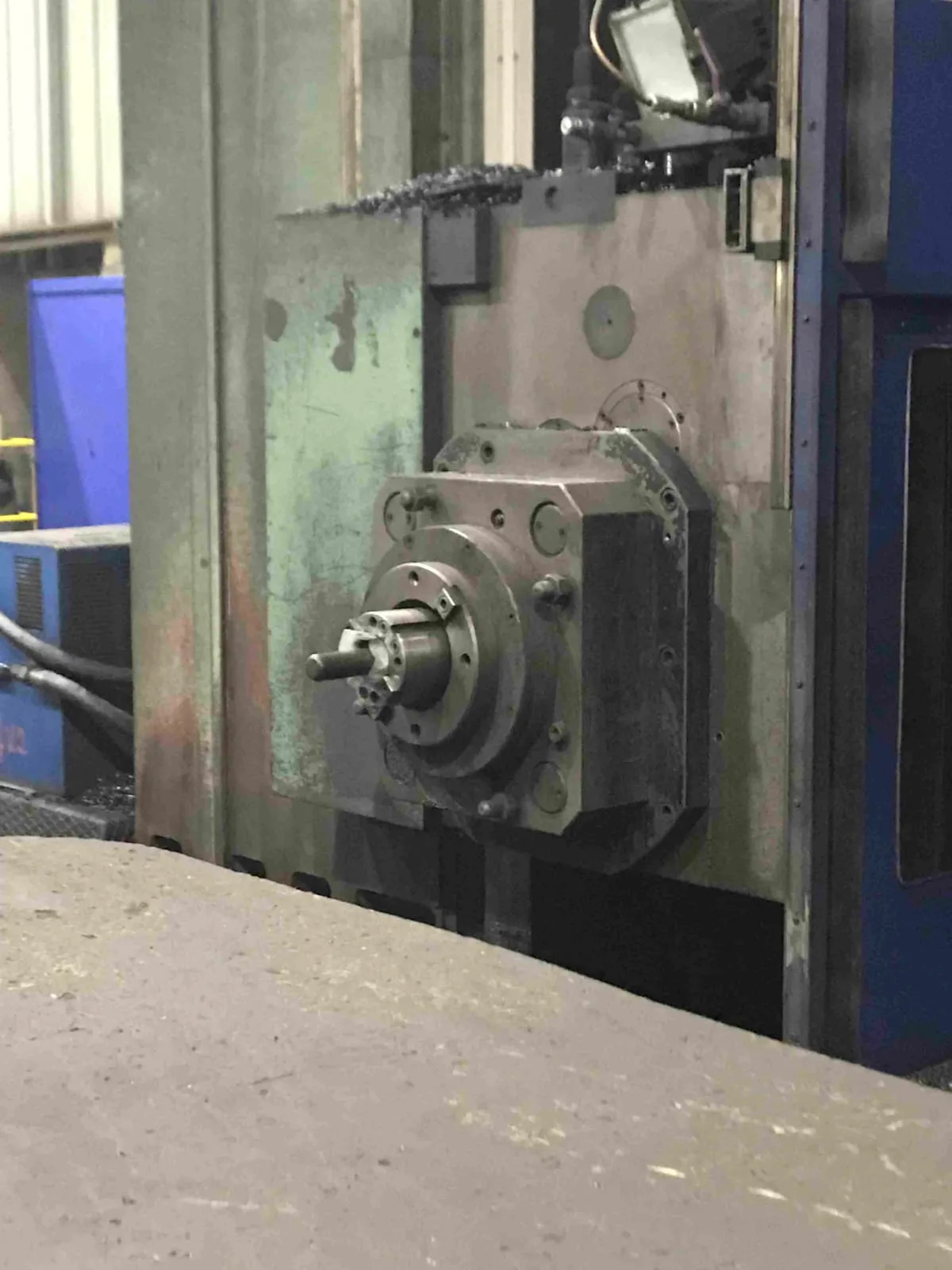

Spindle ø:130 mm.
Spindle motor power:36 kw.
Spindle speeds:4÷1.250 rpm.
Cnc:Ecs 4802
Total weight:50 tons.
Built/retrofitted in:1982/2005
Complete with:
Rotary table pcs 2:2.500 x 2.000 mm.
Capacity:12 ton
Machine specifications
- Manufacturer
- PAMA
- Model
- AP 130 M
- Condition
- used
- Brand
- PAMA
- Model
- AP 130 M
- Control
- ECS 4802
- Category
- CNC Machines
- Table Size
- 2500 × 2000 mm
- Year Built
- 1982
- Subcategory
- Floor Type Horizontal Boring Machines
- Machine Name
- CNC Floor Type Horizontal Boring Machine
- Total Weight
- 50 Ton
- Rotary Tables
- 2
- X Axis Travel
- 5000 mm
- Y Axis Travel
- 3200 mm
- Z Axis Travel
- 1000 mm
- Spindle Diameter
- 130 mm
- Year Retrofitted
- 2005
- Spindle Motor Power
- 36 kW
- Spindle Speed Range
- 4–1250 rpm
- Table Load Capacity
- 12 Ton
