Floor Type
CNC Floor Type Horizontal Boring Machine TOS Varnsdorf WRD130CNC
Ref. No.214
- Brand
- TOS Varnsdorf
- Model
- WRD130CNC
- Condition
- used

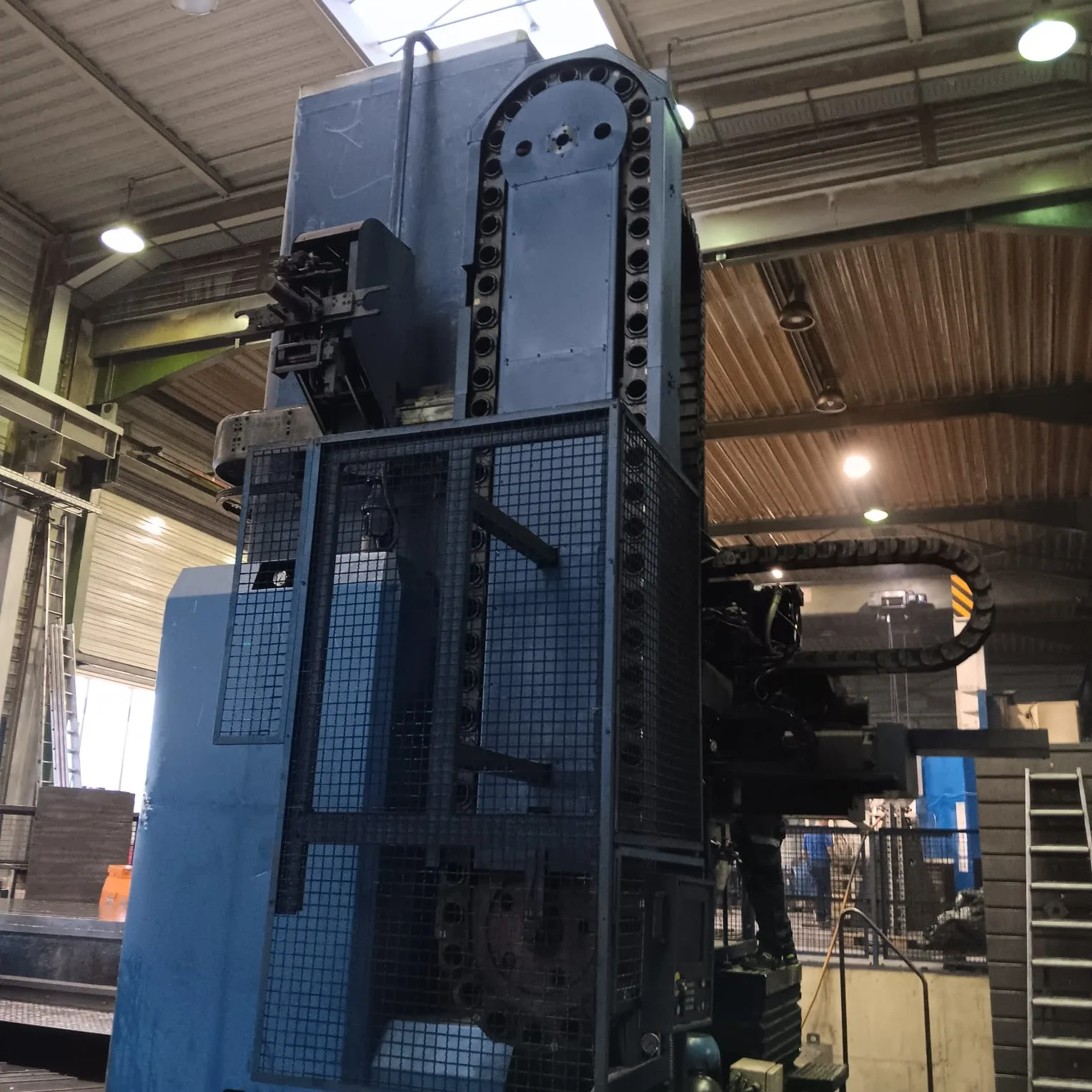

Machine Name:CNC Floor Type Horizontal Boring Machine
Brand:TOS Varnsdorf
Model:WRD130CNC
Year:-2001
Spindle Diameter:130 mm

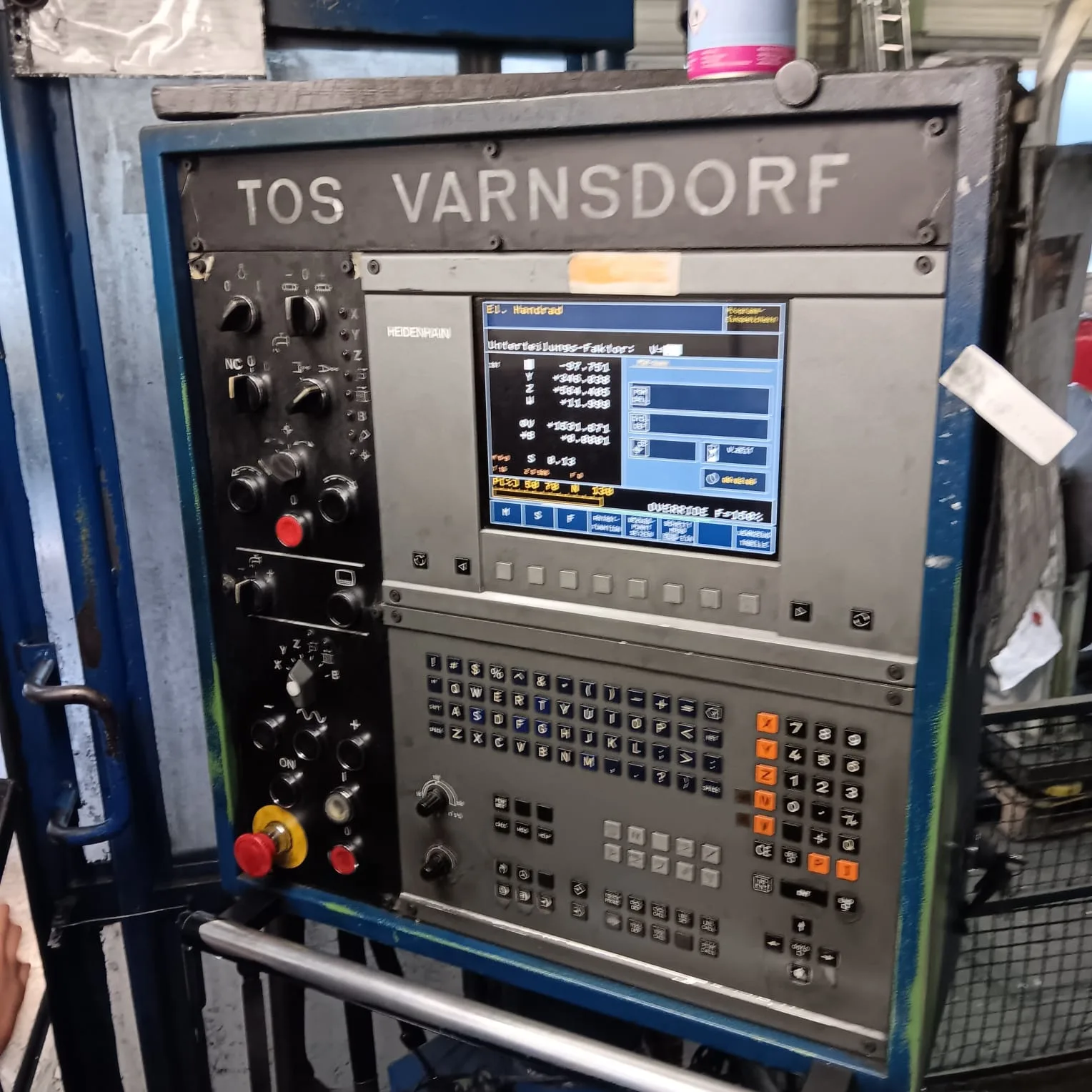

Control:Heidenhain 426
X-Axis Travel:6000 mm
Y-Axis Travel:3000 mm
Z-Axis Travel:800 mm
W-Axis Travel:560 mm
Z + W Travel:1360 mm
V-Axis Table Travel:1800 mm
Maximum Spindle Speed:3000 rpm
Rotary Table:S25
Table Size:2000 × 2500 mm
Table Load Capacity:30000 kg
Automatic Tool Changer:60 Positions

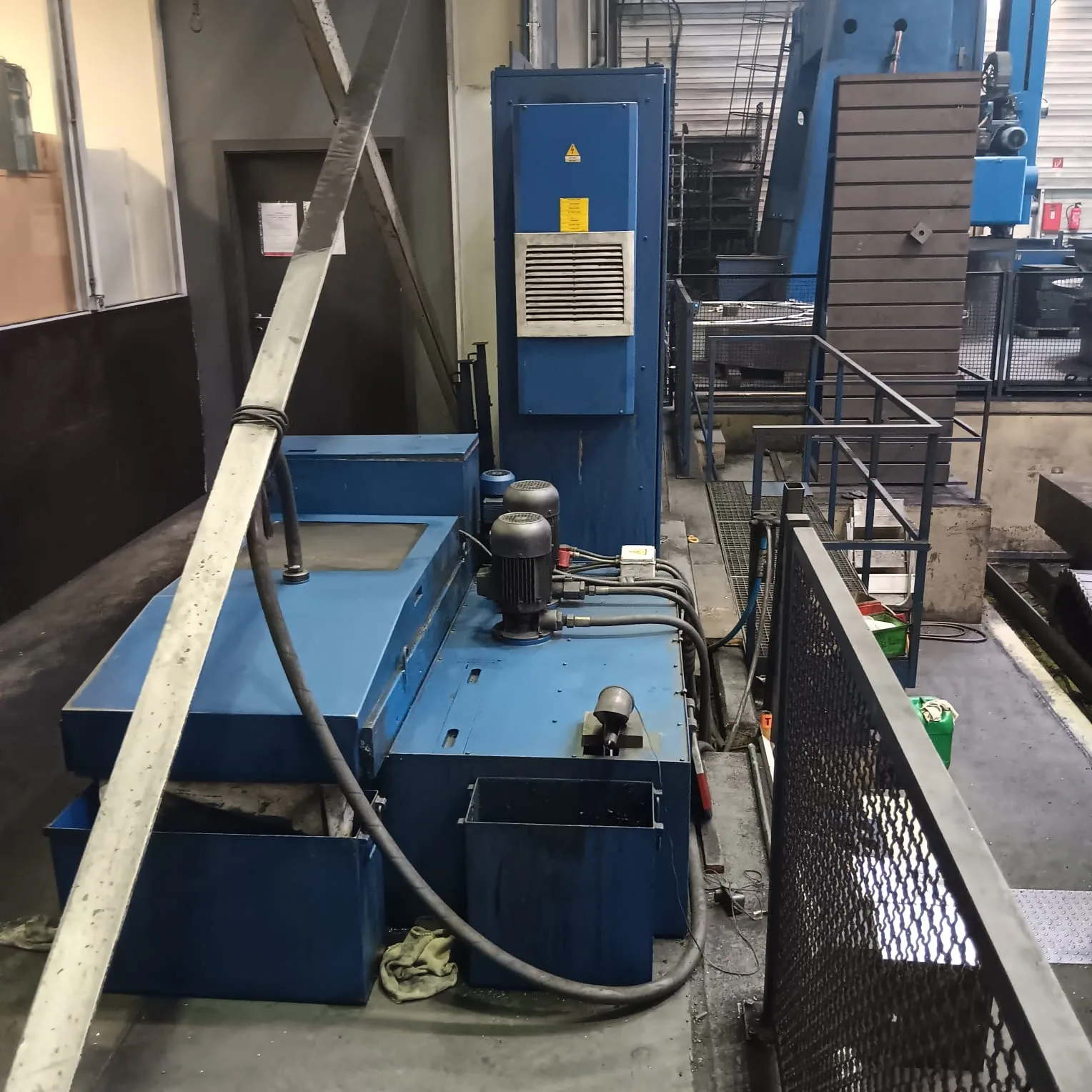

Coolant Through Spindle:Yes
Automatic Indexable Milling Head:HUI 50A
Number of Axes:2
Spindle Power:32 kW
Torque:1000 Nm
Milling Head Weight:440 kg

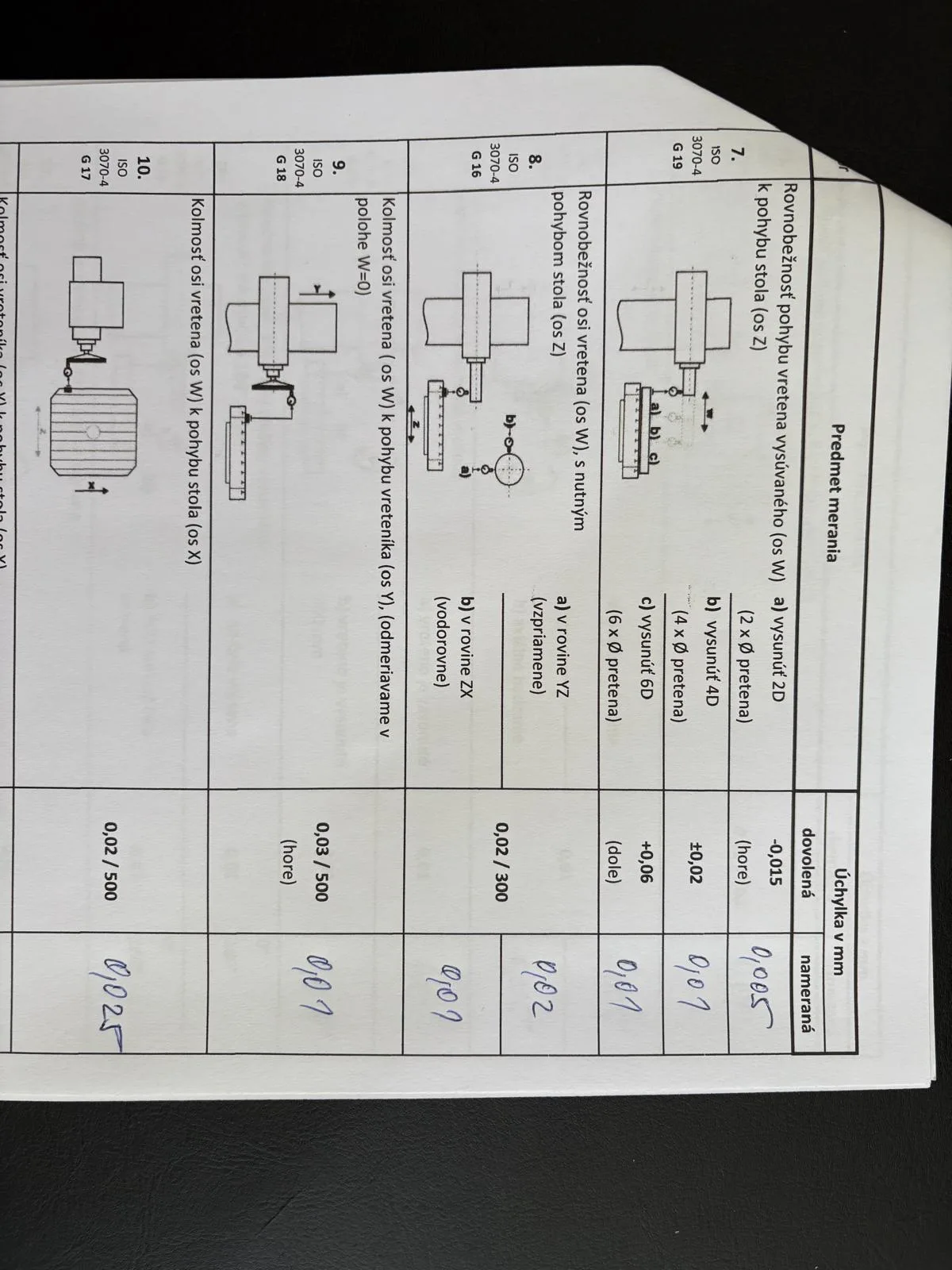

Positioning Accuracy:Index 2.5
Features:
- Through Spindle Coolant
- Rotary Table S25
- Automatic Indexable Milling Head HUI 50A with Pick-Up Station
- Machine Bed Consists of 2 Segments and Can Be Shortened
Machine specifications
- Manufacturer
- TOS Varnsdorf
- Model
- WRD130CNC
- Condition
- used
- Year
- 2001
- Brand
- TOS Varnsdorf
- Model
- WRD130CNC
- Control
- Heidenhain 426
- Features
- Through Spindle Coolant, Rotary Table S25, Automatic Indexable Milling Head HUI 50A with Pick-Up Station, Machine Bed Consists of 2 Segments and Can Be Shortened
- Machine Name
- CNC Floor Type Horizontal Boring Machine
- Spindle / Power Kw
- 32
- Travel / W Axis Mm
- 560
- Travel / X Axis Mm
- 6000
- Travel / Y Axis Mm
- 3000
- Travel / Z Axis Mm
- 800
- Spindle / Torque Nm
- 1000
- Table / Rotary Table
- S25
- Travel / Z Plus W Mm
- 1360
- Spindle / Diameter Mm
- 130
- Table / Size Mm / Width
- 2500
- Machine / Number Of Axes
- 2
- Table / Load Capacity Kg
- 30000
- Table / Size Mm / Length
- 2000
- Travel / V Axis Table Mm
- 1800
- Spindle / Maximum Speed Rpm
- 3000
- Machine / Positioning Accuracy
- Index 2.5
- Machine / Milling Head Weight Kg
- 440
- Tooling / Coolant Through Spindle
- true
- Tooling / Automatic Indexable Milling Head
- HUI 50A
- Tooling / Automatic Tool Changer Positions
- 60
