Gear Hobbers
CNC Gear Hobber LC 82
Ref. No.178
- Brand
- Liebherr
- Model
- LC 82
- Condition
- used

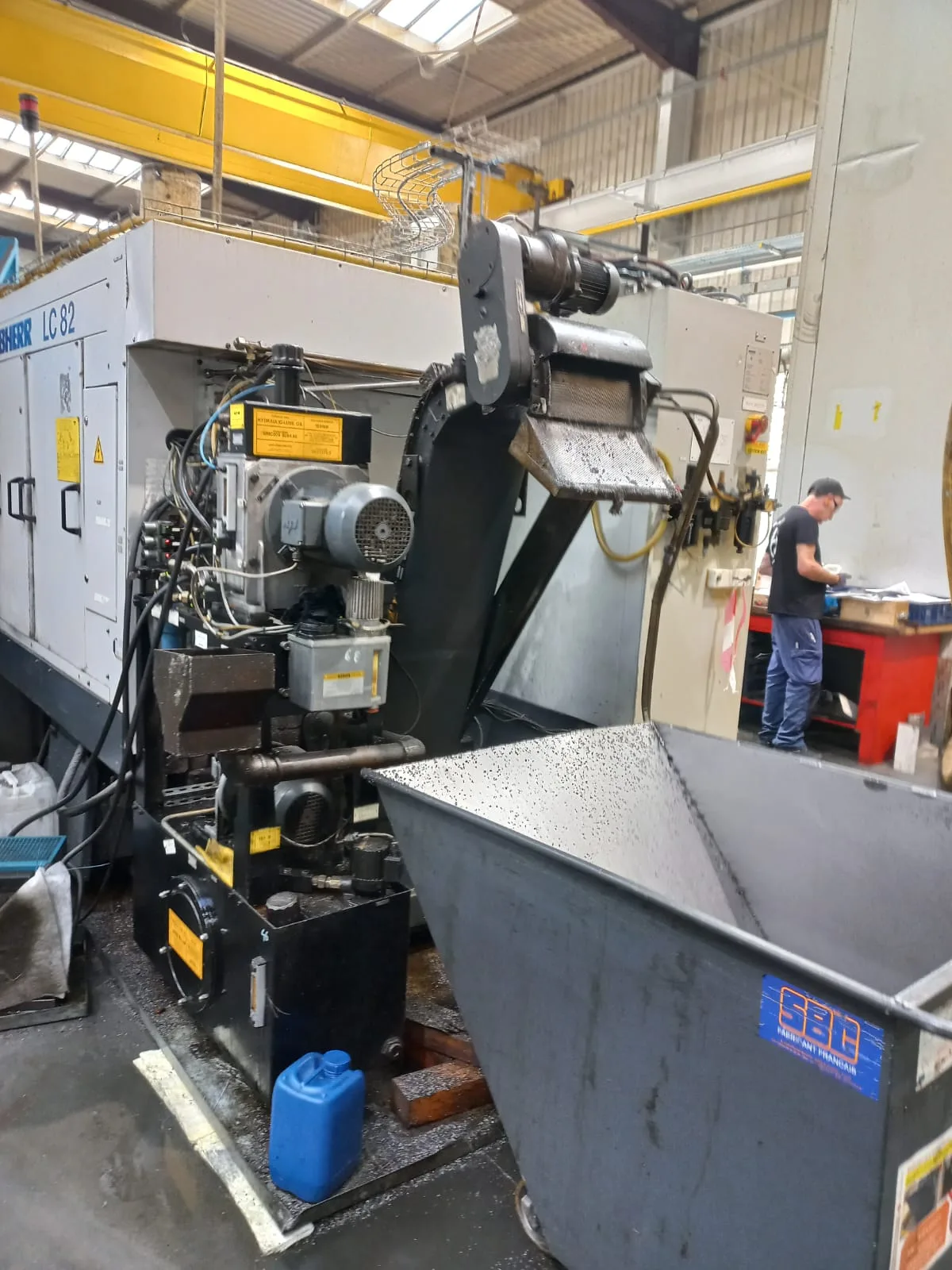

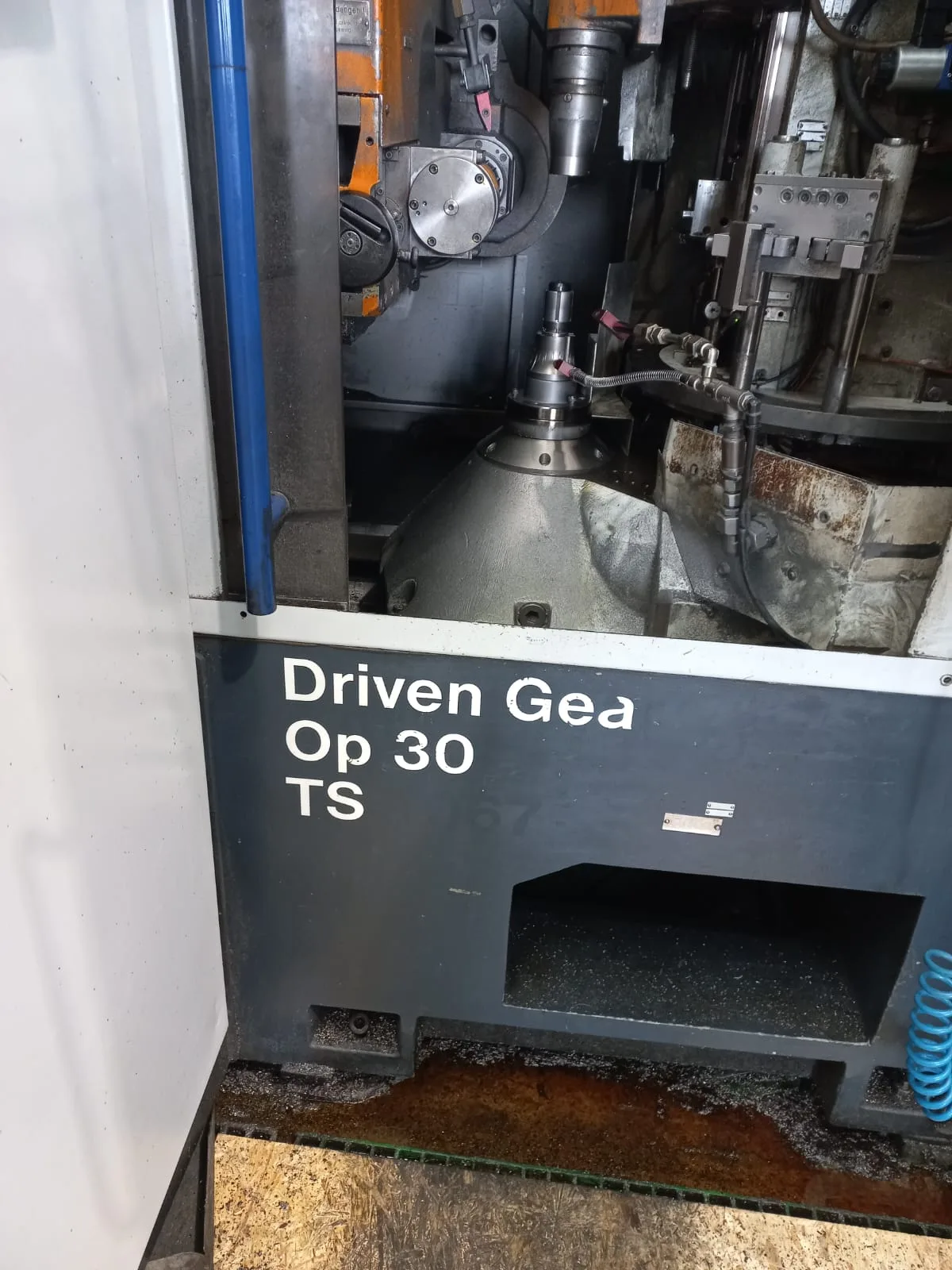

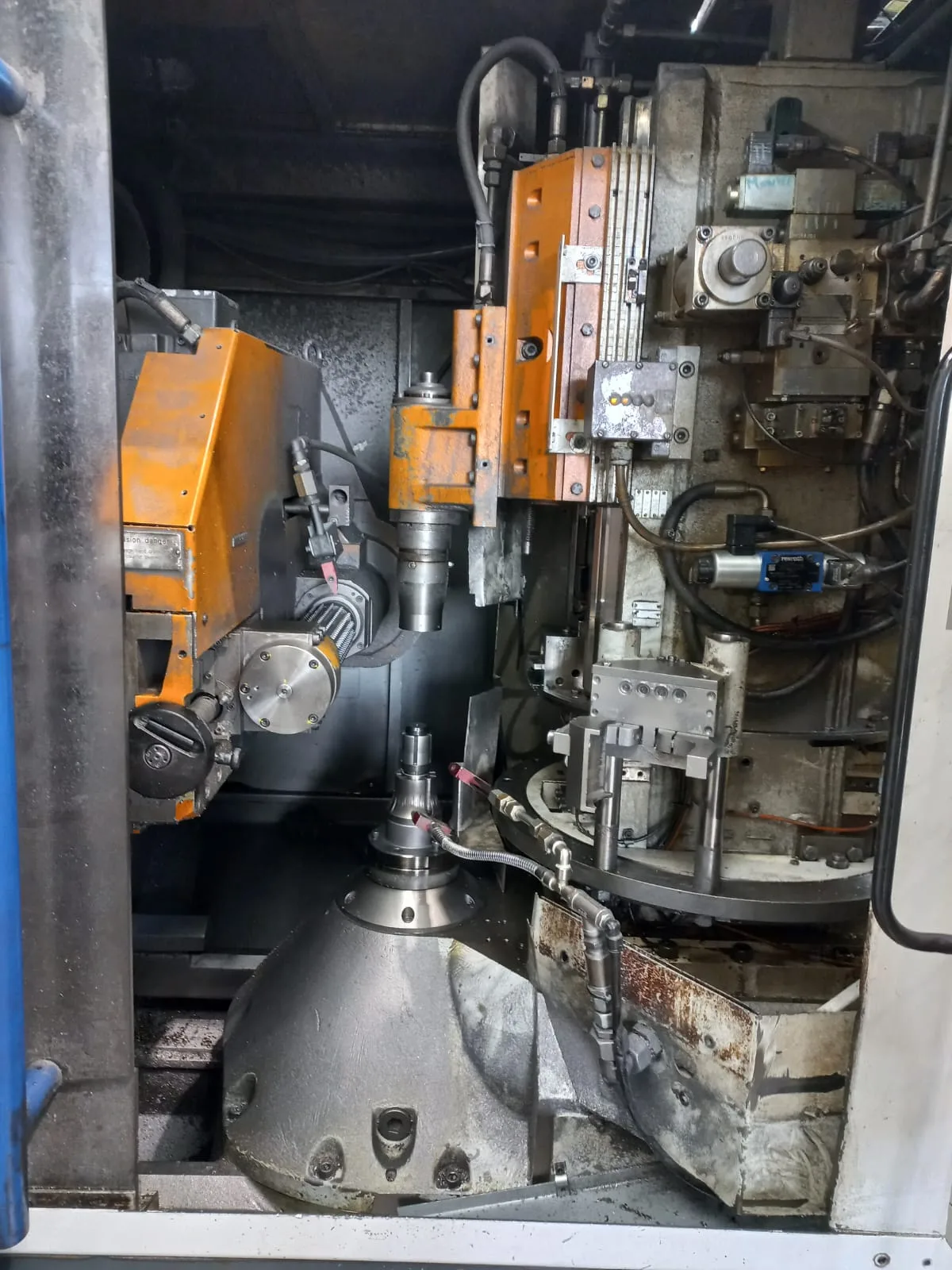

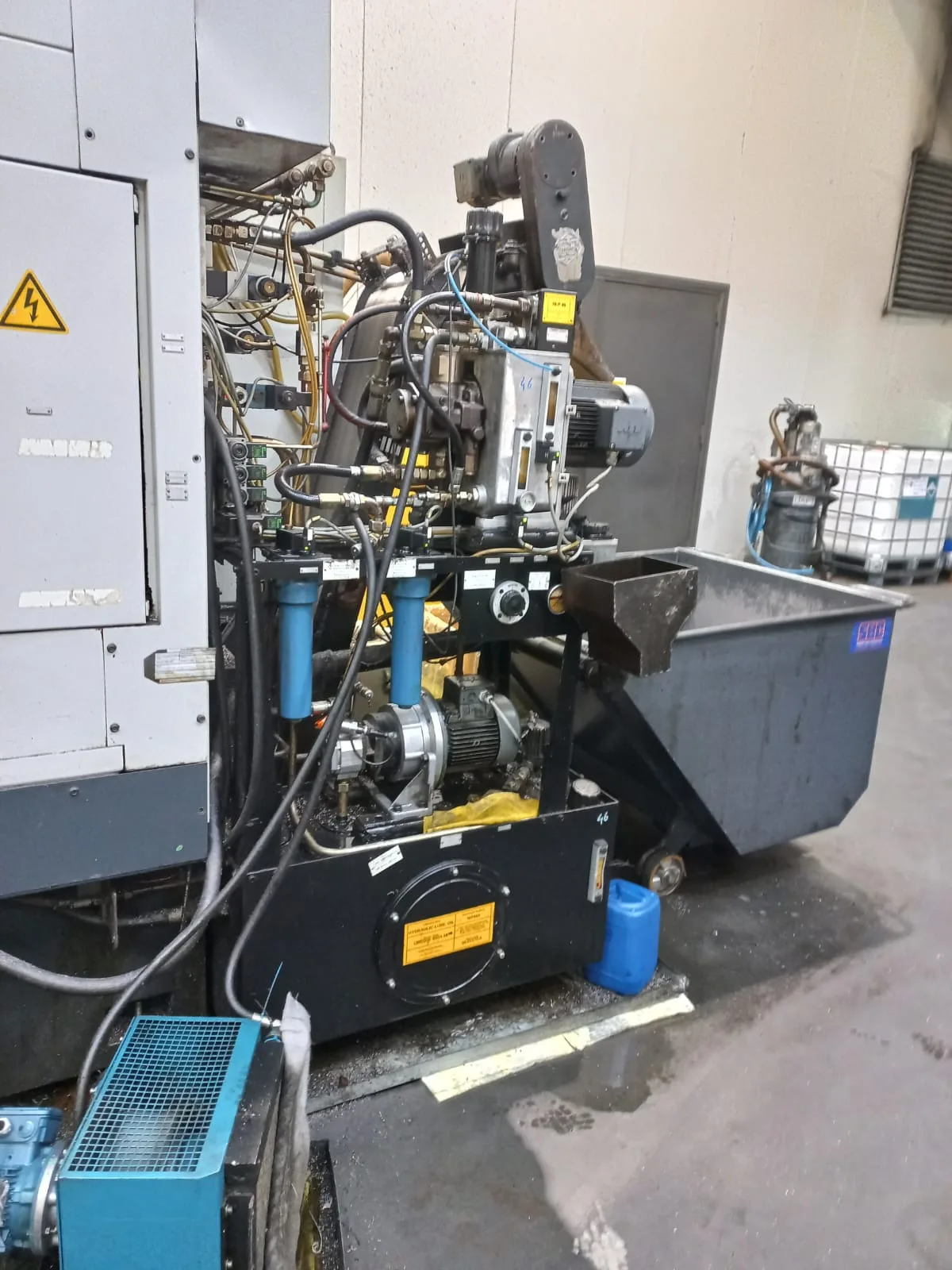

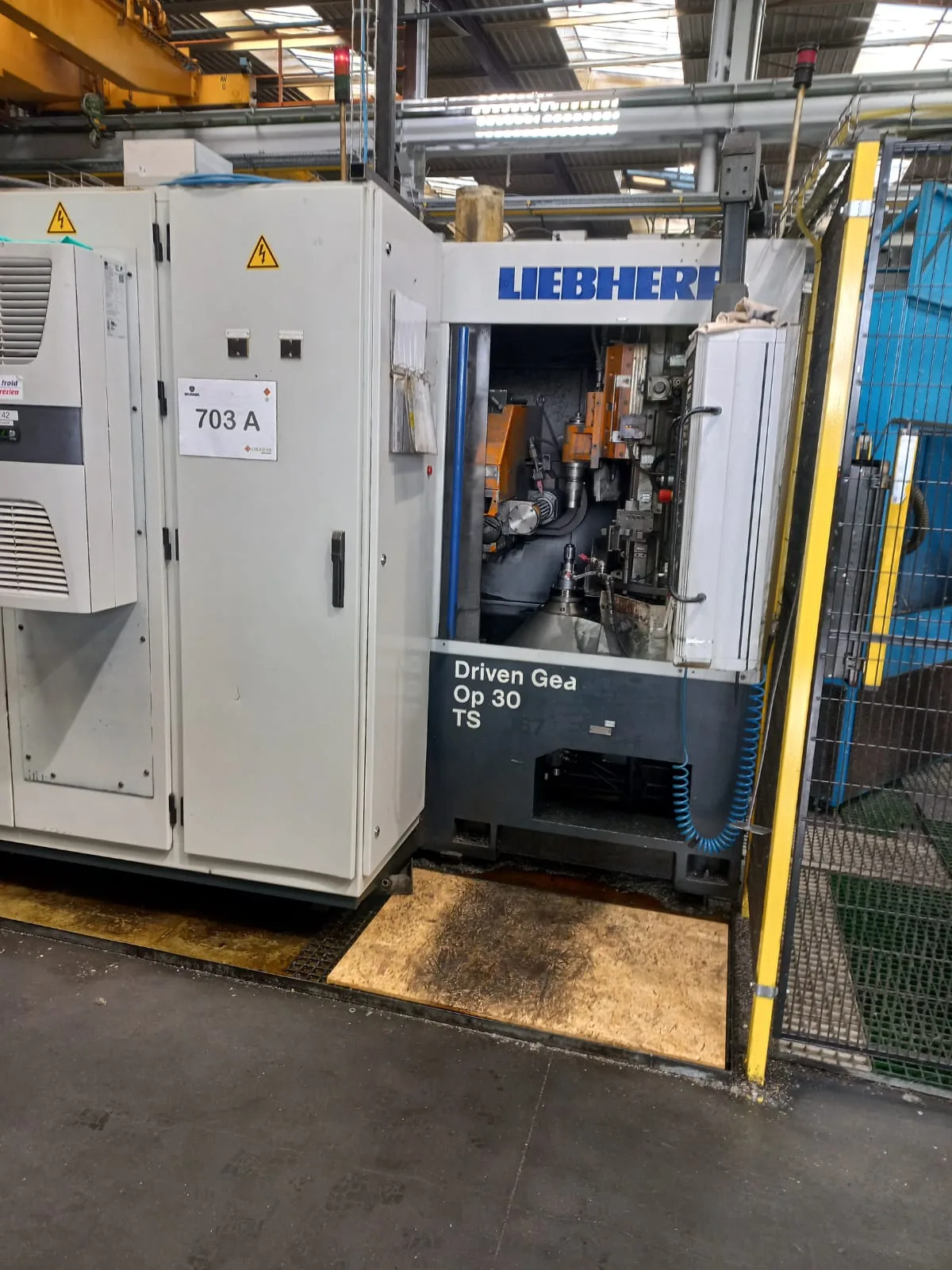

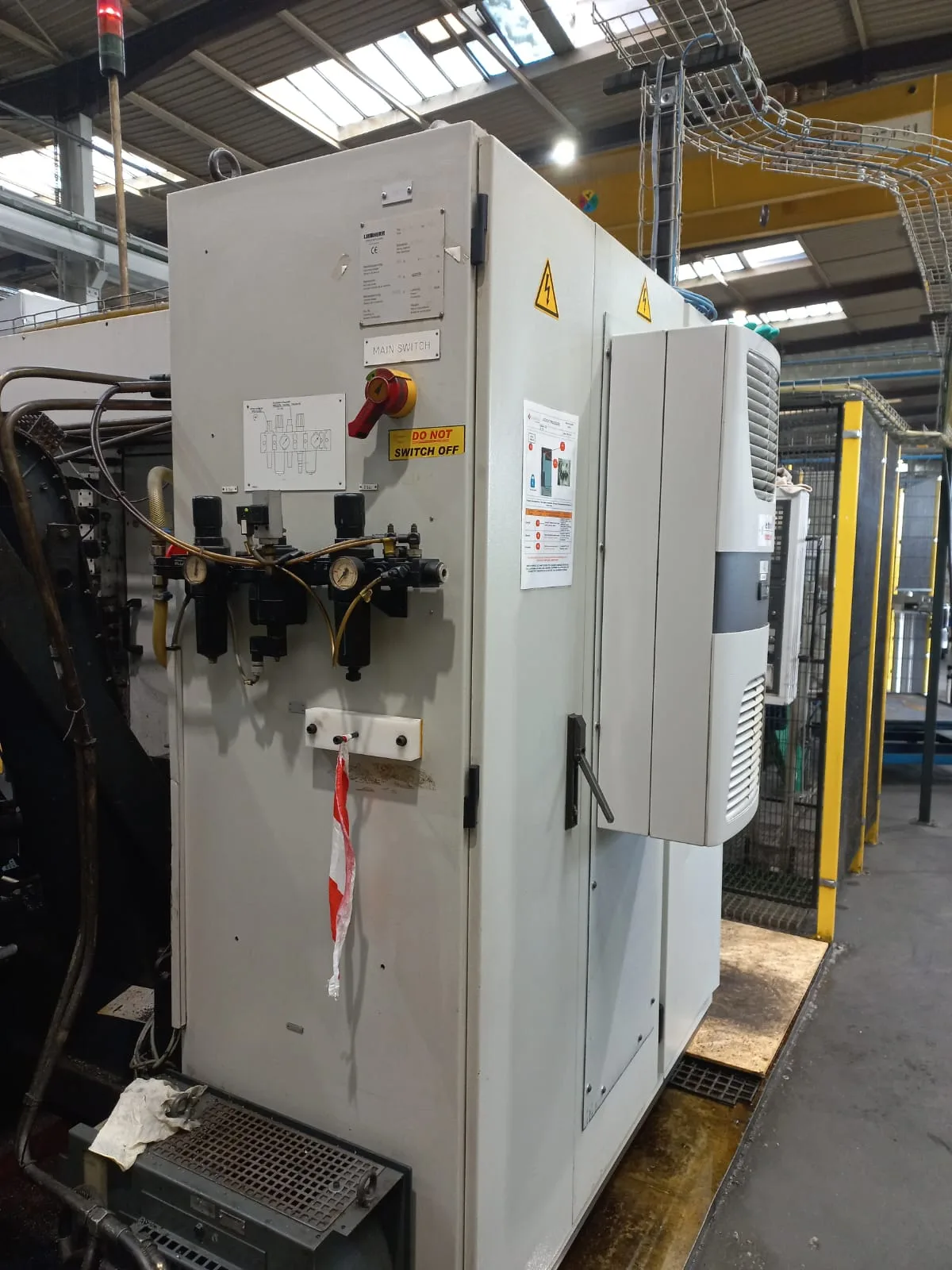

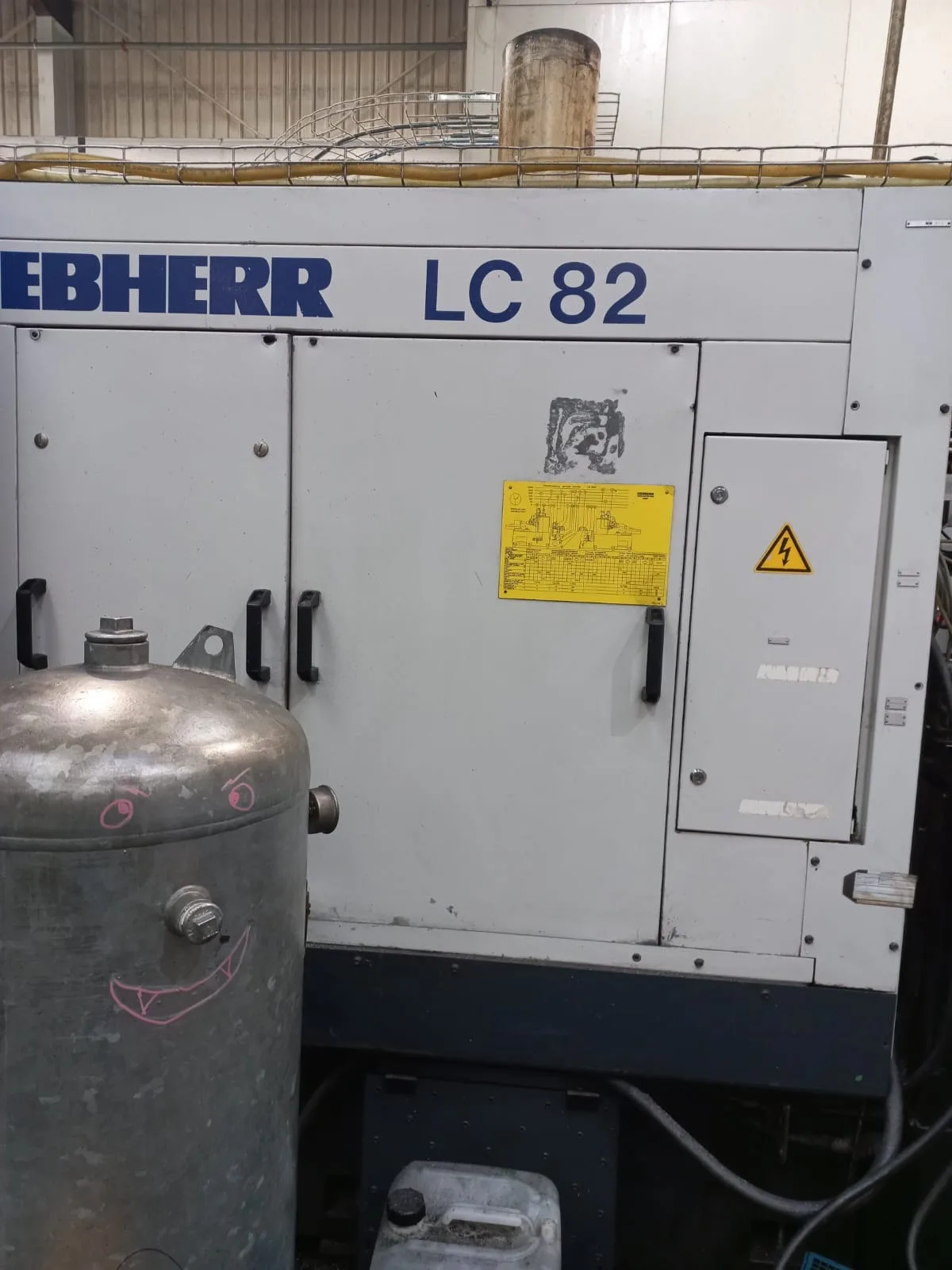

CNC GEAR HOBBER
Liebherr LC 82
CNC Siemens 840C
Gear-diam. max. 82 mm
Module Range 1 - 3
Helix Angle +/- 45°
Distance Table Center to Tool Center 15 - 160 mm
Hobbing Head Slide stroke vertical 250 mm
Tangential Travel / Shift Travel of Tool slide 180 mm
Minimum Number of Teeth 3
Hob Size max. Ø x length approx. 90 - 200 mm
Infeed rates axial/radial/tangential/ 20/4/5/ mm/WP rev.
Hob speed steplessly adjustable 0 - 800 rpm
Hob Spindle Drive 8 kW - Total Load approx. 30 kW - 400 V - 50 Hz
Total weight of Machine approx. 7.5tons
Machine specifications
- Manufacturer
- Liebherr
- Model
- LC 82
- Condition
- used
- Type
- CNC Gear Hobber
- Brand
- Liebherr
- Model
- LC 82
- Control
- Siemens 840C
- Hob Speed
- 0 - 800 rpm
- Helix Angle
- +/- 45°
- Max Hob Size
- 90 x 200 mm
- Module Range
- 1 - 3
- Power Supply
- 400 V / 50 Hz
- Total Power Load
- 30 kW
- Max Gear Diameter
- 82 mm
- Spindle Drive Power
- 8 kW
- Vertical Slide Stroke
- 250 mm
- Tangential Shift Travel
- 180 mm
- Distance Table To Tool Center
- 15 - 160 mm
