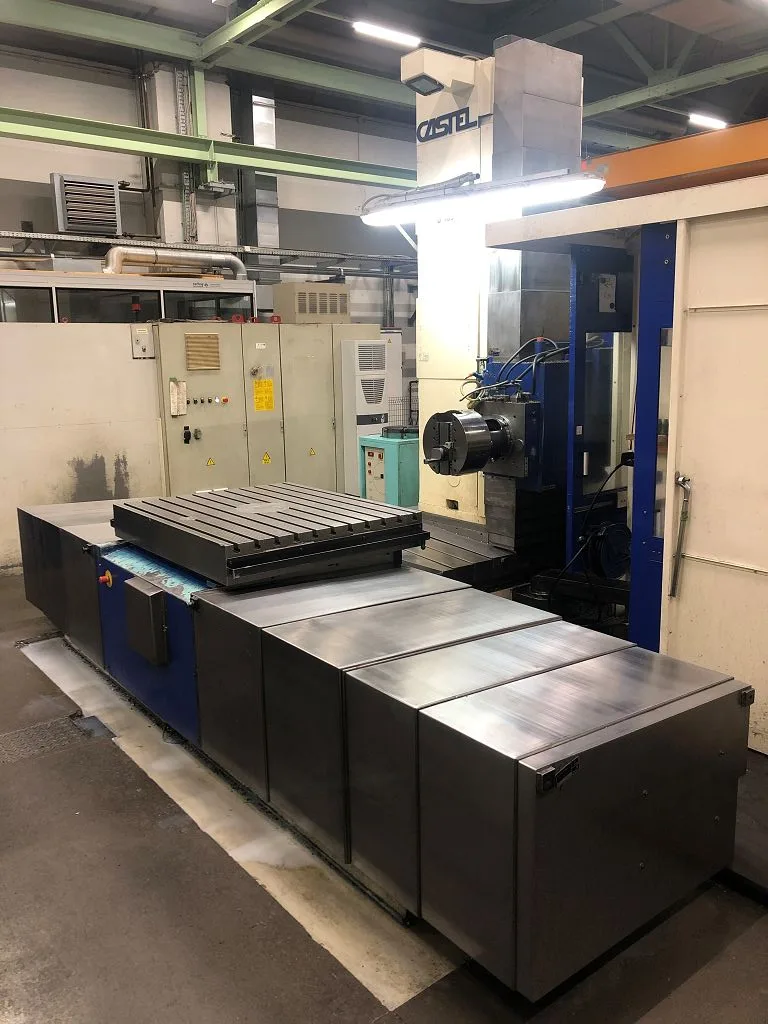

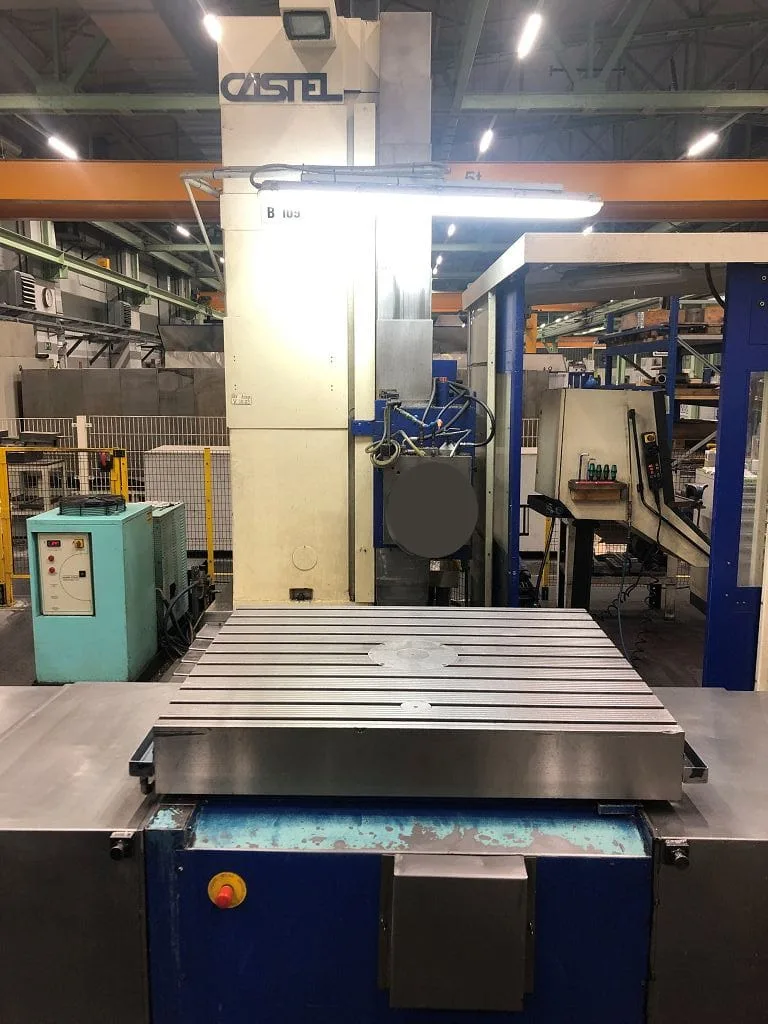

CNC Horizontal Boring & Milling Machine
CNC Horizontal Boring- and Milling Machine
Ref. No.204
- Brand
- CASTEL
- Model
- GREEN
- Condition
- used

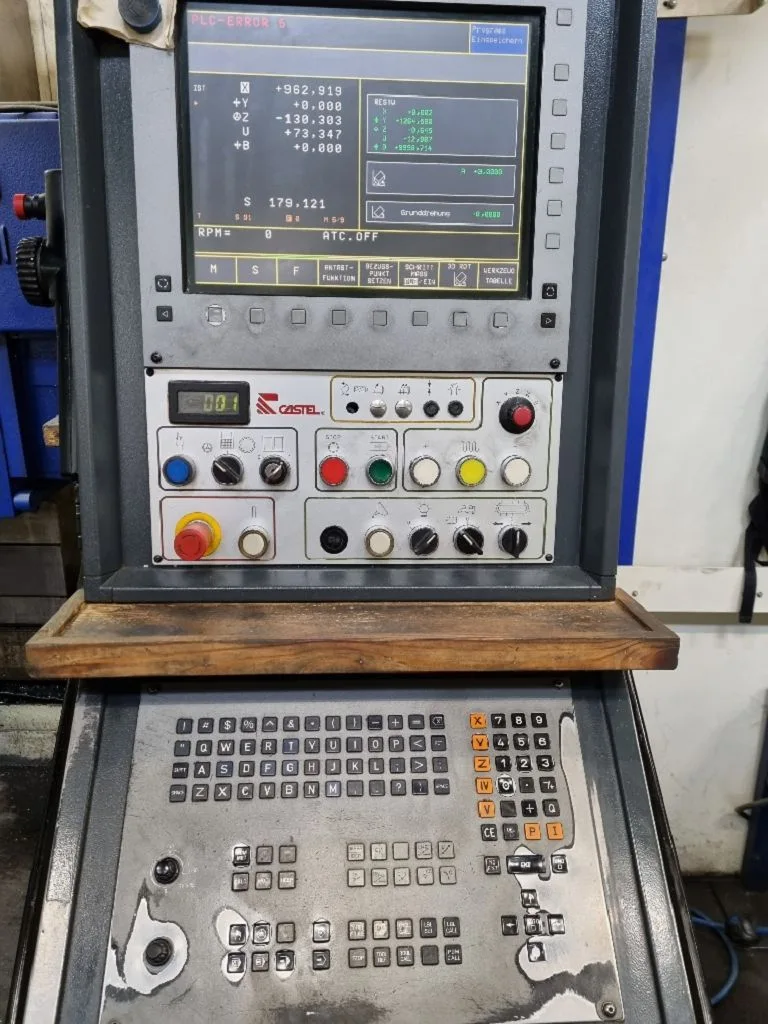

CNC:HEIDENHAIN TNC 430
YOM:1997
Spindle diameter:110 mm
Spindle RPM:2000
X-axis:2.100 mm
Y-axis:1.500 mm
Z-axis:1.000 mm
W-axis:500 mm
Length x Width x Height:7.100 x 6.500 x 3.700 mm
max. workpiece weight:4.000 kg
clamping size:1.100 x 1.300 mm
automatic positioning:360.000 x 0,001 °
spindle cone:ISO 50
spindle power:22 kW
pull stud form:ISO 50 DIN 69871
no. of gear steps:2
feed range X-, Y-, W-, Z-axis:0 - 10.000 mm/min
rapid feed X-, Y-, W-, Z-axis:10.000 mm/min
Dimensions & Weight:
Total weight:23.000 kg
Equipment:
support bearing
manual milling head

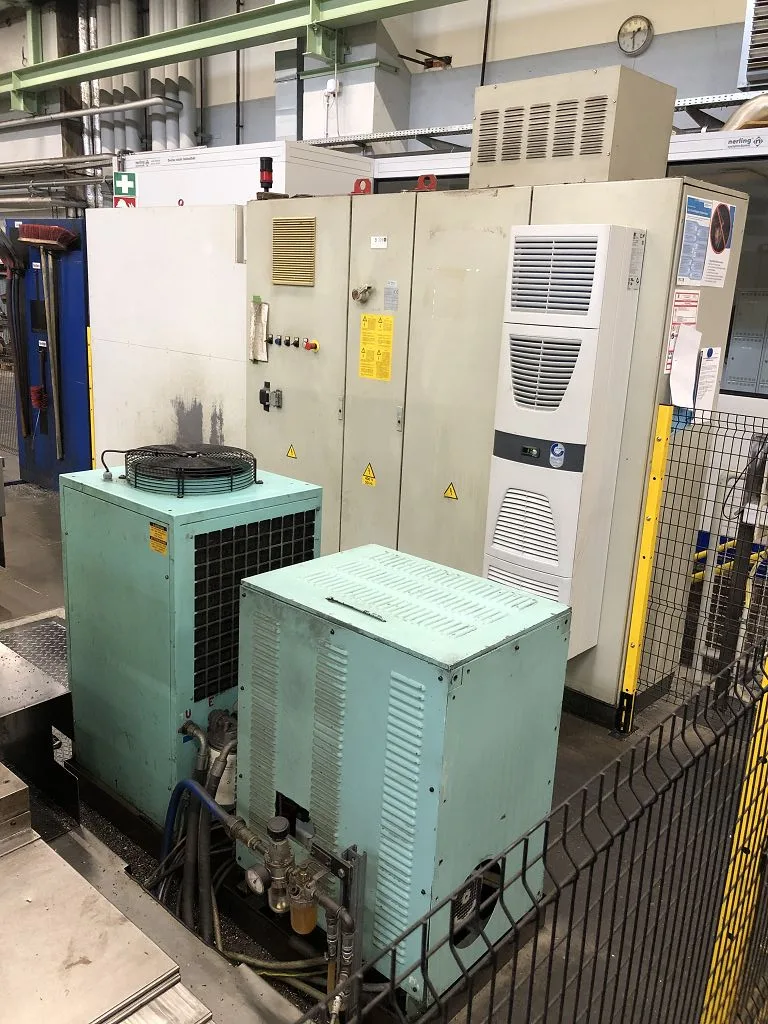

coolant tank with pump
Machine specifications
- Manufacturer
- CASTEL
- Model
- GREEN
- Condition
- used
- CNC
- HEIDENHAIN TNC 430
- YOM
- 1997
- W Axis
- 500 mm
- X Axis
- 2.100 mm
- Y Axis
- 1.500 mm
- Z Axis
- 1.000 mm
- Spindle RPM
- 2000
- Total Weight
- 23.000 kg
- Spindle Cone
- ISO 50
- Clamping Size
- 1.100 x 1.300 mm
- Spindle Power
- 22 kW
- Pull Stud Form
- ISO 50 DIN 69871
- Spindle Diameter
- 110 mm
- No. Of Gear Steps
- 2
- Automatic Positioning
- 360.000 x 0,001 °
- Max. Workpiece Weight
- 4.000 kg
- Length X Width X Height
- 7.100 x 6.500 x 3.700 mm
- Feed Range X , Y , W , Z Axis
- 0 - 10.000 mm/min
- Rapid Feed X , Y , W , Z Axis
- 10.000 mm/min
