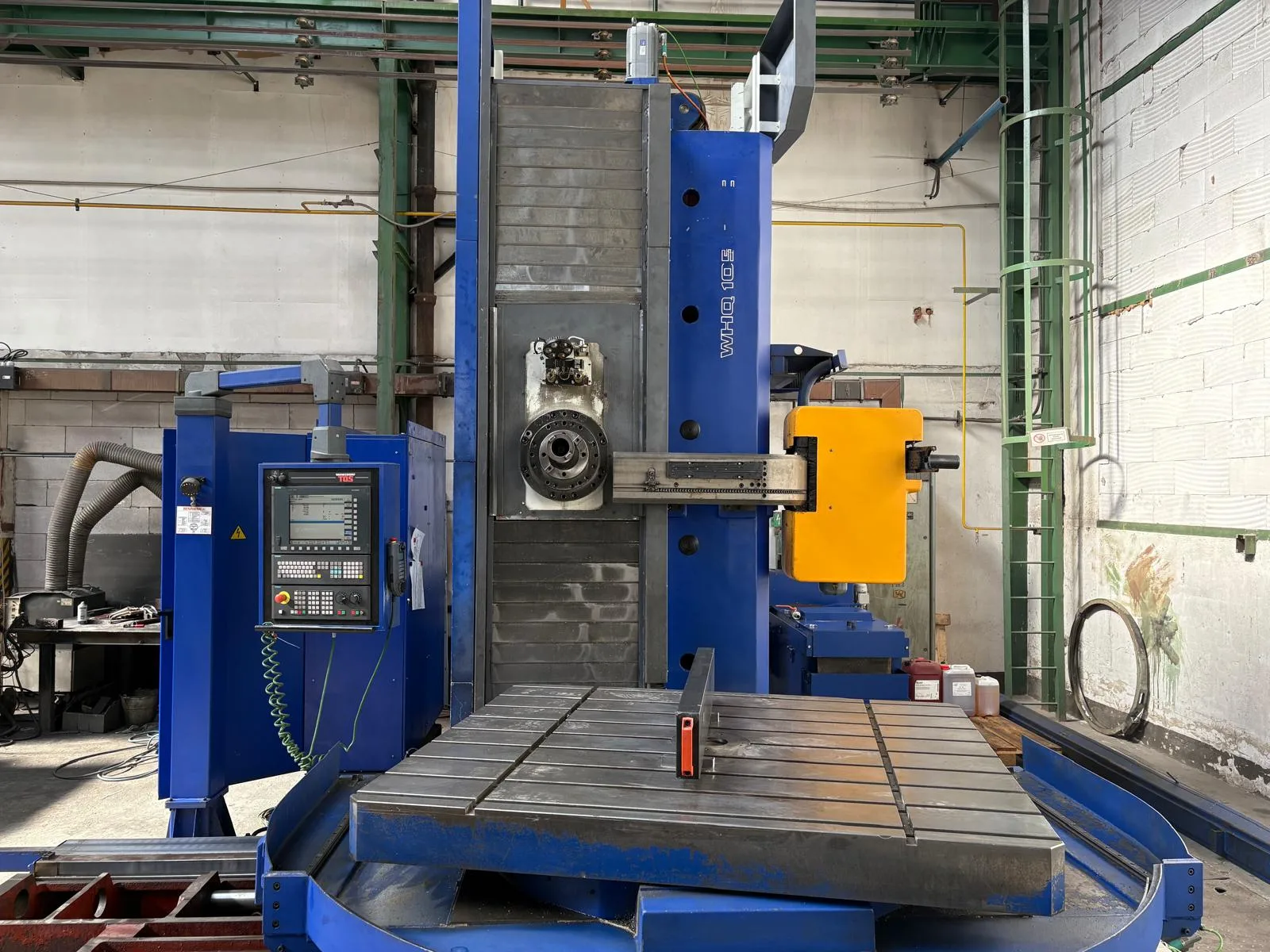

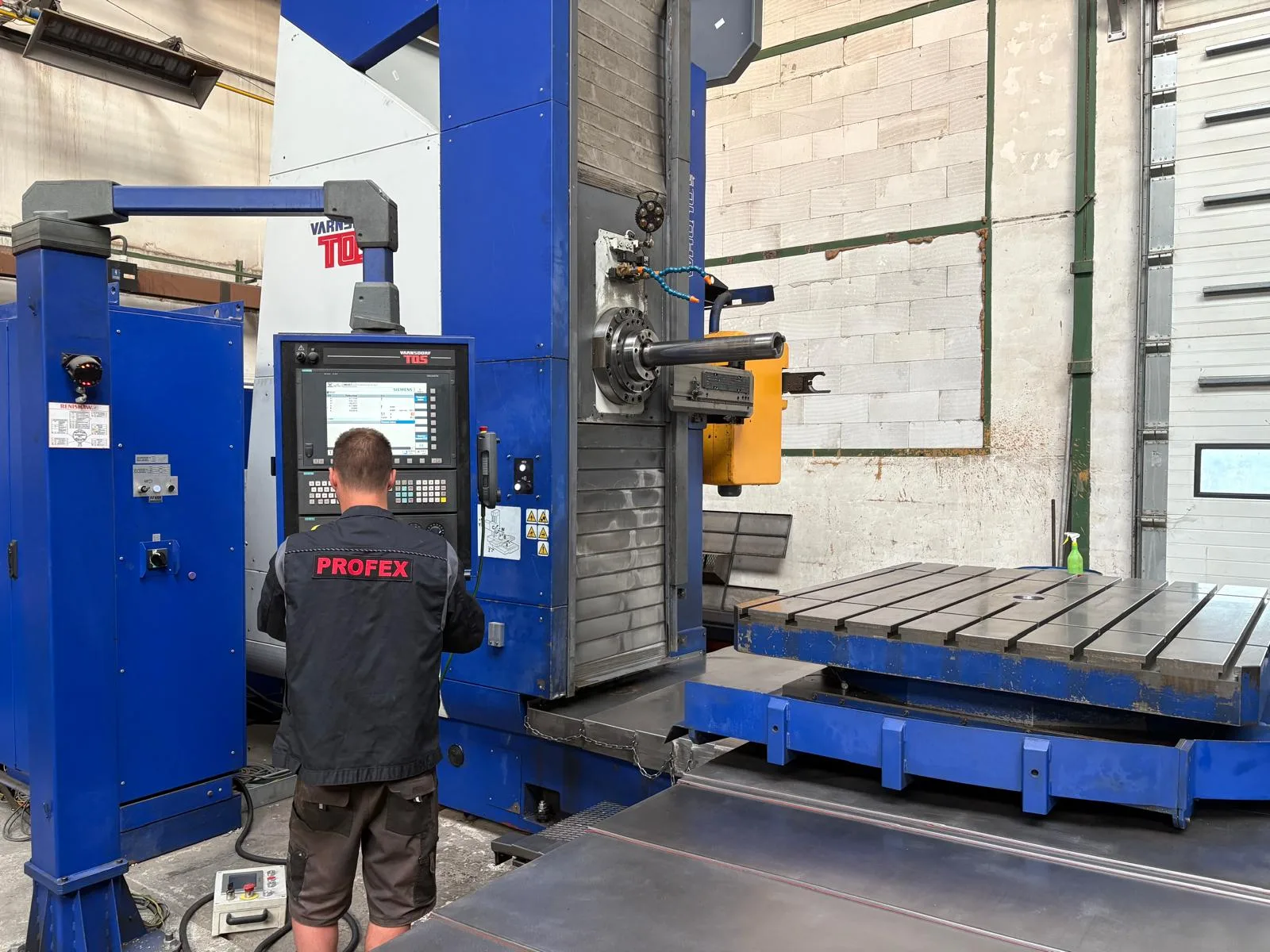

CNC Horizontal Boring Machine TOS VARNSDORF WHQ 105

Machine specifications

Manufacturer

TOS VARNSDORF

Model

WHQ 105

Condition

used

Year

2015

Brand

TOS VARNSDORF

Model

WHQ 105

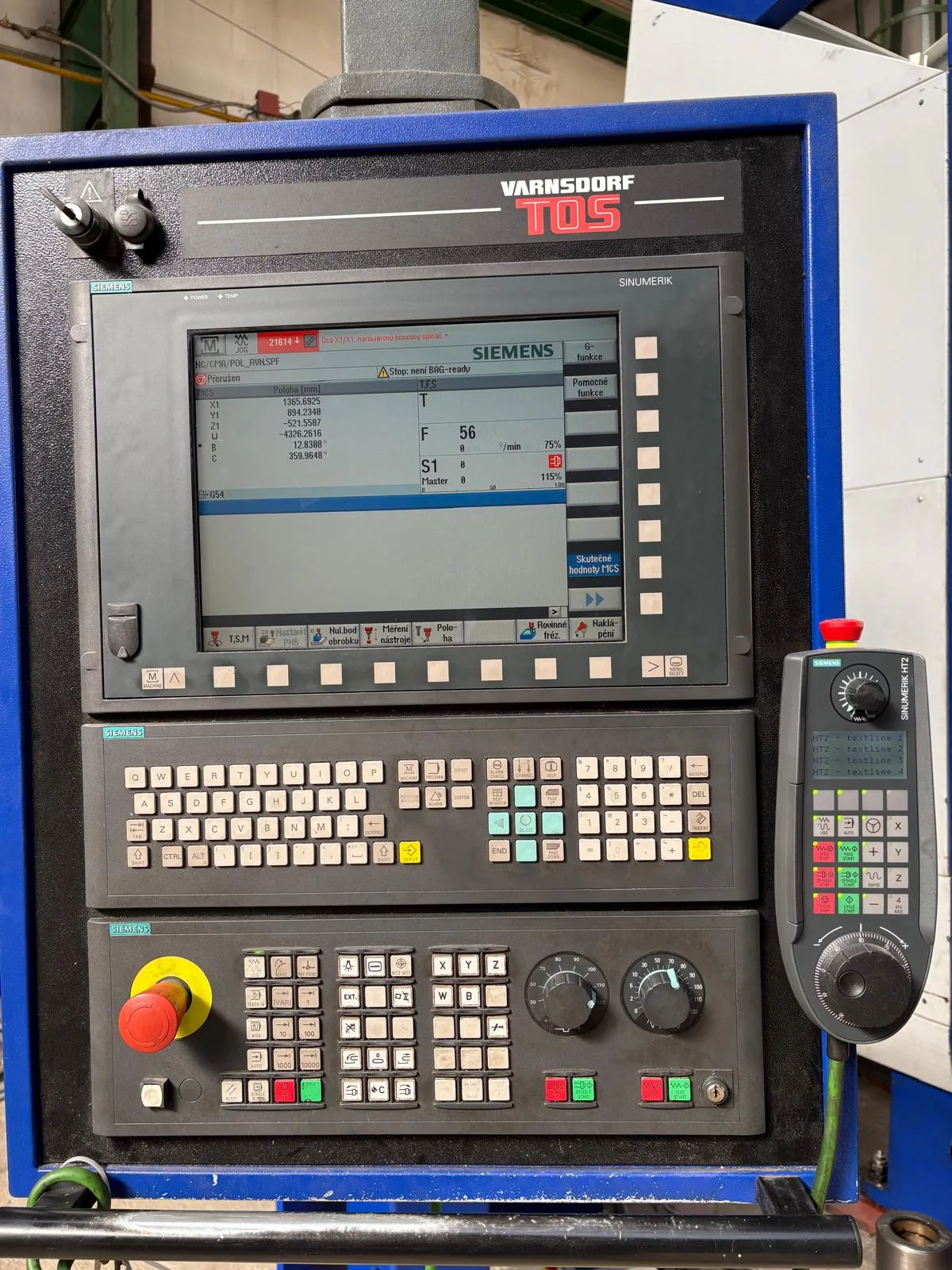

Control

Siemens Sinumerik 840D

Features

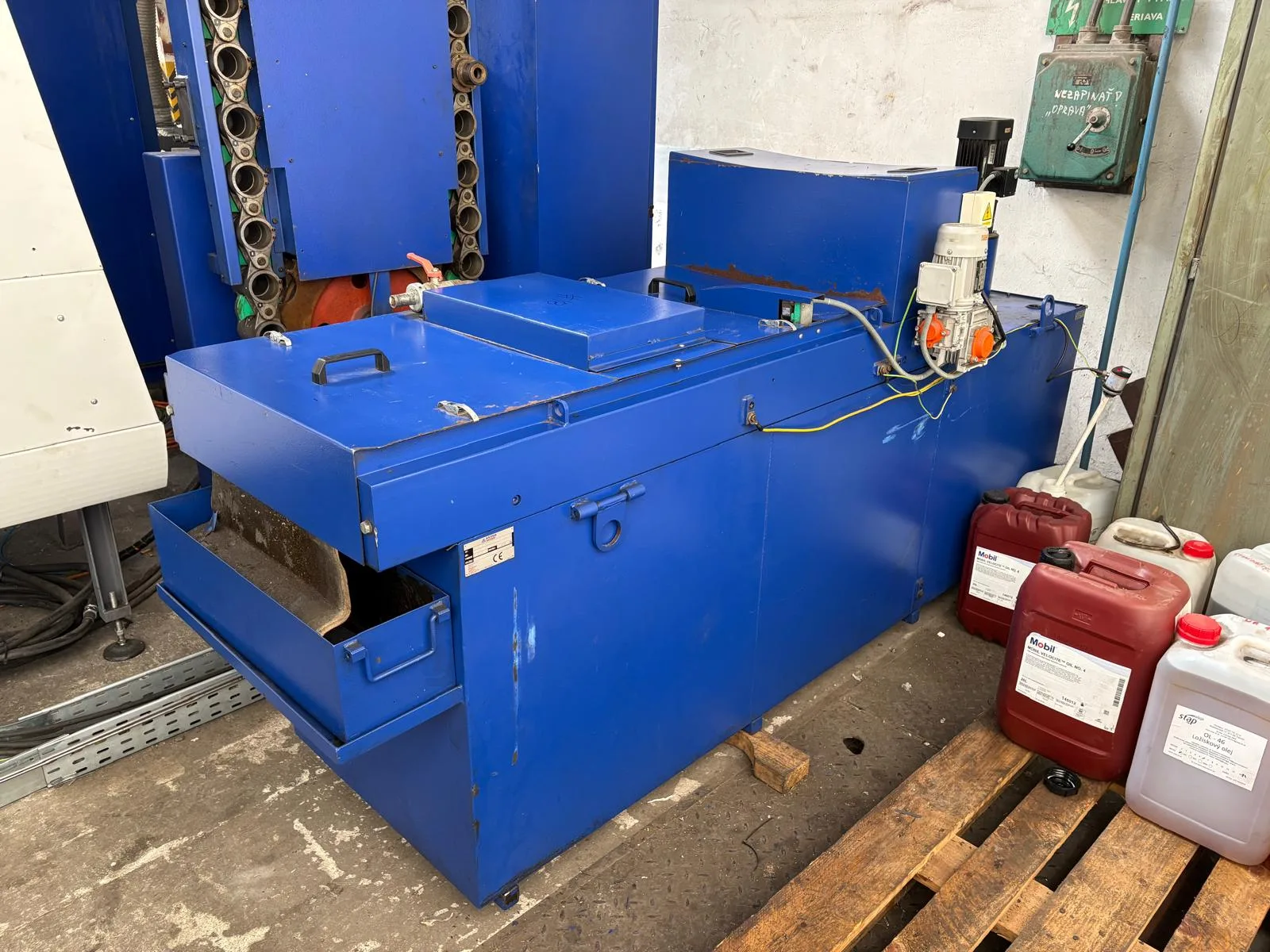

Splash Guard Around Rotary Table, Chip Conveyor, Oil Cooling Unit (Chiller), Renishaw RMP60 Touch Probe

Upgrades

Retrofit of X-Axis Ball Screw at Producer – KSK Kuřim CZ, Retrofit of Z-Axis Ball Screw at Producer – KSK Kuřim CZ, New Heidenhain Linear Scales on X-Axis Including Cabling, New Heidenhain Linear Scales on Z-Axis Including Cabling, Retrofit of Z-Axis with New Biplast V Lining on Guideways, Hand-Scraped Biplast Lining on Z-Axis, New TOS VARNSDORF Parts for Tool Clamping, New TOS VARNSDORF Automatic Tool Changer Arm, Overhaul of X-Axis Feed Motor at Authorized Siemens Service (New Bearings & Sensor), Overhaul of Y-Axis Feed Motor at Authorized Siemens Service (New Bearings & Sensor), Overhaul of Z-Axis Feed Motor at Authorized Siemens Service (New Bearings & Sensor), New Siemens Handwheel

Machine Name

CNC Horizontal Boring Machine

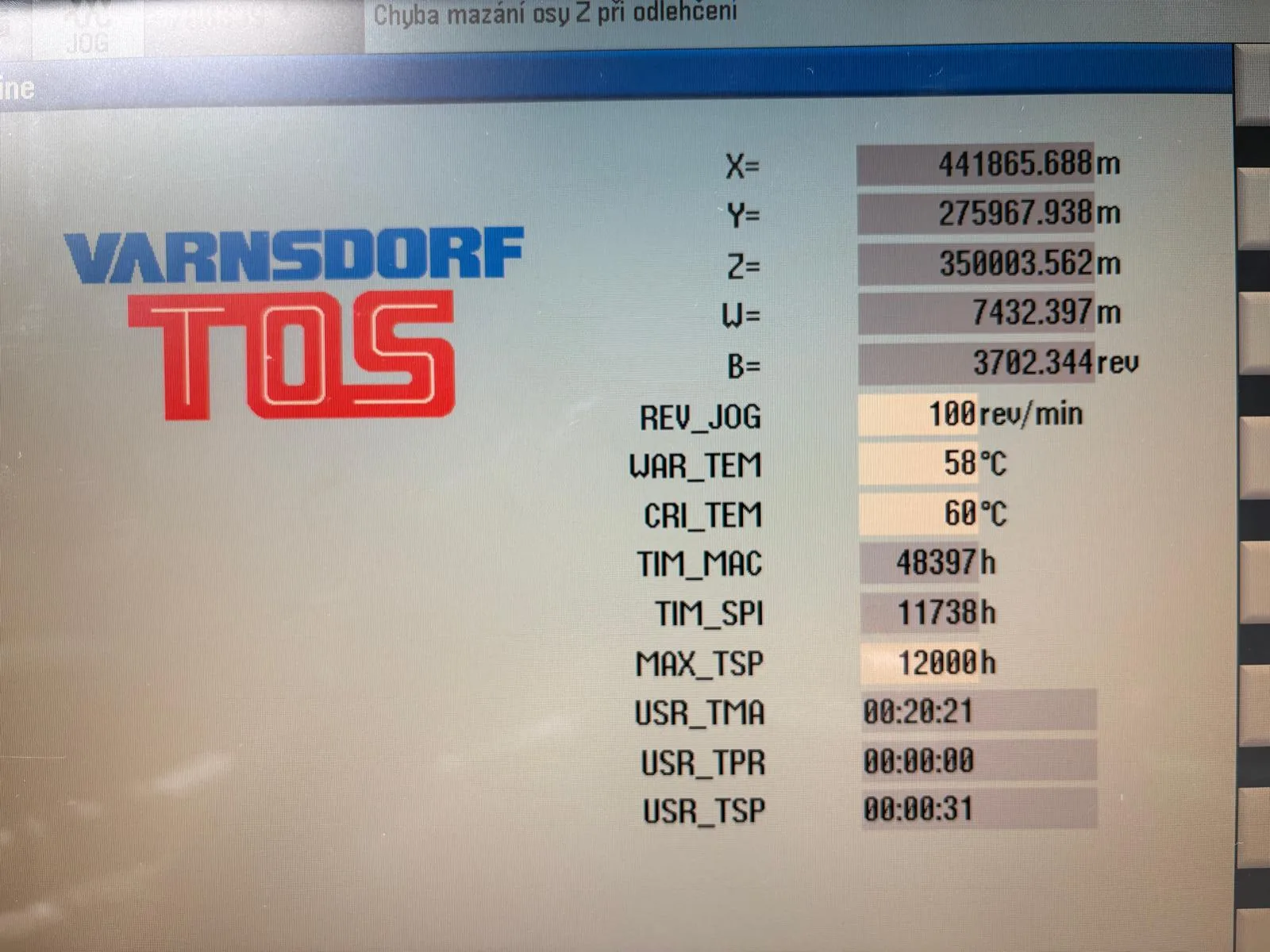

Spindle Hours

11800

Travel / W Axis Mm

630

Travel / X Axis Mm

1800

Travel / Y Axis Mm

1600

Travel / Z Axis Mm

1250

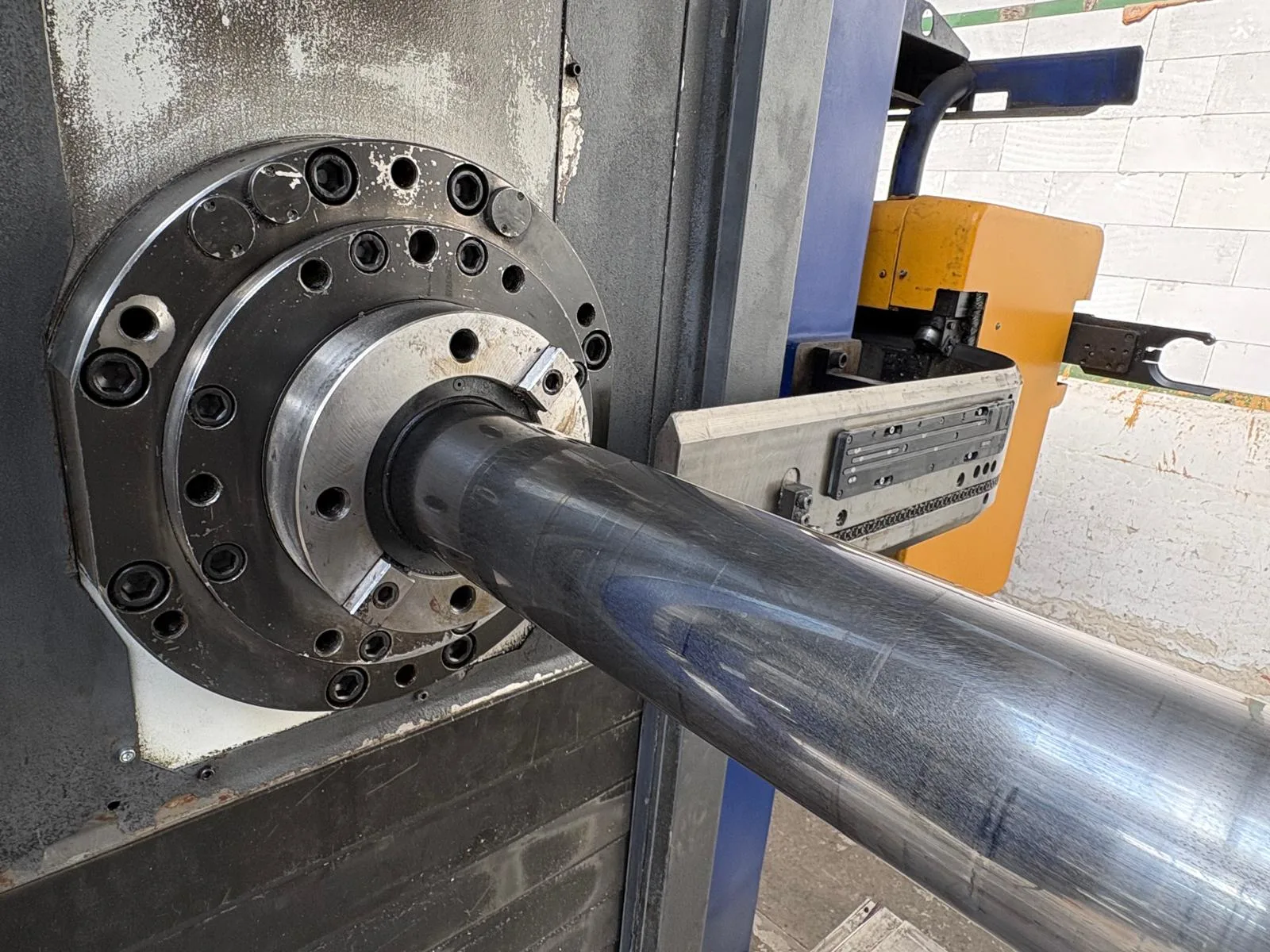

Spindle / Diameter Mm

105

Table / Size Mm / Width

1600

Table / Load Capacity Kg

5000

Table / Size Mm / Length

1400

Spindle / Maximum Speed Rpm

3300

Tooling / Coolant Through Spindle Bar

40

Tooling / Automatic Tool Changer Positions

40
