Floor Type
CNC Horizontal Boring Mill SKODA W250 CNC
- Brand
- SKODA
- Model
- W250 CNC
- Condition
- used
- Stock number
- NMC/26/057

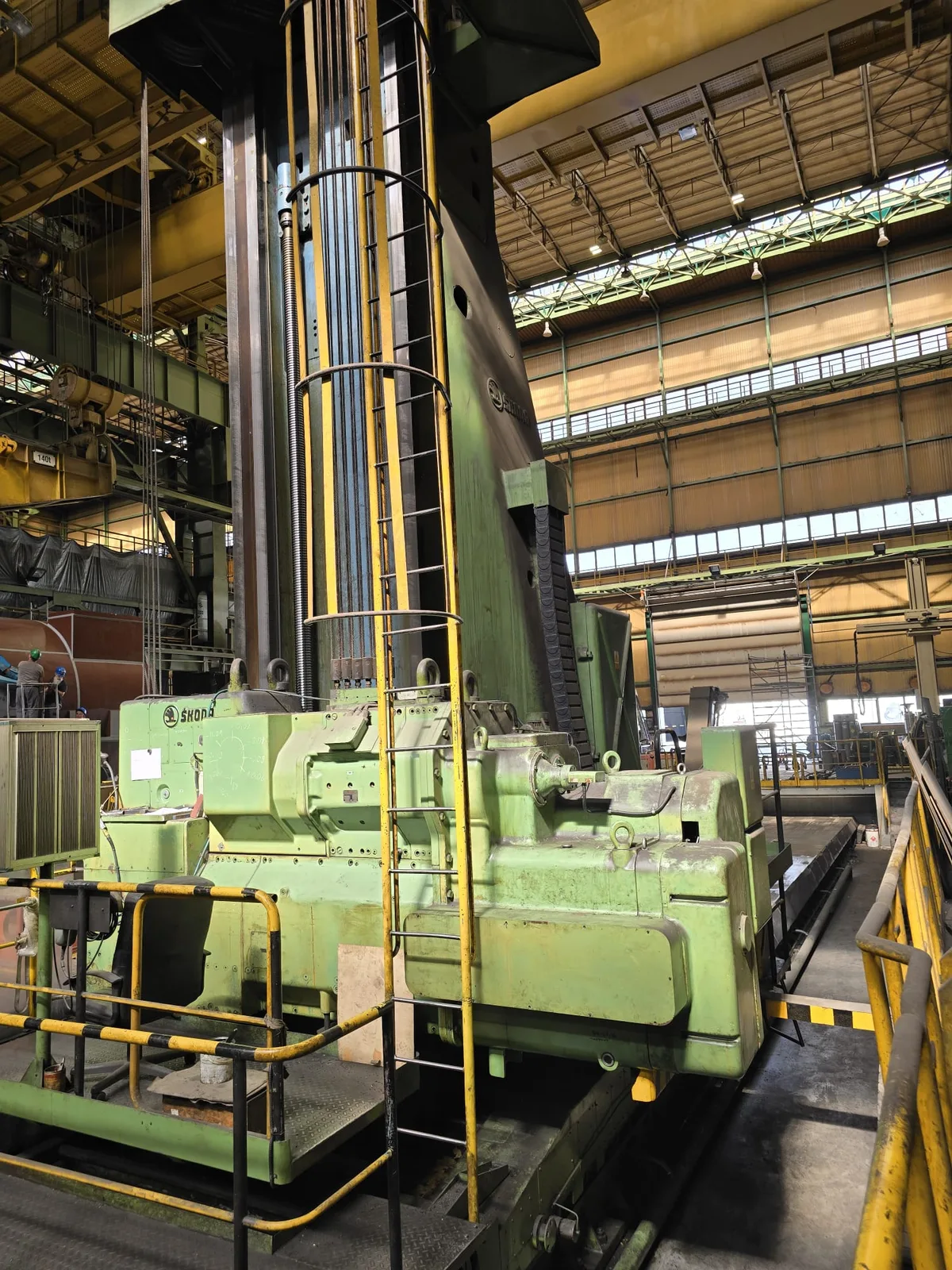

CNC HORIZONTAL BORING MILL
SKODA W250 CNC
YOM/RETROFITTED
1997 / 2007
Spindle diameter – 250 mm
Spindle taper – metric 140 mm
X axis travel – 15000 mm
Y axis travel – 5150 mm
Z-axis travel – 2000 mm
W-axis travel – 1600 mm
Spindle speed range – 0.8 – 630 rpm
Total power consumption – 200 kVA
Power supply – 230/400 V; 50 Hz
3780 × 6400 mm
8000 × 5870 mm

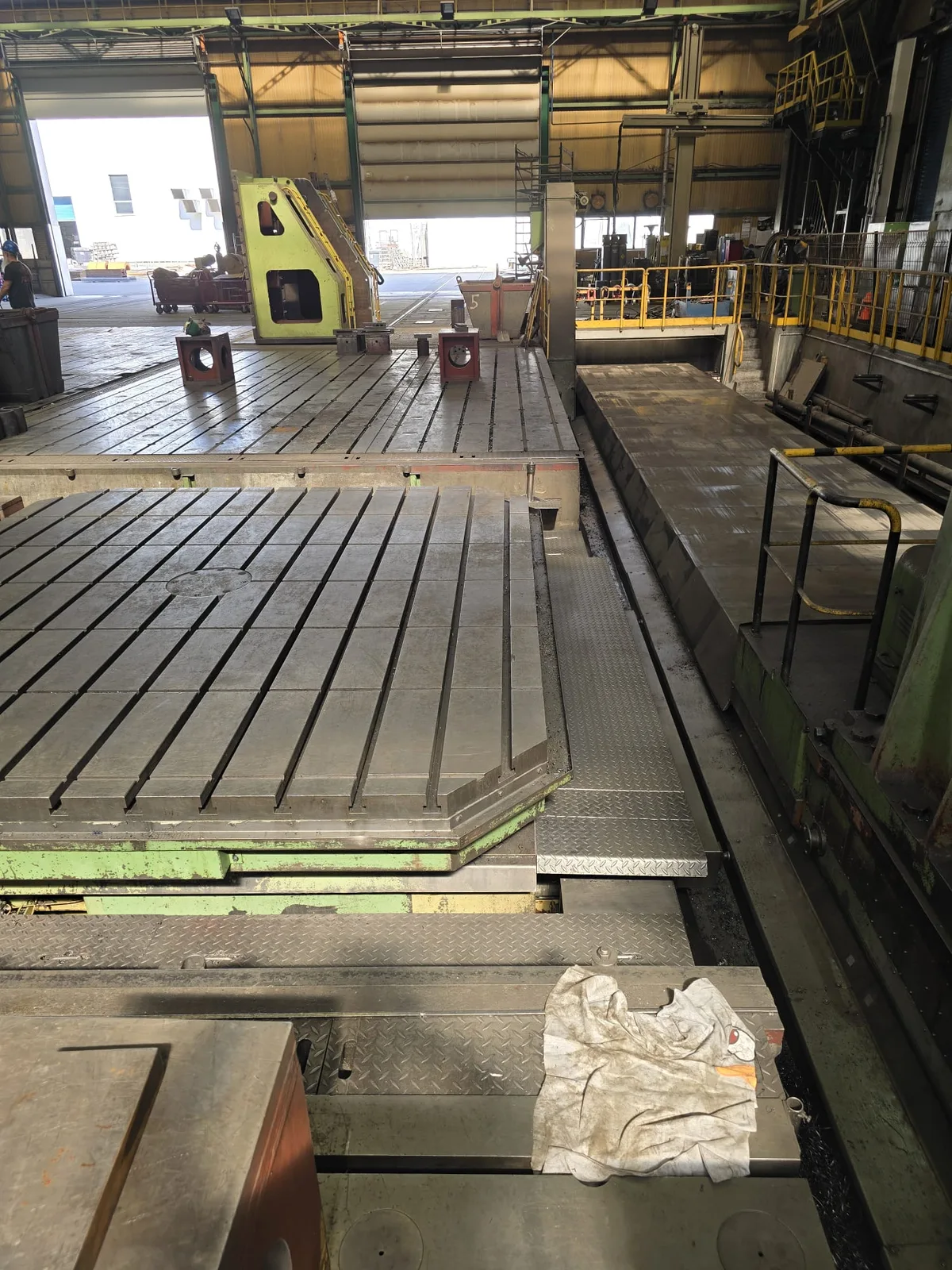

Rotary table surface (type S80B) – 4000 × 3550 mm
Maximum central load of rotary table – 80,000 kg
Working plates 6400 × 1890 × 410 mm – 2 units
Working plates 8000 × 1890 × 410 mm – 4 units

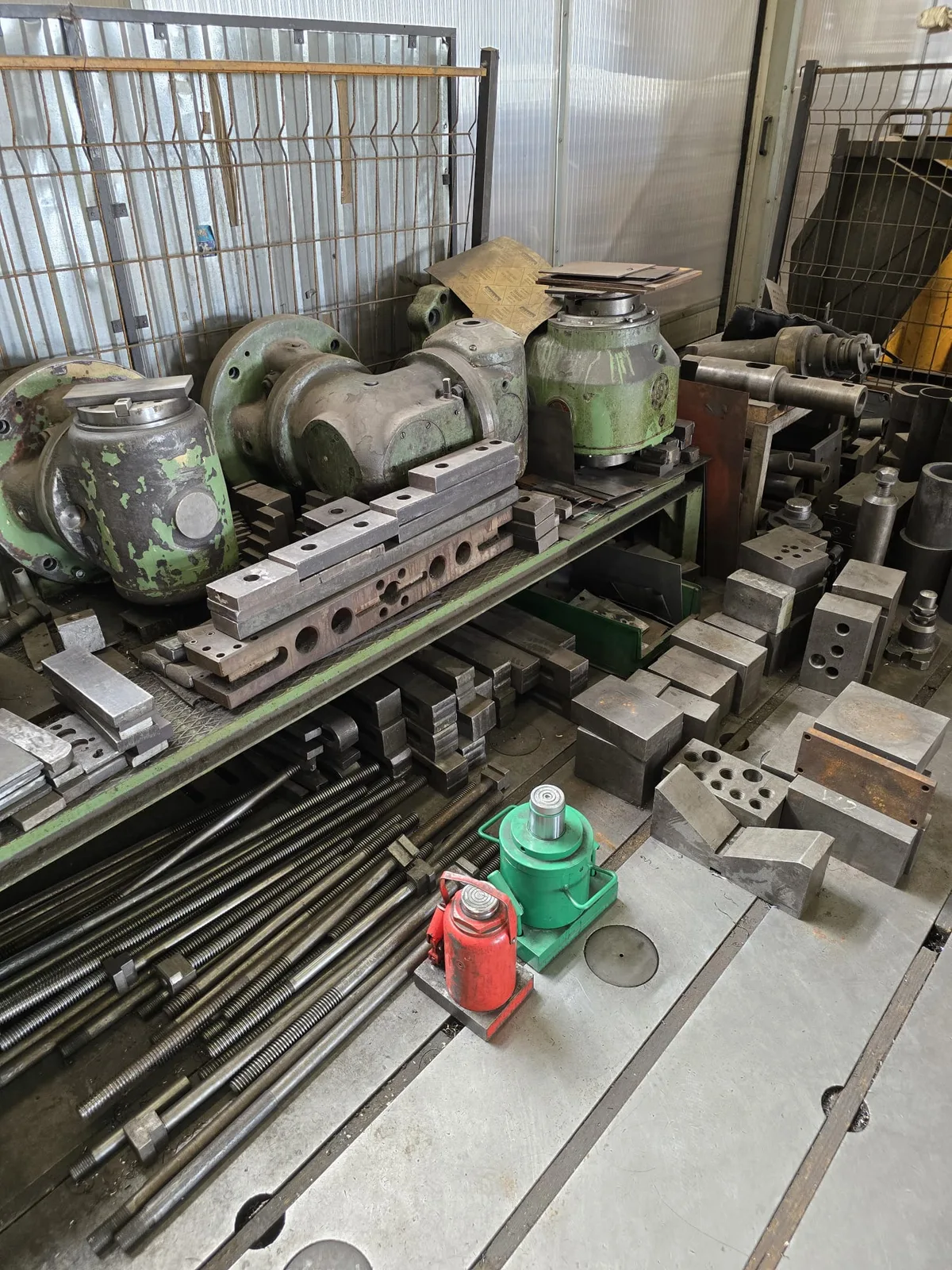

Milling head type ICH – 1/250
Milling head type IFW – 2A
Milling head type IFW – 3A
Drive sleeve for milling heads – 1 unit
Reduction sleeve M140/ISO 50 – 1 set
Chip conveyor – vibrating – 1 set
Coolant tank – 1 set
Excellent Working Condition
Machine specifications
- Manufacturer
- SKODA
- Model
- W250 CNC
- Condition
- used
- Serial / Stock Number
- NMC/26/057
- Type
- CNC Horizontal Boring Mill
- Brand
- SKODA
- Model
- W250HC
- Travel W
- 1600 mm
- Travel X
- 15000 mm
- Travel Y
- 5150 mm
- Travel Z
- 2000 mm
- Power Supply
- 230/400 V; 50 Hz
- Spindle Taper
- Metric 140 mm

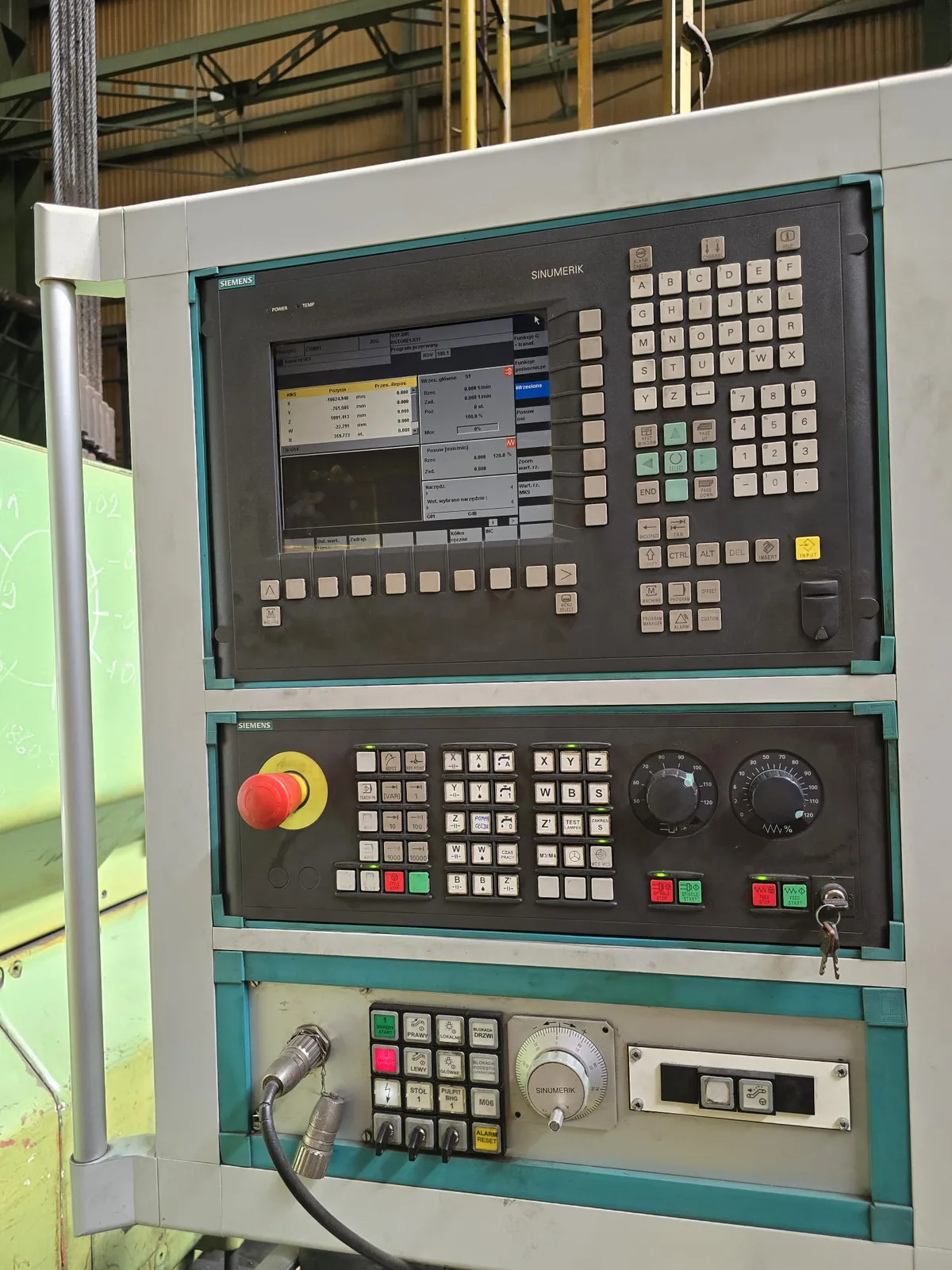

- Control System
- SIEMENS 840D
- Spindle Diameter
- 250 mm
- Rotary Table Size
- 4000 × 3550 mm
- Rotary Table Type
- S80B
- Spindle Speed Range
- 0.8 – 630 rpm
- Max Rotary Table Load
- 80000 kg
- Total Power Consumption
- 200 kVA
