Horizontal Machining Centres
CNC Horizontal Machining Center with Pallet Changer
Ref. No.232
- Brand
- TOYODA (Japan)
- Model
- LINEAM III
- Condition
- used

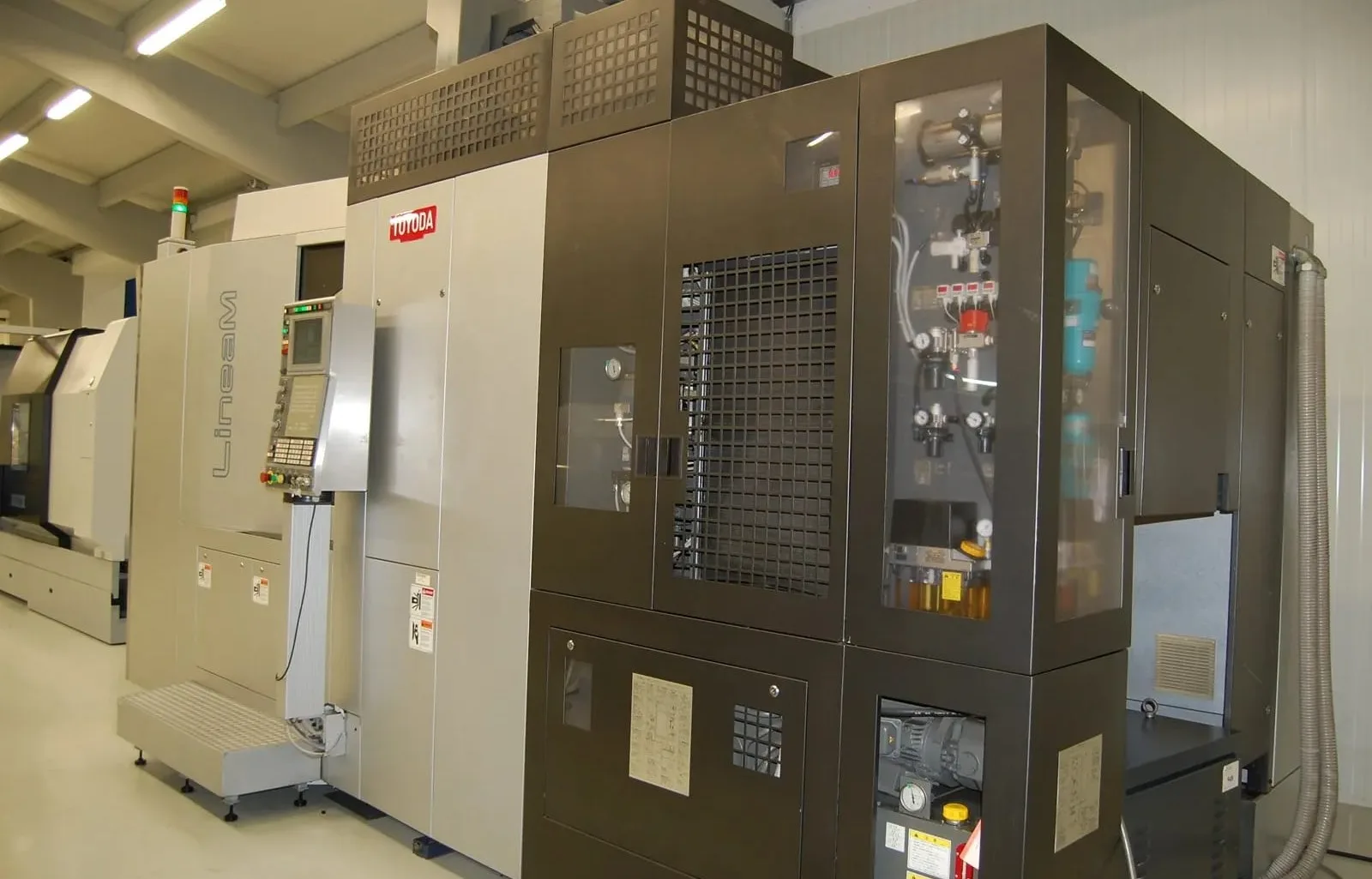

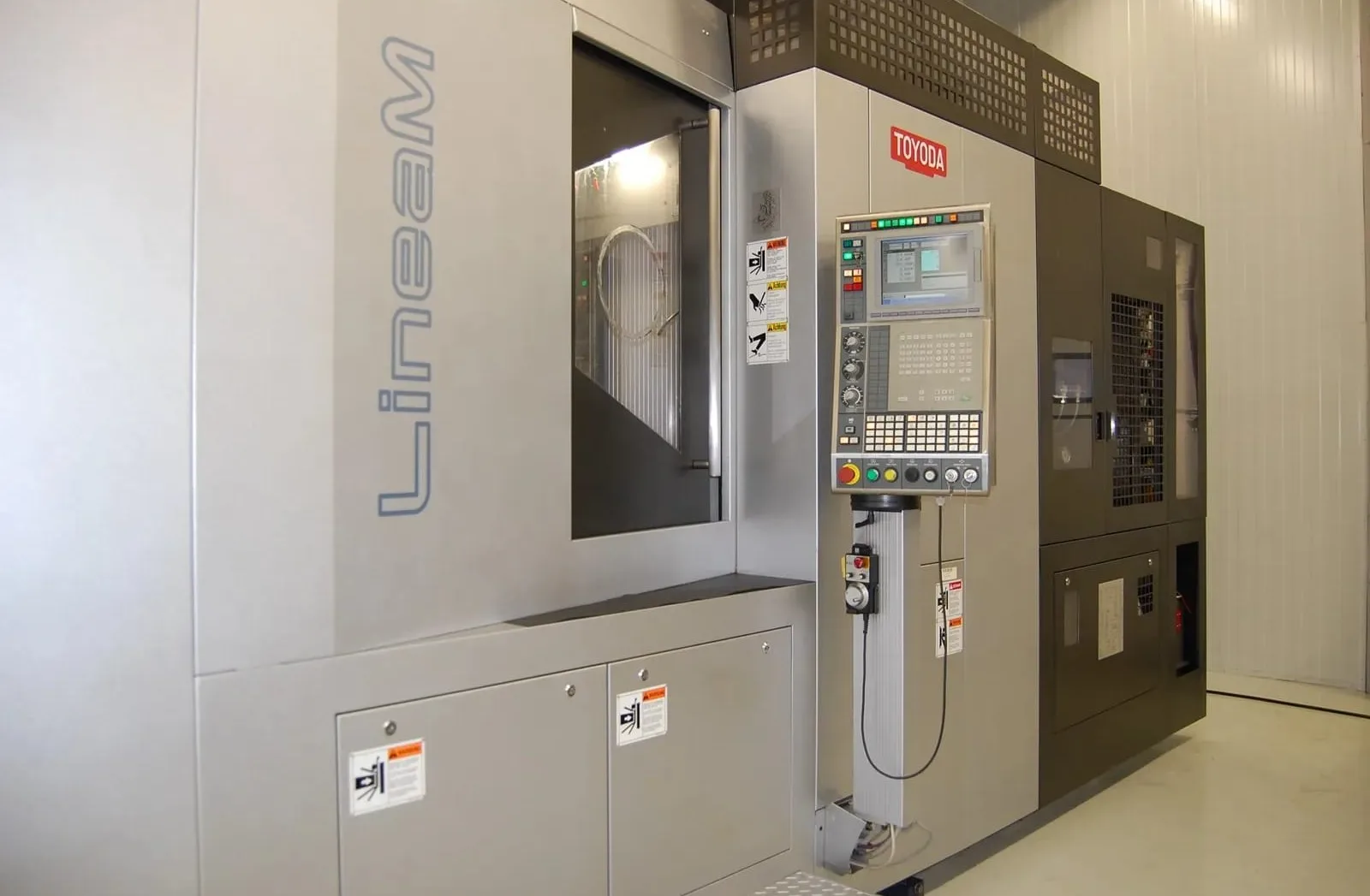

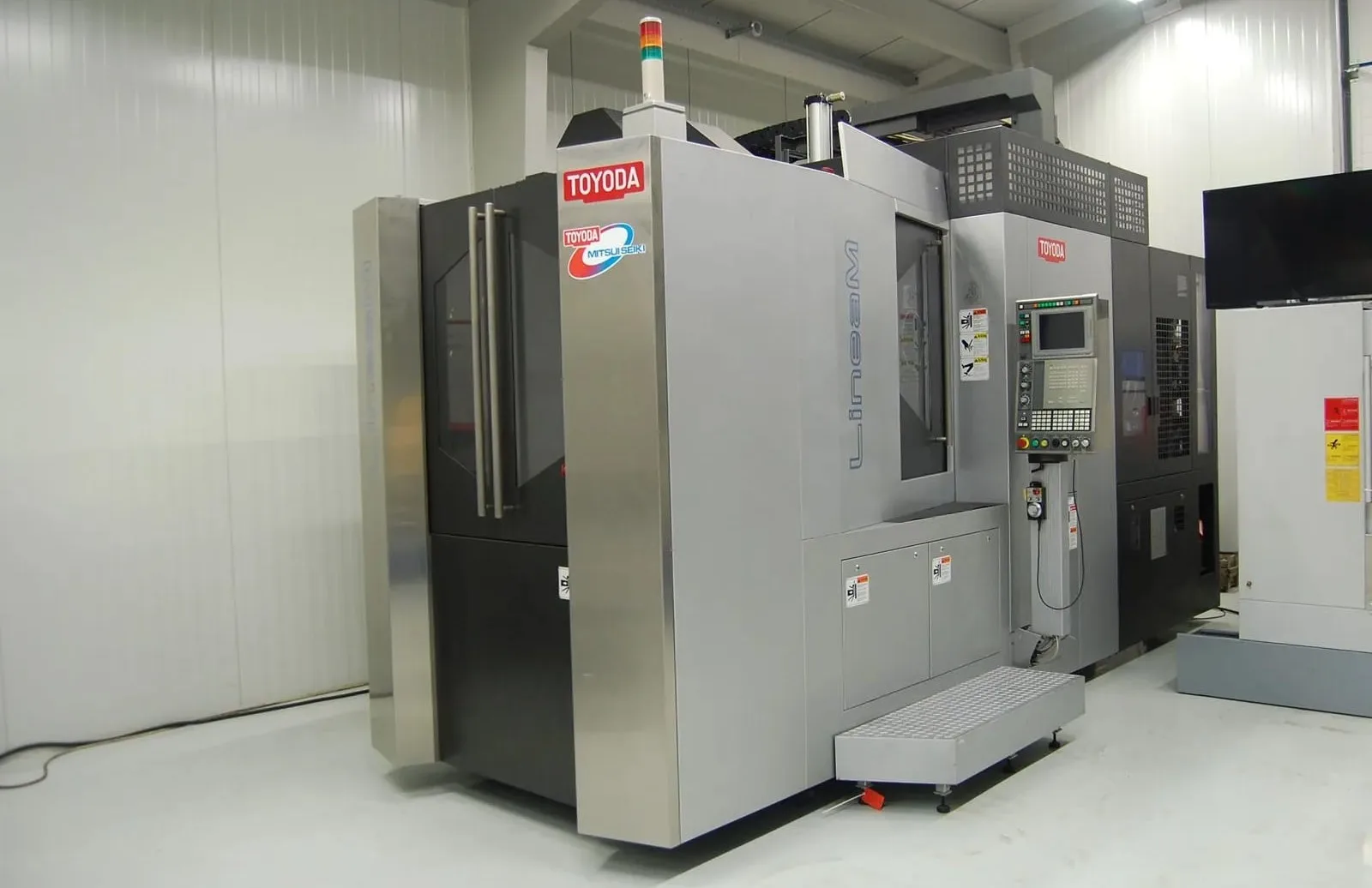

CNC Horizontal Machining Center with Pallet Changer
Brand:TOYODA (Japan)
Model:LINEAM III
Year:2004

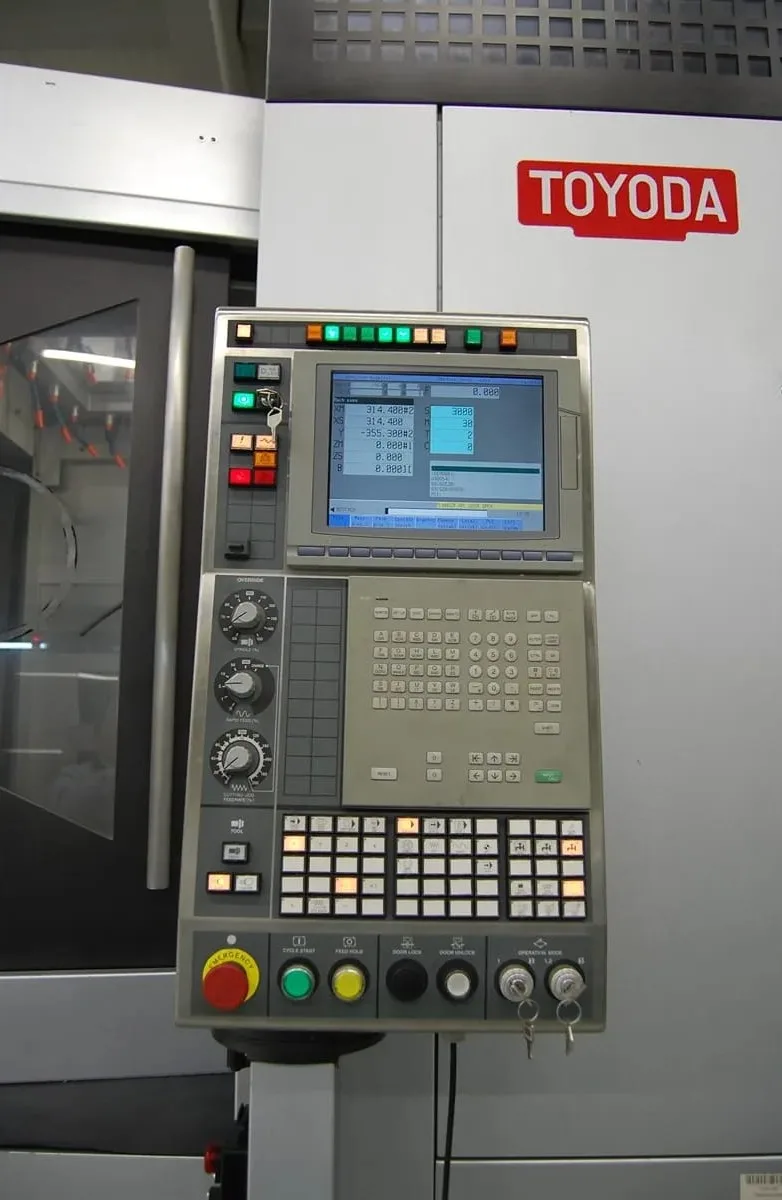

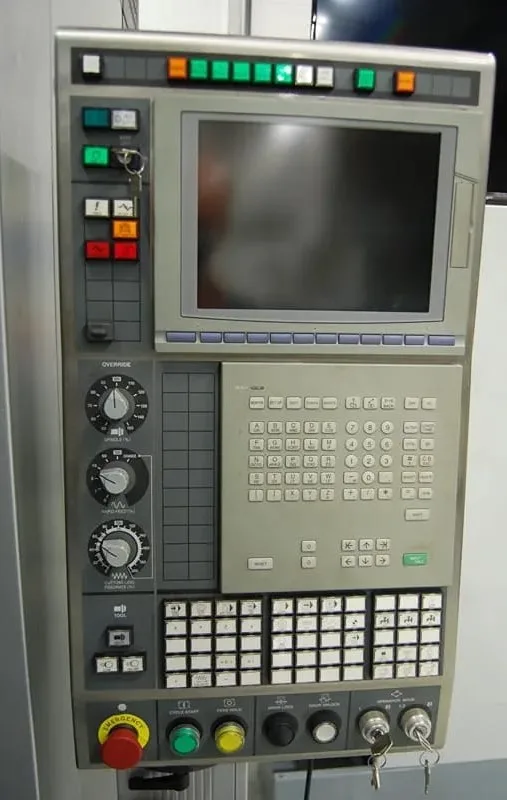

Control:Mitsubishi Meldas M650
X-Axis Travel:630 mm
Y-Axis Travel:630 mm
Z-Axis Travel:700 mm
Distance from Spindle Center to Top of Pallet: 50 – 680 mm
Distance Spindle Nose / Center Rotary Index Table: 50 – 680 mm
Rapid Feed Rate X, Y:120 m/min
Rapid Feed Rate Z:60 m/min
Rapid Feed Rate B:120 m/min
Cutting Feed Rate X, Y, Z:0.1 – 60 m/min

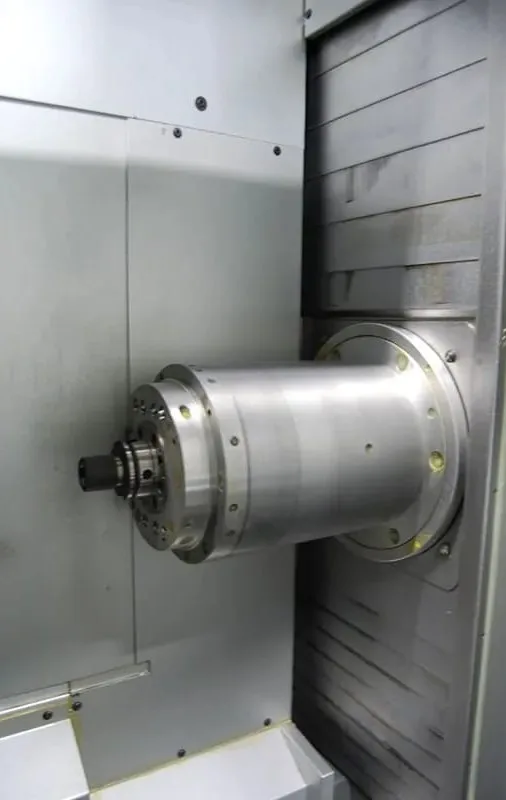

Spindle Speed:300 – 20,000 min-1
Spindle Taper:HSK-A63
Through Spindle Coolant
Tool Holder:Special HSK-A63 2 Face Contact Tool
Tool Magazine:40 pcs
Tool Change Time:2.5 sec.
Spindle Drive Motor:AC 45/30 kW
Pallet Size:550 × 550 mm
Maximum Load on Pallet:400 kg
Table Indexing Increment:0.001 degrees
Machine Weight:15 Ton
Power Requirement:96 kVA
Features:
- Spindle Linear Motor Cooling Unit
- Spindle Orientation
- Spindle Air Blow
- Splash Guard – House Type with Rotary Door

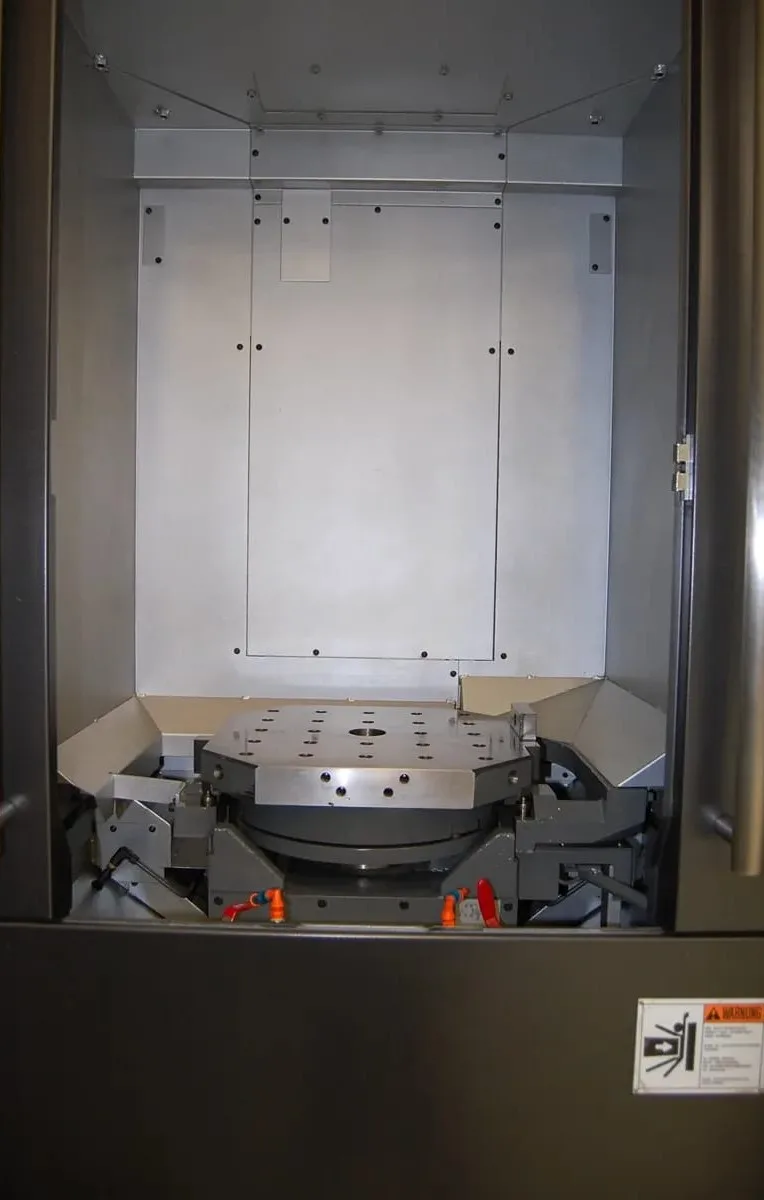

- Pallet Changer – Turn Type Equipped with 2 Pallets
Machine specifications
- Manufacturer
- TOYODA (Japan)
- Model
- LINEAM III
- Condition
- used
- Year
- 2004
- Brand
- TOYODA (Japan)
- Model
- LINEAM III
- Control
- Mitsubishi Meldas M650
- Category
- CNC Machines
- Features
- Spindle Linear Motor Cooling Unit, Spindle Orientation, Spindle Air Blow, Splash Guard – House Type with Rotary Door, Pallet Changer – Turn Type Equipped with 2 Pallets
- Pallet Size
- 550 × 550 mm
- Subcategory
- Horizontal Machining Centres
- Tool Holder
- Special HSK-A63 2 Face Contact Tool
- Machine Name
- CNC Horizontal Machining Center with Pallet Changer
- Spindle Speed
- 300 – 20,000 min-1
- Spindle Taper
- HSK-A63
- Tool Magazine
- 40 pcs
- X Axis Travel
- 630 mm
- Y Axis Travel
- 630 mm
- Z Axis Travel
- 700 mm
- Machine Weight
- 15 Ton
- Tool Change Time
- 2.5 sec.
- Power Requirement
- 96 kVA
- Rapid Feed Rate B
- 120 m/min
- Rapid Feed Rate Z
- 60 m/min
- Rapid Feed Rate X Y
- 120 m/min
- Spindle Drive Motor
- AC 45/30 kW
- Maximum Load On Pallet
- 400 kg
- Cutting Feed Rate X Y Z
- 0.1 – 60 m/min
- Table Indexing Increment
- 0.001 degrees
- Distance From Spindle Center To Top Of Pallet
- 50 – 680 mm
- Distance Spindle Nose Center Rotary Index Table
- 50 – 680 mm
