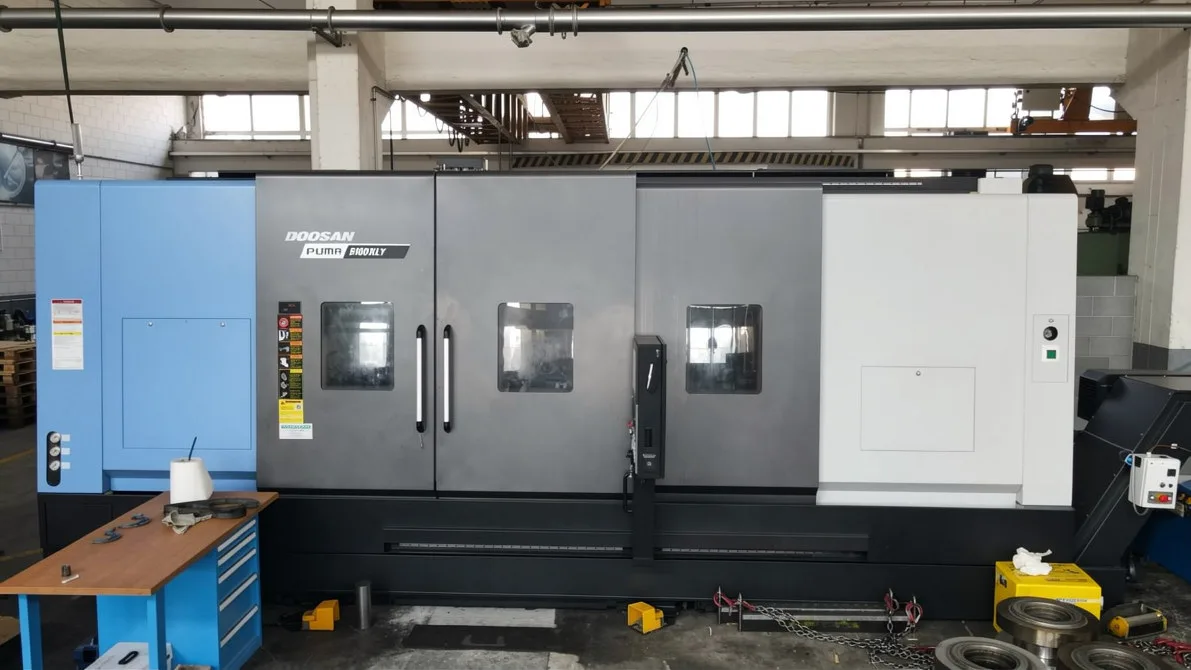

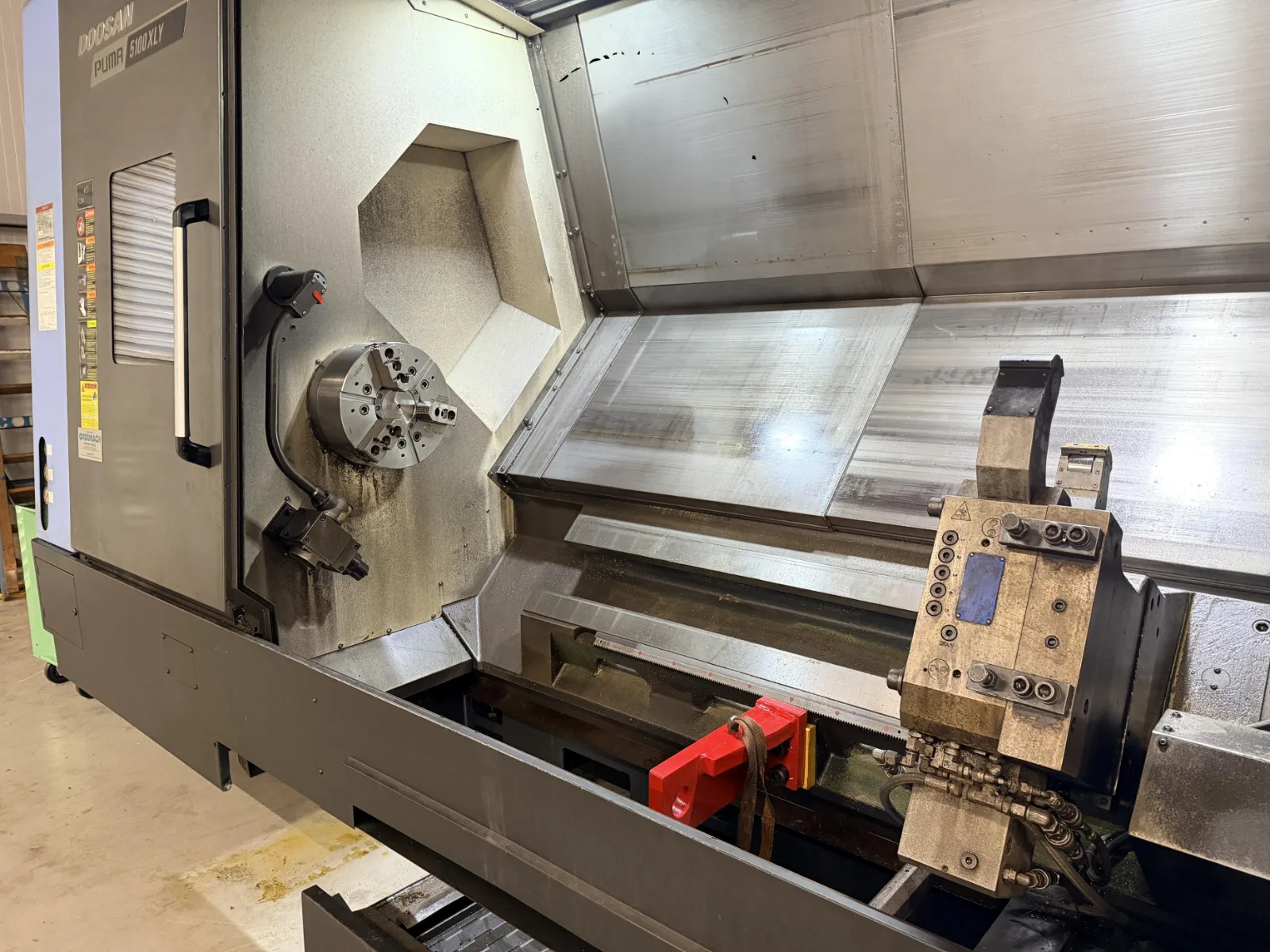

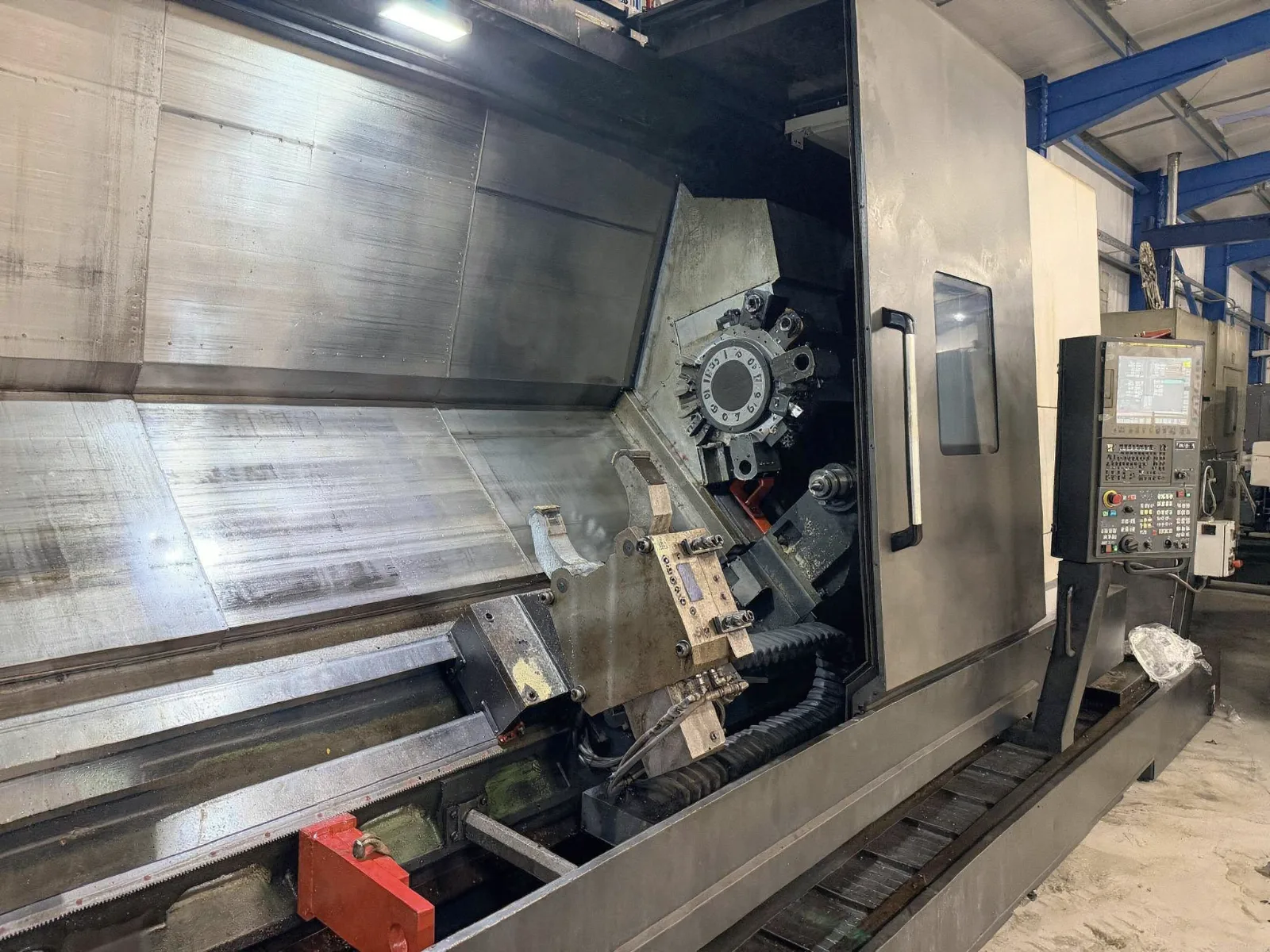

CNC Lathe with Milling Doosan Puma 5100XLY
Ref. No.220
- Brand
- Doosan
- Model
- Puma 5100XLY
- Condition
- used
Year:2020

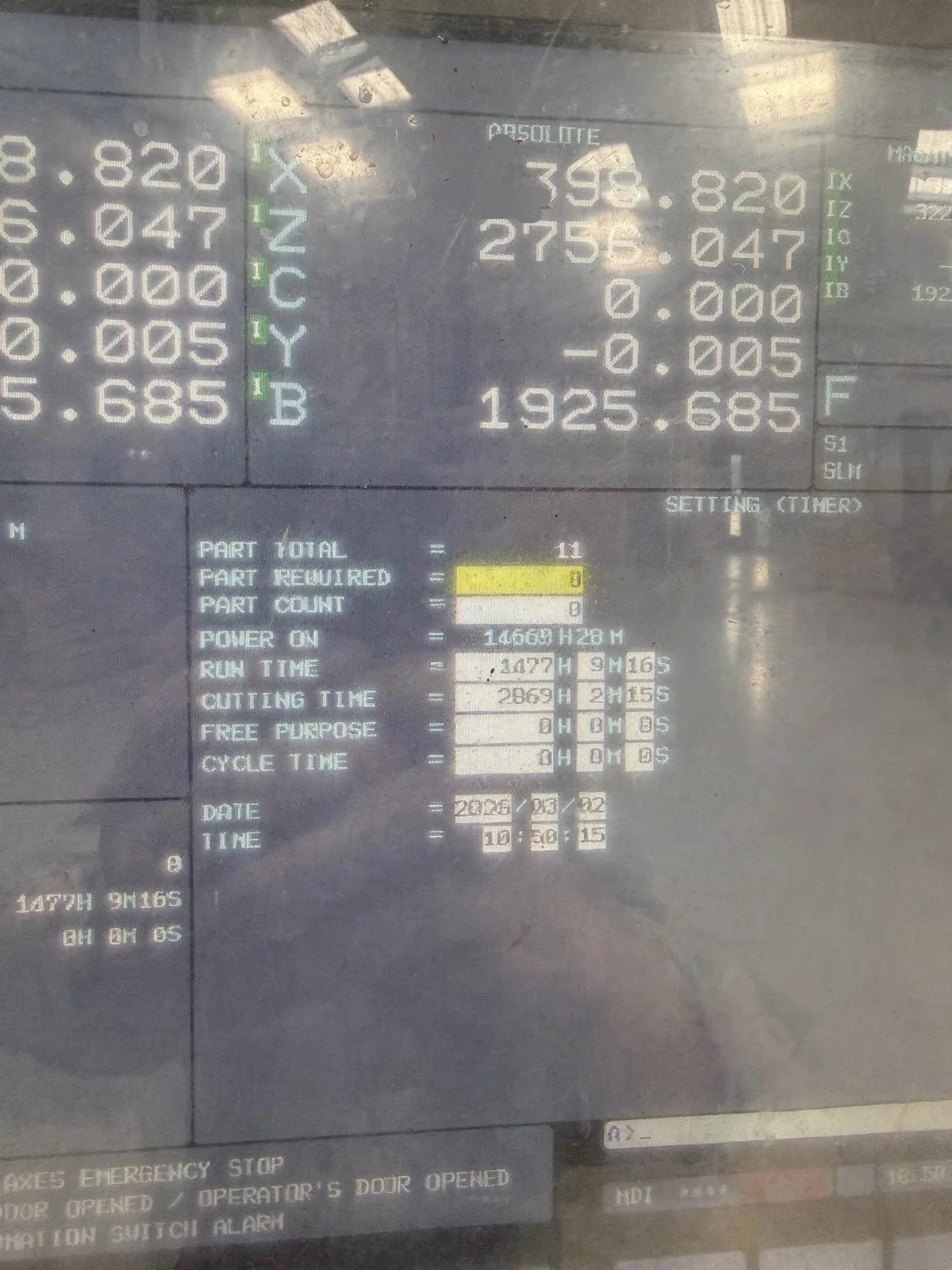

Control:Fanuc iPLUS iHMI
X-Axis Travel:355 mm
Y-Axis Travel:±75 mm
Z-Axis Travel:3150 mm
Maximum Cutting Diameter:550 mm
Standard Cutting Diameter:380 mm
Maximum Cutting Length:3070 mm
Swing:880 mm
Swing Over Cross-Slide:817 mm
Bar Capacity:116.5 mm
Boring Bar Holder Diameter:60 mm

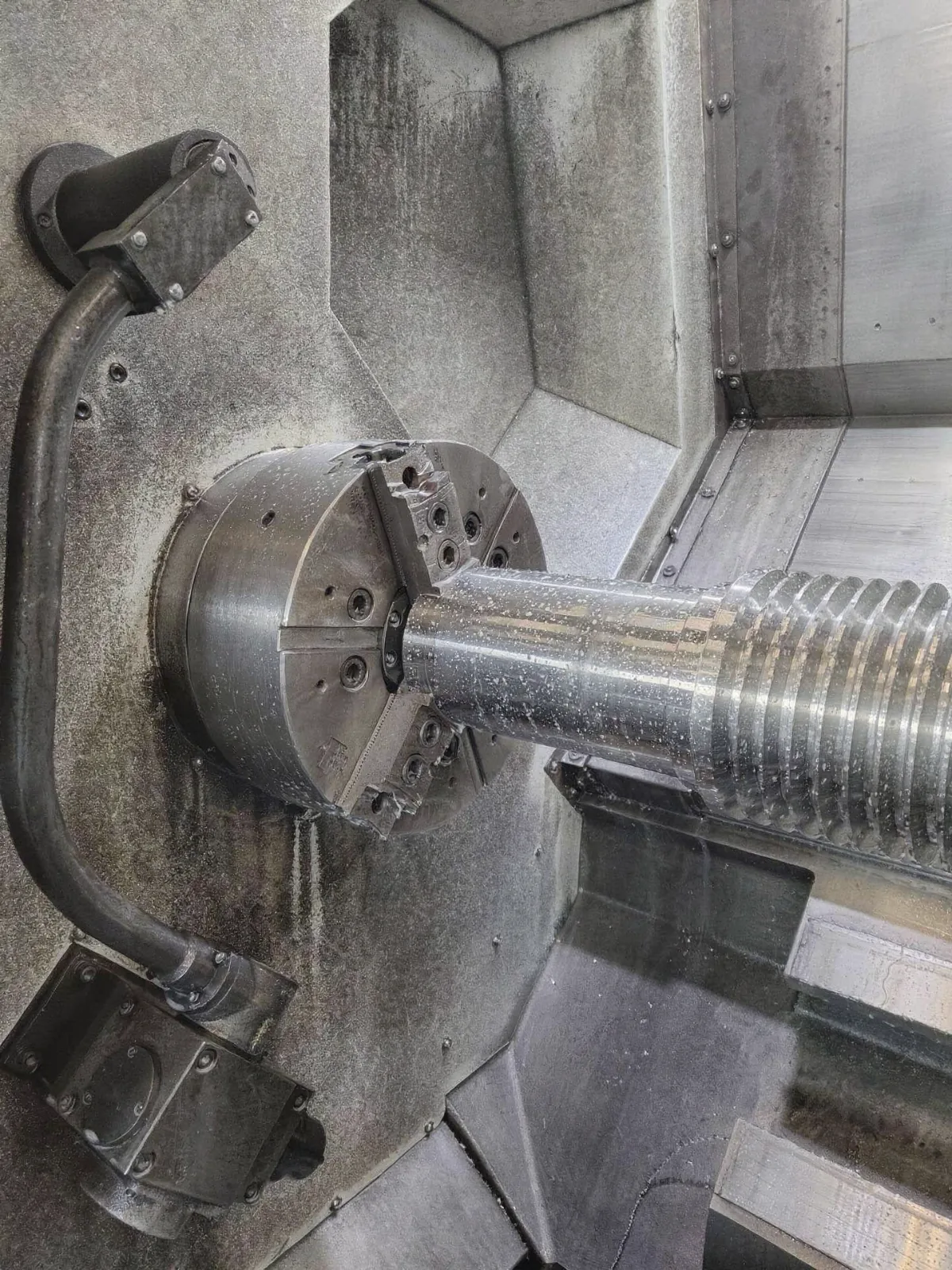

Chuck Size:400 mm
Spindle Nose:A2-11
Spindle Motor Power:37/30 kW
Maximum Spindle Speed:2000 rpm
Milling Motor Power:23/15 kW
Maximum Milling Speed:4000 rpm
C-Axis:0.001°
Rapid Feedrates (X/Y/Z):20 / 10 / 18 m/min
Turret Positions:12 Stations
Tooling Configuration:BMT75P
Tool Size:25 × 25 mm
Tailstock Body Travel:3070 mm
Tailstock Quill Diameter:120 mm
Tailstock Quill Stroke:120 mm
Tailstock Taper:MT #6

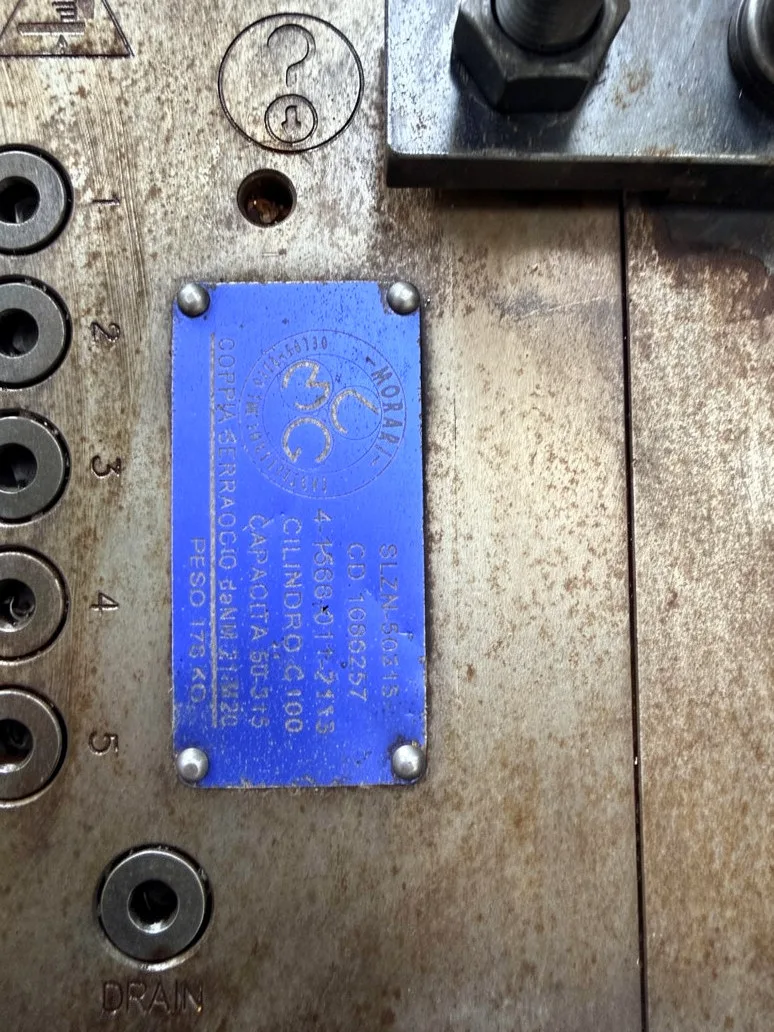

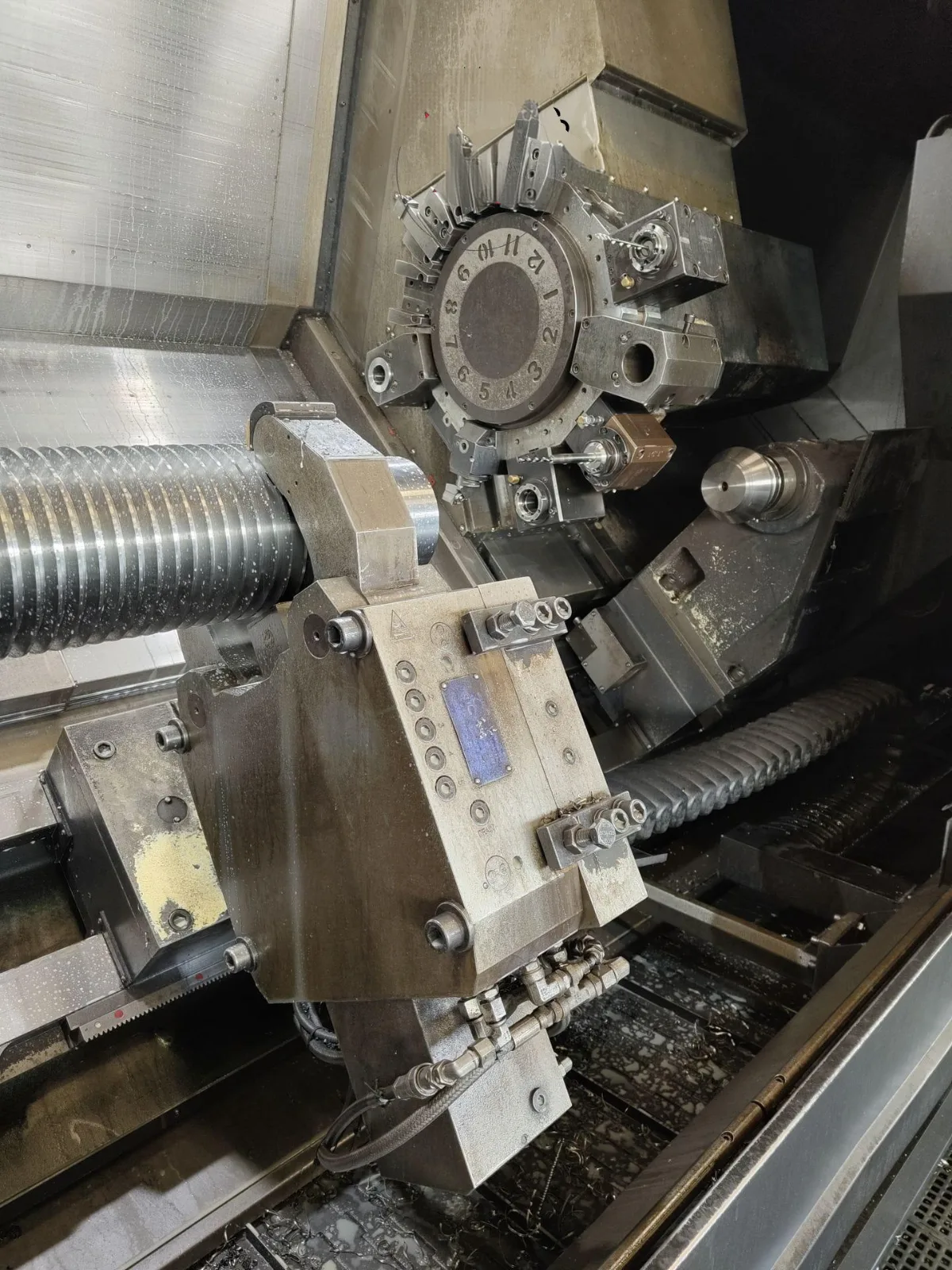

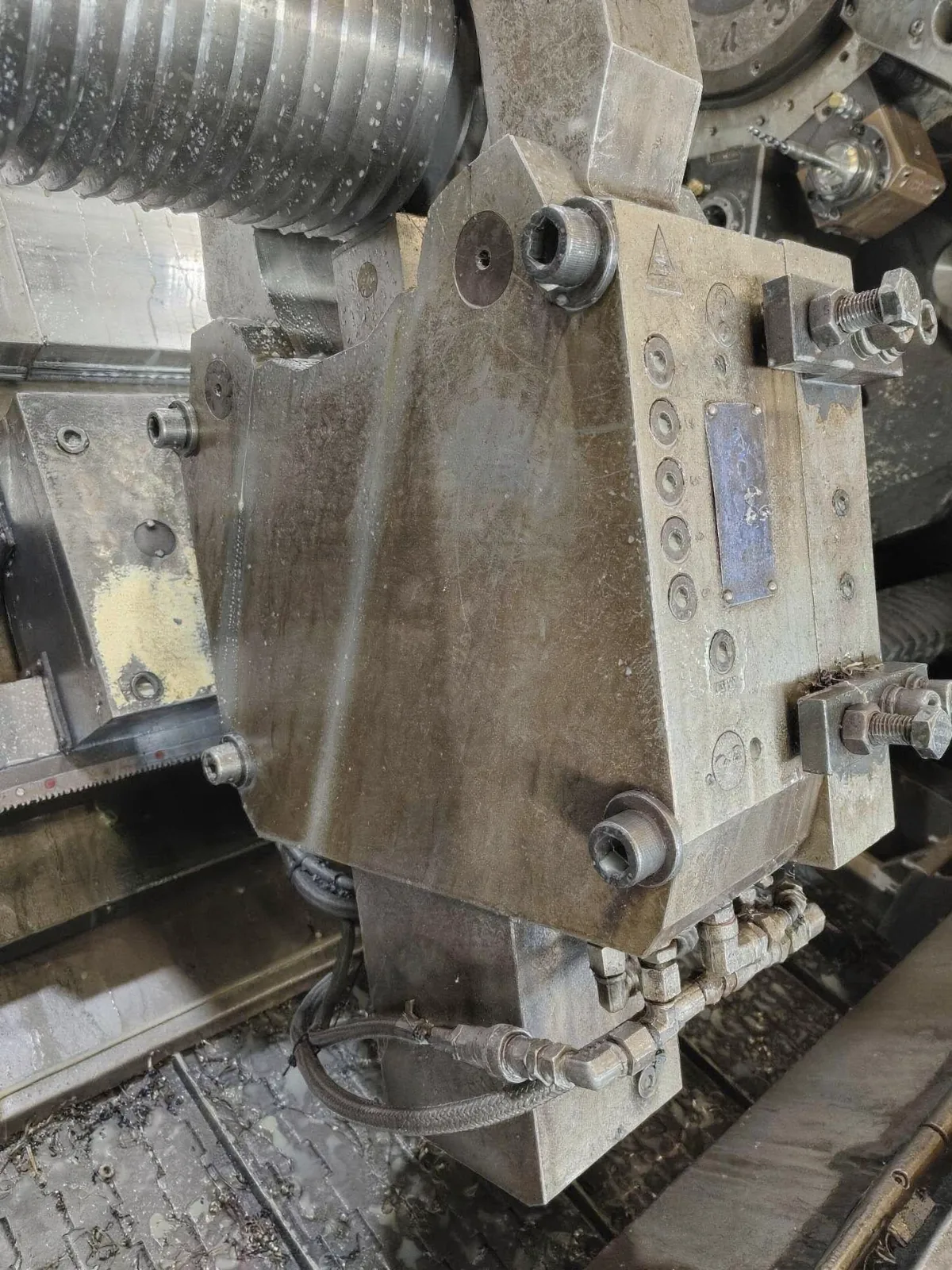

Steady Rest:Morari SLZN-50315 (50–315 mm Capacity)
Machine Weight:16 Ton
Machine Dimensions (L × W × H):8175 × 2632 × 2937 mm
Machine specifications
- Manufacturer
- Doosan
- Model
- Puma 5100XLY
- Condition
- used
- Year
- 2020
- Brand
- Doosan
- Model
- Puma 5100XLY
- Swing
- 880 mm
- C Axis
- 0.001°
- Control
- Fanuc iPLUS iHMI
- Tool Size
- 25 × 25 mm
- Chuck Size
- 400 mm
- Steady Rest
- Morari SLZN-50315 (50–315 mm Capacity)
- Bar Capacity
- 116.5 mm
- Machine Name
- CNC Lathe with Milling
- Spindle Nose
- A2-11
- X Axis Travel
- 355 mm
- Y Axis Travel
- ±75 mm
- Z Axis Travel
- 3150 mm
- Machine Weight
- 16 Ton
- Tailstock Taper
- MT #6
- Turret Positions
- 12 Stations
- Machine Dimensions
- 8175 × 2632 × 2937 mm
- Milling Motor Power
- 23/15 kW
- Spindle Motor Power
- 37/30 kW
- Maximum Milling Speed
- 4000 rpm
- Maximum Spindle Speed
- 2000 rpm
- Tailstock Body Travel
- 3070 mm
- Tooling Configuration
- BMT75P
- Maximum Cutting Length
- 3070 mm
- Swing Over Cross Slide
- 817 mm
- Tailstock Quill Stroke
- 120 mm
- Maximum Cutting Diameter
- 550 mm
- Rapid Feedrates / X Axis
- 20 m/min
- Rapid Feedrates / Y Axis
- 10 m/min
- Rapid Feedrates / Z Axis
- 18 m/min
- Tailstock Quill Diameter
- 120 mm
- Standard Cutting Diameter
- 380 mm
- Boring Bar Holder Diameter
- 60 mm
