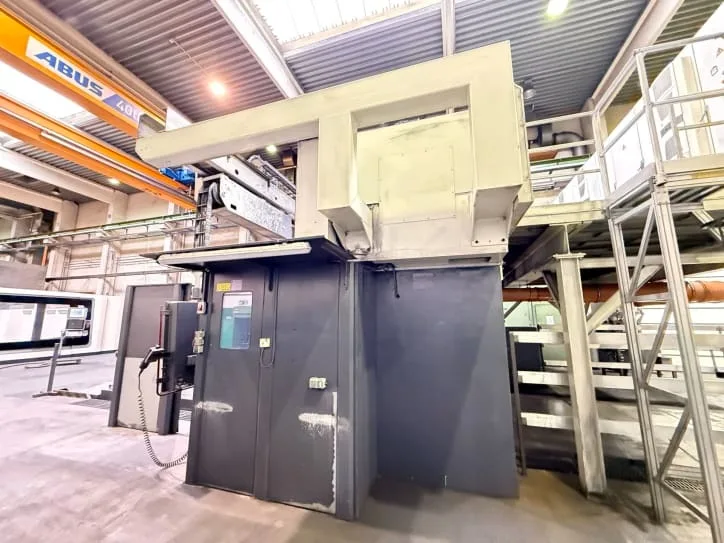

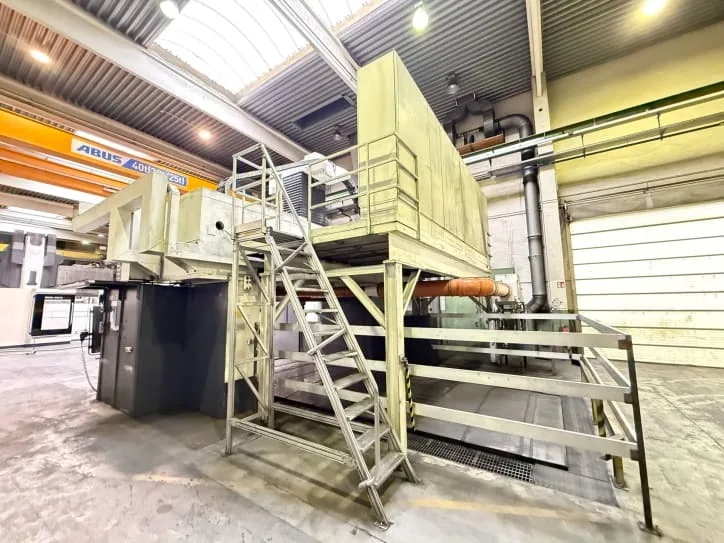

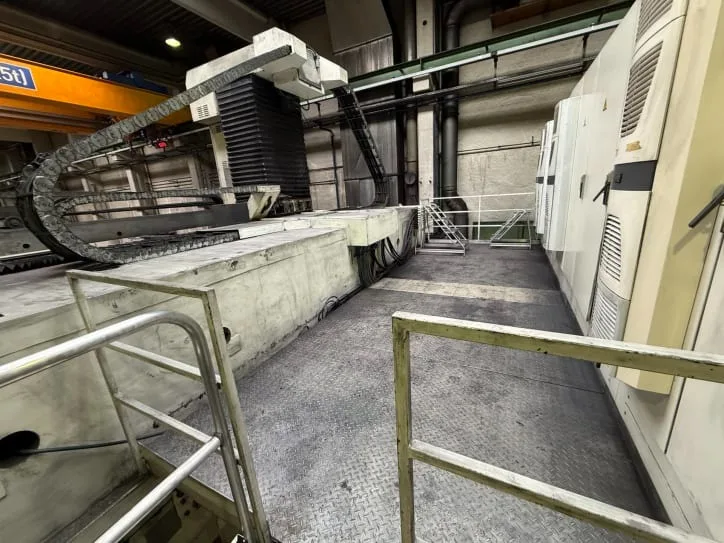

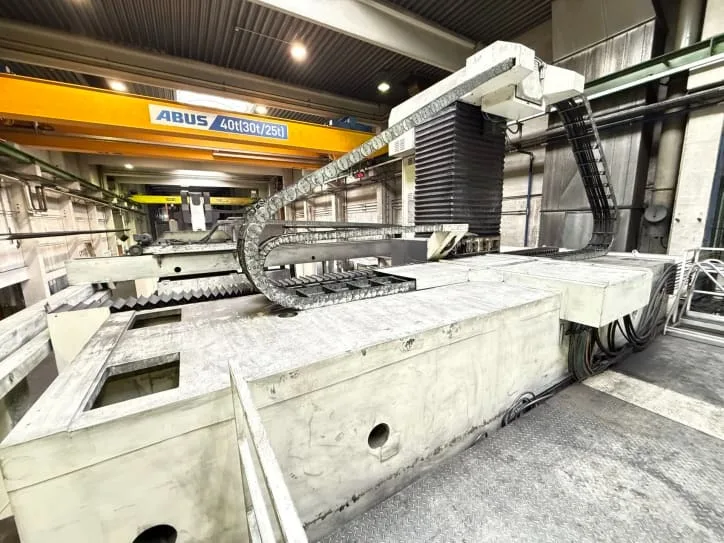

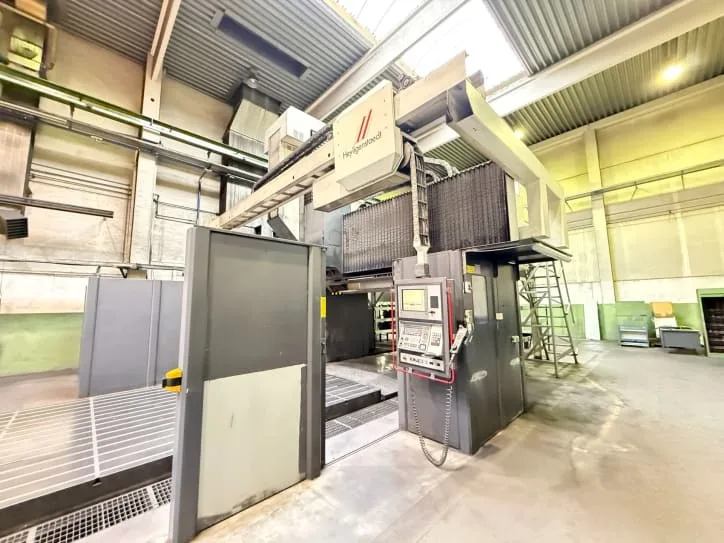

CNC Portal Milling Machine HEYLIGENSTAEDT HEYMUNILL 3200-P
Ref. No.216
- Brand
- HEYLIGENSTAEDT
- Model
- HEYMUNILL 3200-P
- Condition
- used
CNC Portal Milling Machine
Brand:HEYLIGENSTAEDT
Model:HEYMUNILL 3200-P
Year:- 1999

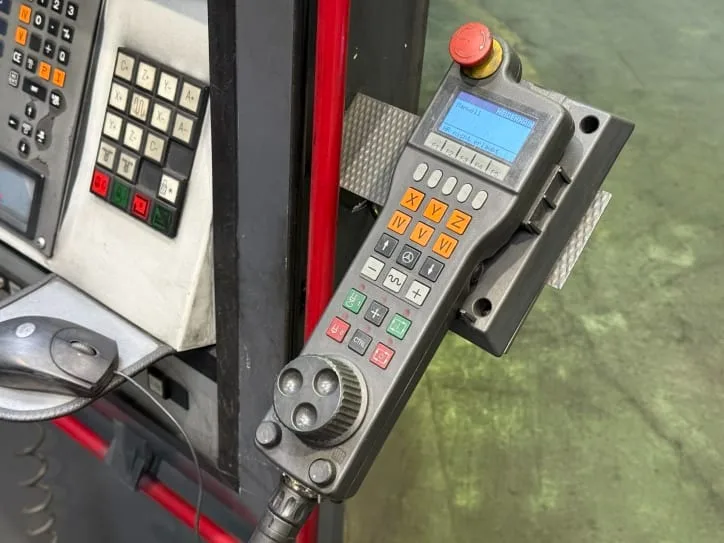

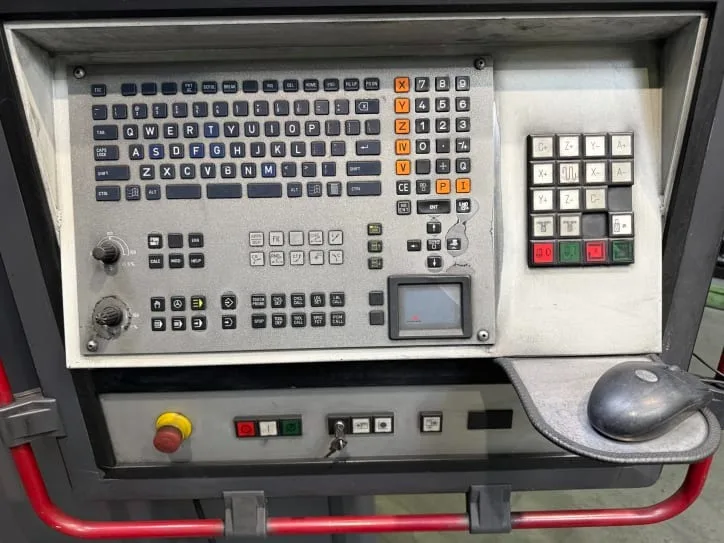

Control:Heidenhain TNC 430
X-Axis Travel:6000 mm
Y-Axis Travel:4000 mm
Z-Axis Travel:2050 mm
Portal Clearance Width:3220 mm
Portal Clearance Height:2050 mm
Table Size:5000 × 3000 mm
Table Load Capacity:50000 kg
Spindle Power:50 kW
Maximum Spindle Speed:5000 rpm
5-Axis Machining:Yes
A-Axis:Swivel Axis
B-Axis:Swivel Axis
C-Axis:360° Rotation
Milling Heads:
- Straight Milling Head FK 120/340
- 90° Angle Head WFK 100/750M
- Fork Head FK 100/2D
Milling Head Magazine:5 Positions
Automatic Milling Head Change:Yes
Automatic Tool Changer:32 Positions
Tool Holder:SK50 (DIN 69871)
Internal Cooling (IKZ):Approx. 7 bar
Tool Measuring System:Laser
Chip Conveyor:Yes
Coolant System:Yes
Adaptive Feed Control:Yes
Heidenhain Linear Scales:X / Y / Z
Machine Weight:120Ton
Machine specifications
- Manufacturer
- HEYLIGENSTAEDT
- Model
- HEYMUNILL 3200-P
- Condition
- used
- Name
- CNC Portal Milling Machine
- Year
- 1999
- Brand
- HEYLIGENSTAEDT
- Model
- HEYMUNILL 3200-P
- A Axis
- Swivel Axis
- B Axis
- Swivel Axis
- C Axis
- 360° Rotation
- Control
- Heidenhain TNC 430
- Table Size
- 5000 × 3000 mm
- Tool Holder
- SK50 (DIN 69871)
- Chip Conveyor
- Yes
- Milling Heads
- Straight Milling Head FK 120/340, 90° Angle Head WFK 100/750M, Fork Head FK 100/2D
- Spindle Power
- 50 kW
- X Axis Travel
- 6000 mm
- Y Axis Travel
- 4000 mm
- Z Axis Travel
- 2050 mm
- Coolant System
- Yes
- Machine Weight
- 120 Ton
- 5 Axis Machining
- Yes
- Table Load Capacity
- 50000 kg
- Internal Cooling Ikz
- Approx. 7 bar
- Adaptive Feed Control
- Yes
- Maximum Spindle Speed
- 5000 rpm
- Milling Head Magazine
- 5 Positions
- Tool Measuring System
- Laser
- Automatic Tool Changer
- 32 Positions
- Portal Clearance Width
- 3220 mm
- Portal Clearance Height
- 2050 mm
- Heidenhain Linear Scales
- X / Y / Z
- Automatic Milling Head Change
- Yes
