Turning and Milling Centres
CNC Single Column Vertical Turret Lathe Schiess Froriep
Ref. No.236
- Brand
- Schiess Froriep
- Condition
- used
CNC Single Column Vertical Turret Lathe
Brand:Schiess Froriep
Year:1988

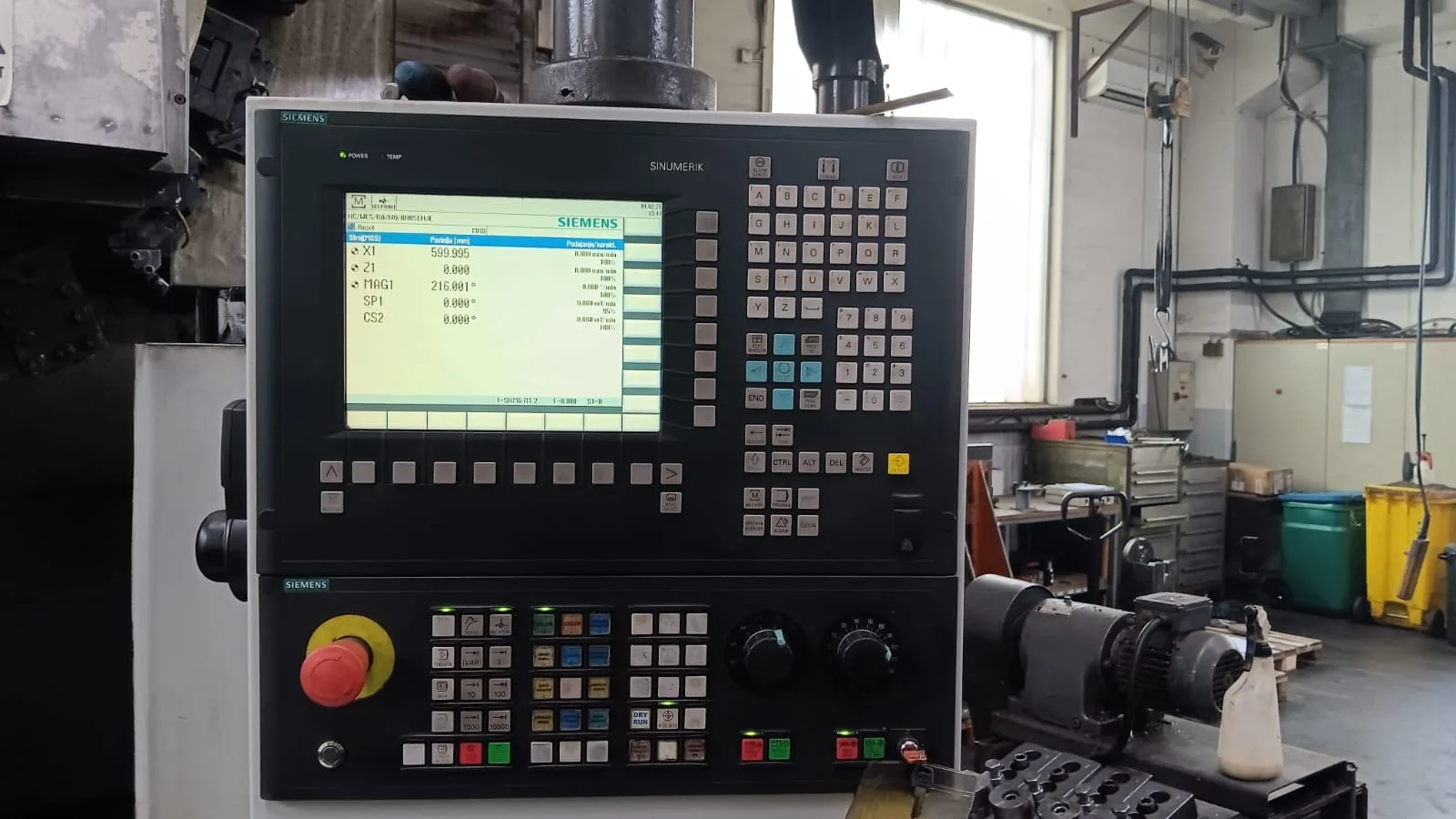

Control:Siemens Sinumerik 840D

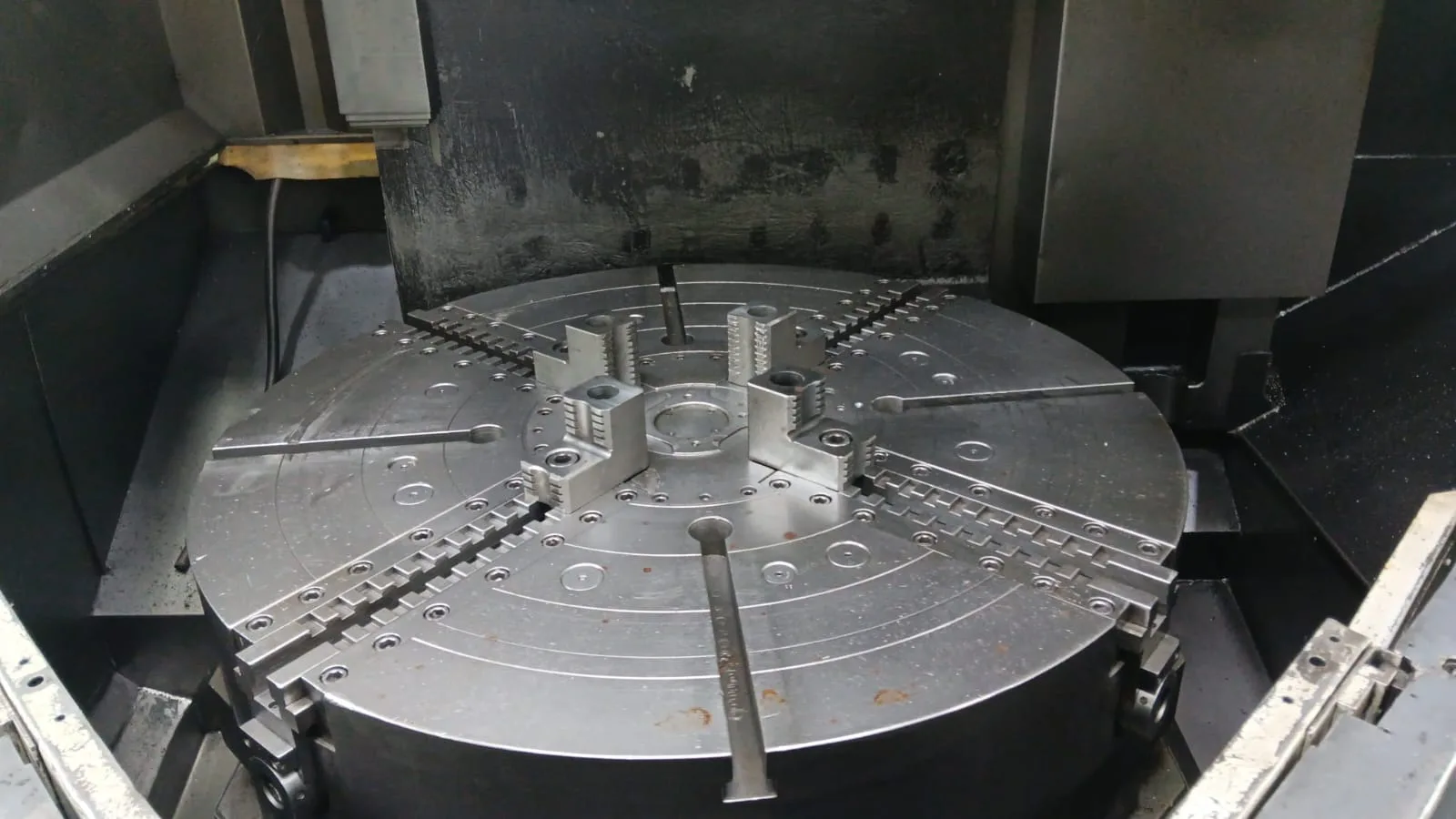

Faceplate Diameter:1250 mm
Maximum Working Height:1000 mm
Maximum Swing:1400 mm
Main Motor Power:55 kW at 2400 rpm
Torque:23000 Nm
Feed Axes:X, Z
Rapid Movement X, Z:3000 mm/min

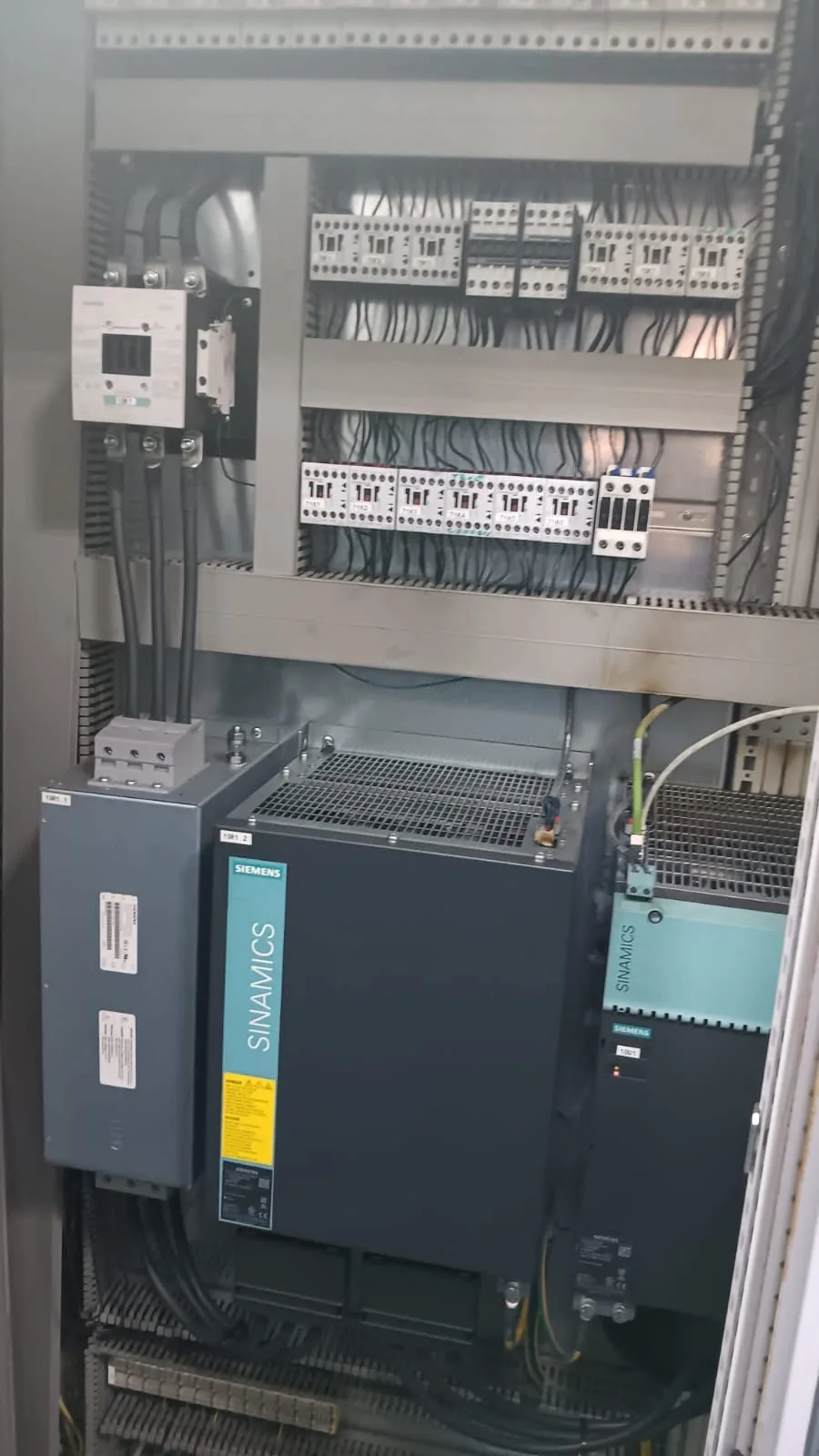

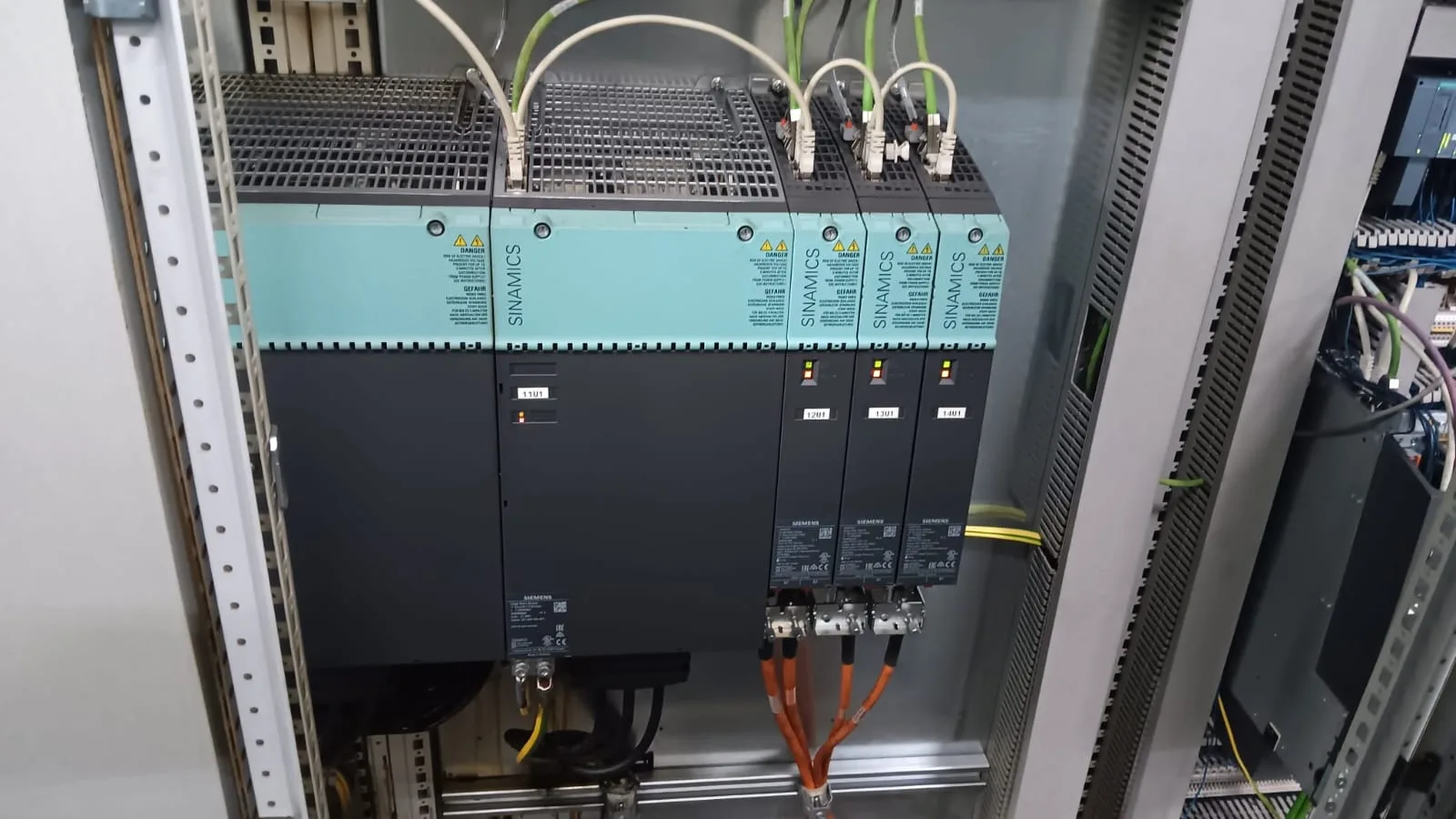

Drives:Simodrive
Automatic Tool Changer:1 Revolver
Chuck:6-Jaw Chuck
Chip Conveyor:Yes
Exhaust Air System:Yes
Features:
Completely overhauled and retrofitted in 2021 with new control
Documentation available

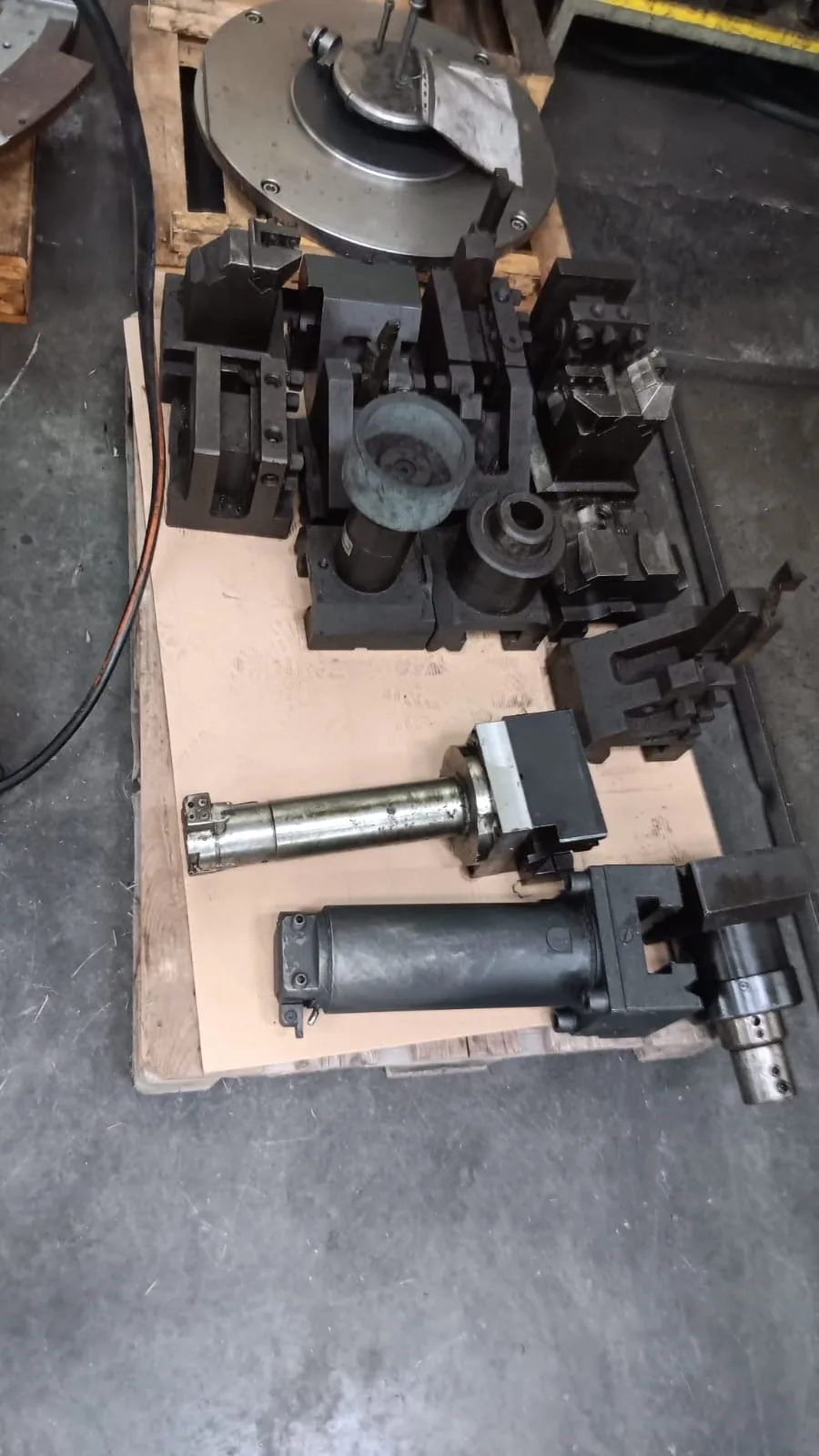

Tools
Jaws
Machine specifications
- Manufacturer
- Schiess Froriep
- Condition
- used
- Year
- 1988
- Brand
- Schiess Froriep
- Chuck
- 6-Jaw Chuck
- Drives
- Simodrive
- Torque
- 23000 Nm
- Control
- Siemens Sinumerik 840D
- Category
- CNC Machines
- Features
- Completely overhauled and retrofitted in 2021 with new control, Documentation available, Tools, Jaws
- Feed Axes
- X, Z
- Subcategory
- CNC Turning Centres
- Machine Name
- CNC Single Column Vertical Turret Lathe
- Chip Conveyor
- Yes
- Maximum Swing
- 1400 mm
- Main Motor Power
- 55 kW at 2400 rpm
- Exhaust Air System
- Yes
- Faceplate Diameter
- 1250 mm
- Rapid Movement X Z
- 3000 mm/min
- Automatic Tool Changer
- 1 Revolver
- Maximum Working Height
- 1000 mm
