CNC Machines

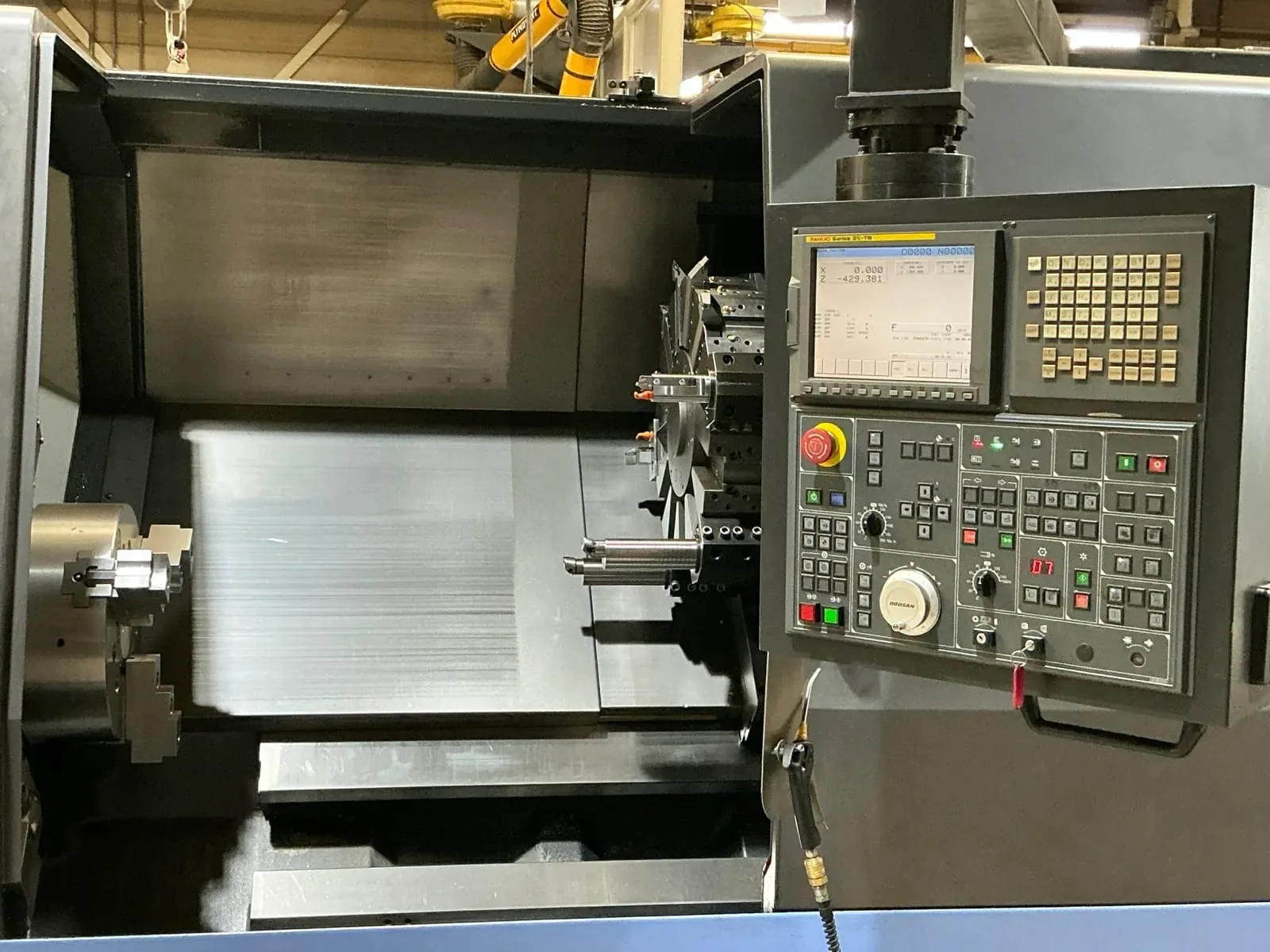

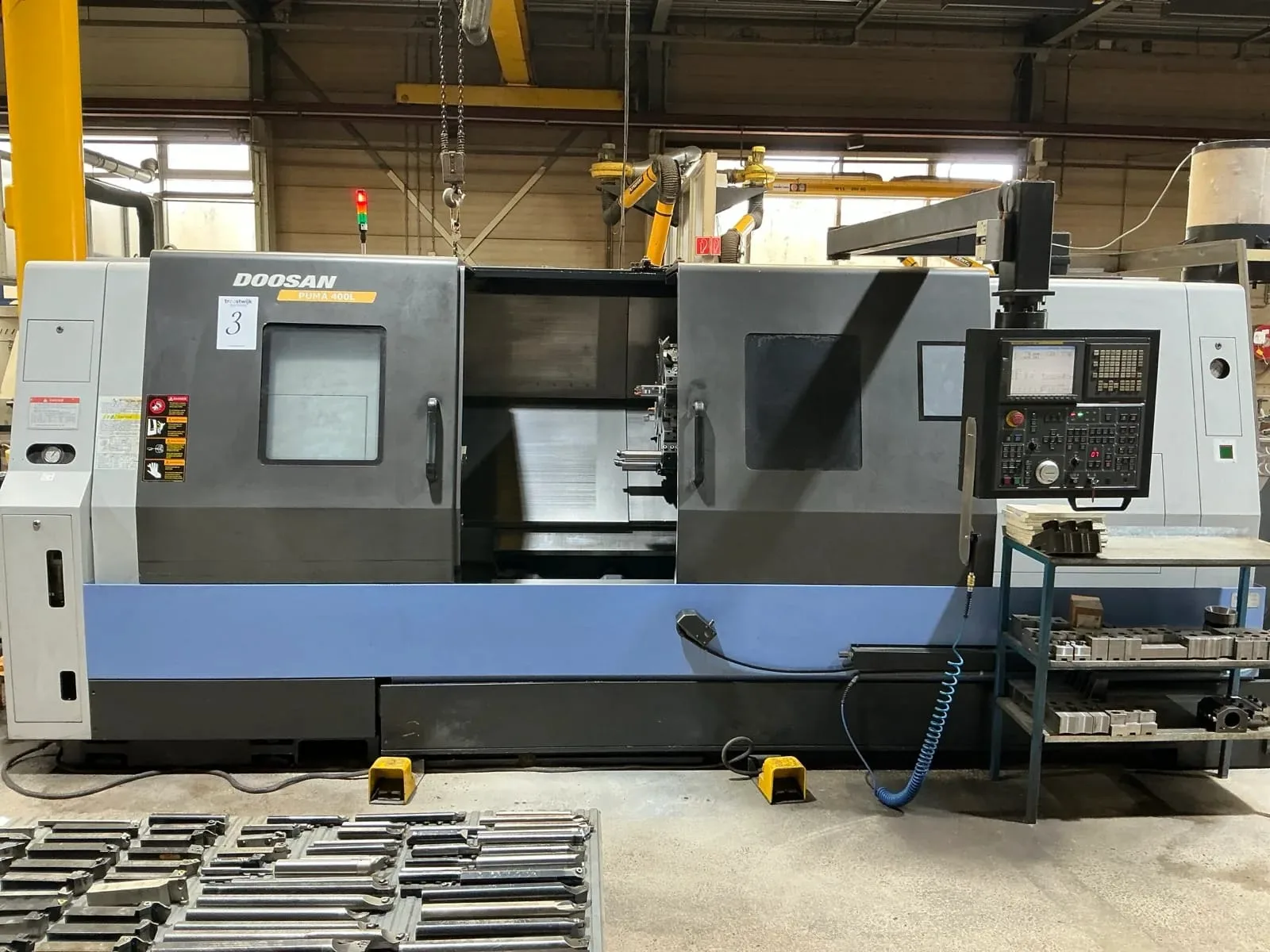

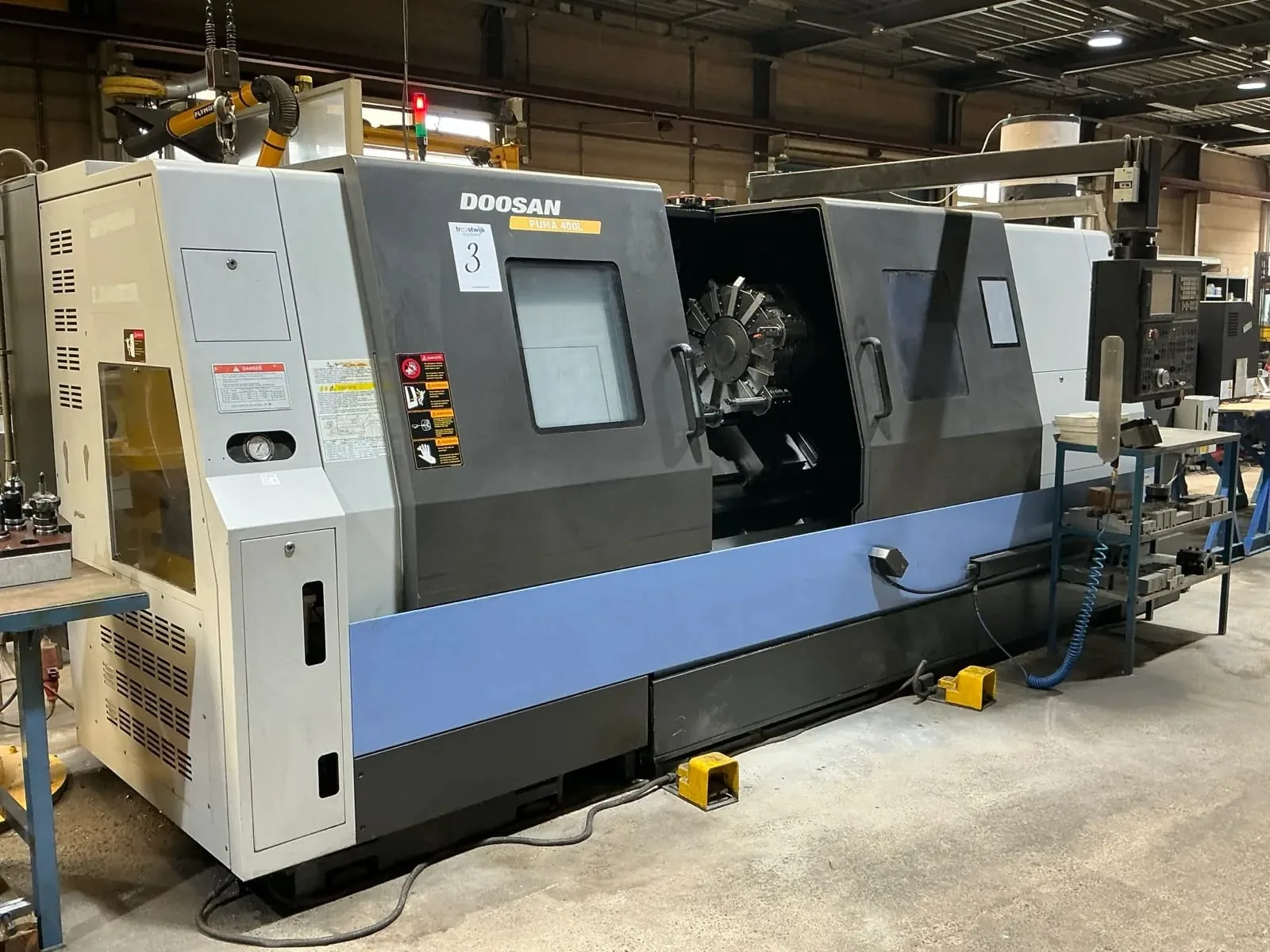

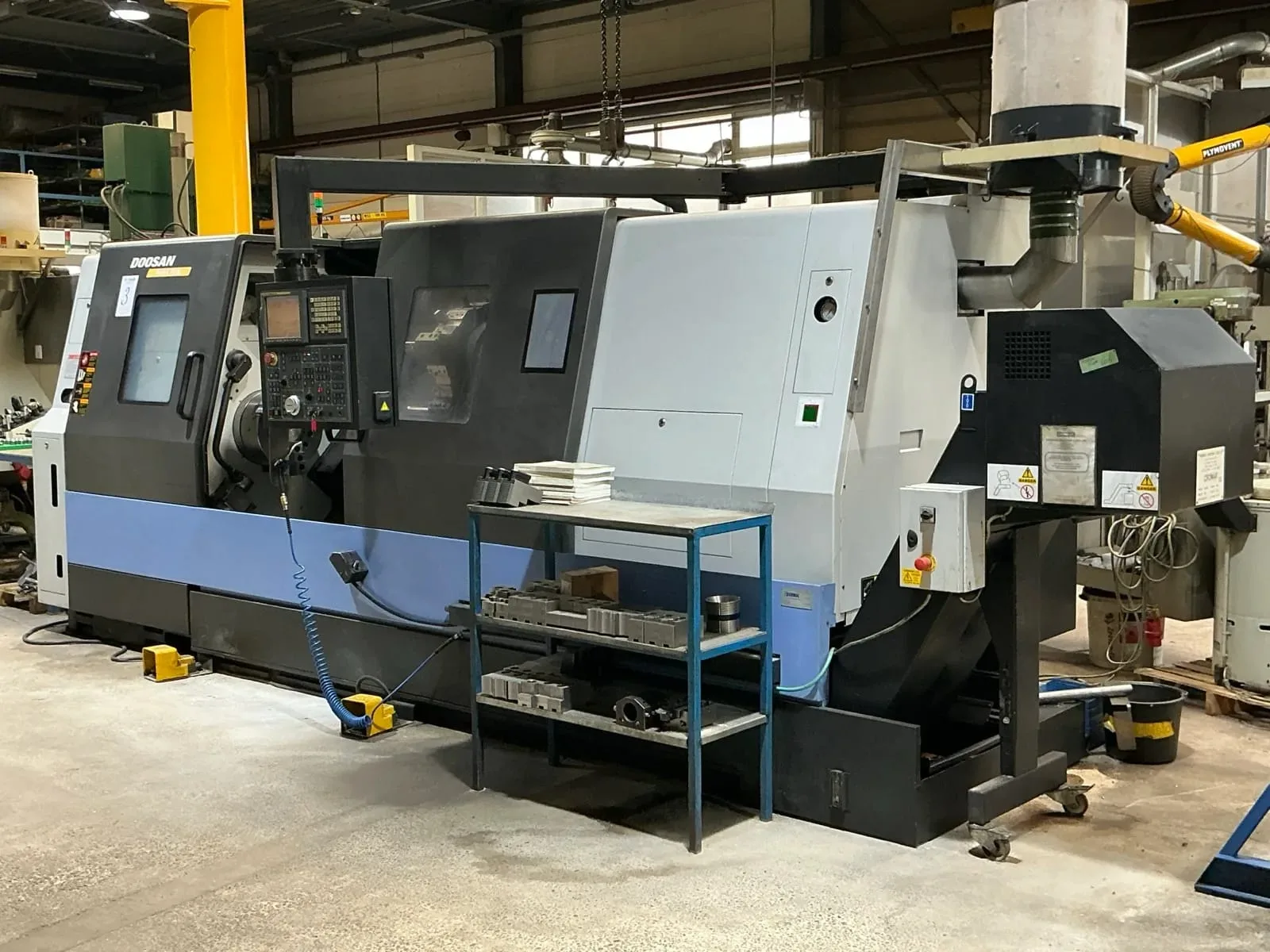

CNC Slant Bed Turning Lathe Doosan Puma 400LB
Ref. No.218
- Brand
- Doosan
- Model
- Puma 400LB
- Condition
- used
Year:2007

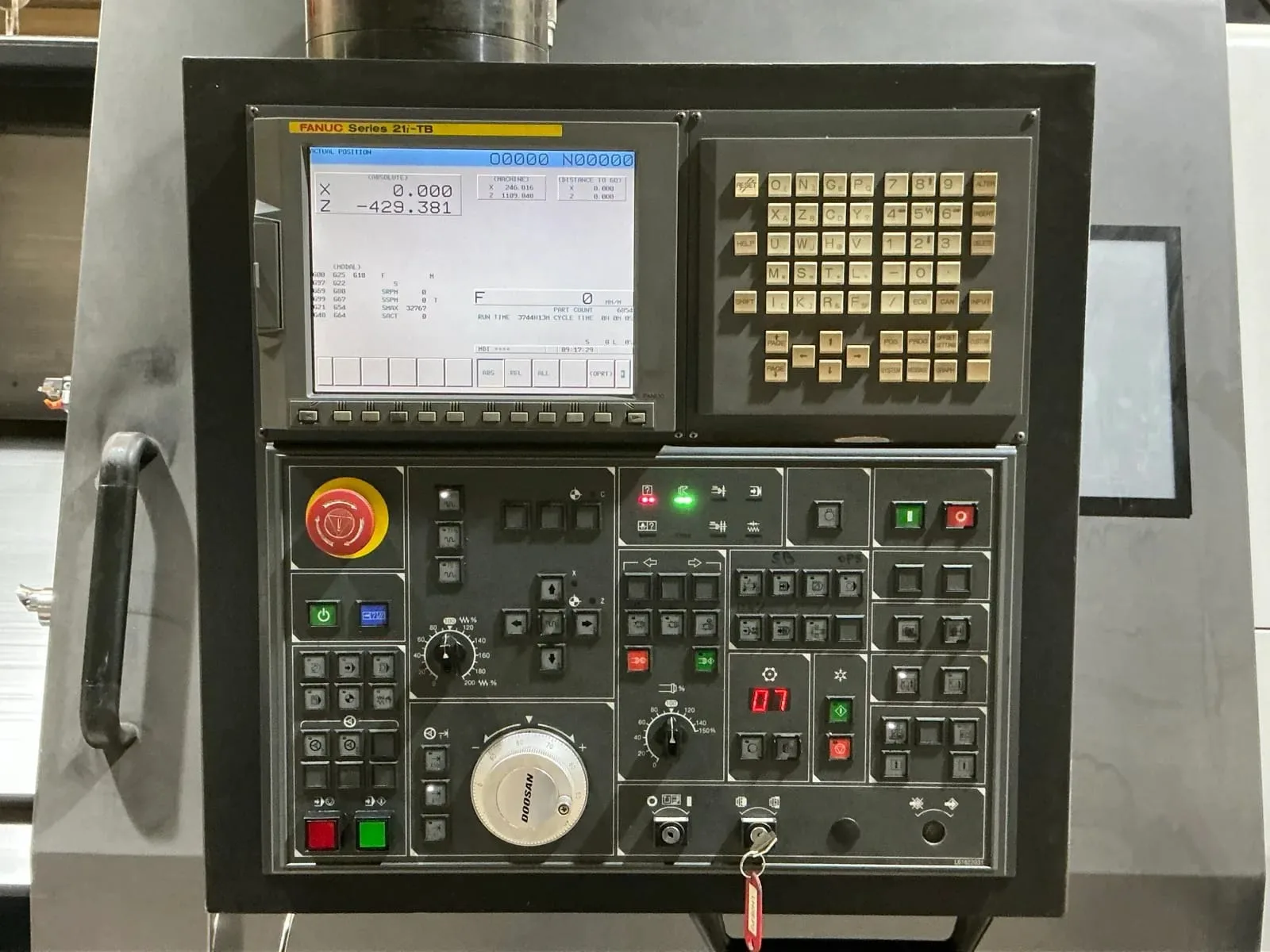

Control:Fanuc Series 21i-TB
Maximum Turning Diameter:550 mm
Swing Diameter Above Bed:770 mm
Swing Diameter Above Carriage:590 mm
Turning Length:2000 mm
Spindle Bore:132 mm
Spindle Motor:22 kW Continuous / 26 kW (30 min)
Maximum Spindle Speed:2000 rpm

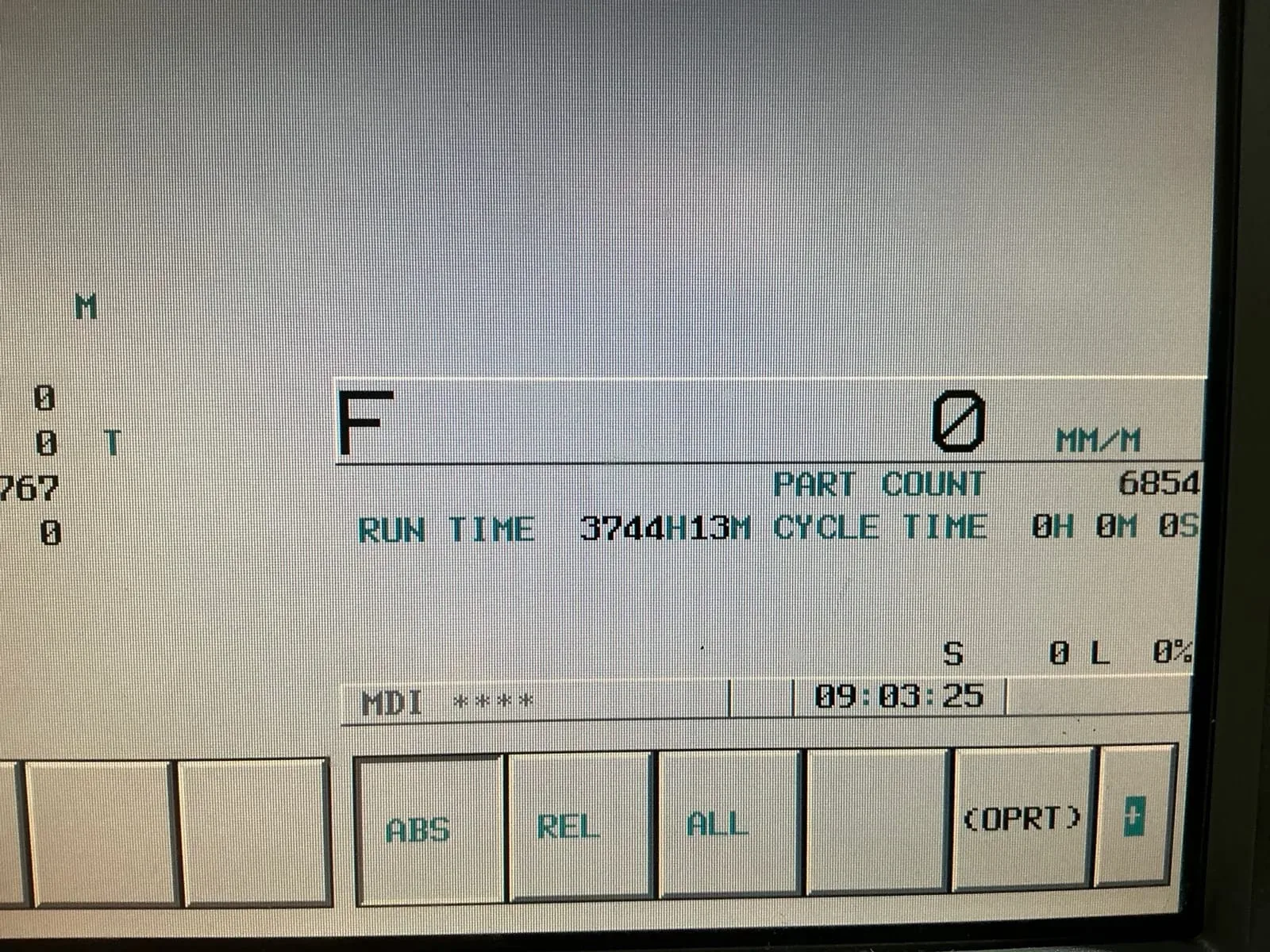

Spindle Hours:3744 hrs
Tool Turret Stations:12
Coolant Pump:Yes
Chip Conveyor:Yes
Electrical Connection:400 V
Machine Weight:10 Ton
Machine Dimensions (L × W × H):6100 × 1900 × 2800 mm
Coolant Pump Replaced:2024
Included Accessories:

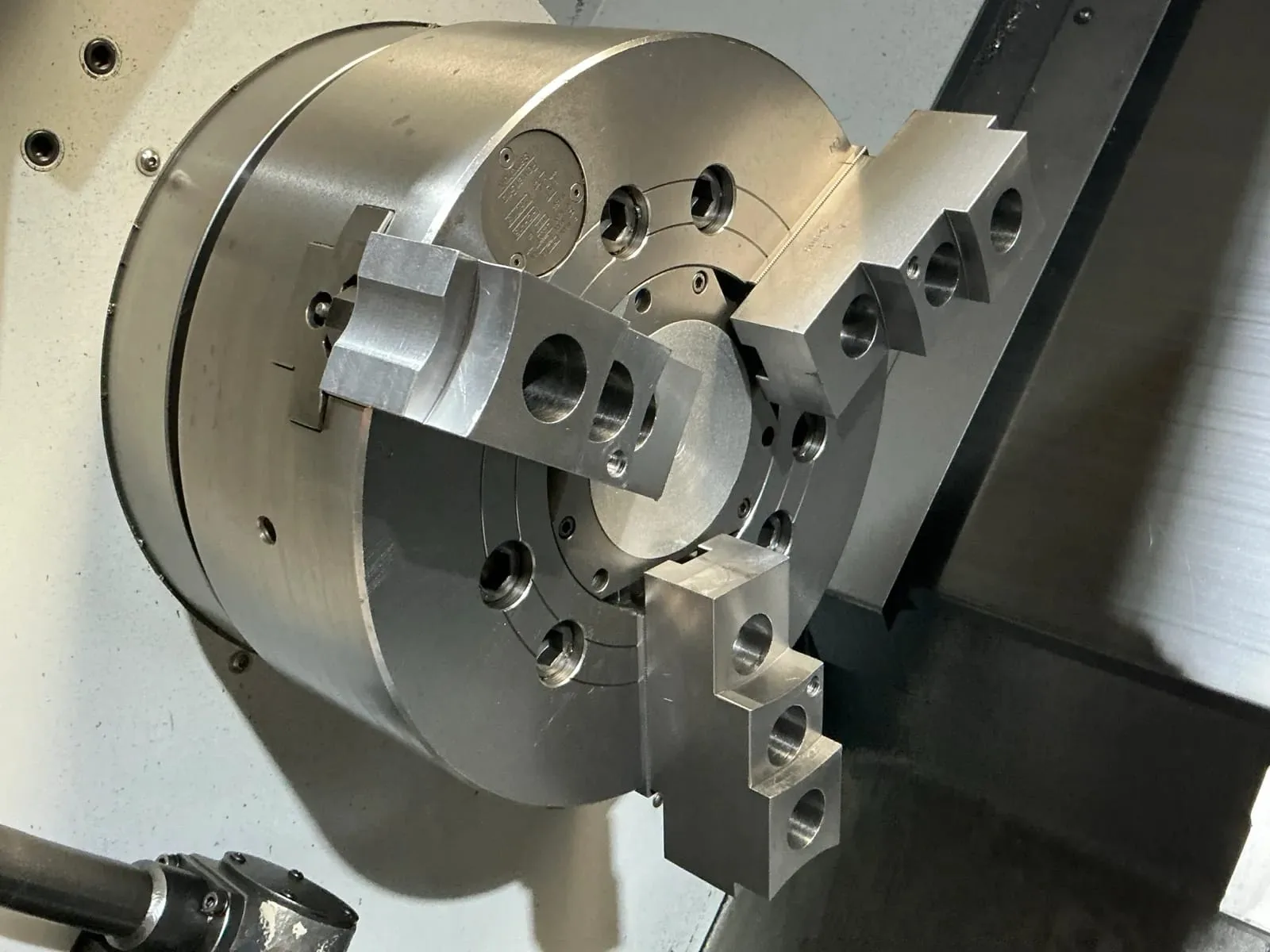

- Hard Jaws (1 Set)
- Serrated Jaws (1 Set)
- Soft Jaw Tables (Multiple Sets)
- Technical Documentation:Yes
Machine specifications
- Manufacturer
- Doosan
- Model
- Puma 400LB
- Condition
- used
- Year
- 2007
- Brand
- Doosan
- Model
- Puma 400LB
- Control
- Fanuc Series 21i-TB
- Coolant Pump
- Yes
- Machine Name
- CNC Slant Bed Turning Lathe
- Spindle Bore
- 132 mm
- Chip Conveyor
- Yes
- Spindle Hours
- 3744 hrs
- Spindle Motor
- 22 kW Continuous / 26 kW (30 min)
- Machine Weight
- 10 Ton
- Turning Length
- 2000 mm
- Machine Dimensions
- 6100 × 1900 × 2800 mm
- Included Accessories
- Hard Jaws (1 Set), Serrated Jaws (1 Set), Soft Jaw Tables (Multiple Sets), Technical Documentation: Yes
- Tool Turret Stations
- 12
- Coolant Pump Replaced
- 2024
- Electrical Connection
- 400 V
- Maximum Spindle Speed
- 2000 rpm
- Maximum Turning Diameter
- 550 mm
- Swing Diameter Above Bed
- 770 mm
- Swing Diameter Above Carriage
- 590 mm
