CNC Machines

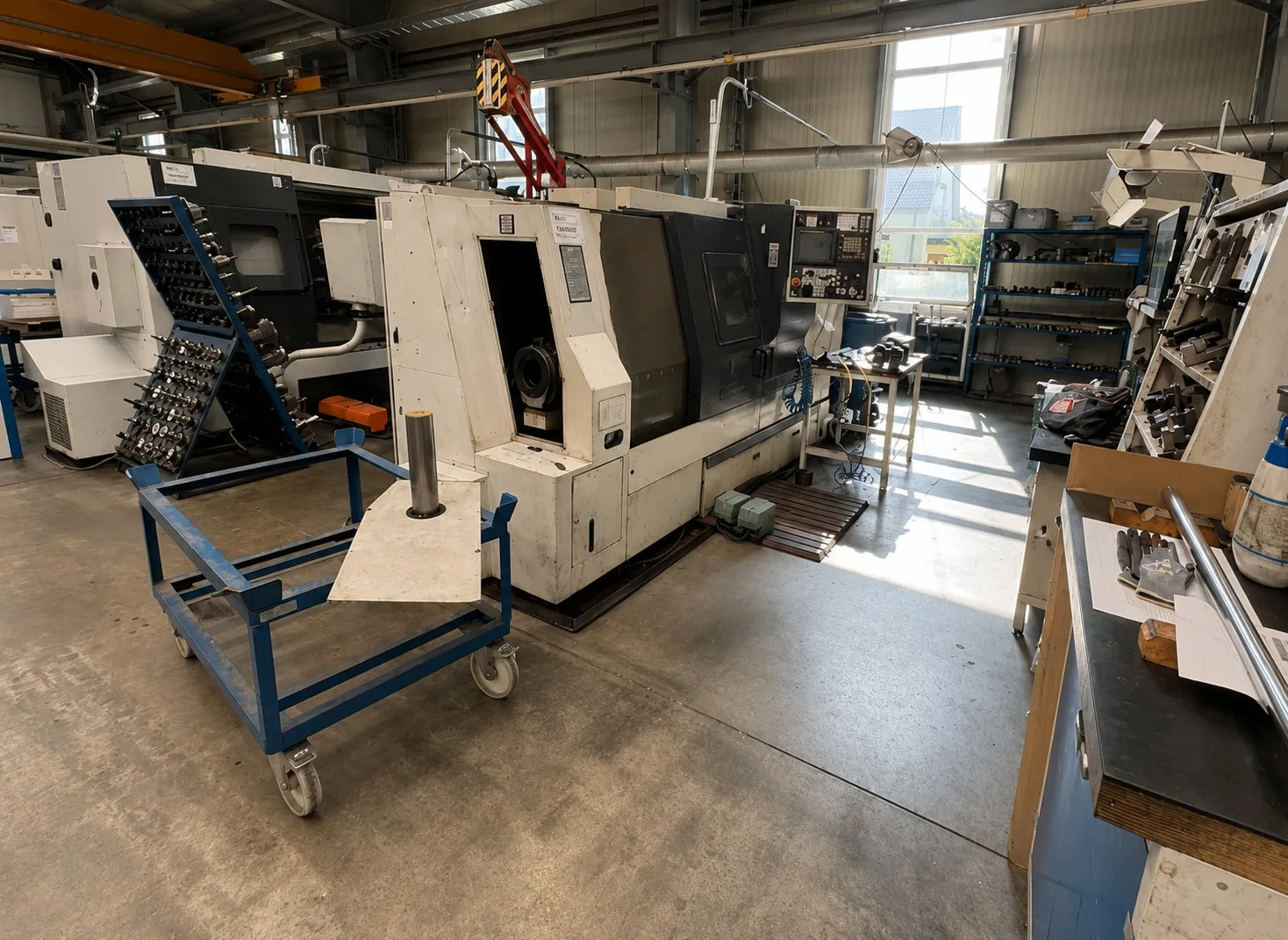

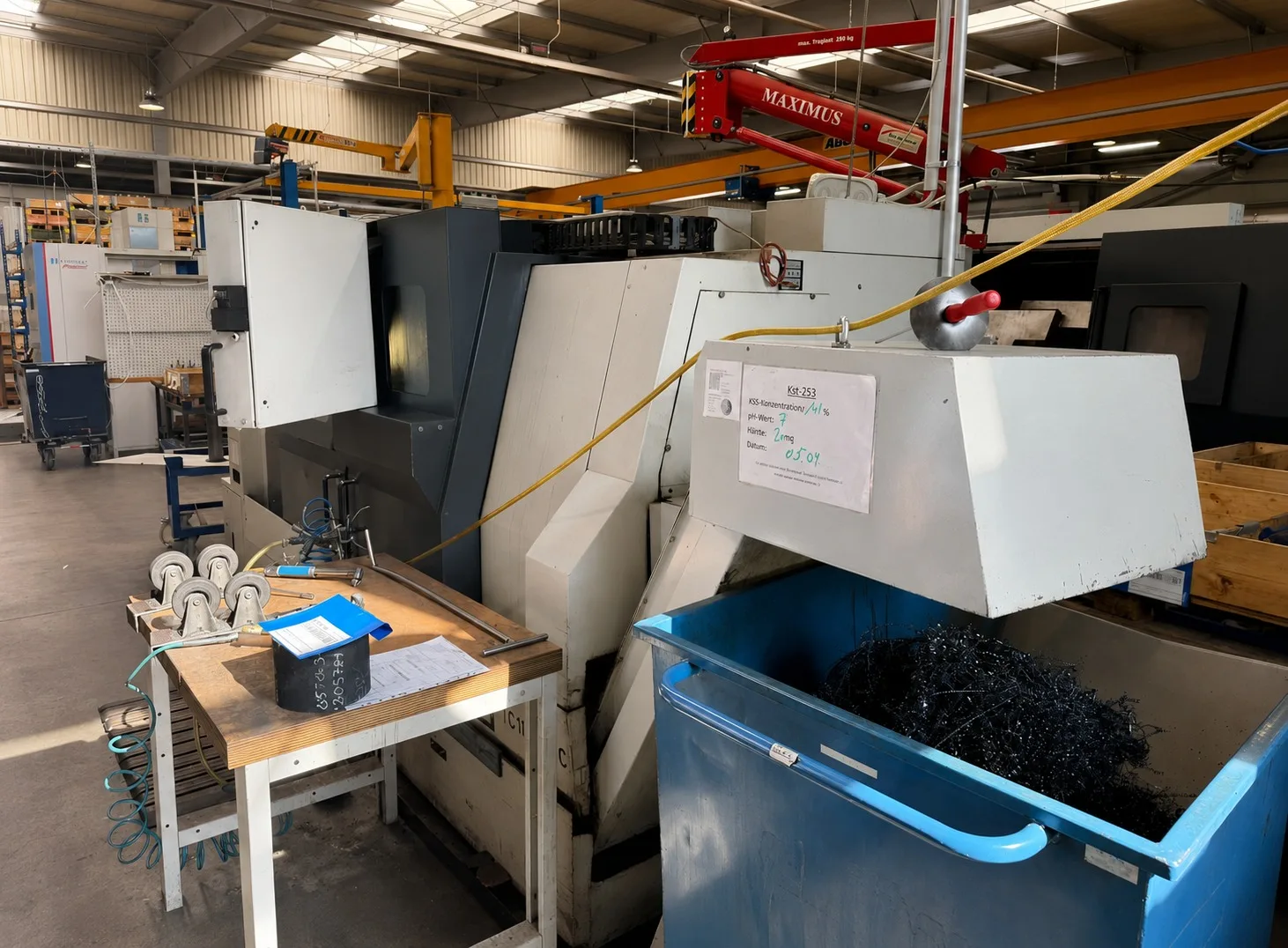

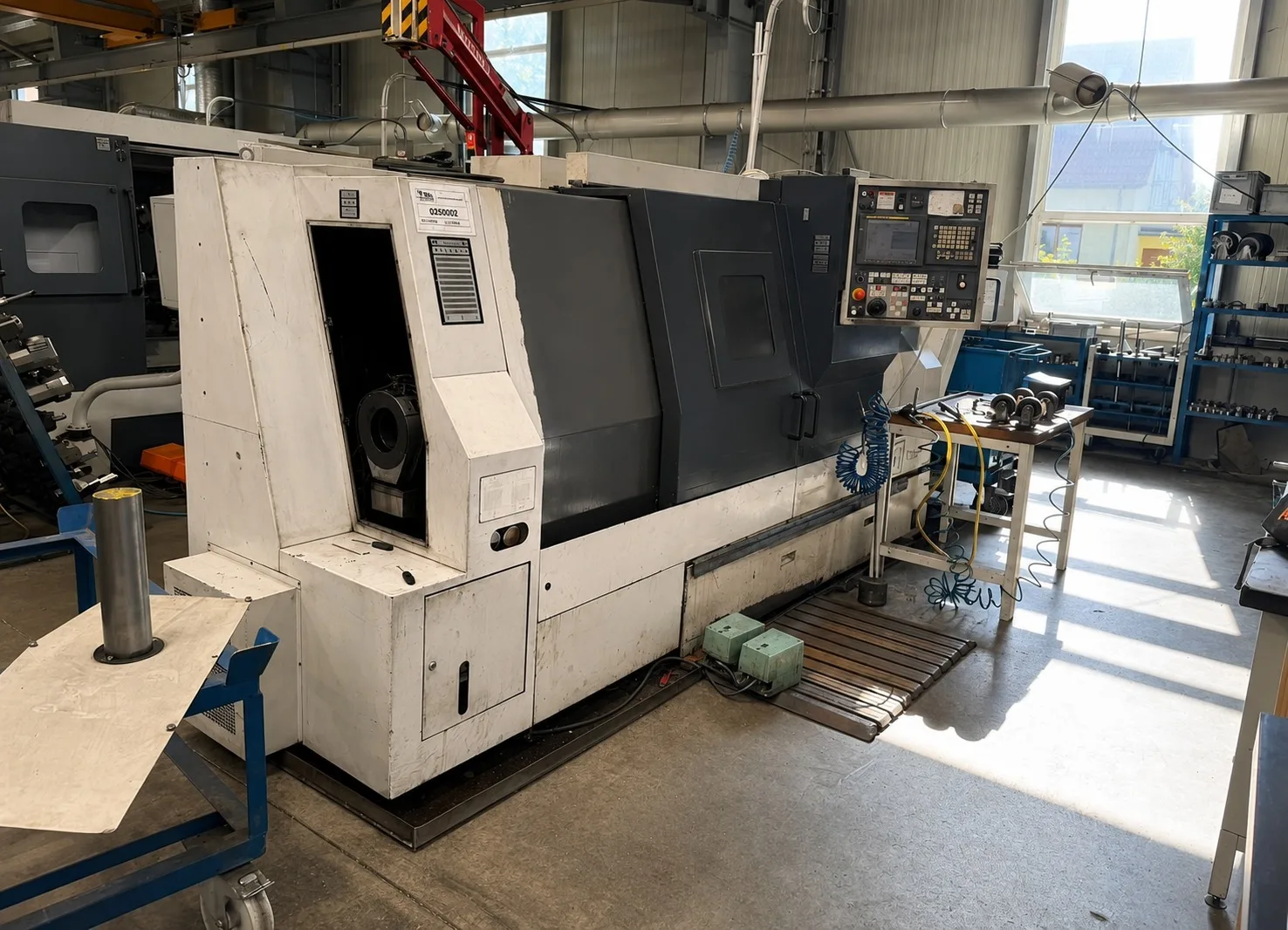

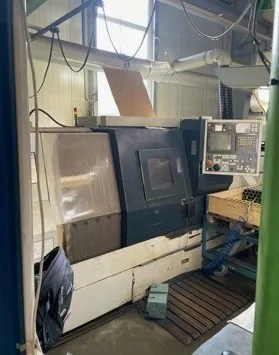

CNC Turning & Milling Center SPINNER TC 108
Ref. No.202
- Brand
- SPINNER
- Model
- TC 108
- Condition
- used
YOM 2003

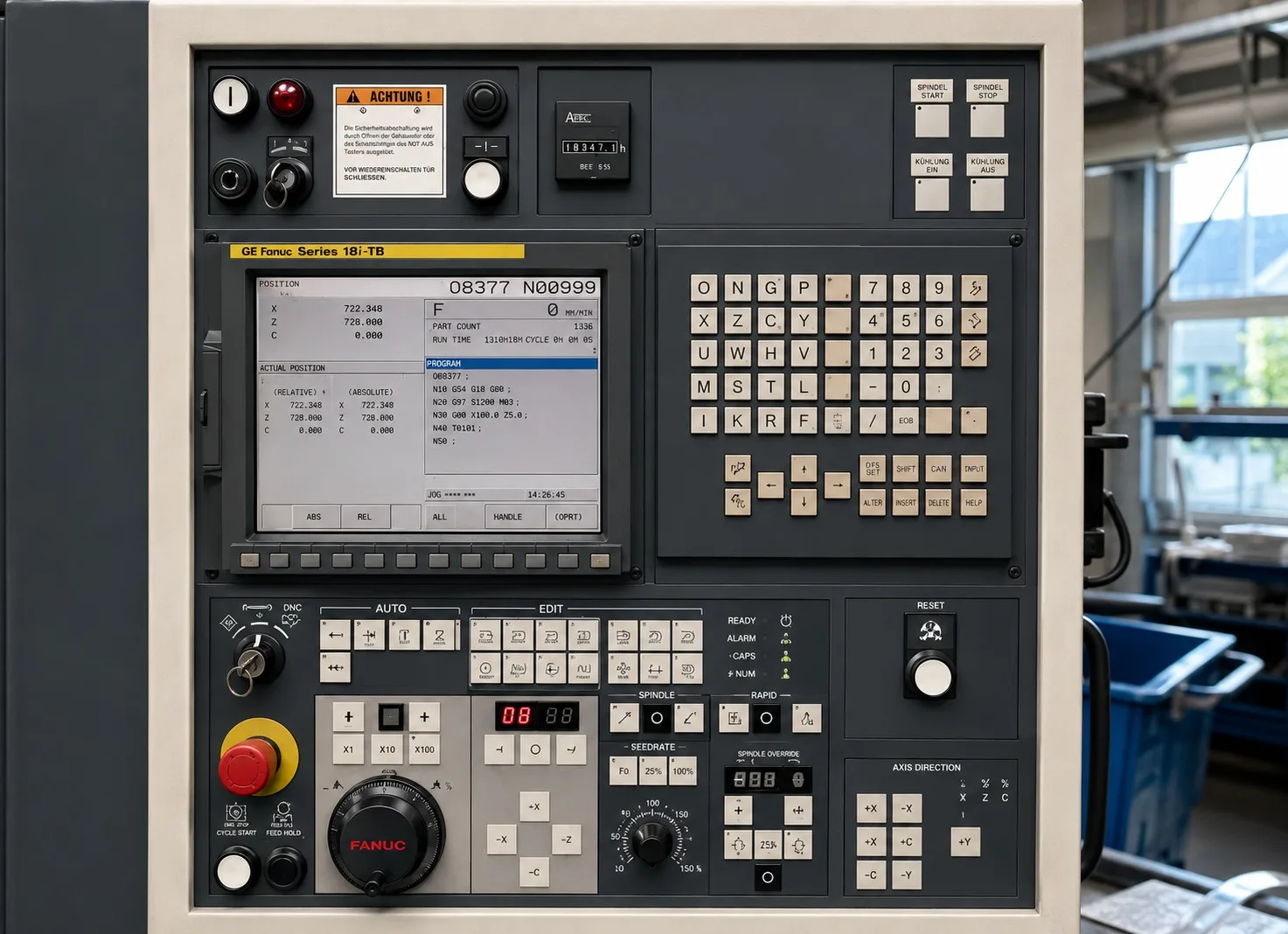

Control:FANUC Serie 18i-TB
C axis
Turning Diameter (Max):420 mm
Turning Length:1090 mm
Turning Speed Range:0-3750 U/min
Feed Speed:18/24 m/min.
Workpiece:12
Quill Stroke:100 mm
Quill Diameter:110 mm
Taper:MK 4
Number of Driven Tools:12 mm
Turning Speed:3000 U/min
Torque:22 nm
Coolant Tank:140 l
Total Power Requirement:22/18,5 kW
Machine Weight (Approx):6500 KG
Machine specifications
- Manufacturer
- SPINNER
- Model
- TC 108
- Condition
- used
- Control
- FANUC Series 18i-TB
- Make Year
- 2003
- Machine Type
- CNC Turning Center
