Vertical Turning Lathes
CNC Vertical Turning Lathe TOS Hulín SKIQ 12 CNC
Ref. No.242
- Brand
- TOS Hulín
- Model
- SKIQ 12 CNC
- Condition
- used

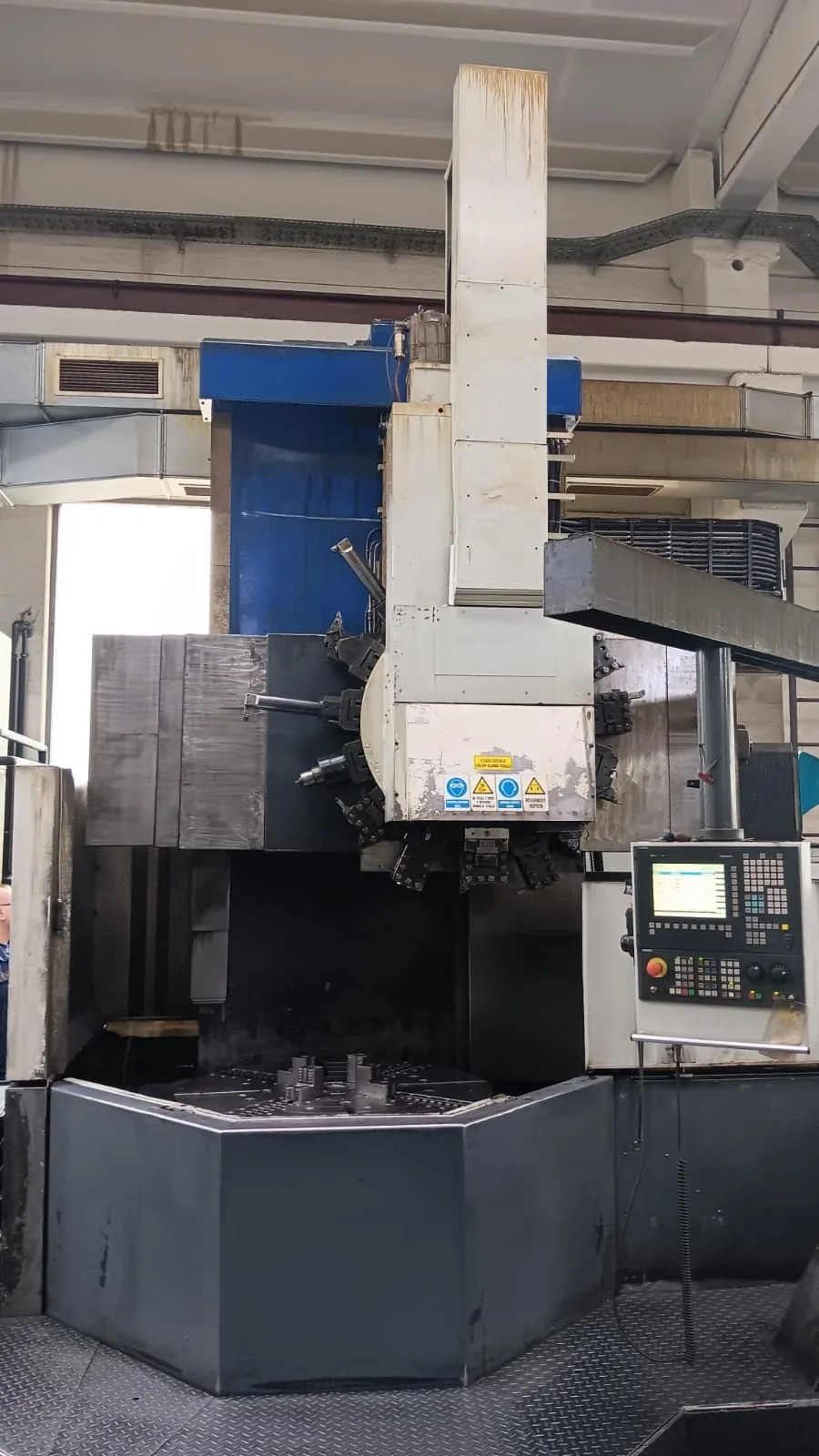

CNC Vertical Turning Lathe
Brand:TOS Hulín
Model:SKIQ 12 CNC
Year:2014

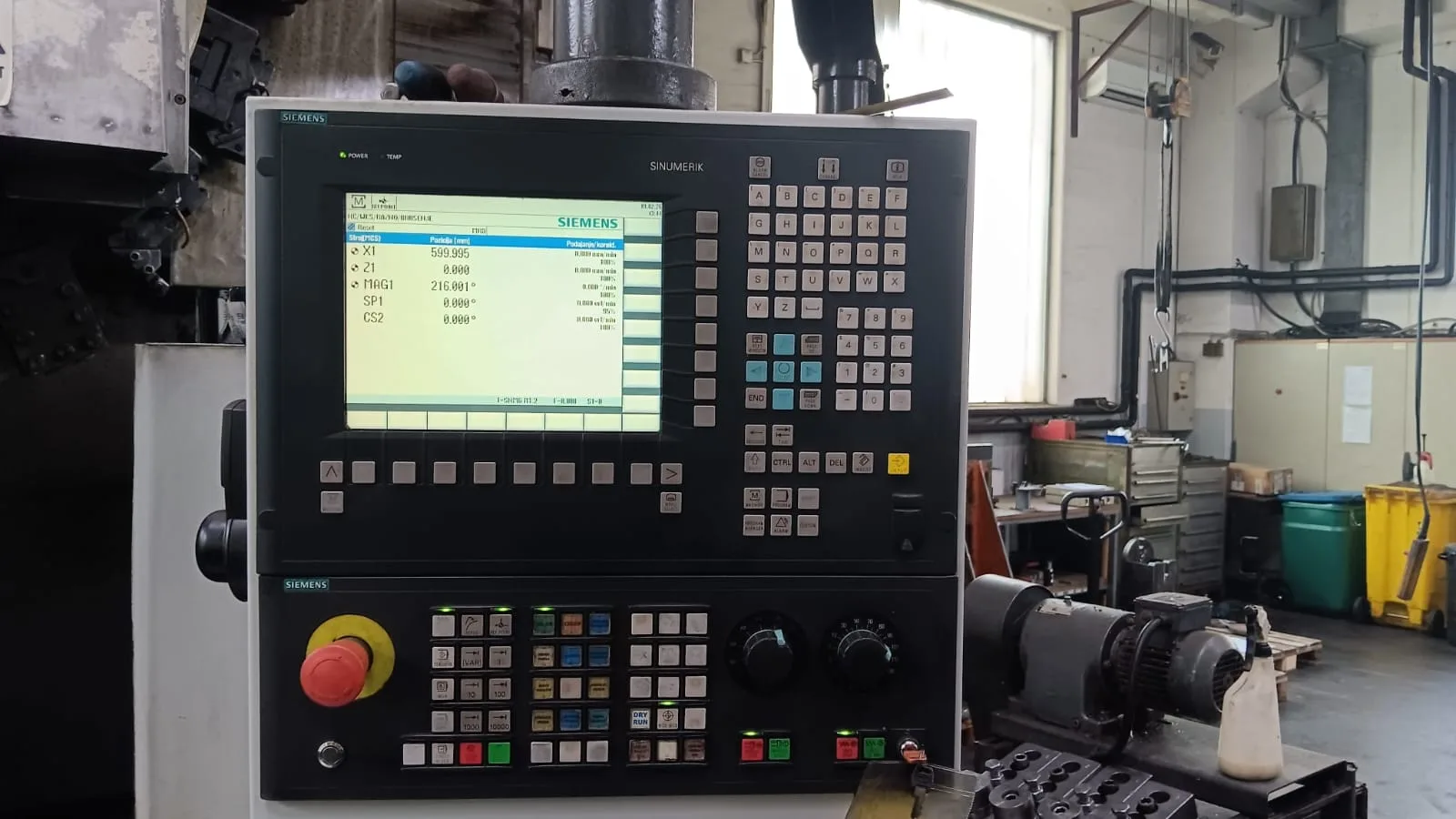

Control:Siemens 840D

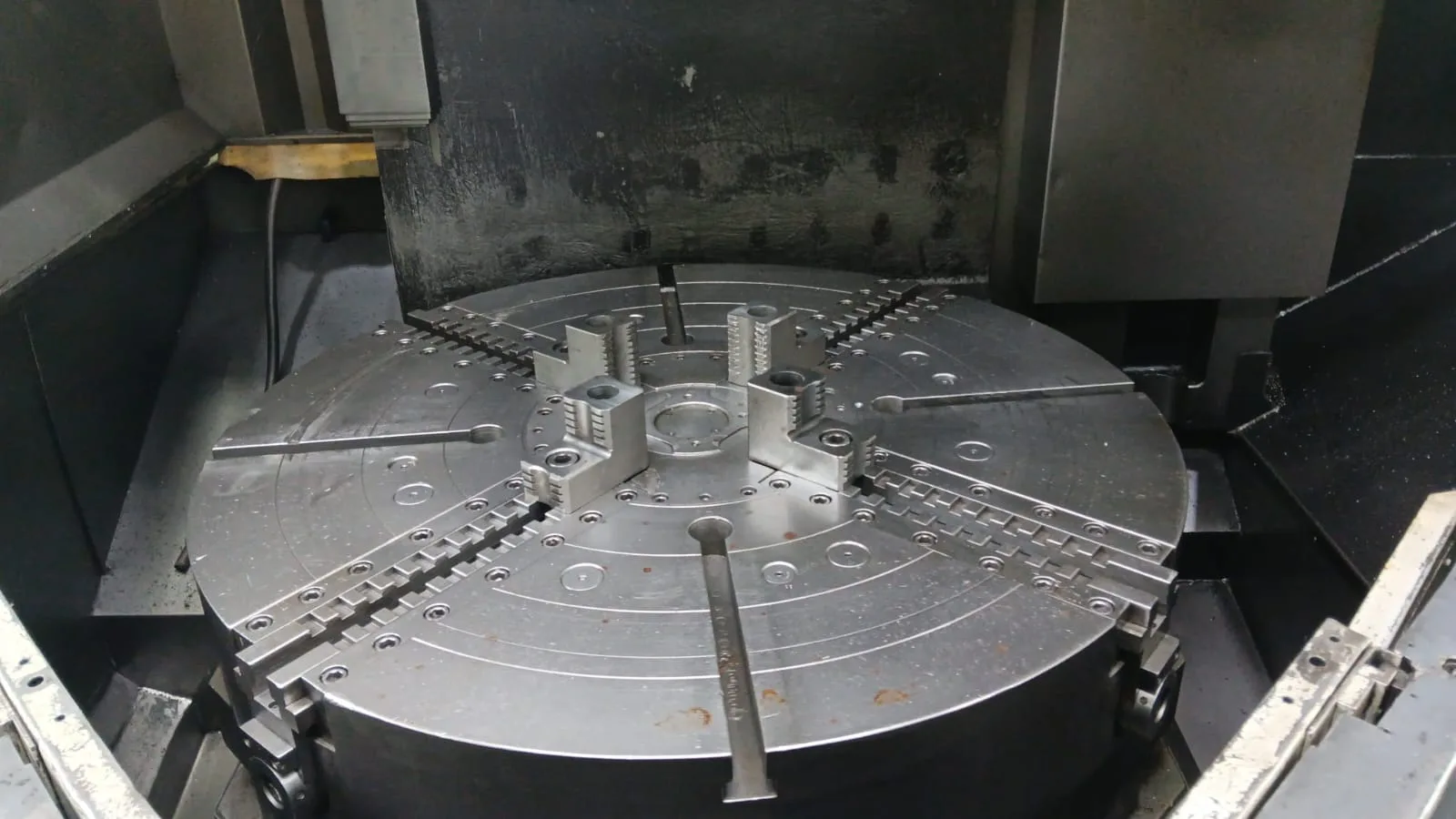

Rotary Table:With C-Axis
Maximum Turning Diameter:1700 mm
Maximum Load Capacity:8 tons
Maximum Turning Height:1400 mm
Slide Extender:1000 mm
Milling Spindle Motor Power:13.3 kW
Milling Spindle Speed:3000 rpm (2 gears)
ATC Positions:15
X-Z Axis Feed Speed:10 m/min
C-Axis:Yes
Machine Dimensions (L × W × H):4650 × 4900 × 5840 mm
Machine Weight:23 Ton
Machine specifications
- Manufacturer
- TOS Hulín
- Model
- SKIQ 12 CNC
- Condition
- used
- Year
- 2014
- Brand
- TOS Hulín
- Model
- SKIQ 12 CNC
- C Axis
- Yes
- Control
- Siemens 840D
- Category
- CNC Machines
- Subcategory
- CNC Turning Centres
- Machine Name
- CNC Vertical Turning Lathe
- Rotary Table
- With C-Axis
- Atc Positions
- 15
- Machine Weight
- 23 Ton
- Slide Extender
- 1000 mm
- X Z Axis Feed Speed
- 10 m/min
- Maximum Load Capacity
- 8 tons
- Milling Spindle Speed
- 3000 rpm (2 gears)
- Maximum Turning Height
- 1400 mm
- Machine Dimensions L W H
- 4650 × 4900 × 5840 mm
- Maximum Turning Diameter
- 1700 mm
- Milling Spindle Motor Power
- 13.3 kW
