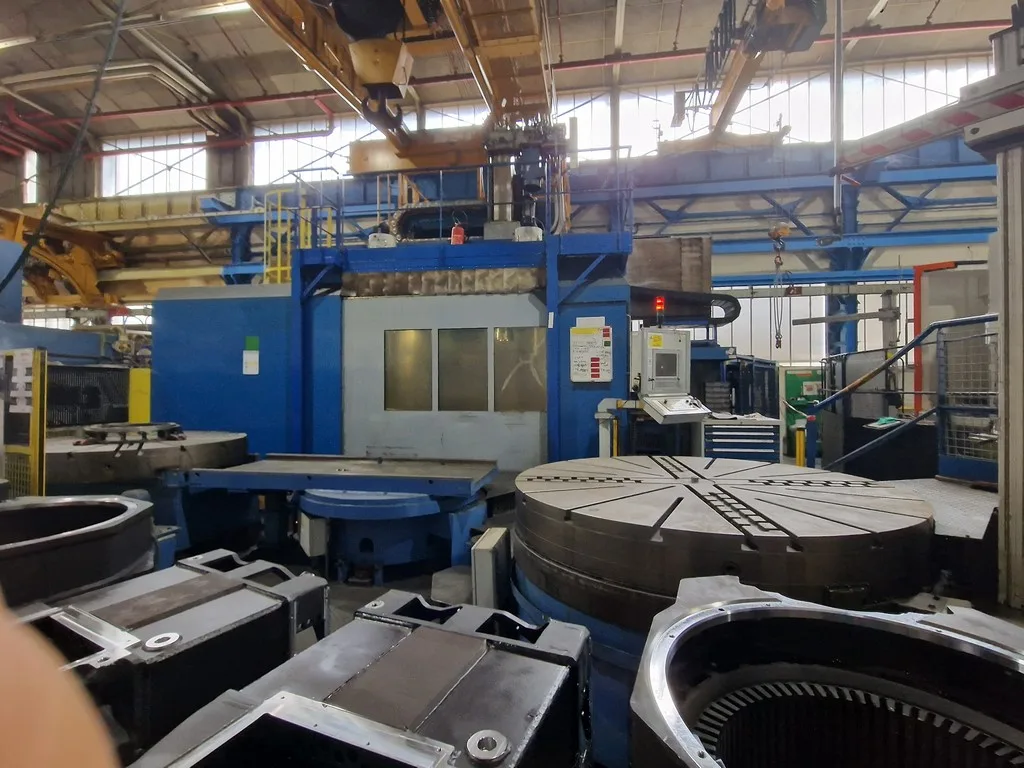

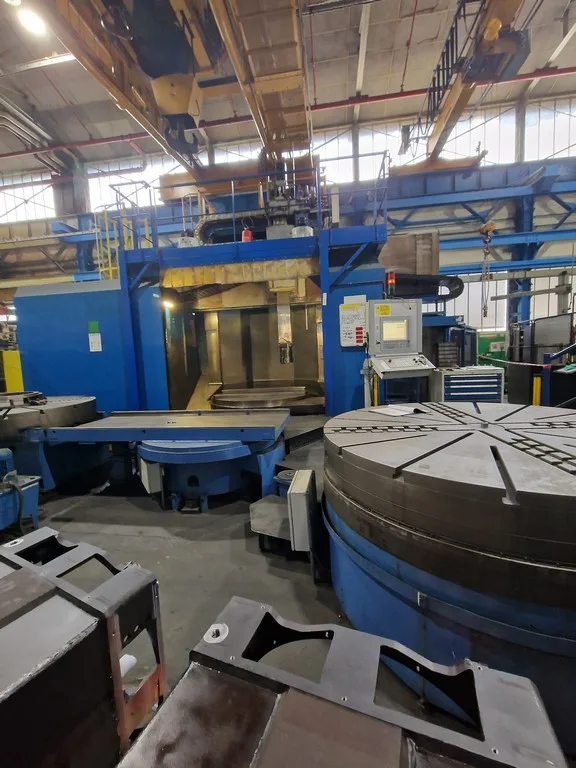

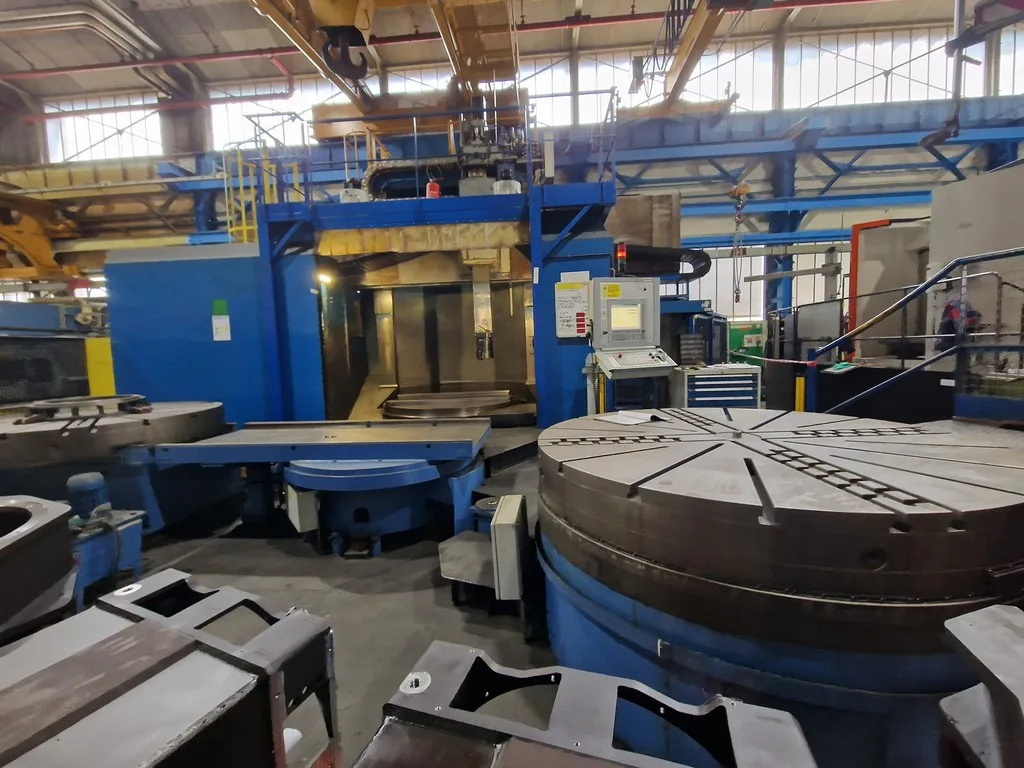

CNC Vertical Turning Lathe (VTL) with Milling
Ref. No.205
- Brand
- Schiess
- Condition
- used

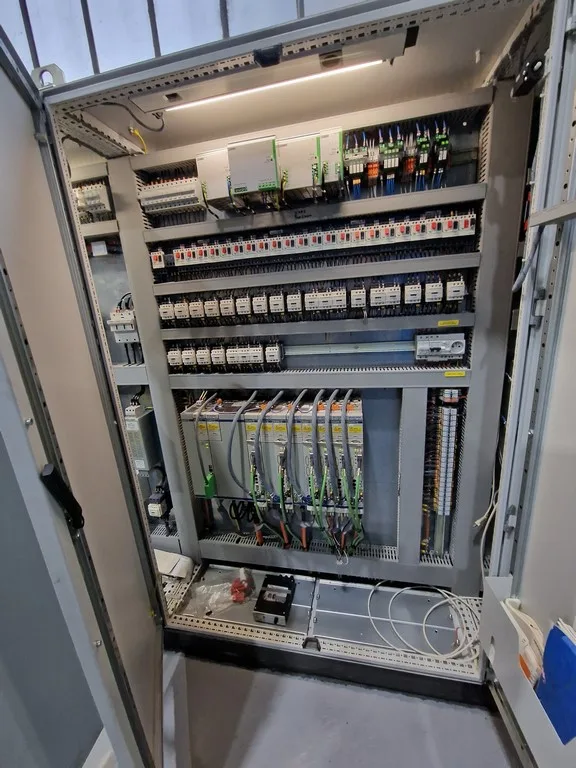

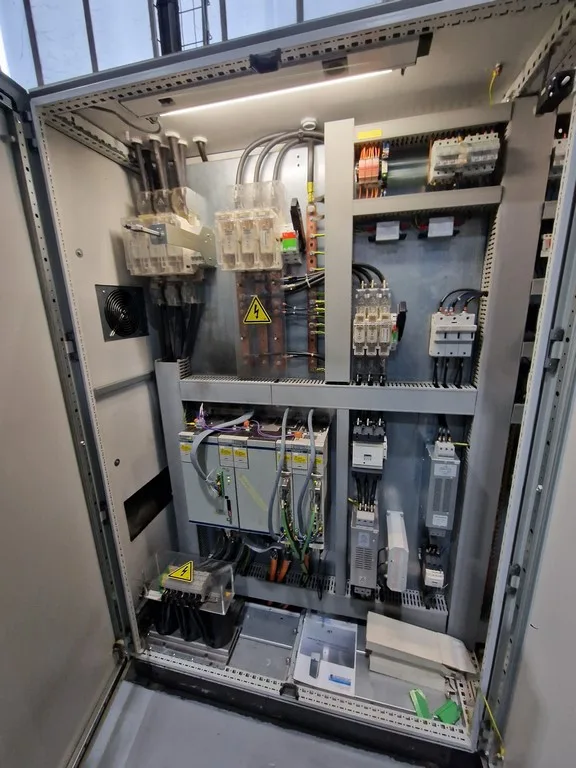

Control:NUM 1060 Flexium (retrofitted 2012), with remote control box
Max turning diameter:2500 mm
Table diameter:2000 mm
Table number:2
Load (table included):16,000 kg

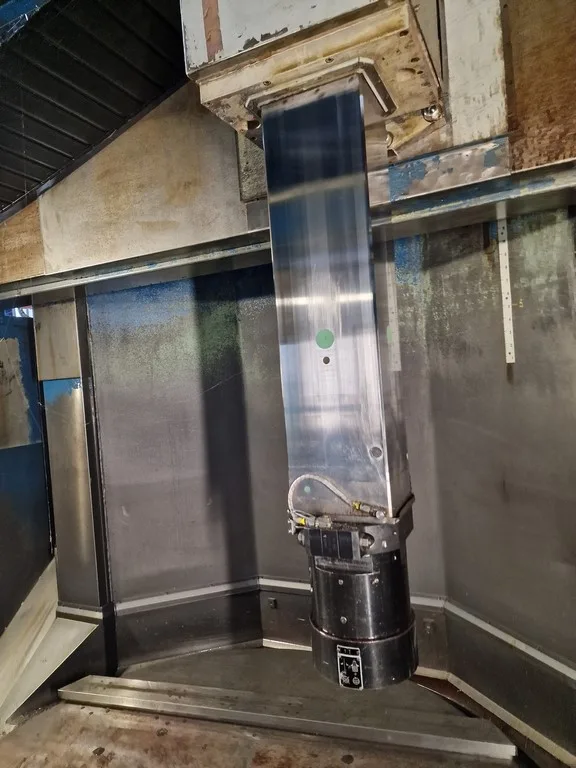

Ram Z stroke:1000 mm
X/Z max feedrate:2000 mm/min
C axis:360,000 positions
Max table speed:201 rpm
Table power:56 kW
Number of gears:2
Movable crossrail:12 positions
Pitch:50 mm
Space available under the spindle nose min/max: 795 mm (crossrail position 1) / 1345 mm (crossrail position 12)
Milling spindle max speed:1600 rpm
Milling spindle power:22 kW
Number of gears:2

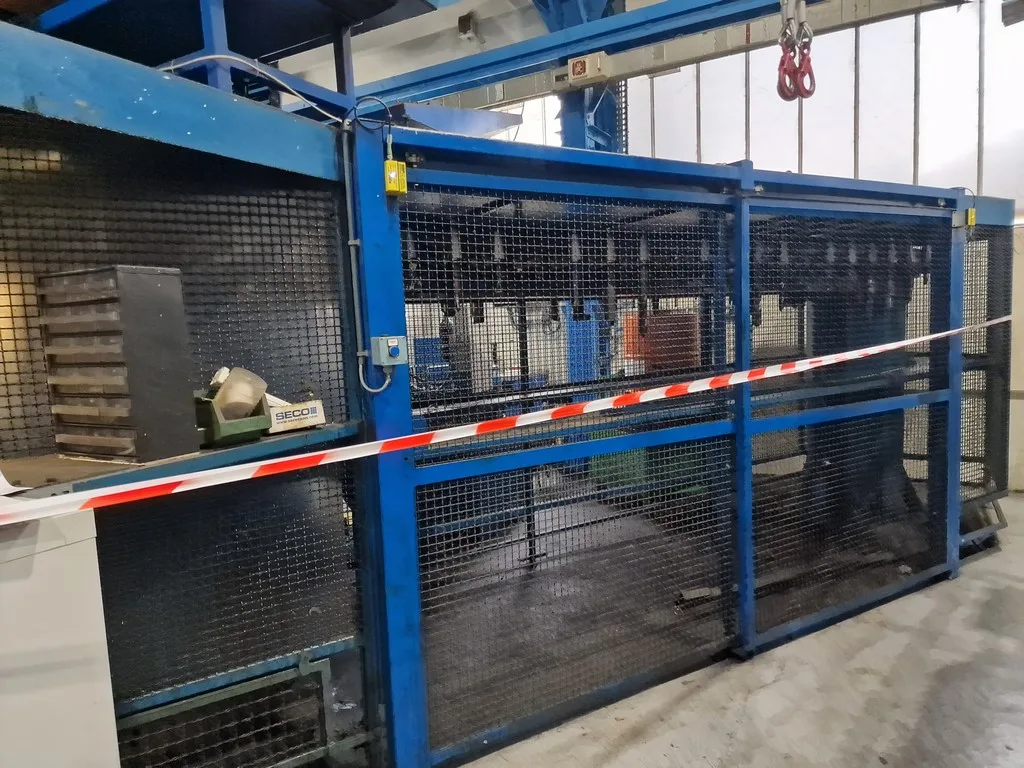

Tool store:
Tools for turning:20 positions
Tools for milling:35 positions
Max tool length:400 mm
Max tool weight:40 kg
Accessories:
1 milling head Widaflex UTS80
1 milling head ISO 50
Renishaw touch probe (for parts) MP 60
Tool presetter
Chip conveyor
Machine specifications
- Manufacturer
- Schiess
- Condition
- used
- Control
- NUM 1060 Flexium
- Pitch Mm
- 50
- Table Power Kw
- 56
- Number Of Gears
- 2
- Ram Z Stroke Mm
- 1000
- C Axis Positions
- 360000
- Number Of Tables
- 2
- Retrofitted Year
- 2012
- Table Diameter Mm
- 2000
- Remote Control Box
- true
- Max Table Speed Rpm
- 201
- Max Turning Diameter Mm
- 2500
- X Z Max Feedrate Mm Min
- 2000
- Milling Spindle Power Kw
- 22
- Movable Crossrail Positions
- 12
- Milling Spindle Max Speed Rpm
- 1600
- Load Capacity Table Included Kg
- 16000
- Milling Spindle Number Of Gears
- 2
- Space Under Spindle Nose Max Mm
- 1345
- Space Under Spindle Nose Min Mm
- 795
