CNC Vertical Turret Lathe - Double Column SD 500 - 600
Ref. No.167
- Brand
- DÖRRIES
- Model
- SD 500 - 600
- Condition
- used

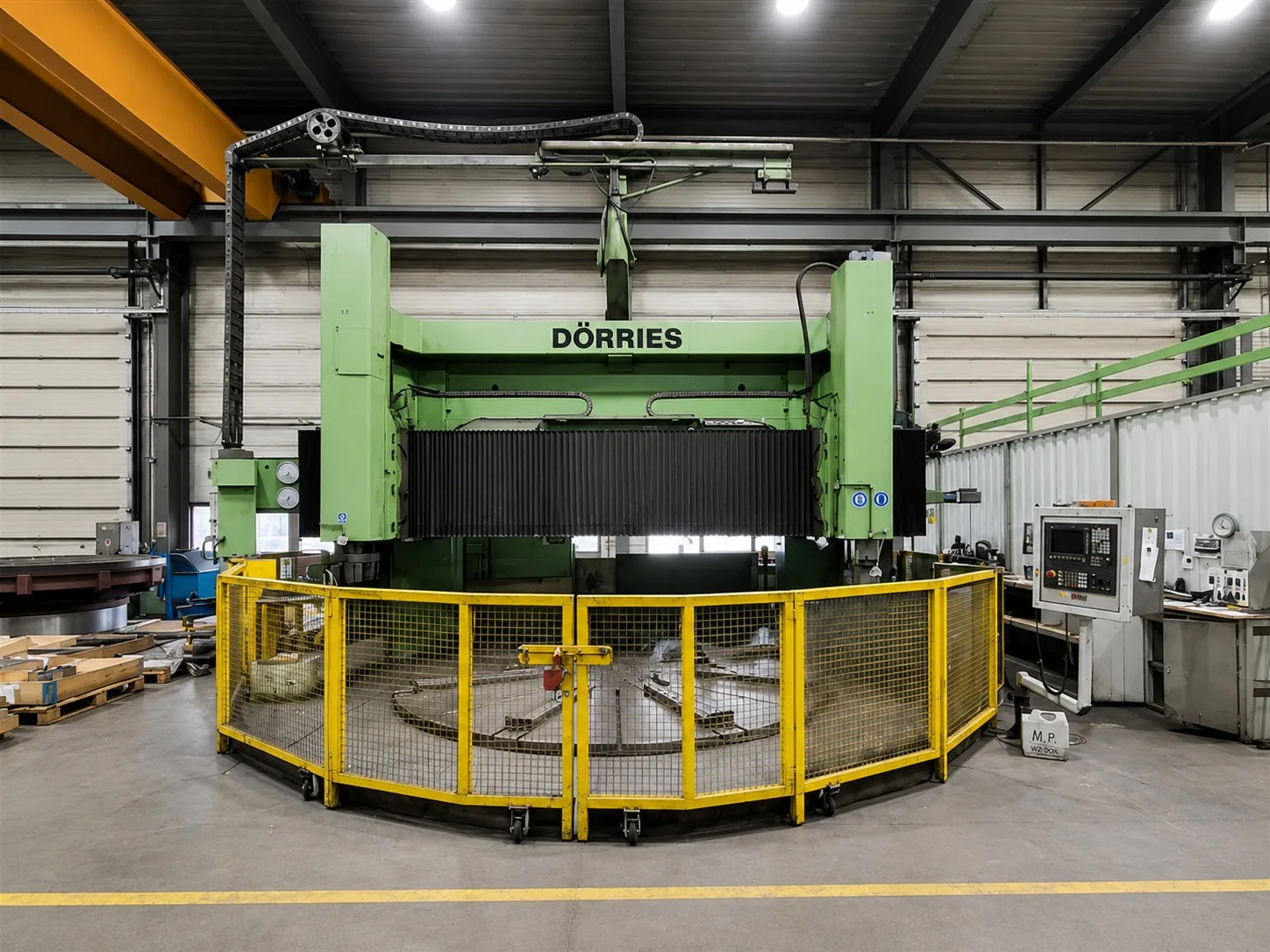

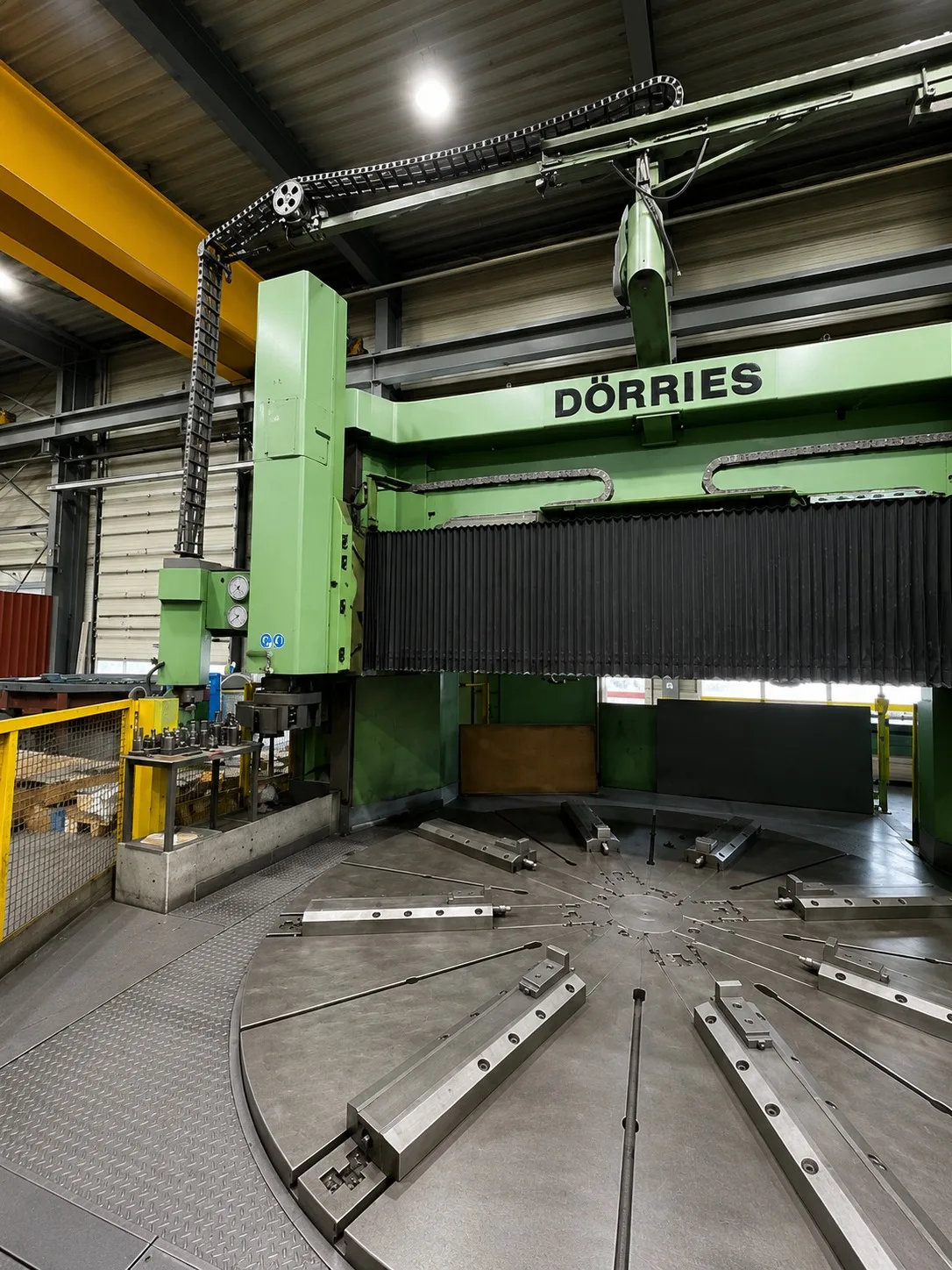

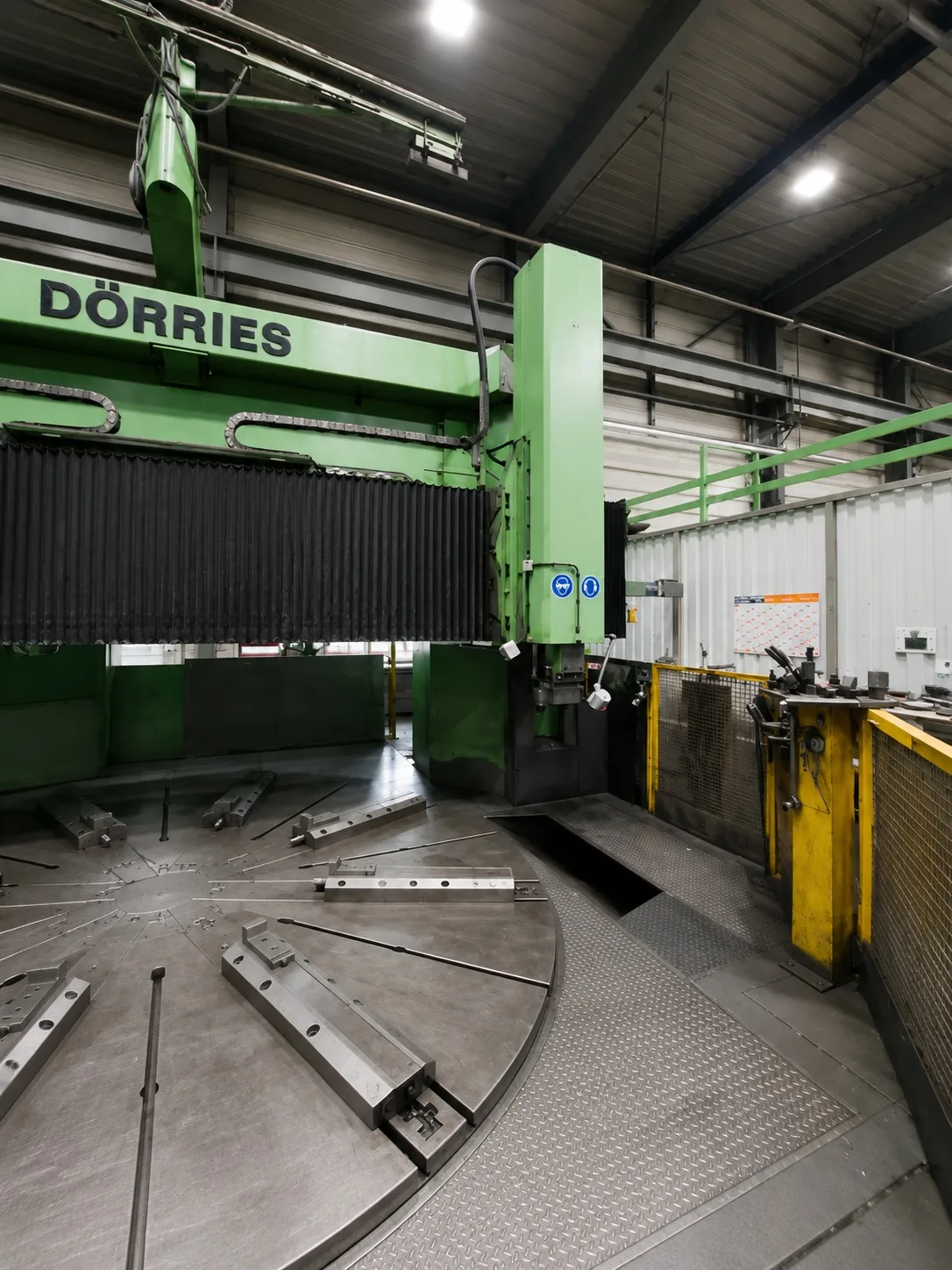

This is a DÖRRIES SD 500 - 600 CNC Vertical Turret Lathe - Double Column.
Retrofitted in 2005.

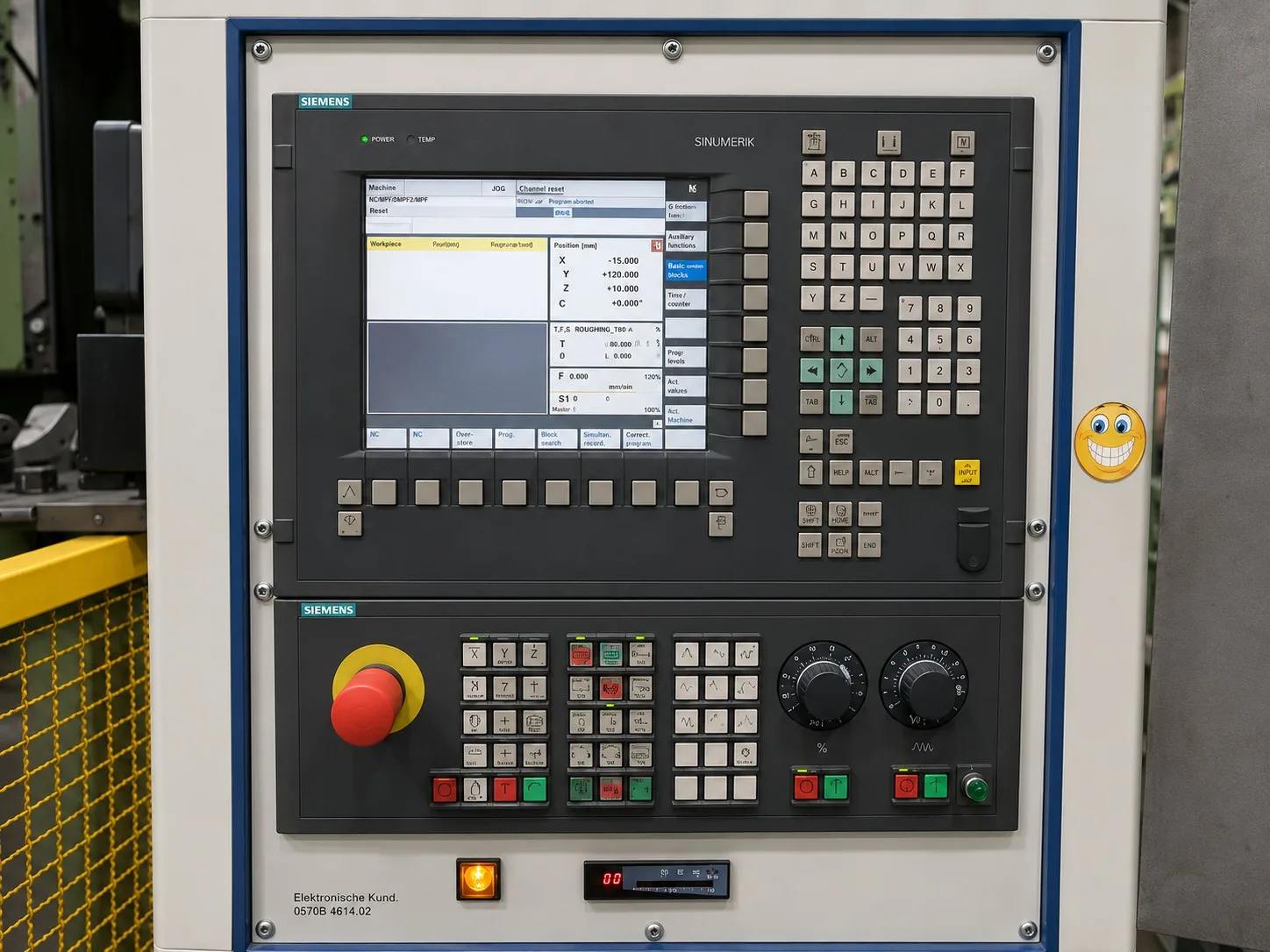

Control system:CNC SIEMENS 840 D (2 x 2 axes).

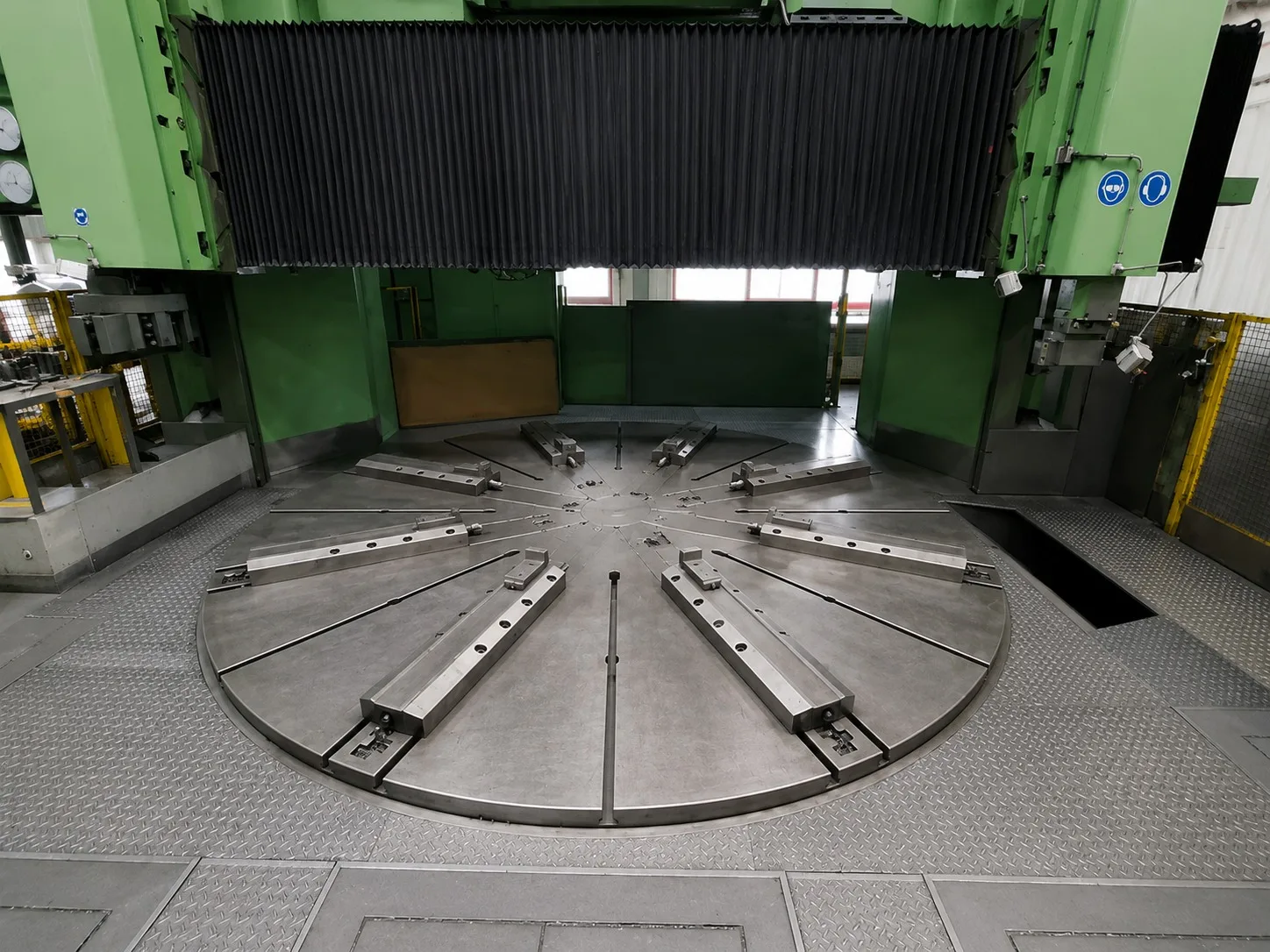

Faceplate diameter:5000 mm.
Swing diameter:6100 mm.
Turning height:2400 mm.
Ram stroke each side:1490 mm.
Ram head dimension:340 x 340 mm.
Maximum workpiece weight:100 tons.
Total power requirement:100 kW.
Faceplate turning speed range:0.4 – 50 RPM.
Total machine weight:155 tons.
Machine specifications
- Manufacturer
- DÖRRIES
- Model
- SD 500 - 600
- Condition
- used
- Type
- CNC Vertical Turret Lathe - Double Column
- Brand
- DÖRRIES
- Model
- SD 500 - 600
- Control System
- CNC SIEMENS 840 D (2 x 2 axes)
- Machine Weight
- 155 tons
- Swing Diameter
- 6100 mm
- Turning Height
- 2400 mm
- Faceplate Diameter
- 5000 mm
- Ram Head Dimension
- 340 x 340 mm
- Max Workpiece Weight
- 100 tons
- Ram Stroke Each Side
- 1490 mm
- Total Power Requirement
- 100 kW
- Faceplate Turning Speed Range
- 0.4 – 50 RPM
