Turning and Milling Centres
CNC Vertical Turret Lathe - Single Column YU SHINE VL 1200 ATC
Ref. No.235
- Brand
- YU SHINE
- Model
- VL 1200 ATC
- Condition
- used

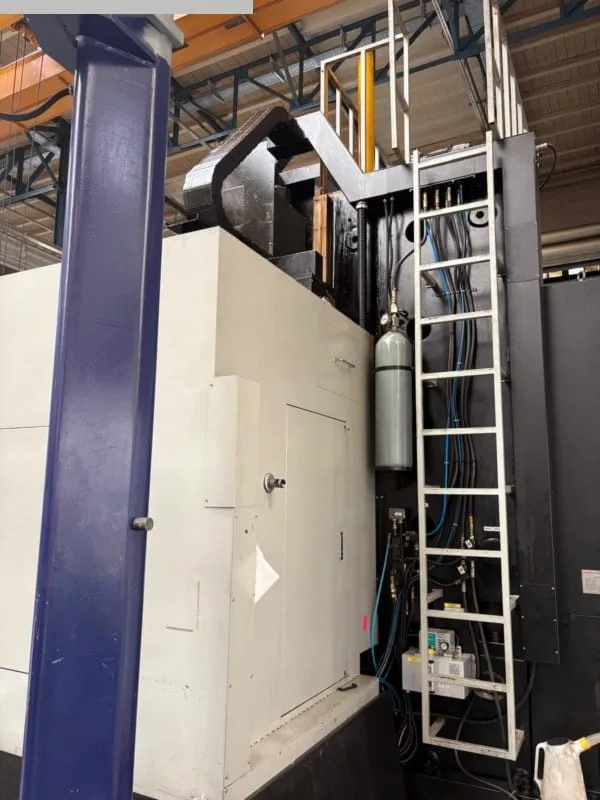

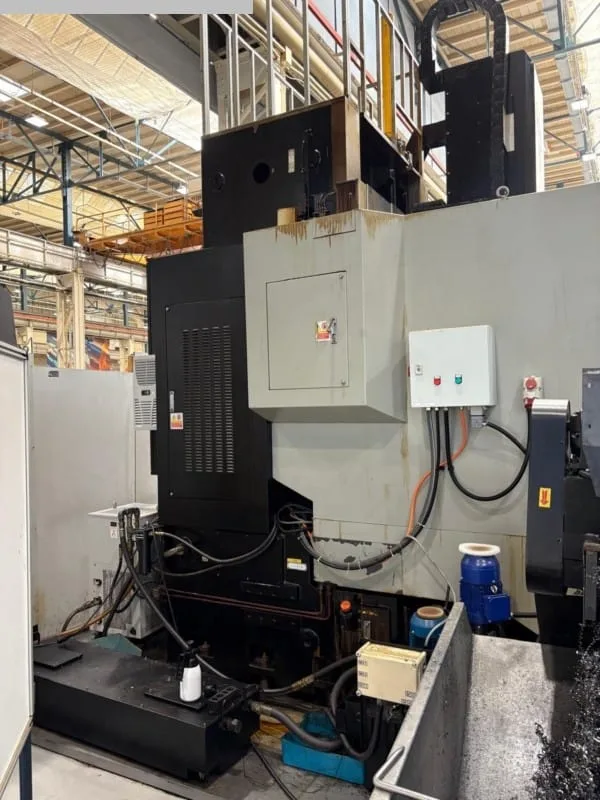

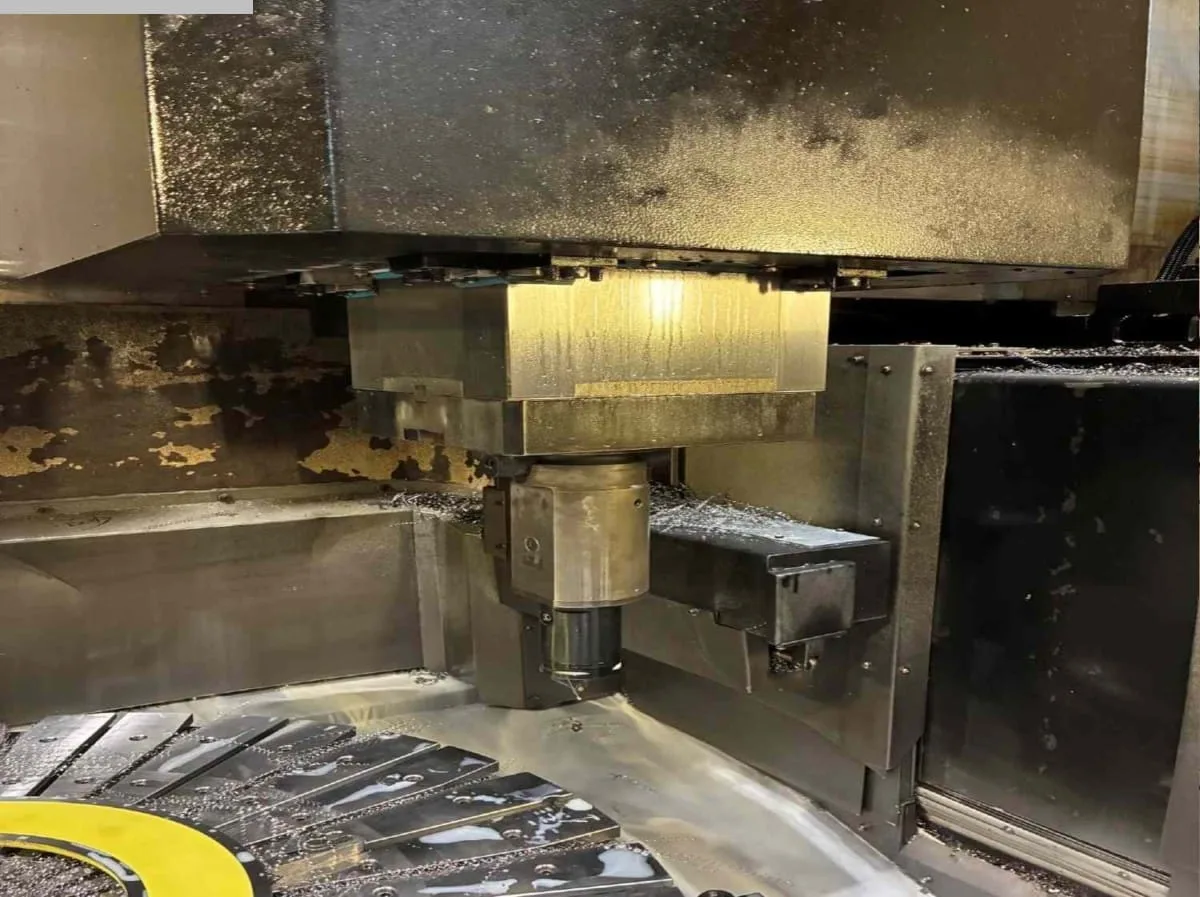

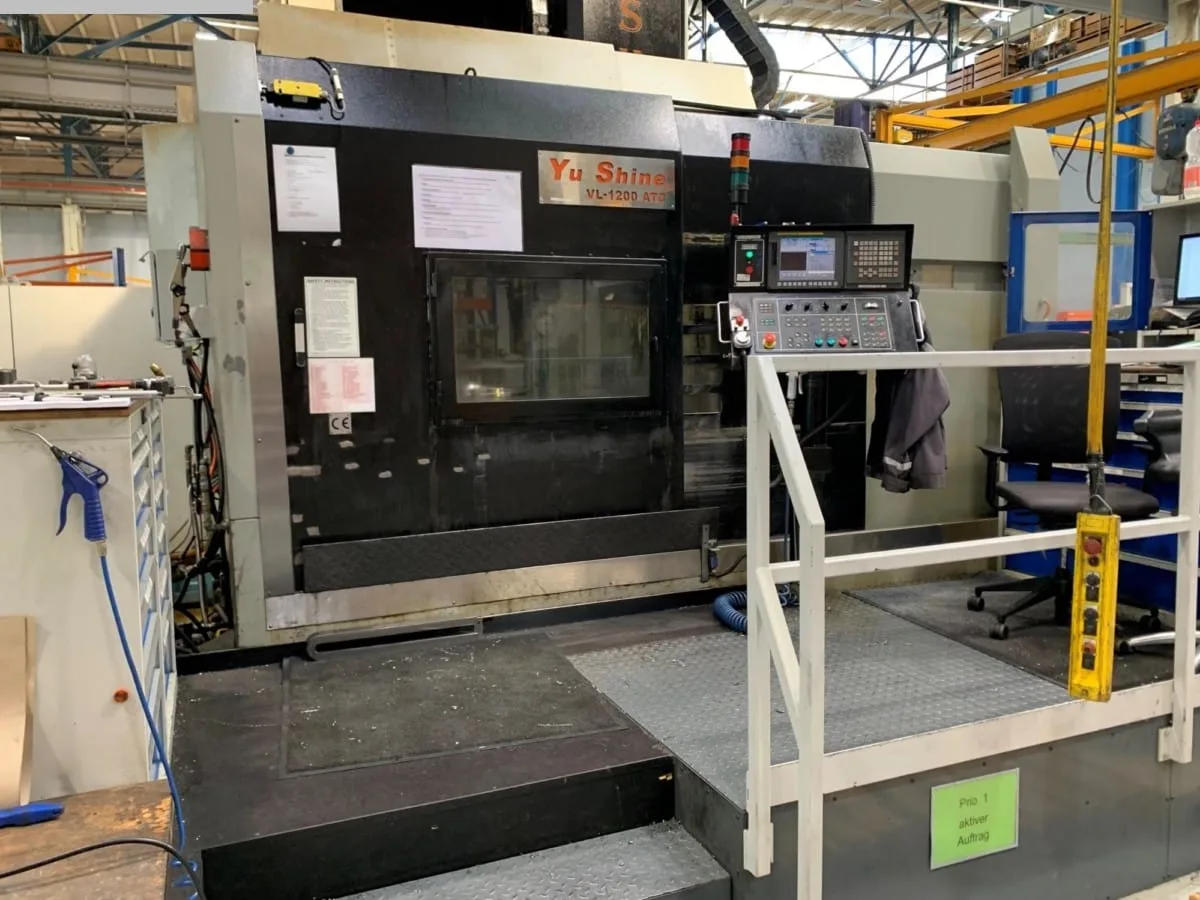

CNC Vertical Turret Lathe - Single Column
Brand:YU SHINE
Model:VL 1200 ATC
Year:2009

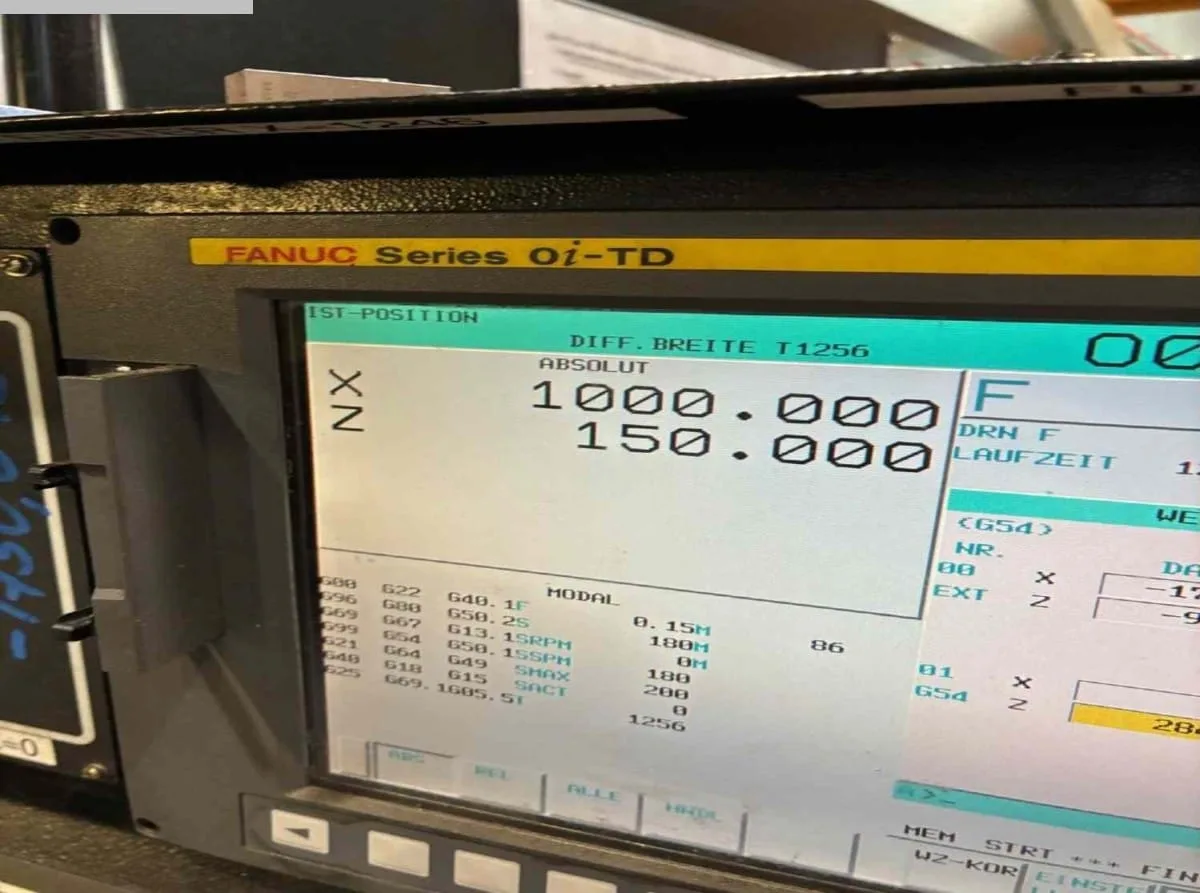

Control:Fanuc 0i-TD
Faceplate Diameter:1250 mm
Turning Height:1250 mm
Maximum Torque at Faceplate:12500 Nm
Maximum Turning Diameter:1600 mm
Maximum Workpiece Weight:5000 kg
Table Speed:2–300 min/-1
Spindle Cone ISO:BT50
Tool Capacity:12 pos.
Total Power Requirement:75 kW
Machine Weight:32 Ton
Machine Dimensions (L × W × H):4700 × 5800 × 5500 mm
Features:
- CNC Vertical Lathe with 12 Positions ATC
- Spindle Reception:BT 50
Machine specifications
- Manufacturer
- YU SHINE
- Model
- VL 1200 ATC
- Condition
- used
- Year
- 2009
- Brand
- YU SHINE
- Model
- VL 1200 ATC
- Control
- Fanuc 0i-TD
- Category
- CNC Machines
- Features
- CNC Vertical Lathe with 12 Positions ATC, Spindle Reception: BT 50
- Subcategory
- CNC Turning Centres
- Table Speed
- 2–300 min/-1
- Machine Name
- CNC Vertical Turret Lathe - Single Column
- Tool Capacity
- 12 pos.
- Machine Weight
- 32 Ton
- Turning Height
- 1250 mm
- Spindle Cone Iso
- BT50
- Faceplate Diameter
- 1250 mm
- Total Power Requirement
- 75 kW
- Machine Dimensions L W H
- 4700 × 5800 × 5500 mm
- Maximum Turning Diameter
- 1600 mm
- Maximum Workpiece Weight
- 5000 kg
- Maximum Torque At Faceplate
- 12500 Nm
