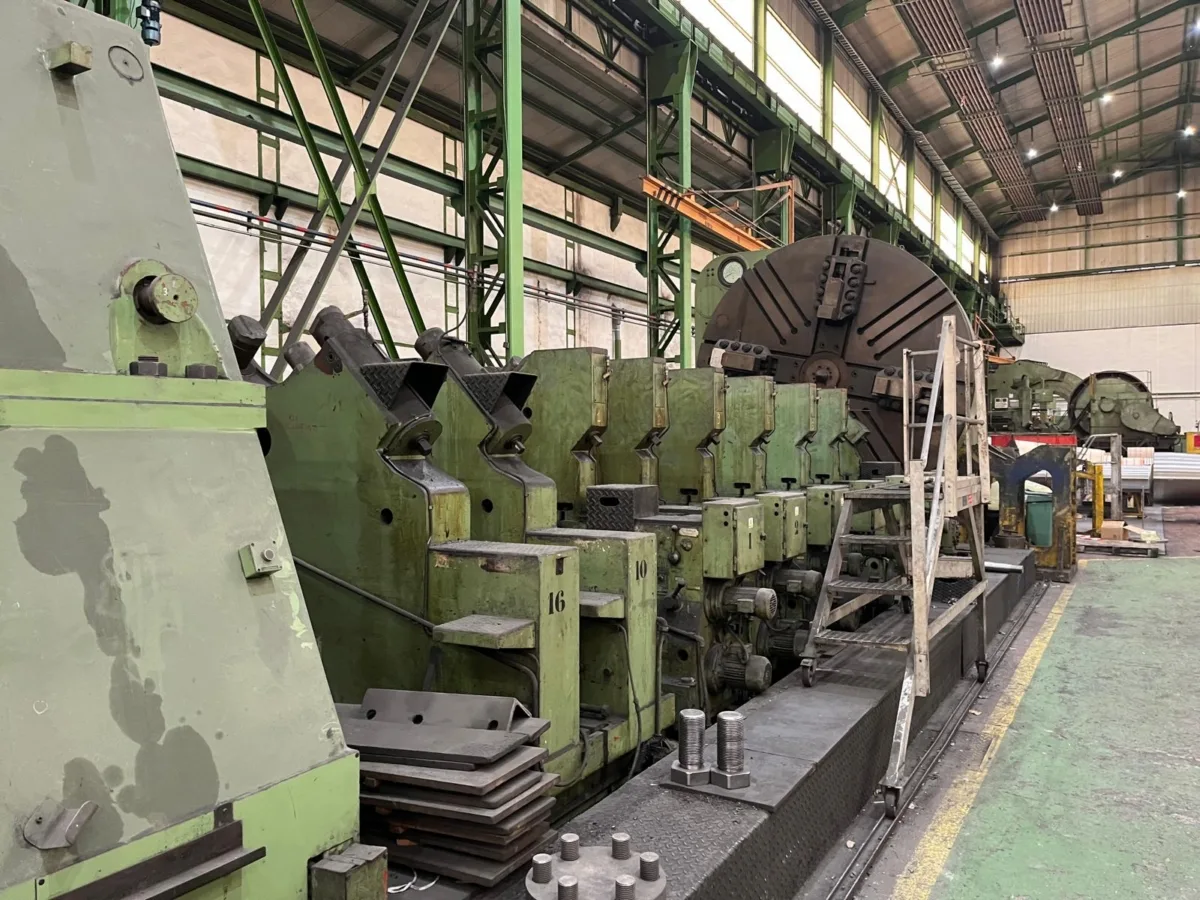

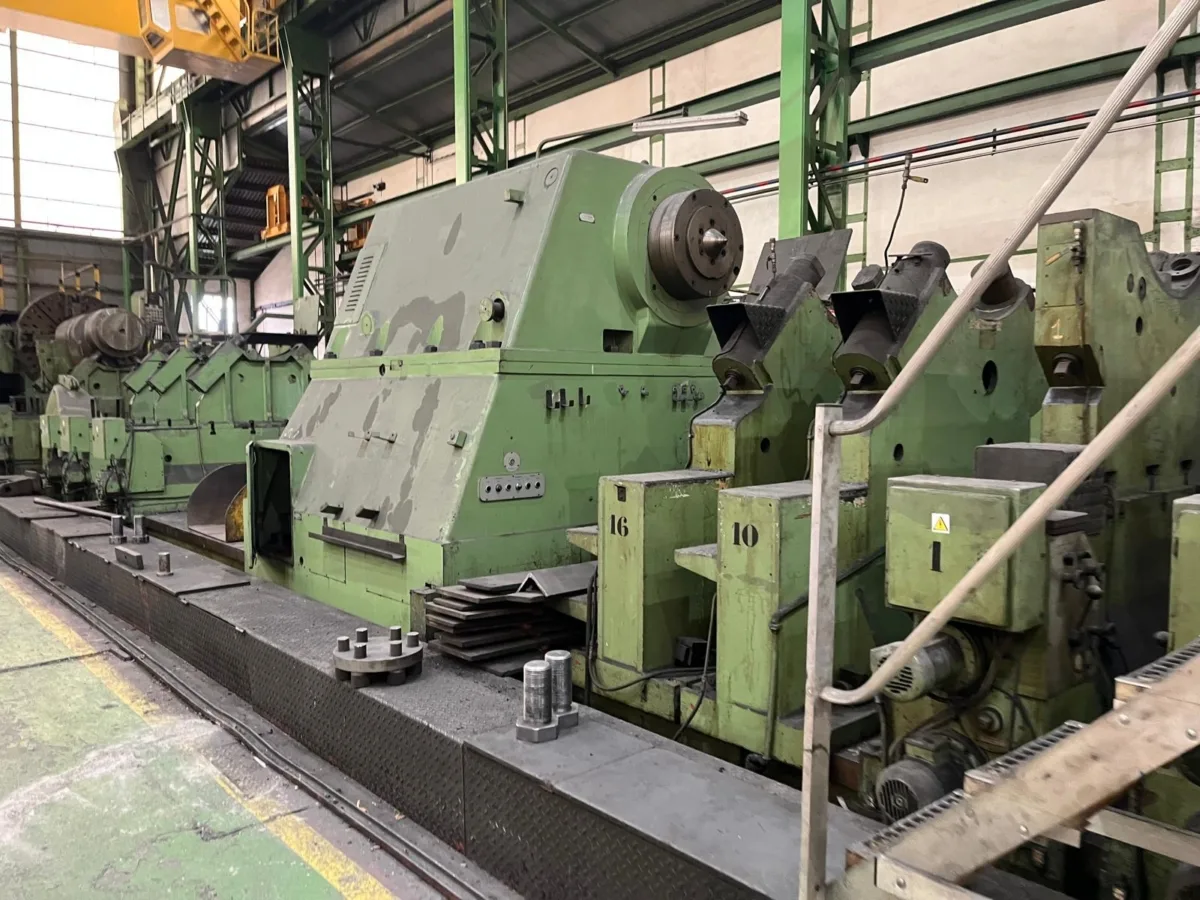

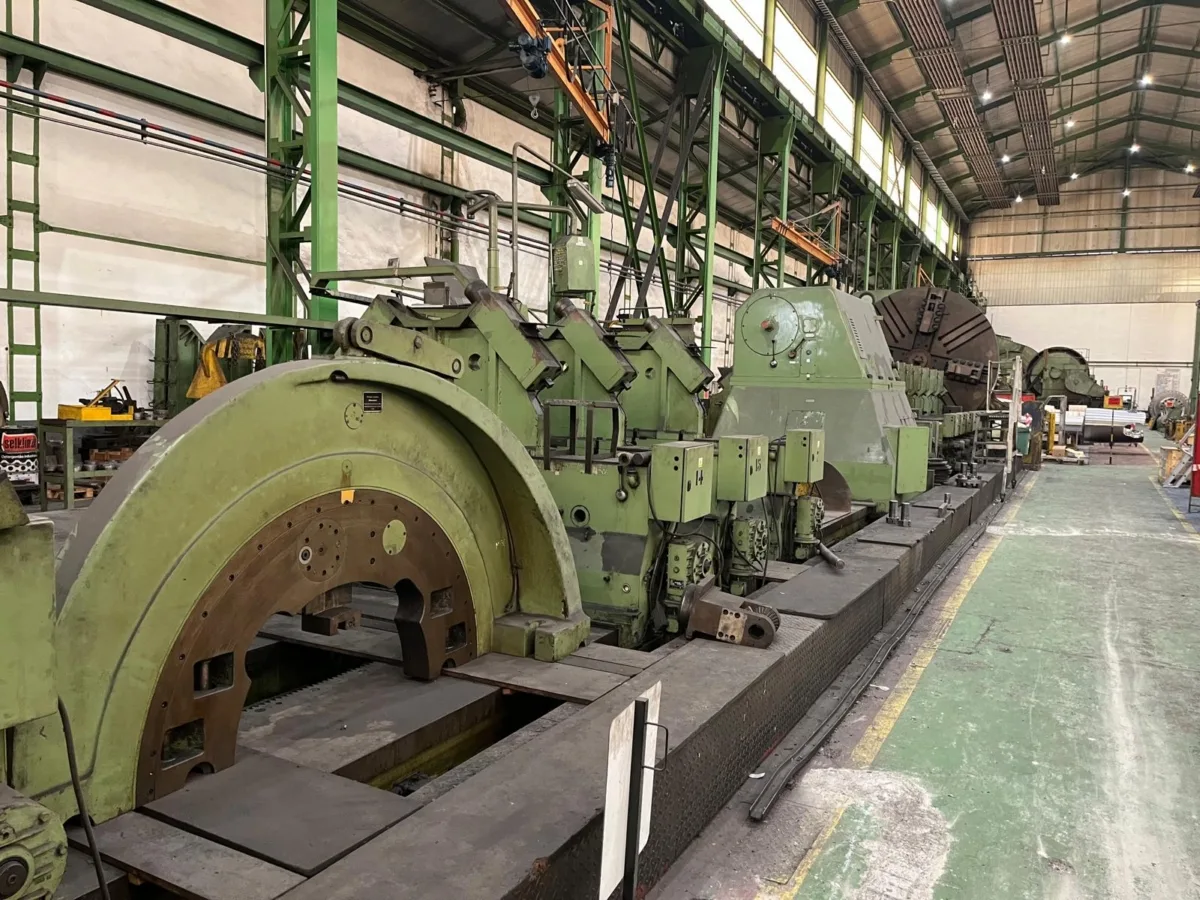

Crankshaft Turning Lathe – FRORIEP D 2100

Year of construction 1970

Conventional control

Center height over bed 2100 mm

Centre distance 15000 mm

Faceplate diameter 3500 mm

Max turning diameter over faceplate rotatable 3120 mm

Max diameter across the bed rotatable 4150 mm

Max diameter across the slide 3600 mm

Max workpiece weight between centres 180 t

Bed width across the guides 4200 mm

Bed height 900 mm

Bed length including headstock 22400 mm

Spindle diameter in front bearing 700 mm

Tailstock quill diameter 620 mm

Turning speed range - faceplate 0.15 - 40 min-1

Number of spindle speed ranges 4

Feed steps 4

Longitudinal feed range 0.3 - 300 mm/min

Feed range (threading / machining carriage) 0.15 - 150 mm/min

Rapid traverse of carriage 1600 mm/min

Cross-slide travel 1550 mm

Tool post travel 400 mm

Engine output 99 kW

Spindle torque 294.199 Nm

Max cutting force per carriage 18000 kg

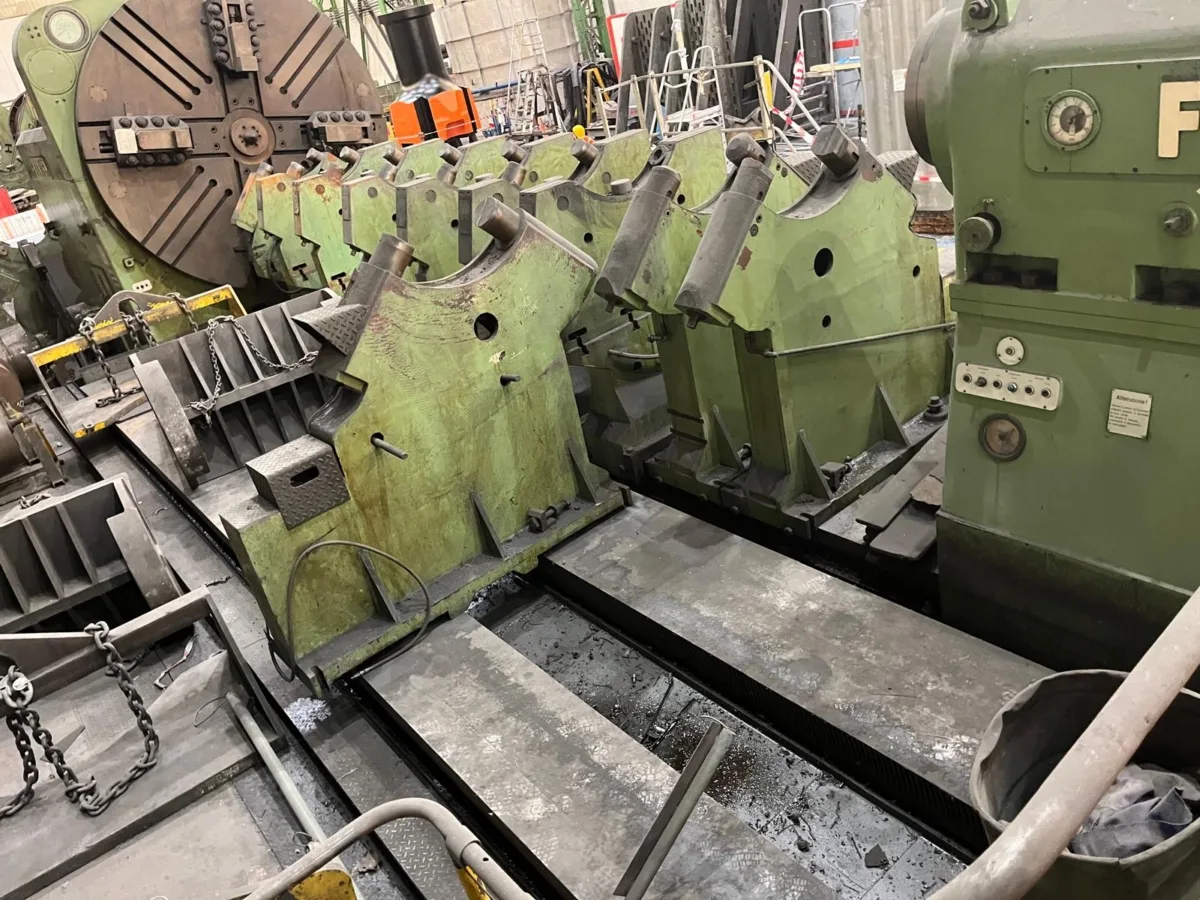

Steady rest workpiece diameter 500 - 1000 mm

Equipped with Balancing Device and Crankpin Machining Unit
