Table Type
Deep Hole Boring Machine VDF B630-4000
Ref. No.46
- Brand
- VDF
- Model
- B630-4000
- Condition
- refurbished

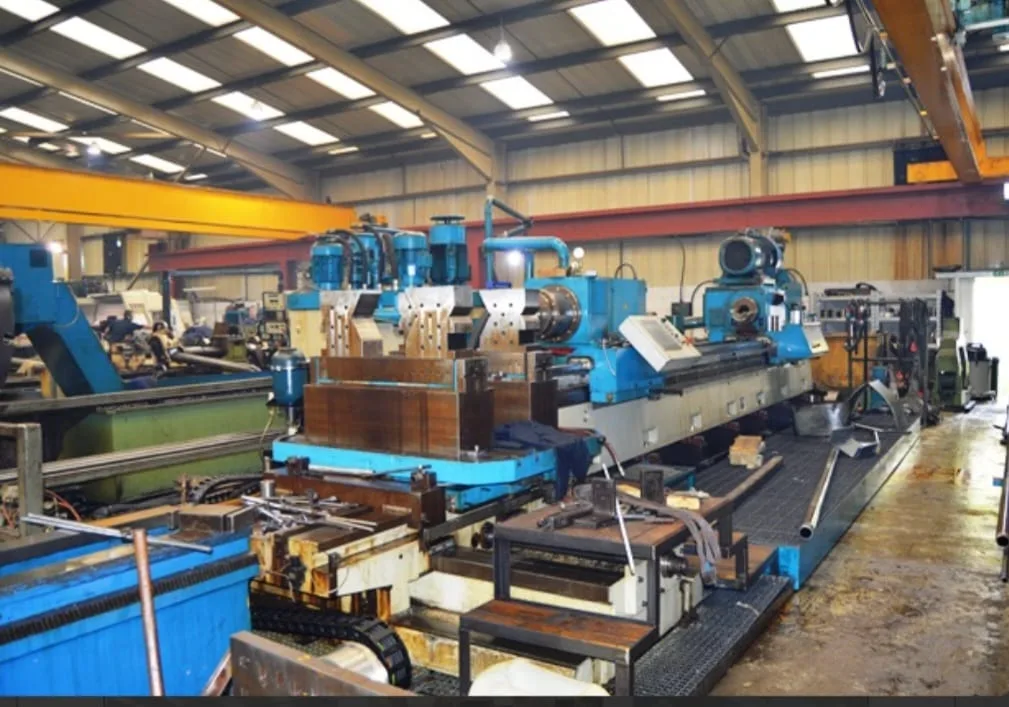

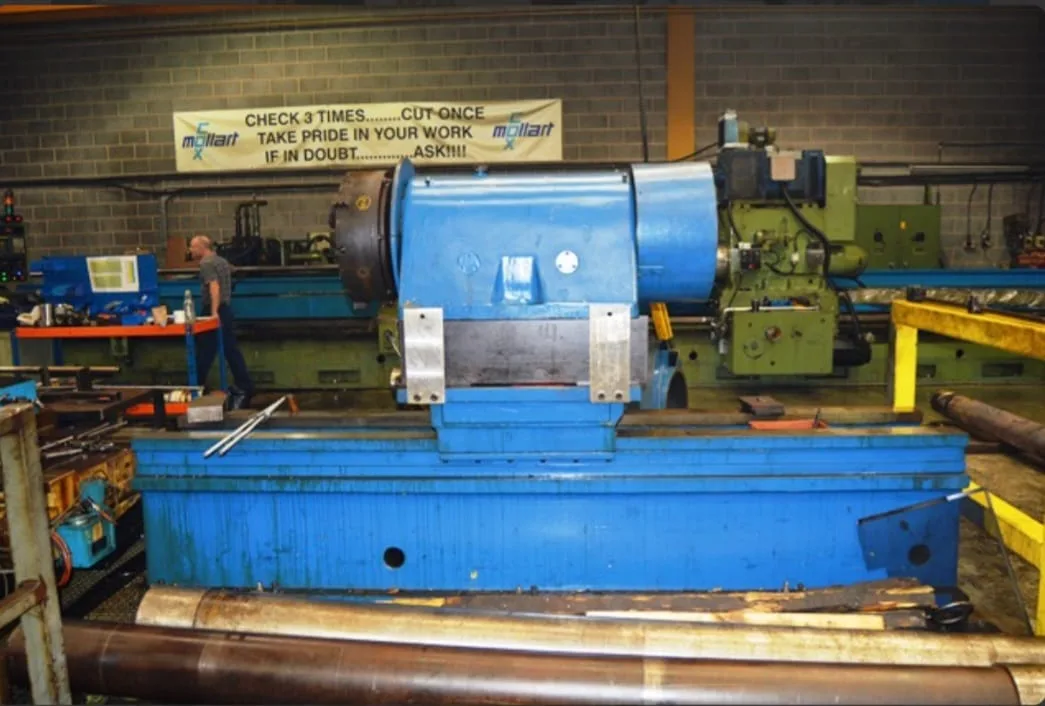

This is a VDF B630-4000 Table Type Deep Hole Borer.
Overhauled in 2007.
Maximum boring length:4000 mm.
Max. centre height above table:500 mm.
Solid boring range:15 – 130 mm.
Counter boring capacity:up to 250 mm.

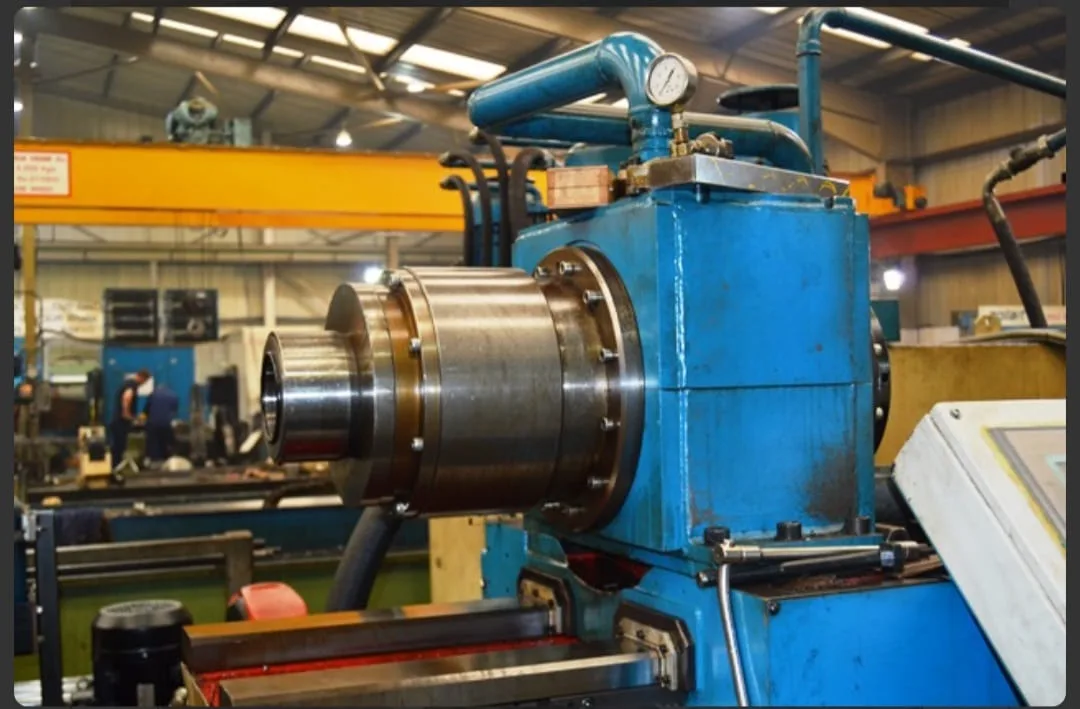

Spindle speed range:35.5 – 1800 rpm.
Maximum spindle torque:4500 Nm.
Main motor power:55 kW.

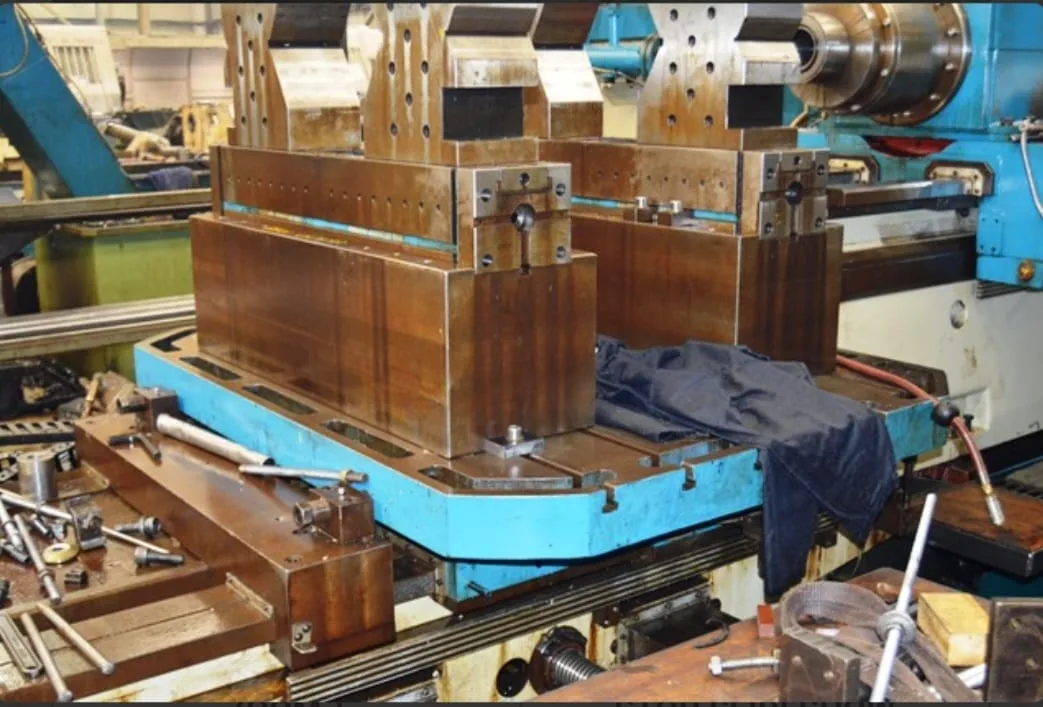

Rotary table:1250 x 1750 mm with 0.1 degree B-Axis.
Control system:Siemens TP 177A and S7-200 touch screen.

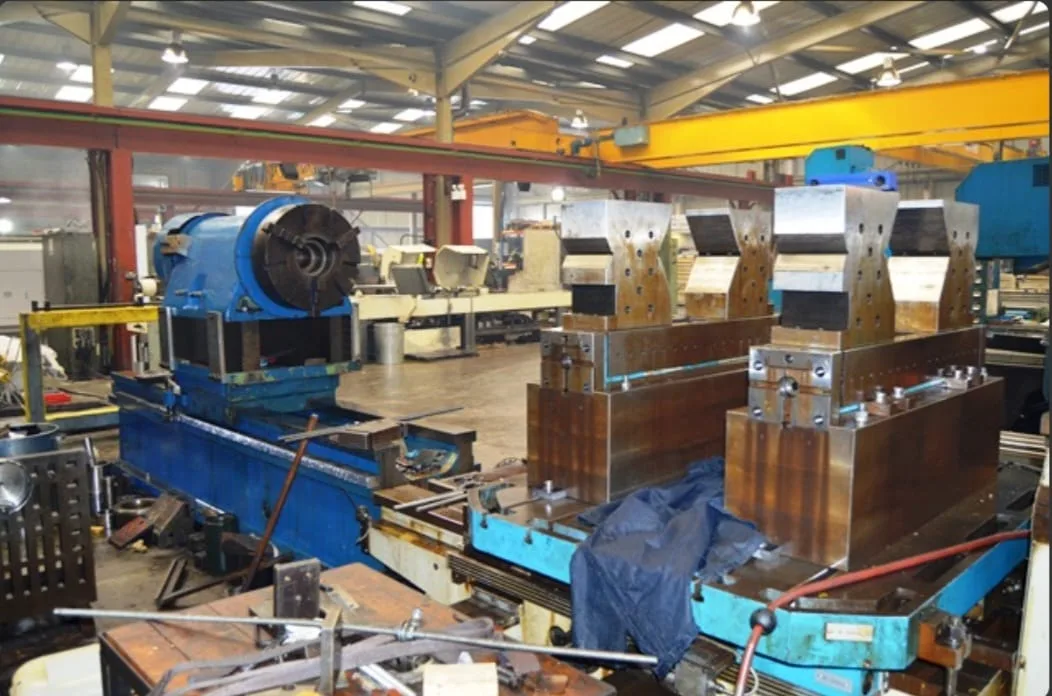

Includes two 400 mm hydraulic vices and swarf conveyor.
Total machine weight:25 tons.
Machine specifications
- Manufacturer
- VDF
- Model
- B630-4000
- Condition
- refurbished
- Type
- Table Type Deep Hole Borer
- Brand
- VDF
- Model
- B630-4000
- Control
- Siemens TP 177A / S7-200
- Main Motor
- 55 kW
- Max Torque
- 4500 Nm
- Rotary Table
- 1250 x 1750 mm (B-Axis)
- Machine Weight
- 25 tons
- Spindle Speeds
- 35.5 – 1800 rpm
- Max Boring Length
- 4000 mm
- Solid Boring Range
- 15 – 130 mm
- Counter Boring Up To
- 250 mm
- Center Height Above Table
- 500 mm
