Doosan Puma 600 CNC Heavy Duty Slant Bed Lathe
- Brand
- Doosan
- Model
- Puma 600
- Condition
- used

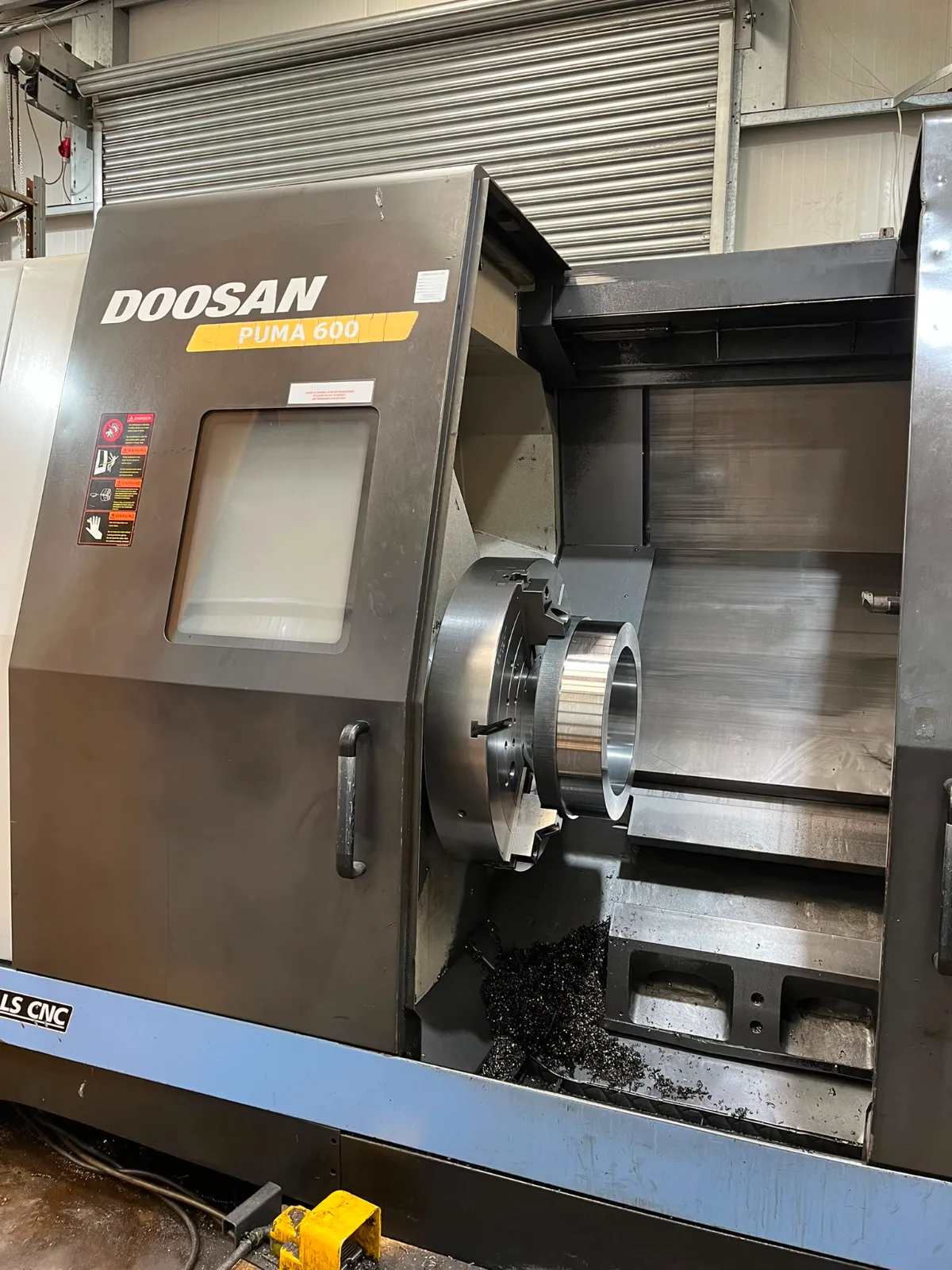

Doosan Puma 600 CNC Heavy Duty Slant Bed Lathe.

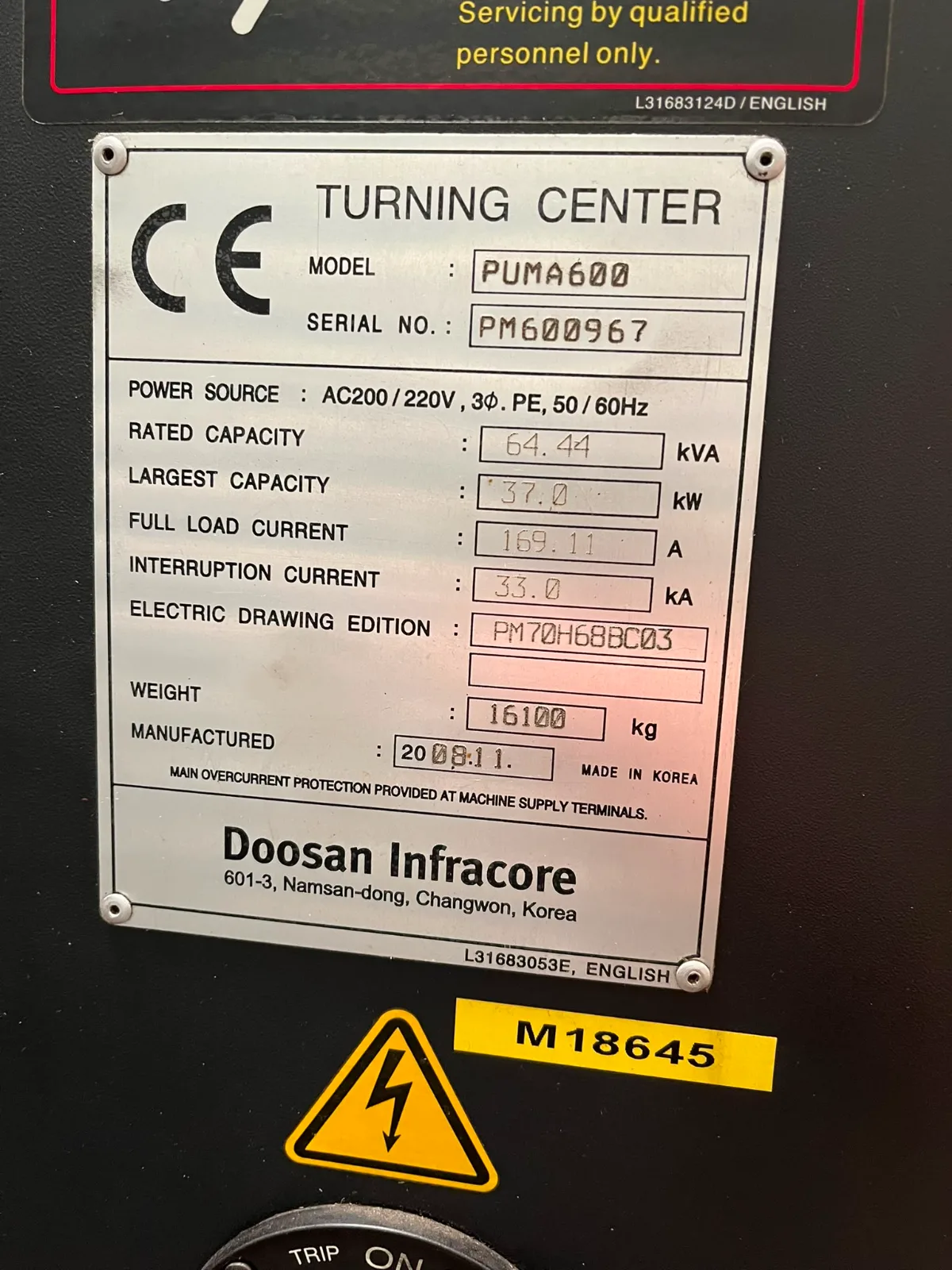

Year of manufacture 2007.
X-axis travel 470mm.
Z-axis travel 1,650mm.
Rapid traverse X-axis 12m/min.
Rapid traverse Z-axis 16m/min.
Maximum swing over bed 900mm.
Maximum swing over cross slide diameter 800mm.
Maximum turning diameter 900mm.
Maximum turning length 1600mm.
Bar capacity diameter 117mm.
Speed range 1-800rpm.
Spindle motor power 45kW.
Spindle nose A2-15.

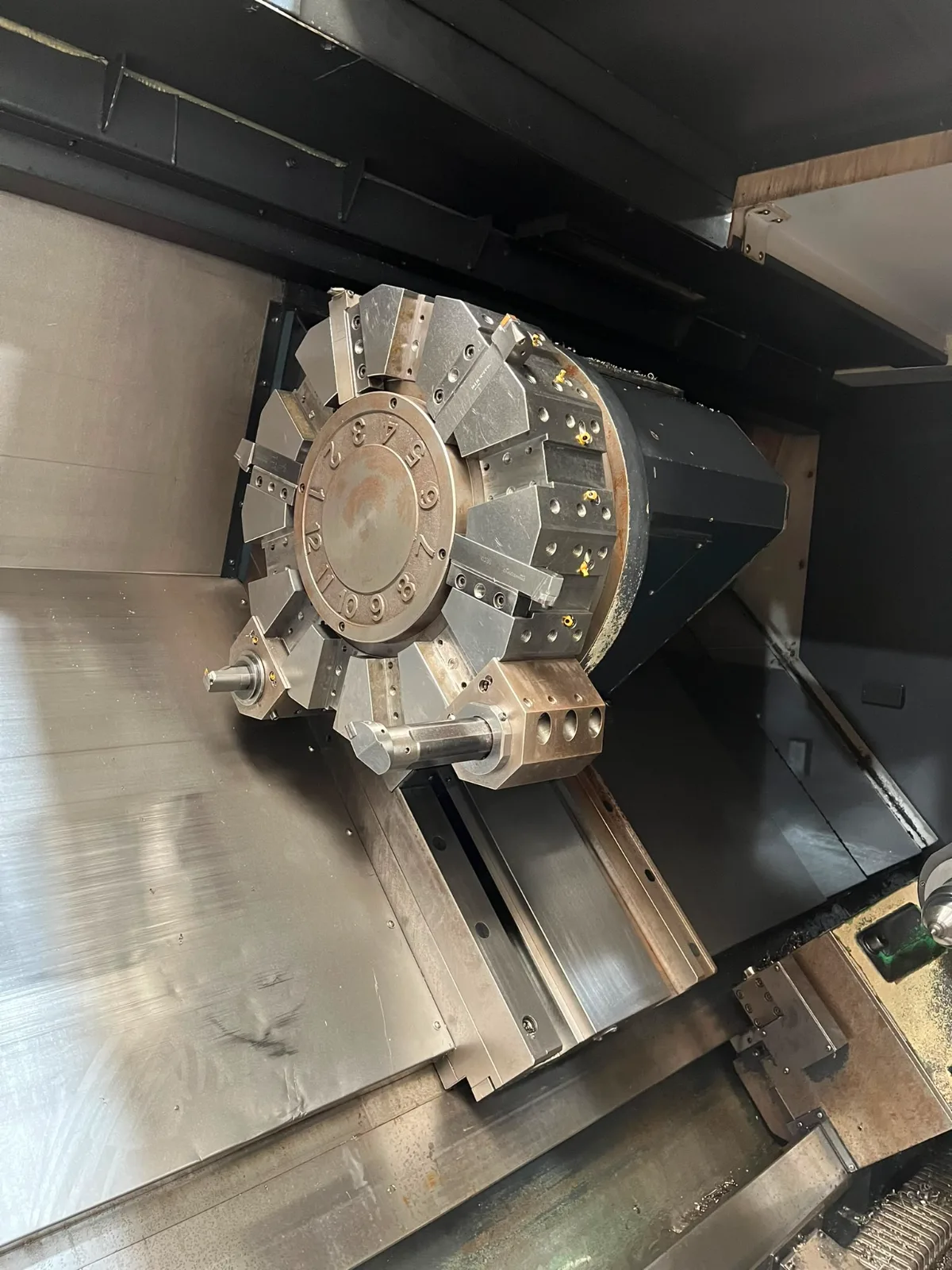

12 position turret.
Turning tool shank 32 x 32mm.
Maximum boring bar sleeve diameter 80mm.

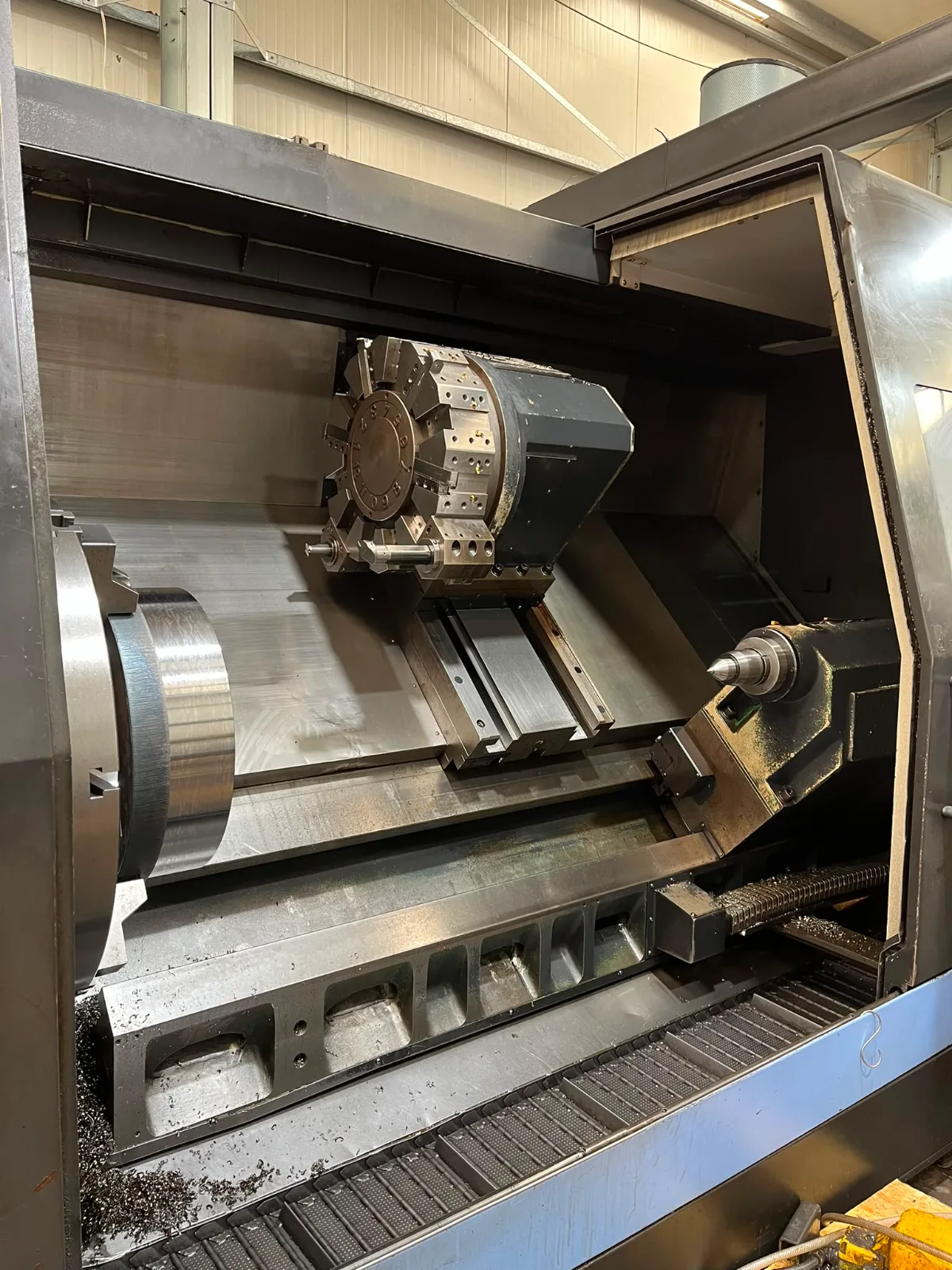

Tailstock travel 1550mm.
Quill diameter 160mm.
Quill travel 150mm.
Quill taper MT6.

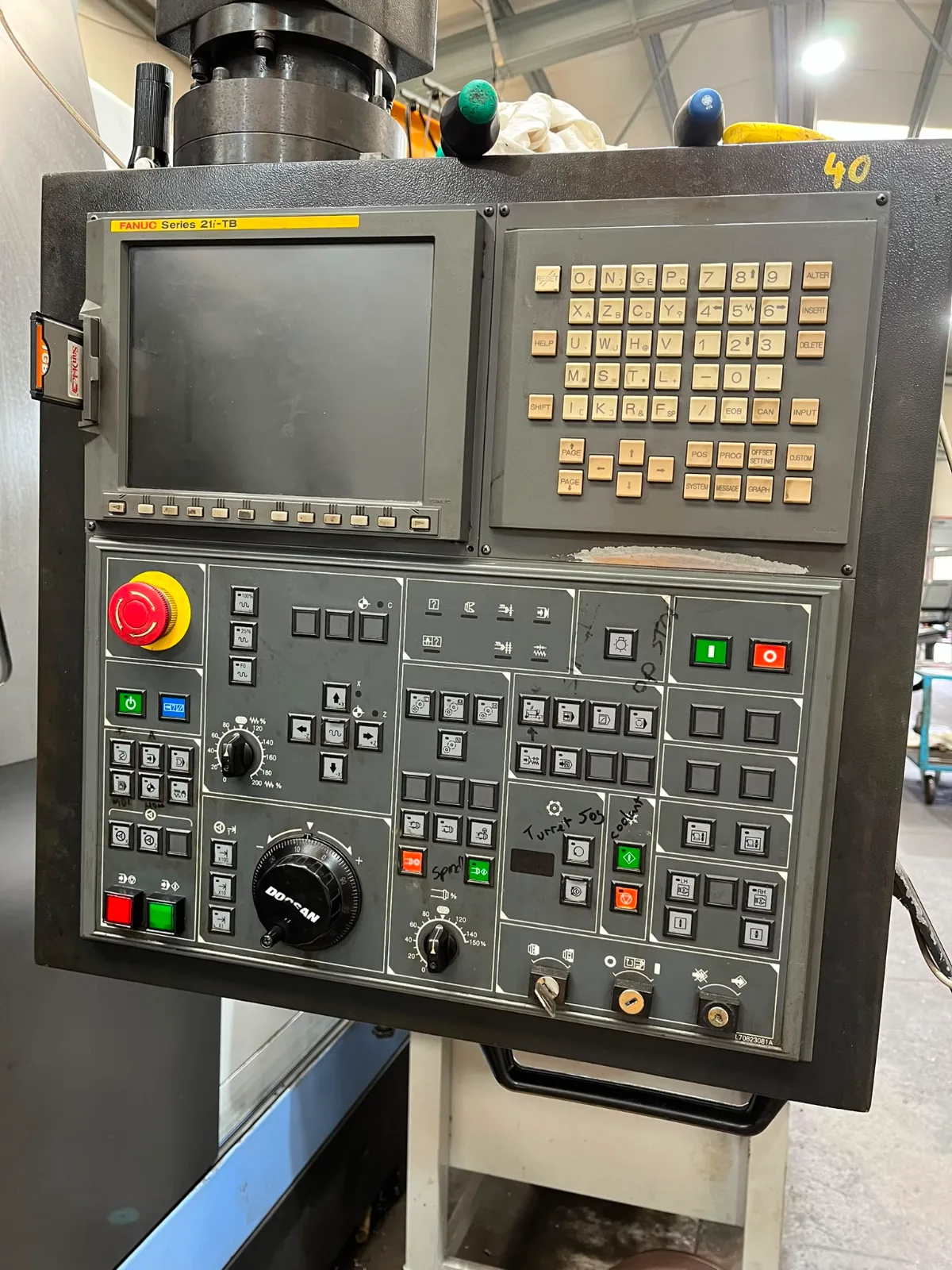

Fanuc Series 21i-TB CNC control system.
Coolant filtration system included.

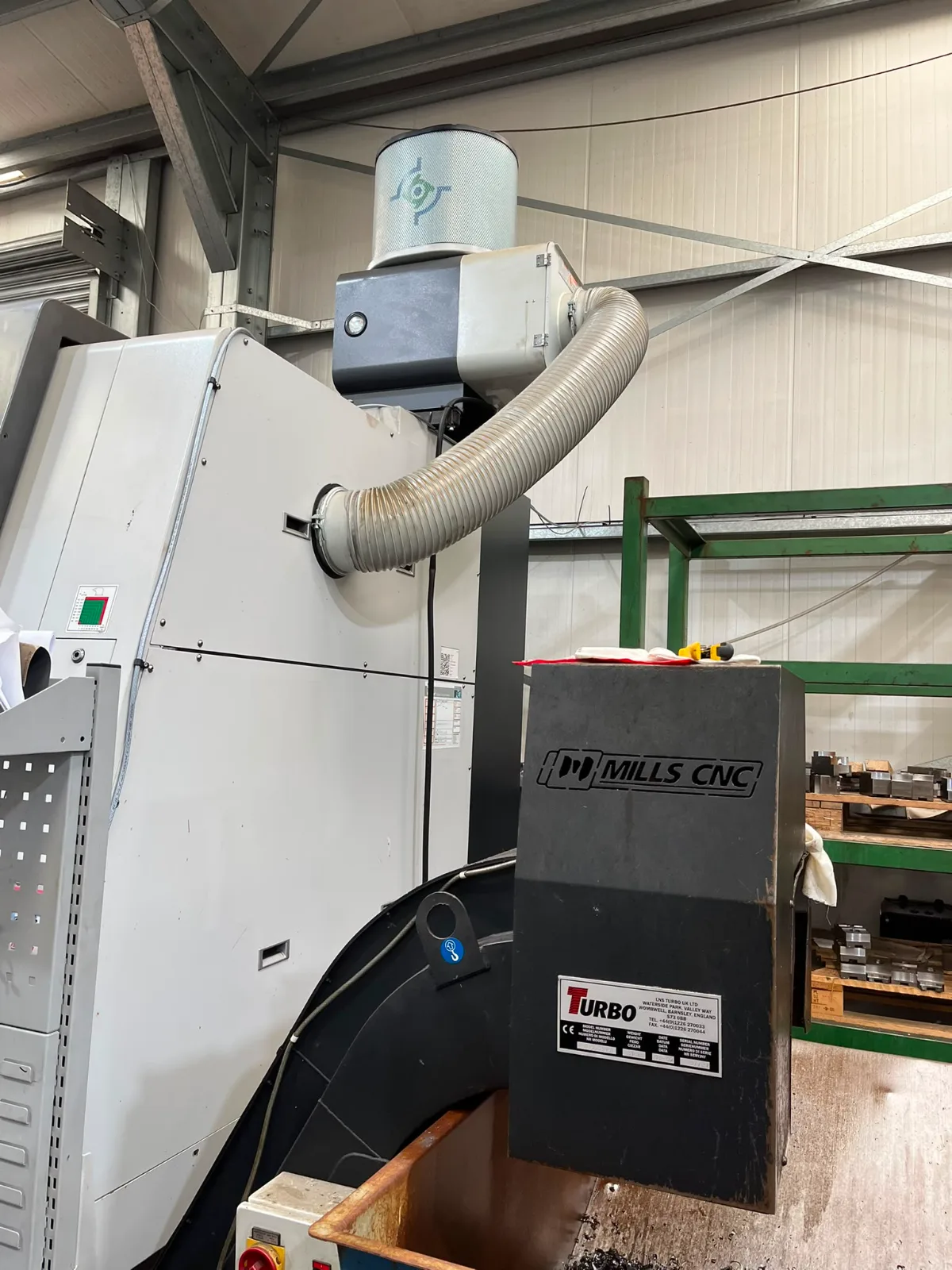

Reven X-Cyclone mist extraction unit tailstock included.
LNS chip conveyor included.
Weight 16tons.
Used condition.
Machine specifications
- Manufacturer
- Doosan
- Model
- Puma 600
- Condition
- used
- Year
- 2007
- Brand
- Doosan
- Model
- Puma 600
- Control
- Fanuc Series 21i-TB
- Condition
- Used
- Quill Taper
- MT6
- Bar Capacity
- 117 mm
- Machine Name
- CNC Heavy Duty Slant Bed Lathe
- Quill Travel
- 150 mm
- Spindle Nose
- A2-15
- Chip Conveyor
- LNS Included
- X Axis Travel
- 470 mm
- Z Axis Travel
- 1650 mm
- Machine Weight
- 16 Ton
- Quill Diameter
- 160 mm
- Tailstock Travel
- 1550 mm
- Turning Tool Shank
- 32 × 32 mm
- Spindle Motor Power
- 45 kW
- Spindle Speed Range
- 1–800 rpm
- Mist Extraction Unit
- Reven X-Cyclone Included
- Tool Turret Stations
- 12
- Rapid Traverse X Axis
- 12 m/min
- Rapid Traverse Z Axis
- 16 m/min
- Maximum Swing Over Bed
- 900 mm
- Maximum Turning Length
- 1600 mm
- Maximum Turning Diameter
- 900 mm
- Coolant Filtration System
- Included
- Maximum Swing Over Cross Slide
- 800 mm
- Maximum Boring Bar Sleeve Diameter
- 80 mm
