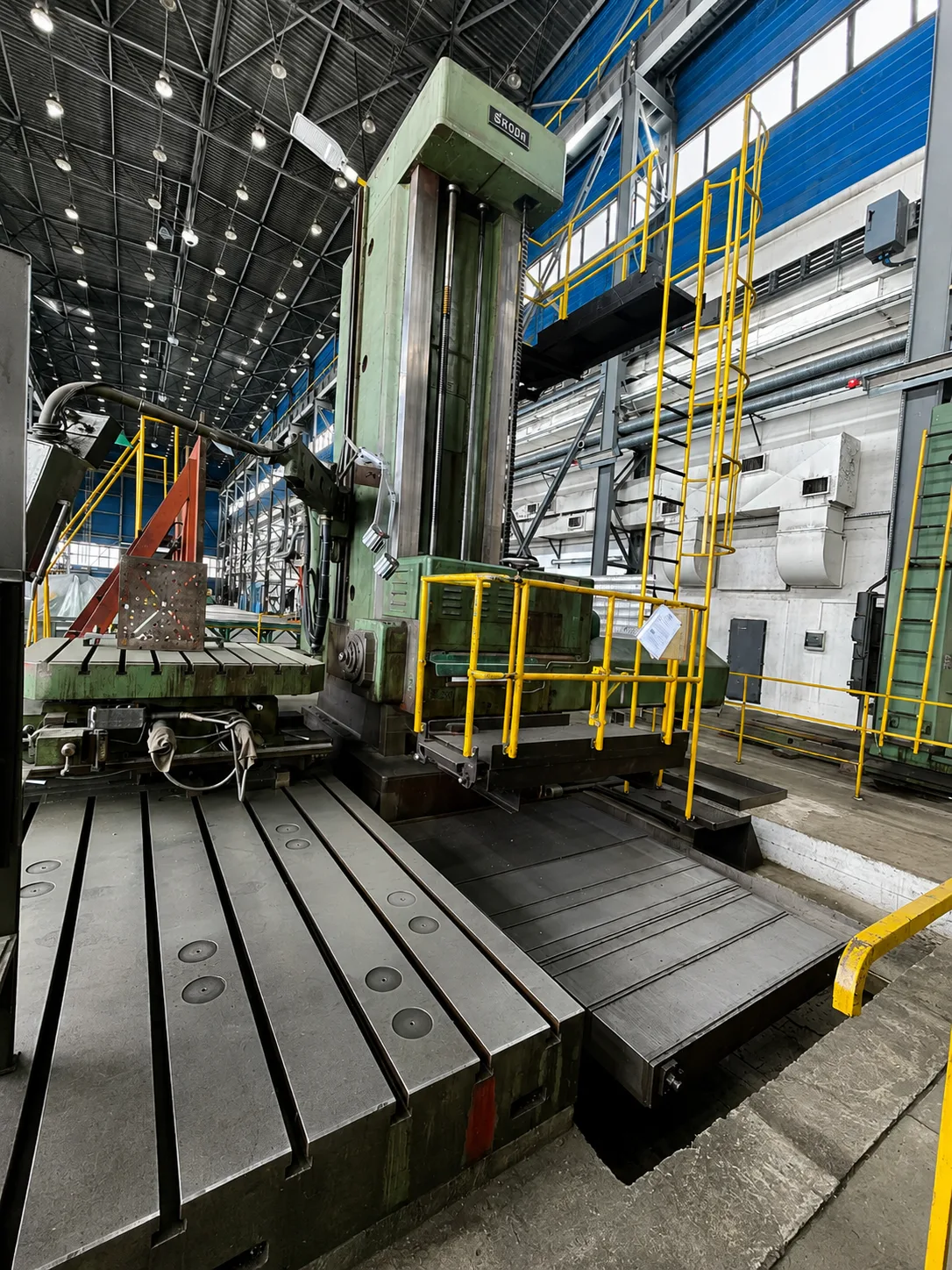

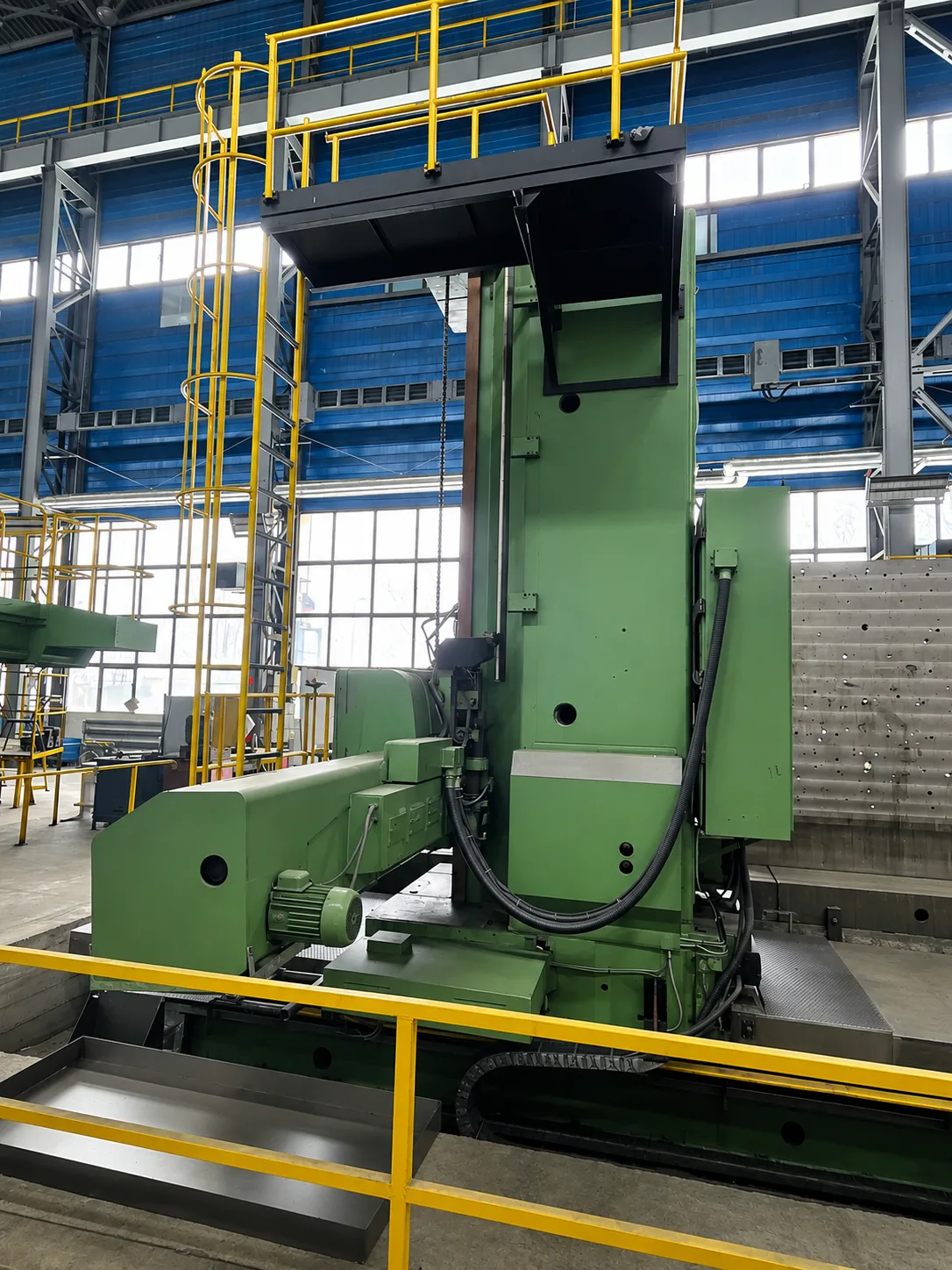

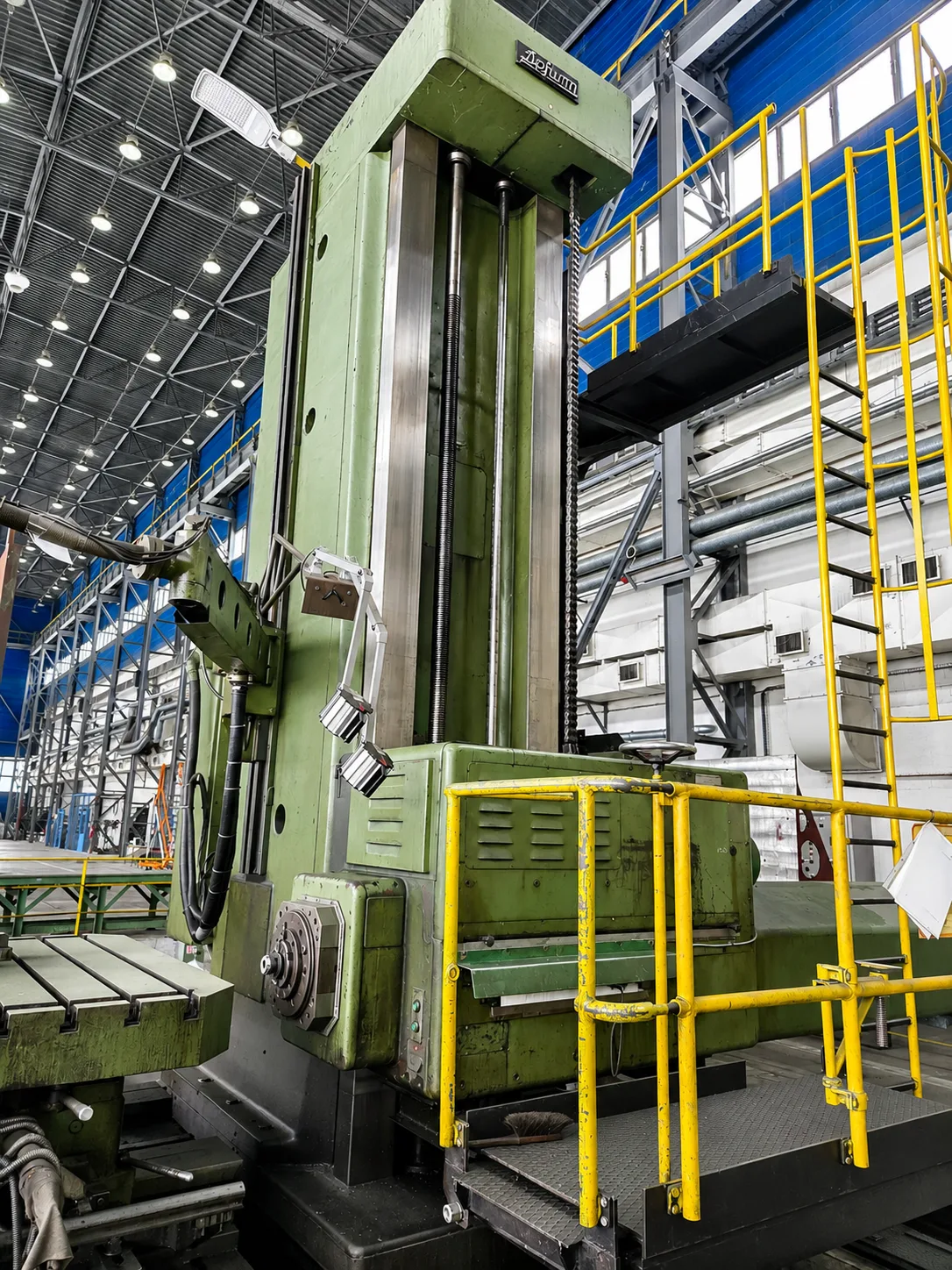

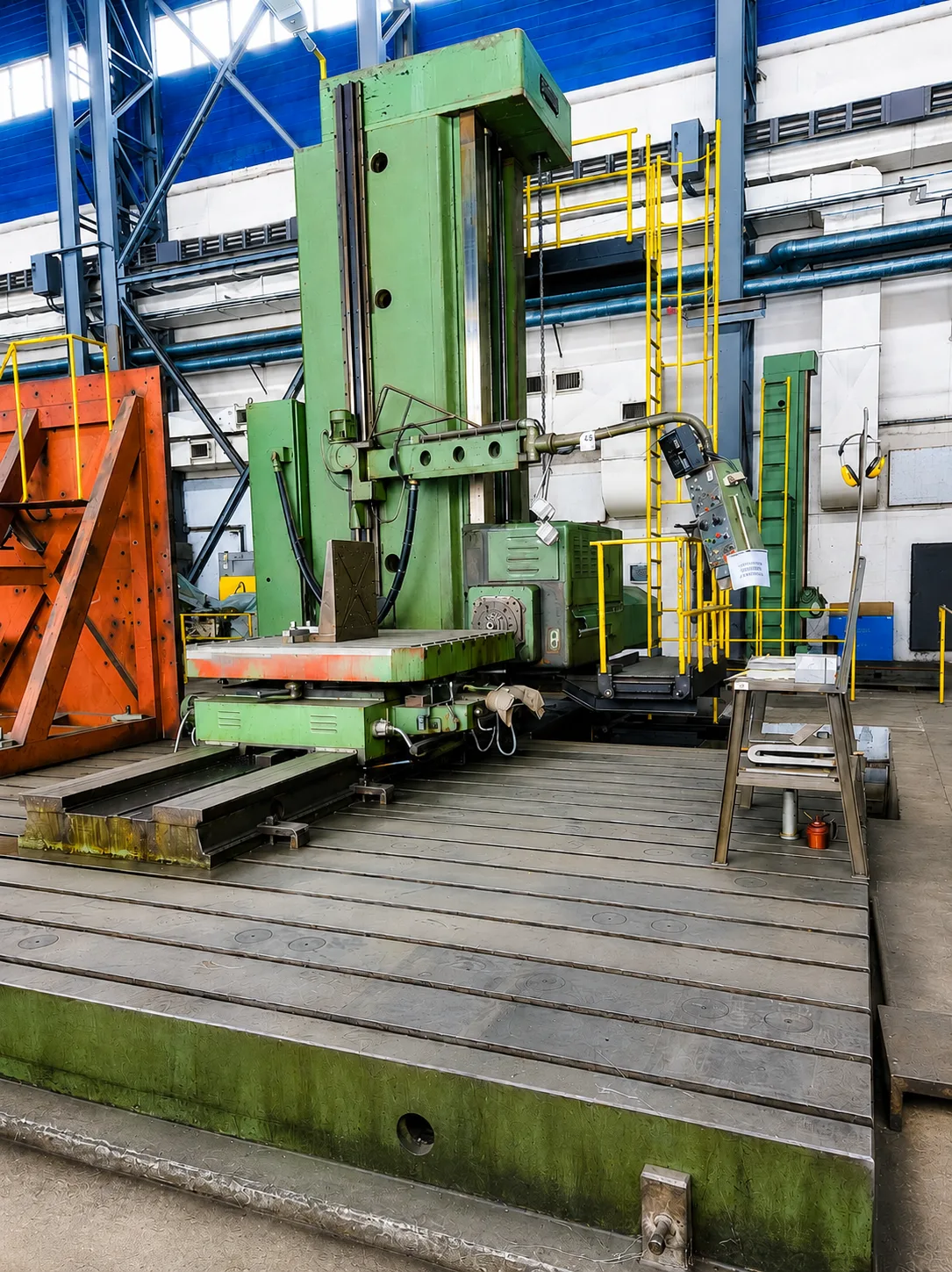

Floor Type Horizontal Boring and Milling Machine WHB 150
Ref. No.162
- Brand
- DEFUM
- Model
- WHB 150
- Condition
- used
DEFUM WHB 150
Horizontal Boring and Milling Machine.

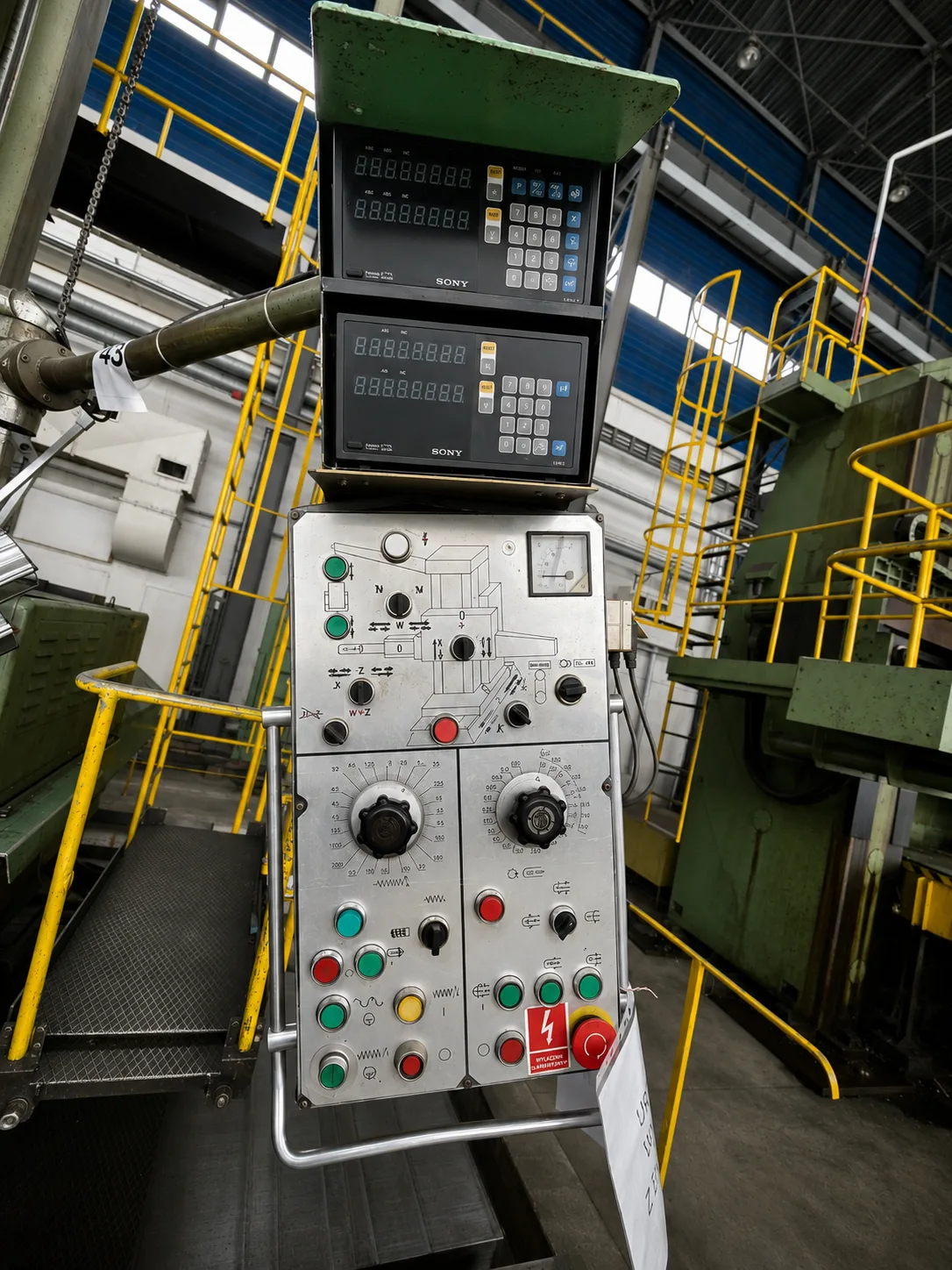

Digital Read Out (DRO).
Spindle Diameter 150 mm.
Spindle Taper ISO 50 / Metric 80 mm (Automatic Tool Clamping).
X Travel on Bed 9000 mm.
Y Travel on Column 3000 mm.
W Travel (ram) 500mm.
Z Spindle Travel 1200 mm.
Spindle Speed Range 2.5 – 1000 rpm.
Number of Spindle Speeds 31.
Feed Range 5 – 1000 mm/min.
Maximum Boring Diameter 800 mm.
Maximum Facing Diameter 1200 mm.
Maximum Drilling Diameter (Cast Iron) 75 mm.
Maximum Milling Head Diameter 400 mm.

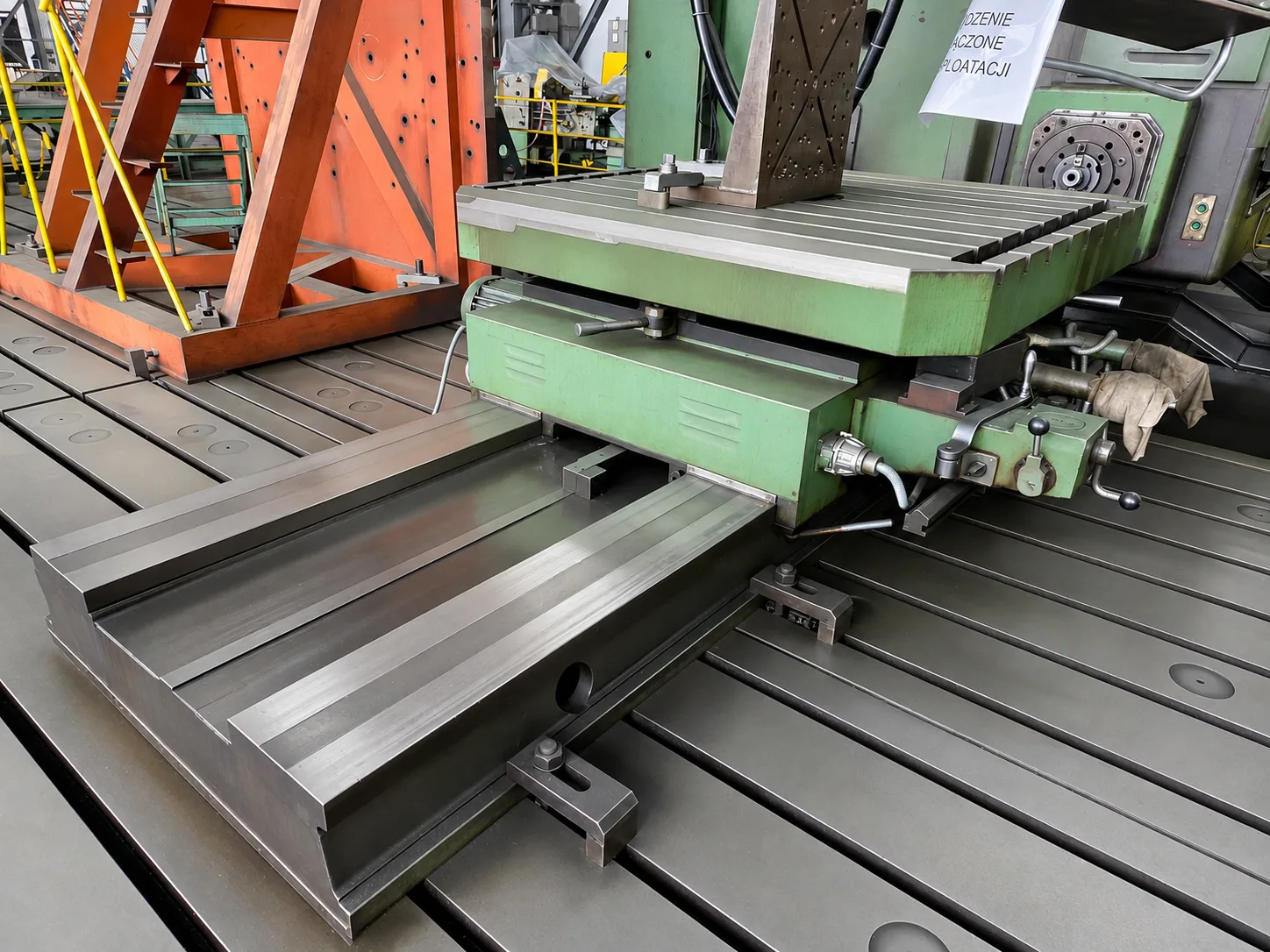

Working Surface Area Approx. 40 m² (4 Floor Plates × 5000 × 2000 mm).
Machine Weight 69Tons.
