Gear Hobbers

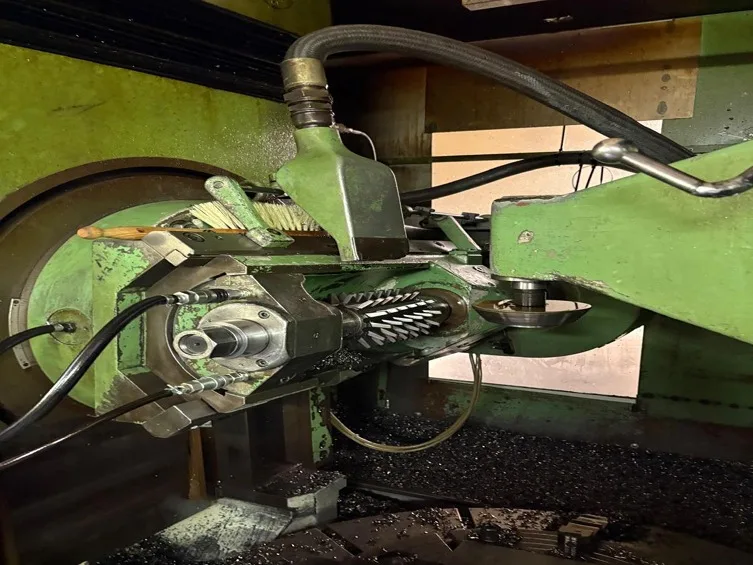

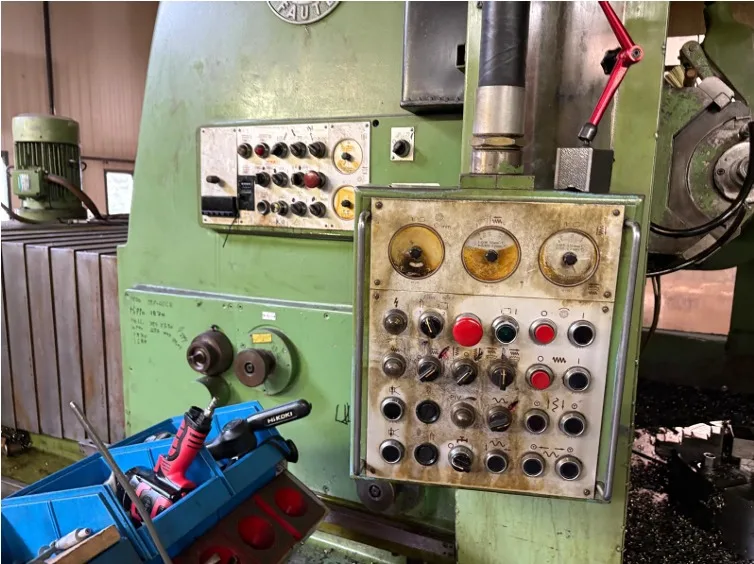

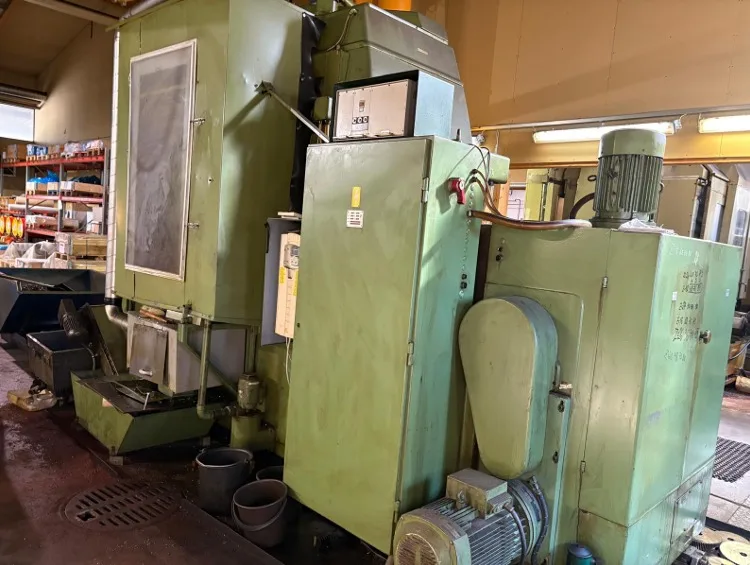

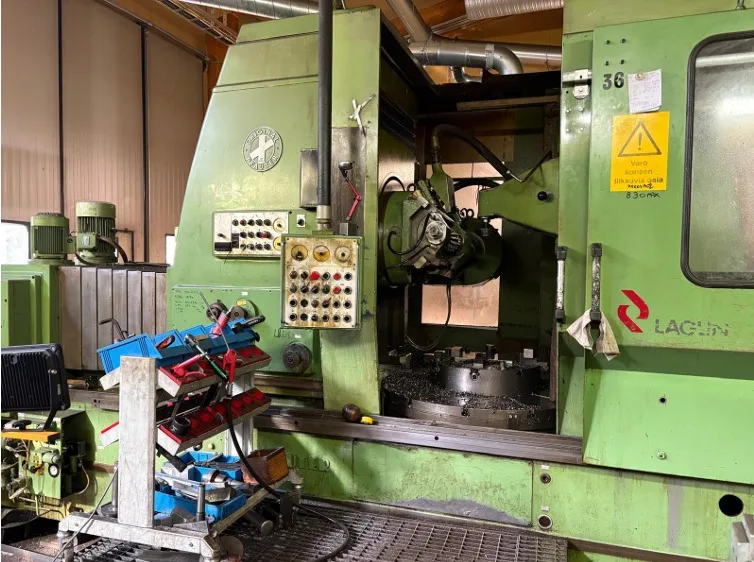

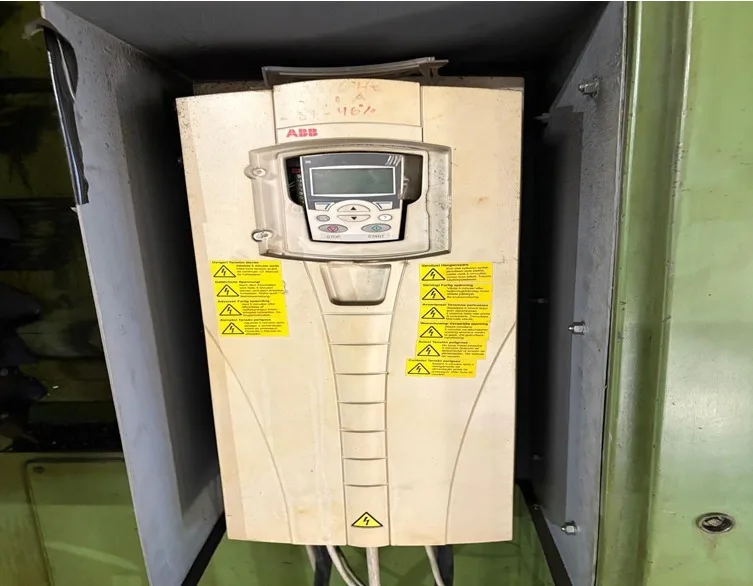

Gear Hobber Pfauter P1501
Ref. No.213
- Brand
- Pfauter
- Model
- P1501
- Condition
- used
Machine Name:Gear Hobber
Brand:Pfauter
Model:P1501
Spindle Speed:180 rpm
Dimensions:7500 × 3500 × 4700 mm
Table Diameter:1200 mm
Milling Spindle Speeds (Infinitely Variable): 30 - 180 rpm
Maximum Workpiece Diameter:1500 mm
Maximum Wheel Diameter:1500 mm
Maximum Hob Diameter:250 mm
Hob Arbor Size:38.1 mm
Gear Width:600 mm
Module:16.0
Maximum Module:16
Minimum Module:1
Maximum Diametral Pitch:1.5
Axial Travel:600 mm
Maximum Axial Offset:600 mm
Table Hole Diameter:300 mm
Table Hole:300 m
Minimum Number of Teeth:9
Hob Speed:0 rpm
Weight Of Machine (ca):20.5 T
Total Power Requirement:38 kW
Machine specifications
- Manufacturer
- Pfauter
- Model
- P1501
- Condition
- used
- Name
- Gear Hobber
- Year
- Unknown
- Brand
- Pfauter
- Model
- P1501
- Module
- 16
- Control
- Unknown
- Condition
- Unknown
- Hob Speed
- 0 rpm
- Dimensions
- 7500 × 3500 × 4700 mm
- Gear Width
- 600 mm
- Table Hole
- 300 mm
- Axial Travel
- 600 mm
- Spindle Speed
- 180 rpm
- Hob Arbor Size
- 38.1 mm
- Machine Weight
- 20.5 t
- Maximum Module
- 16
- Minimum Module
- 1
- Table Diameter
- 1200 mm
- Table Hole Diameter
- 300 mm
- Maximum Axial Offset
- 600 mm
- Maximum Hob Diameter
- 250 mm
- Maximum Wheel Diameter
- 1500 mm
- Milling Spindle Speeds
- 30–180 rpm (Infinitely Variable)
- Maximum Diametral Pitch
- 1.5
- Minimum Number Of Teeth
- 9
- Total Power Requirement
- 38 kW
- Maximum Workpiece Diameter
- 1500 mm
