Gear Hobbers

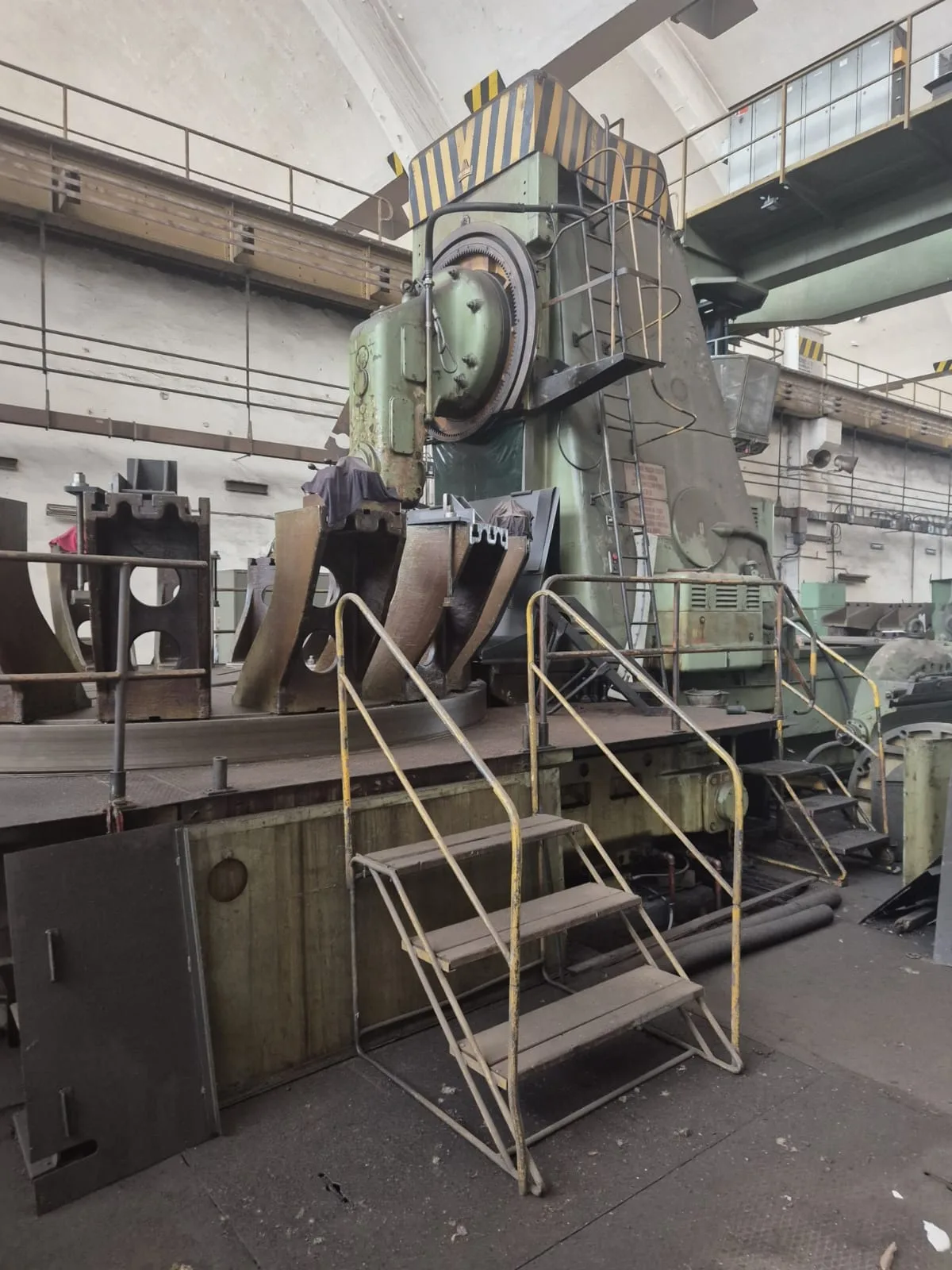

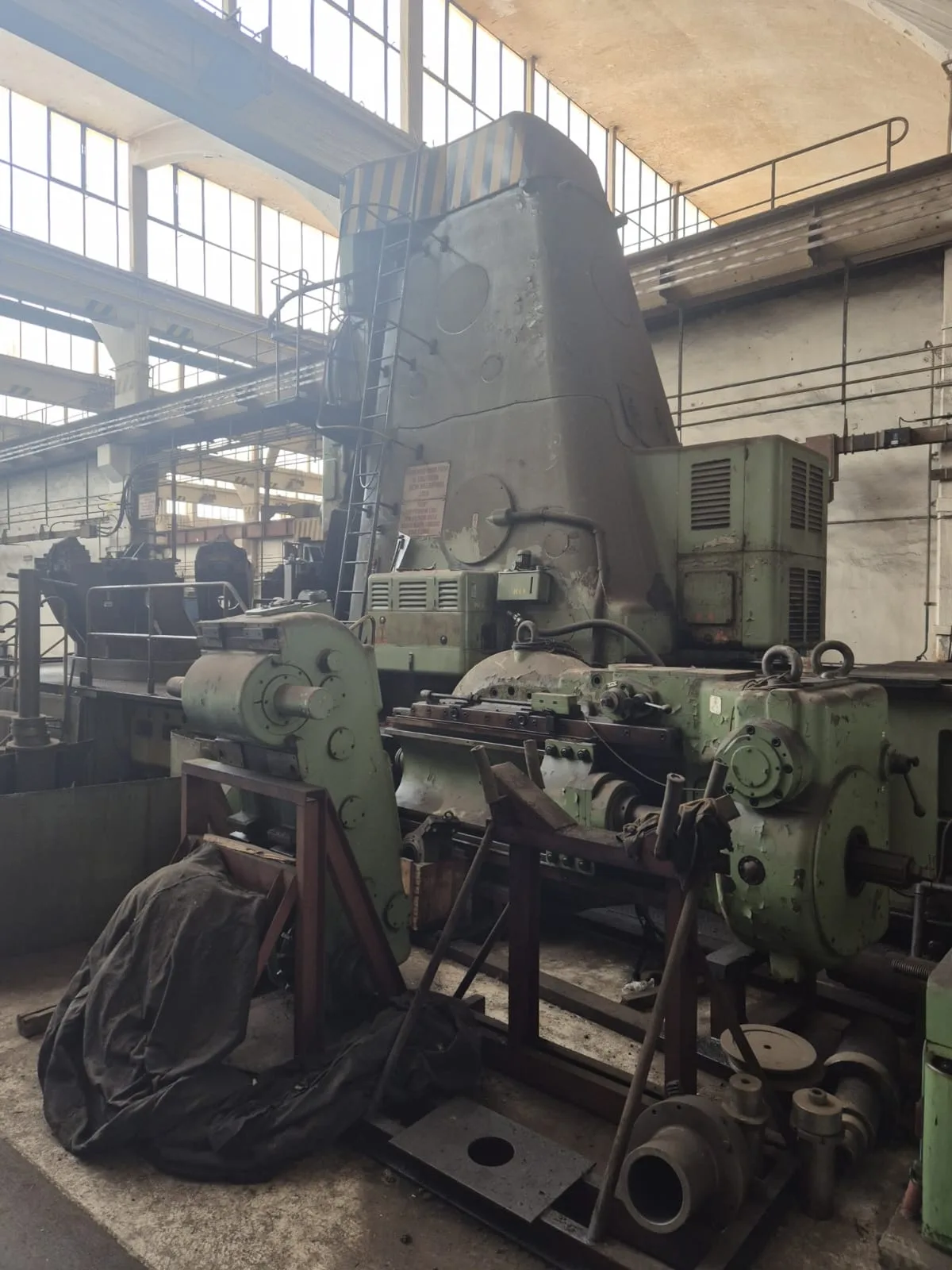

GEAR HOBBER – WMW-MODUL ZFWZ 6300
Ref. No.143
- Brand
- WMW-MODUL
- Model
- ZFWZ 6300
- Condition
- used
- Stock number
- NMC/26/152
GESF HOBBER WMW-MODUL ZFWZ 6300.
Max. wheel:7100 mm.
Gear wheel width:1500 mm.
Max. module:45.

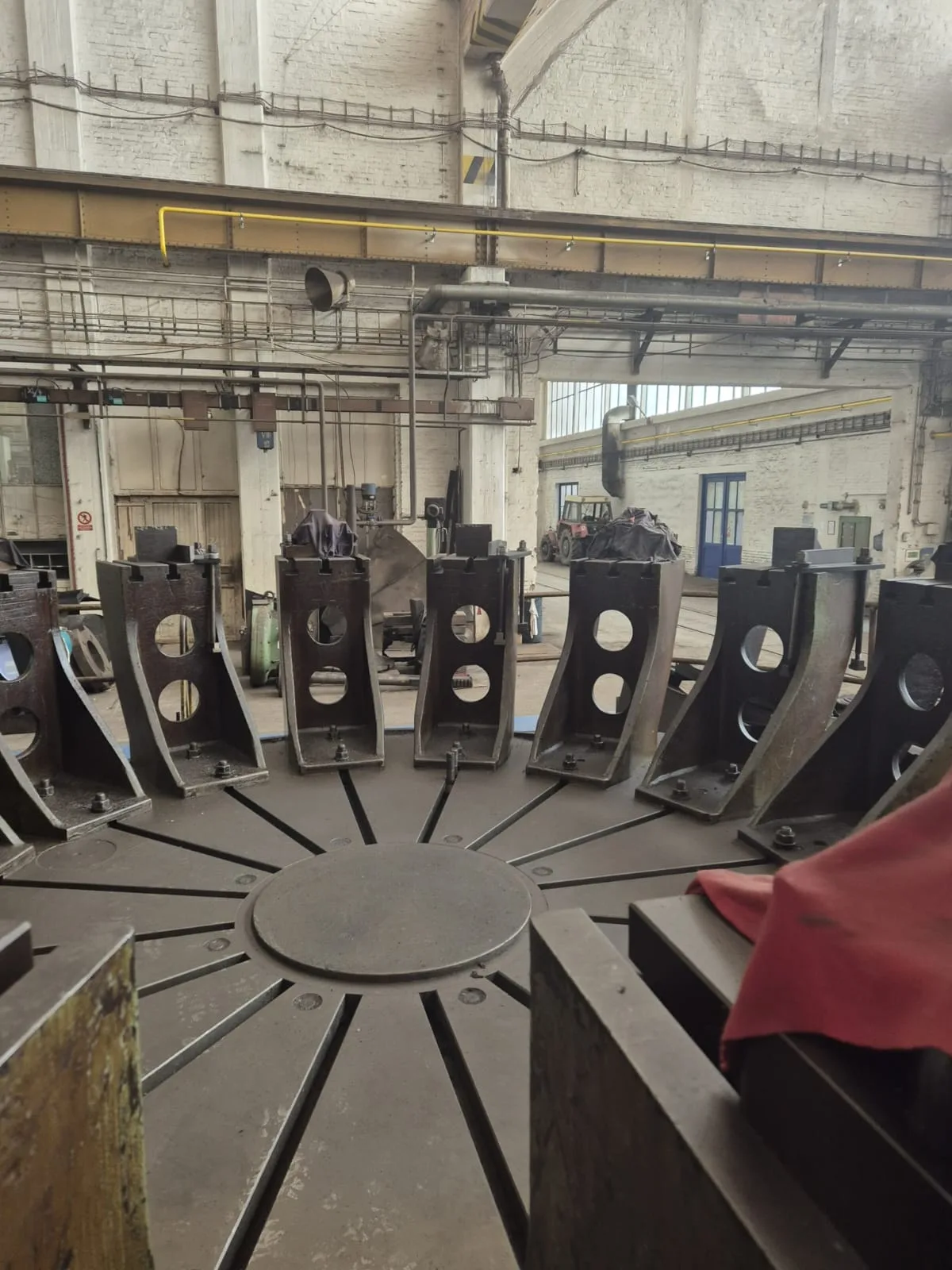

Table diameter:4000 mm.
Cutter diameter x width:400 x 500 mm.
Max. helix angle:45 degrees.
Planer diameter:500 mm.
Planer speed:9–63 rpm.
Total power consumption:47 kW.
Machine weight:160,000 kg.

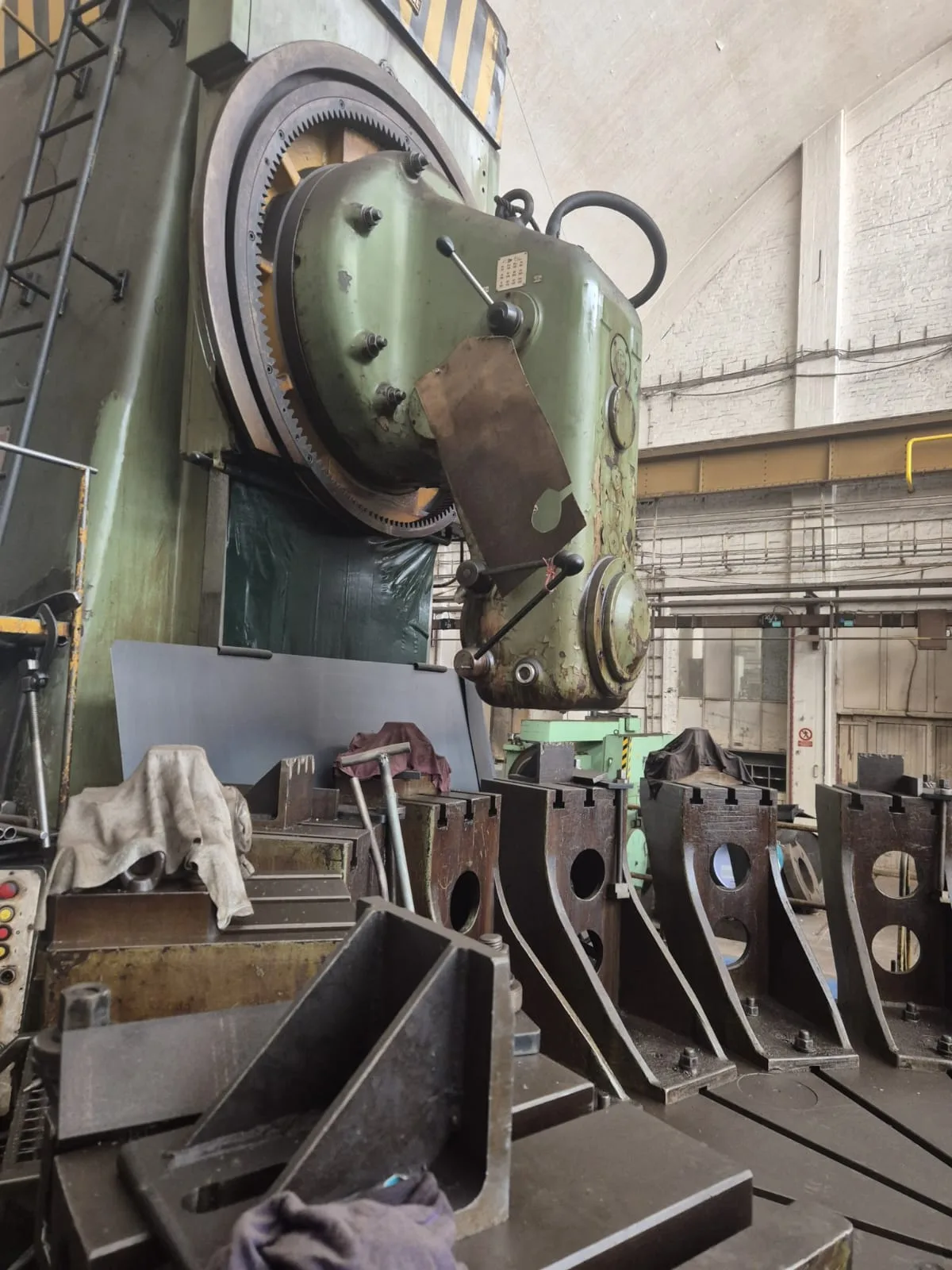

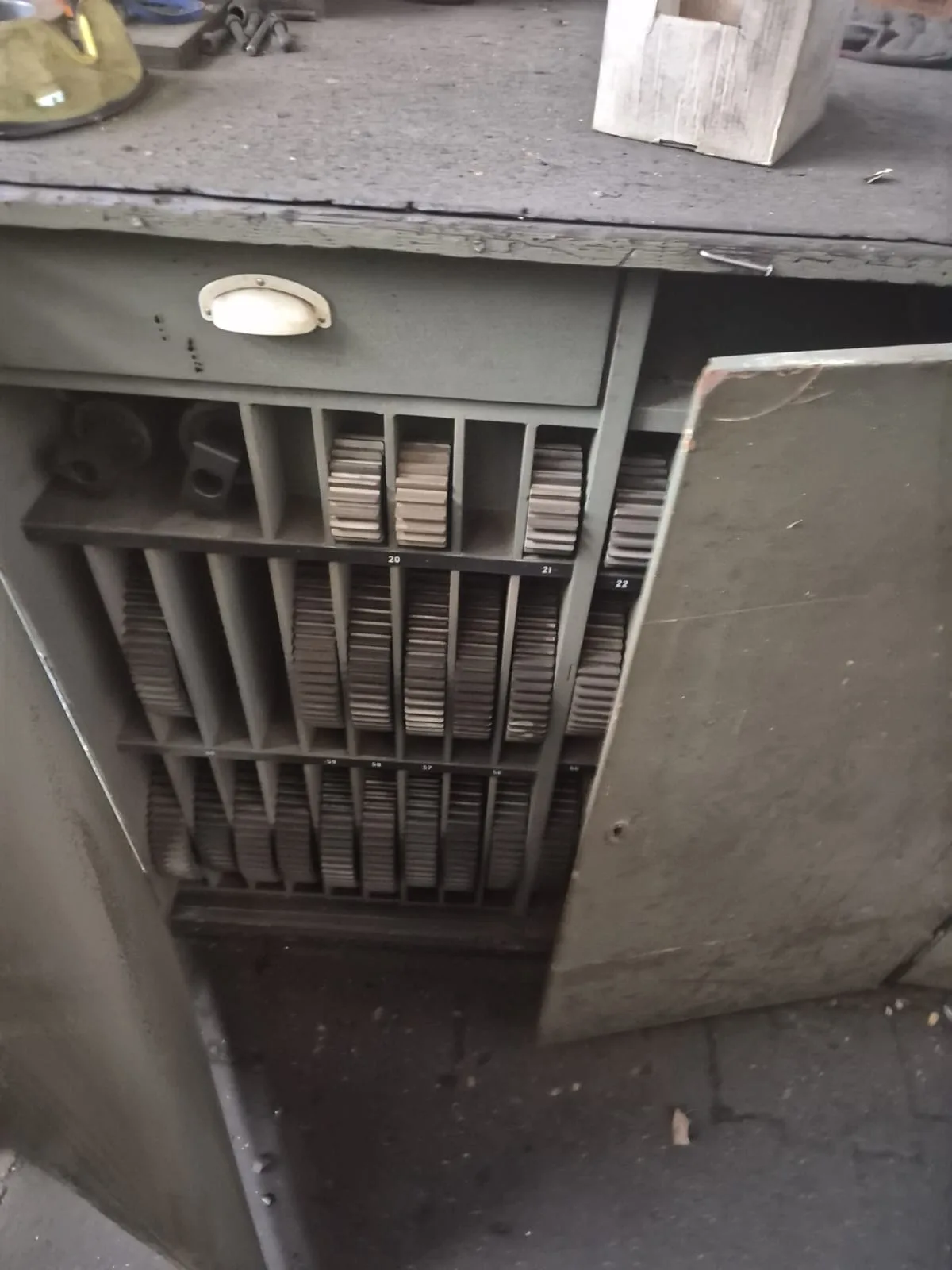

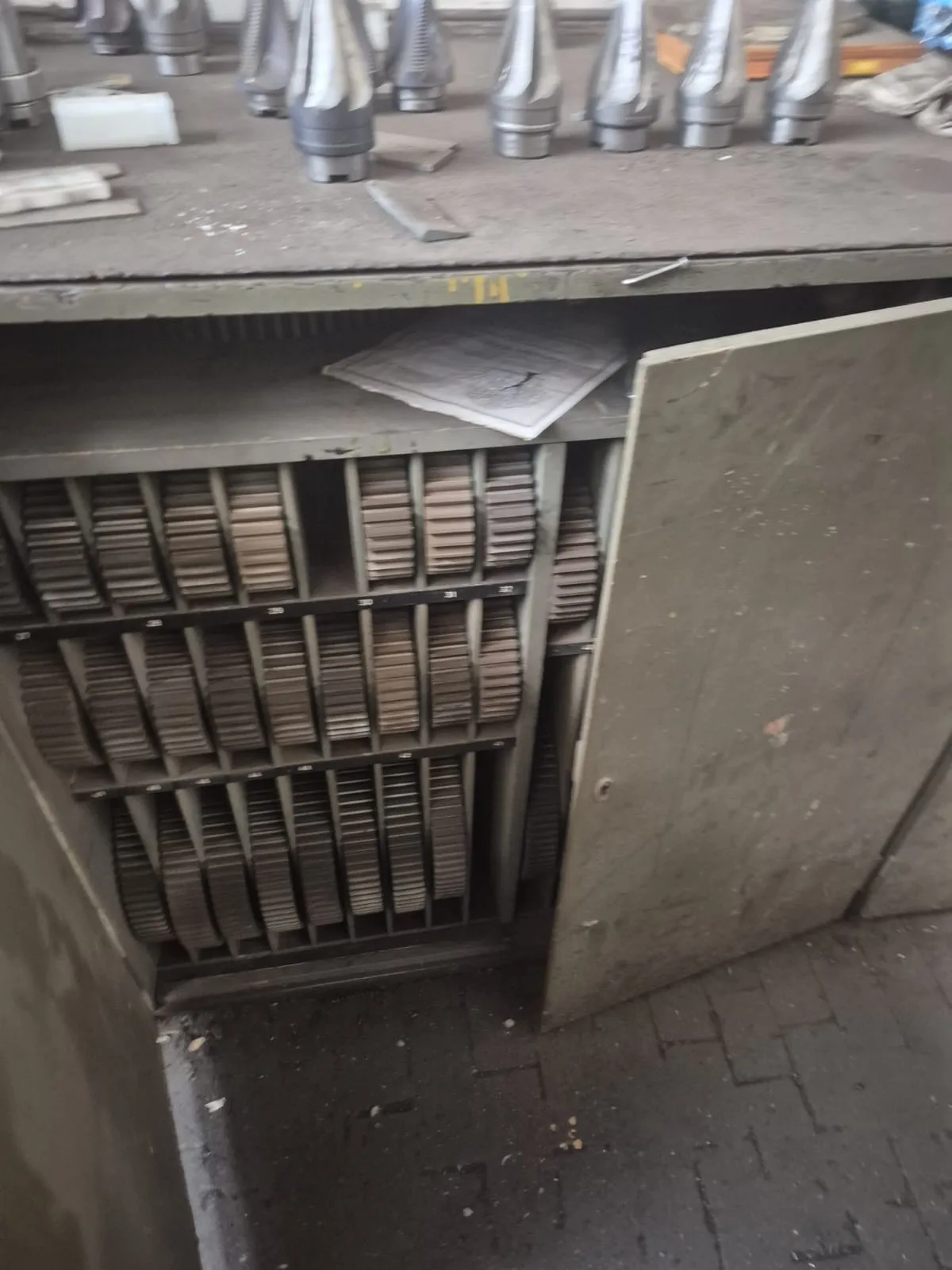

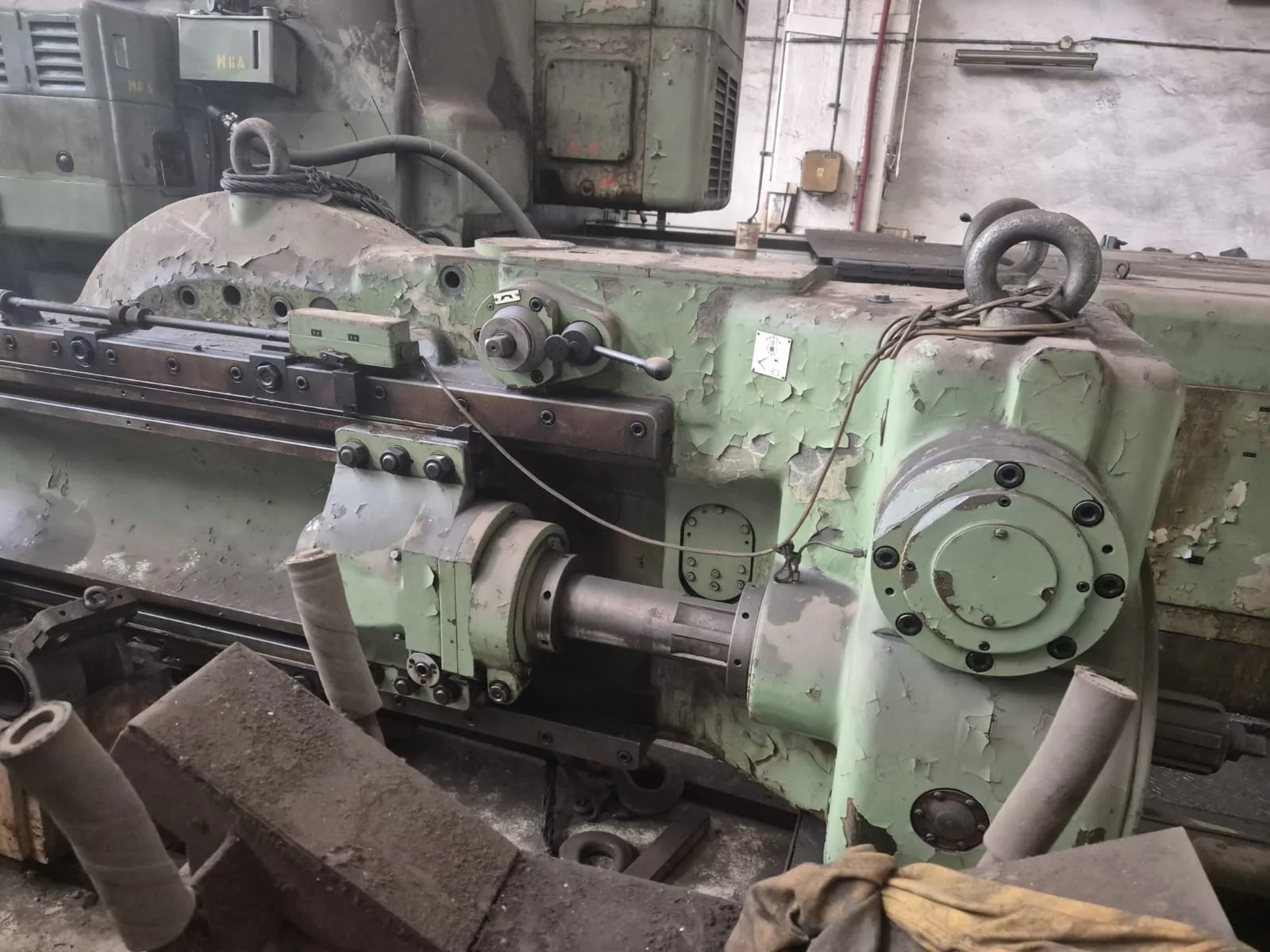

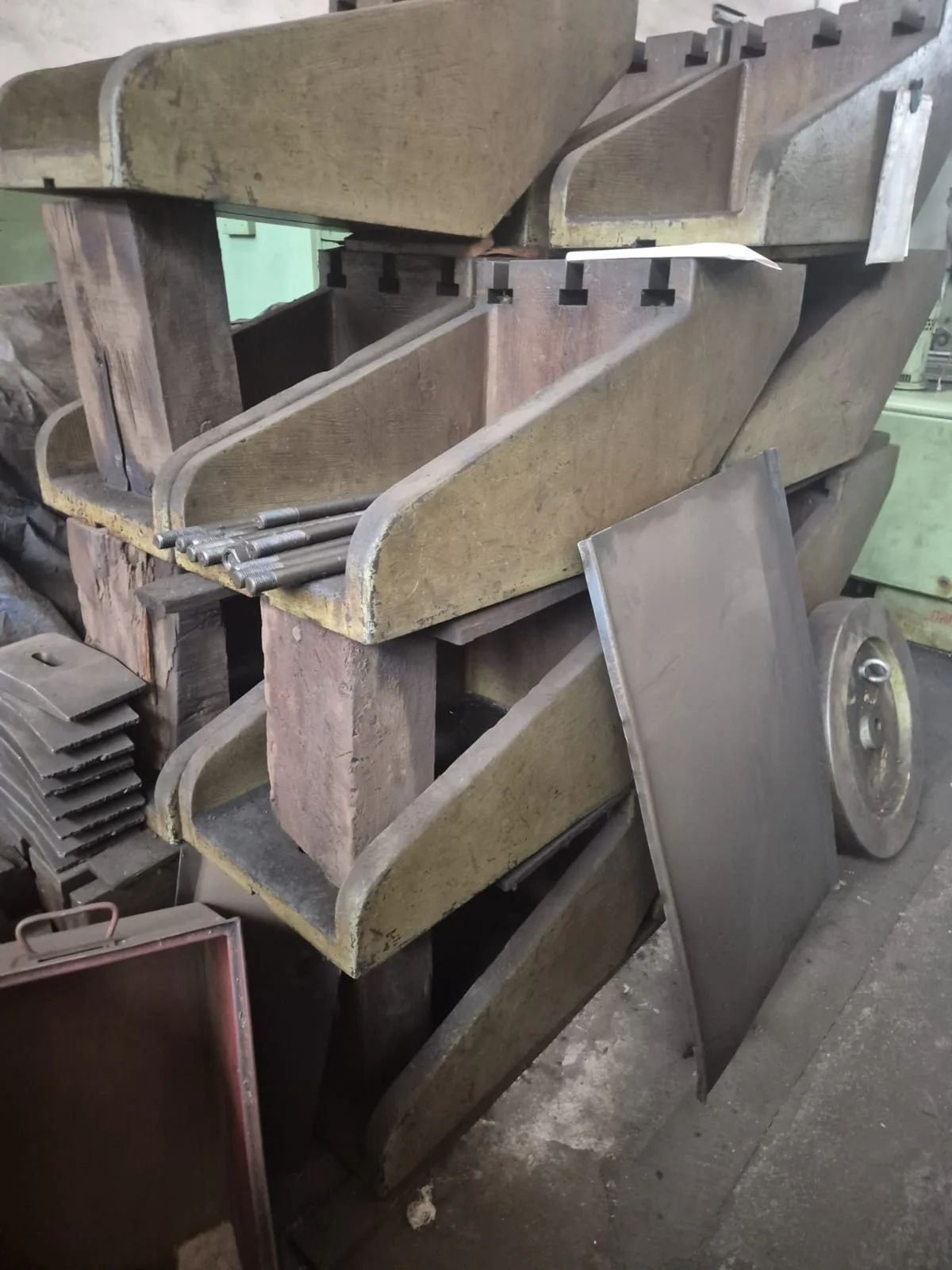

Many accessories as shown in the pictures.
Machine specifications
- Manufacturer
- WMW-MODUL
- Model
- ZFWZ 6300
- Condition
- used
- Serial / Stock Number
- NMC/26/152
- Brand
- WMW-MODUL
- Model
- ZFWZ 6300
- Max Module
- 45
- Accessories
- Many accessories as shown in the pictures
- Planer Speed
- 9–63 rpm
- Machine Weight
- 160,000 kg
- Table Diameter
- 4000 mm
- Max Helix Angle
- 45 degrees
- Planer Diameter
- 500 mm
- Gear Wheel Width
- 1500 mm
- Max Wheel Diameter
- 7100 mm
- Cutter Diameter X Width
- 400 x 500 mm
- Total Power Consumption
- 47 kW
