Gear Hobbers
Gear Hobbing Machine TOS FO-10
Ref. No.14
- Brand
- TOS
- Model
- FO-10
- Condition
- used

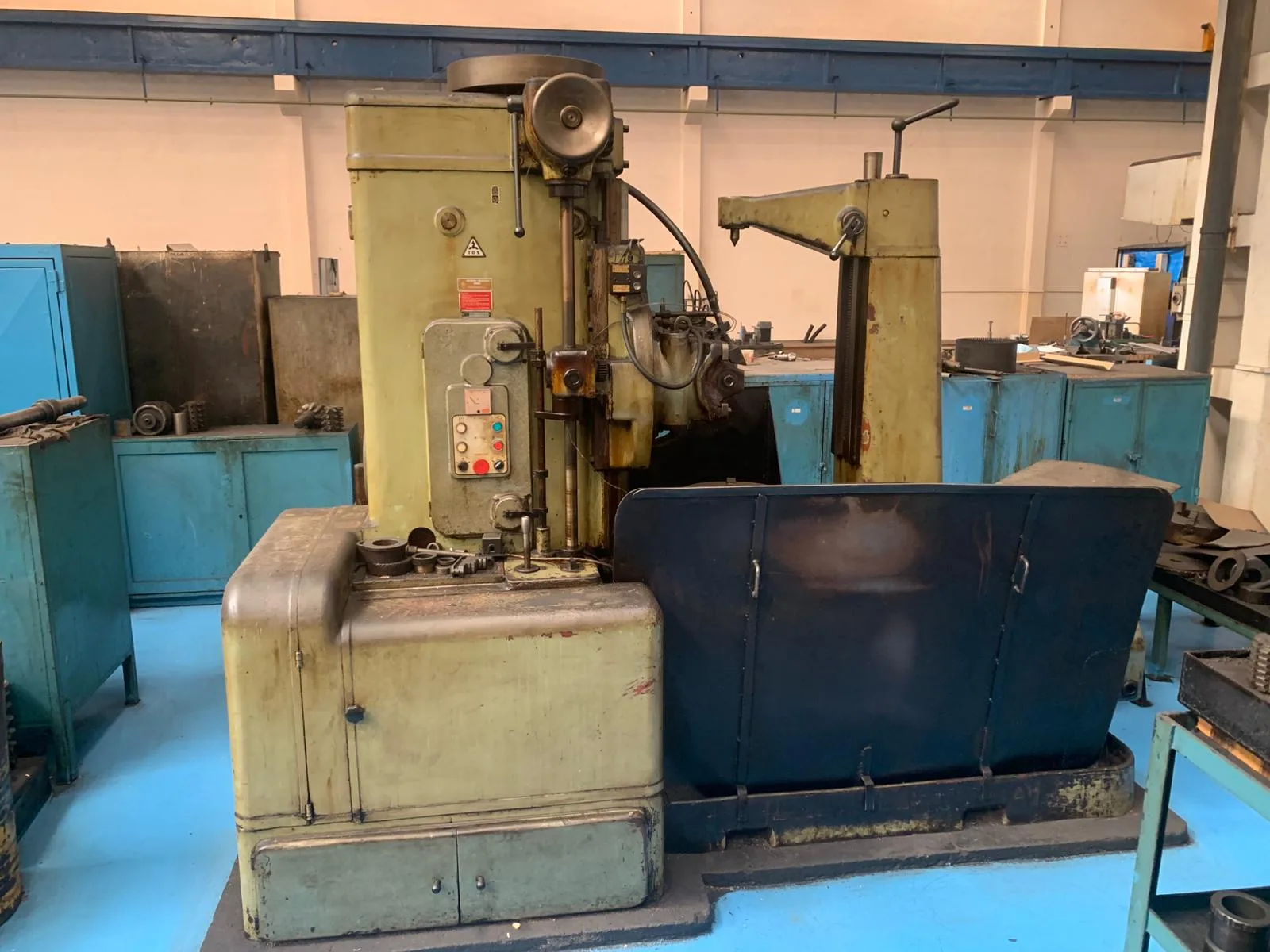

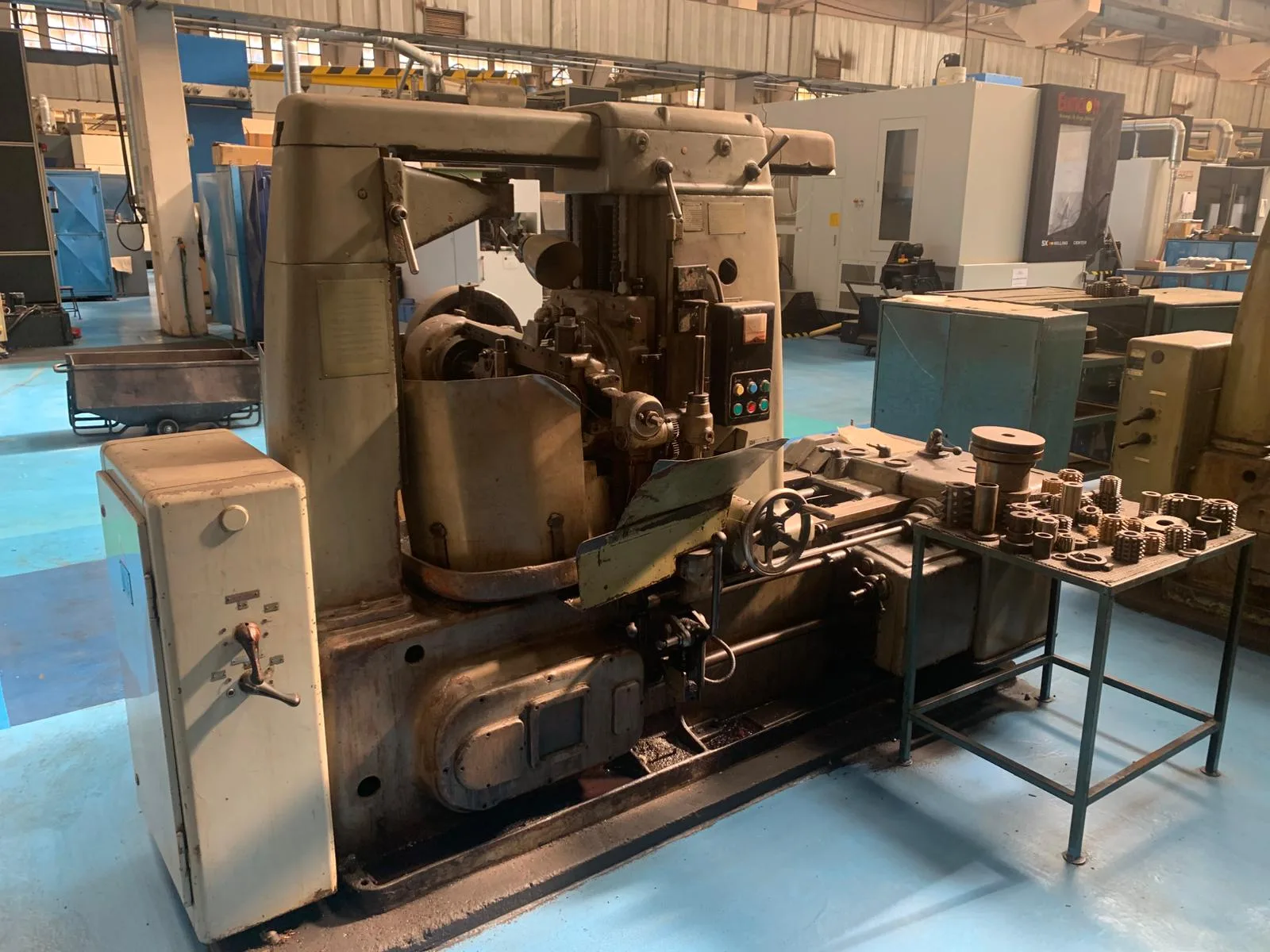

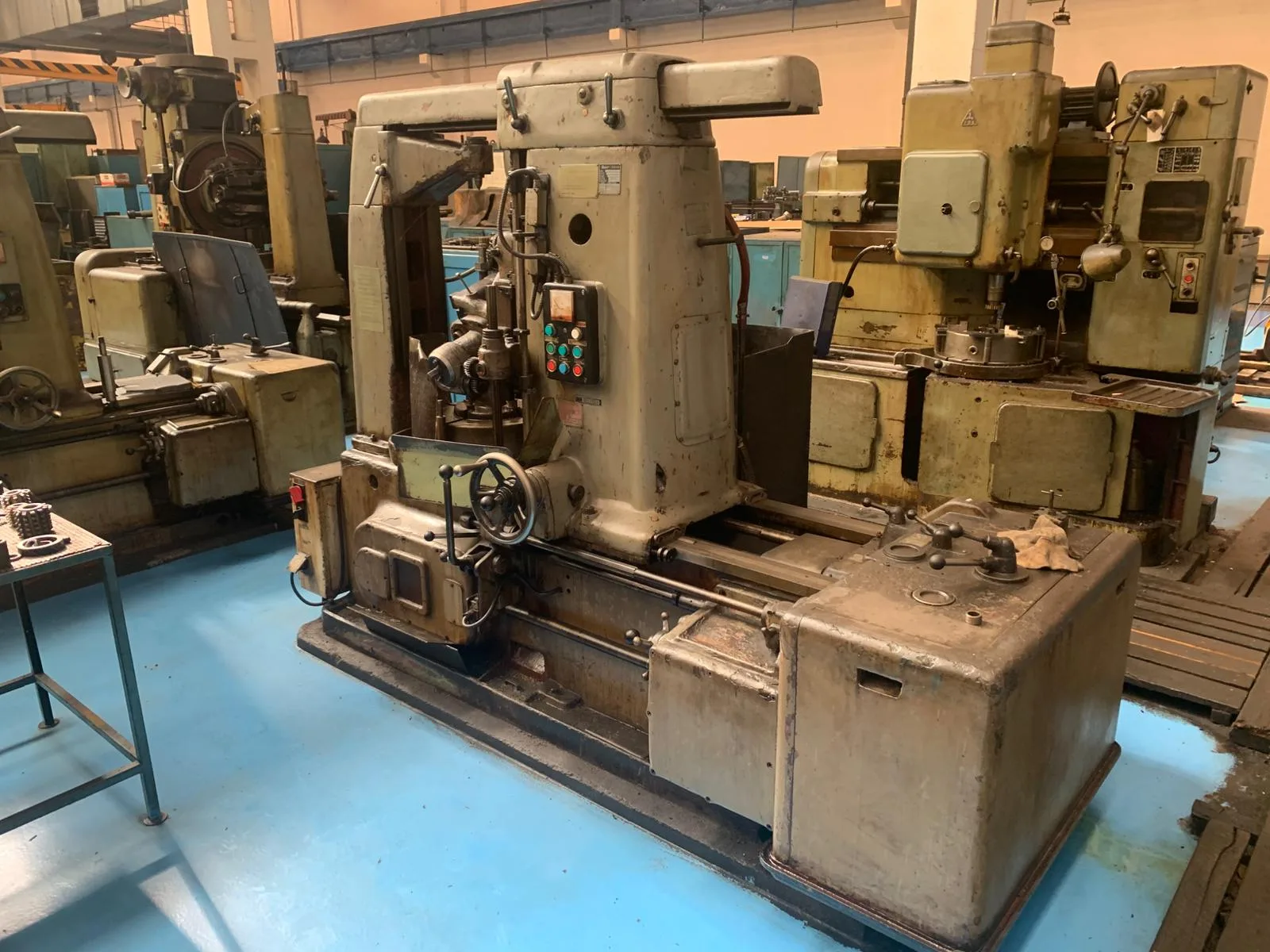

TOS FO-10 Gear Hobbing Machine.
Table diameter 850 mm.
Maximum gear diameter without tailstock 1200 mm.
Milling cutter diameter 170 mm.
Maximum wheel diameter 1000 mm.
Hole diameter in table 100 mm.
Milling speed range 20-125 U/min.
Main motor power 7.5 kW.
Machine weight 10 tons.
Maximum module 10.
Maximum width of work-piece 400 mm.
Machine specifications
- Manufacturer
- TOS
- Model
- FO-10
- Condition
- used
- Make
- TOS
- Model
- FO-10
- MachineType
- Gear Hobbing Machine
- Weight / MachineWeight
- 10 Tons
- Capacity / MaximumModule
- 10
- Capacity / TableDiameter
- 850 mm
- Capacity / MaximumWorkpieceWidth
- 400 mm
- TechnicalDetails / MainMotorPower
- 7.5 kW
- TechnicalDetails / MillingSpeedRange
- 20-125 U/min
- TechnicalDetails / TableHoleDiameter
- 100 mm
- TechnicalDetails / MaximumWheelDiameter
- 1000 mm
- TechnicalDetails / MillingCutterDiameter
- 170 mm
- Capacity / MaximumGearDiameterWithoutTailstock
- 1200 mm
