Gear Hobbers
Gear Hobbing Machine ZFWZ/10
Ref. No.210
- Model
- ZFWZ/10
- Condition
- used
Machine Name:Gear Hobbing Machine
Model:ZFWZ/10

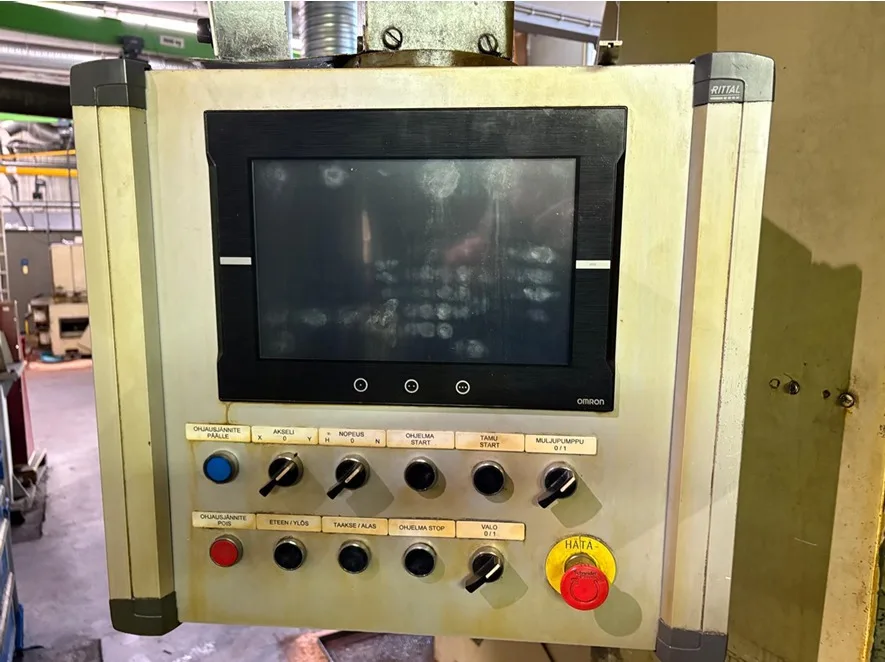

Control:PLC
Like-new condition
Maximum Wheel Diameter:1000 mm
Gear Width:710 mm
Maximum Module:12
Hob Diameter:300 mm
Hob Width:330 mm
Table Diameter:800 mm
Table Load:8000 kg
Minimum Workpiece Diameter:100 mm
Minimum Number of Teeth:10
Shifting:450 mm
Machine Weight:20 t
Machine specifications
- Model
- ZFWZ/10
- Condition
- used
- Name
- Gear Hobbing Machine
- Year
- Unknown
- Brand
- Unknown
- Model
- ZFWZ/10
- Control
- PLC
- Shifting
- 450 mm
- Condition
- Like-new
- Hob Width
- 330 mm
- Gear Width
- 710 mm
- Table Load
- 8000 kg
- Hob Diameter
- 300 mm
- Machine Weight
- 20 t
- Maximum Module
- 12
- Table Diameter
- 800 mm
- Maximum Wheel Diameter
- 1000 mm
- Minimum Number Of Teeth
- 10
- Minimum Workpiece Diameter
- 100 mm
