Spiral Bevel Gear Generators

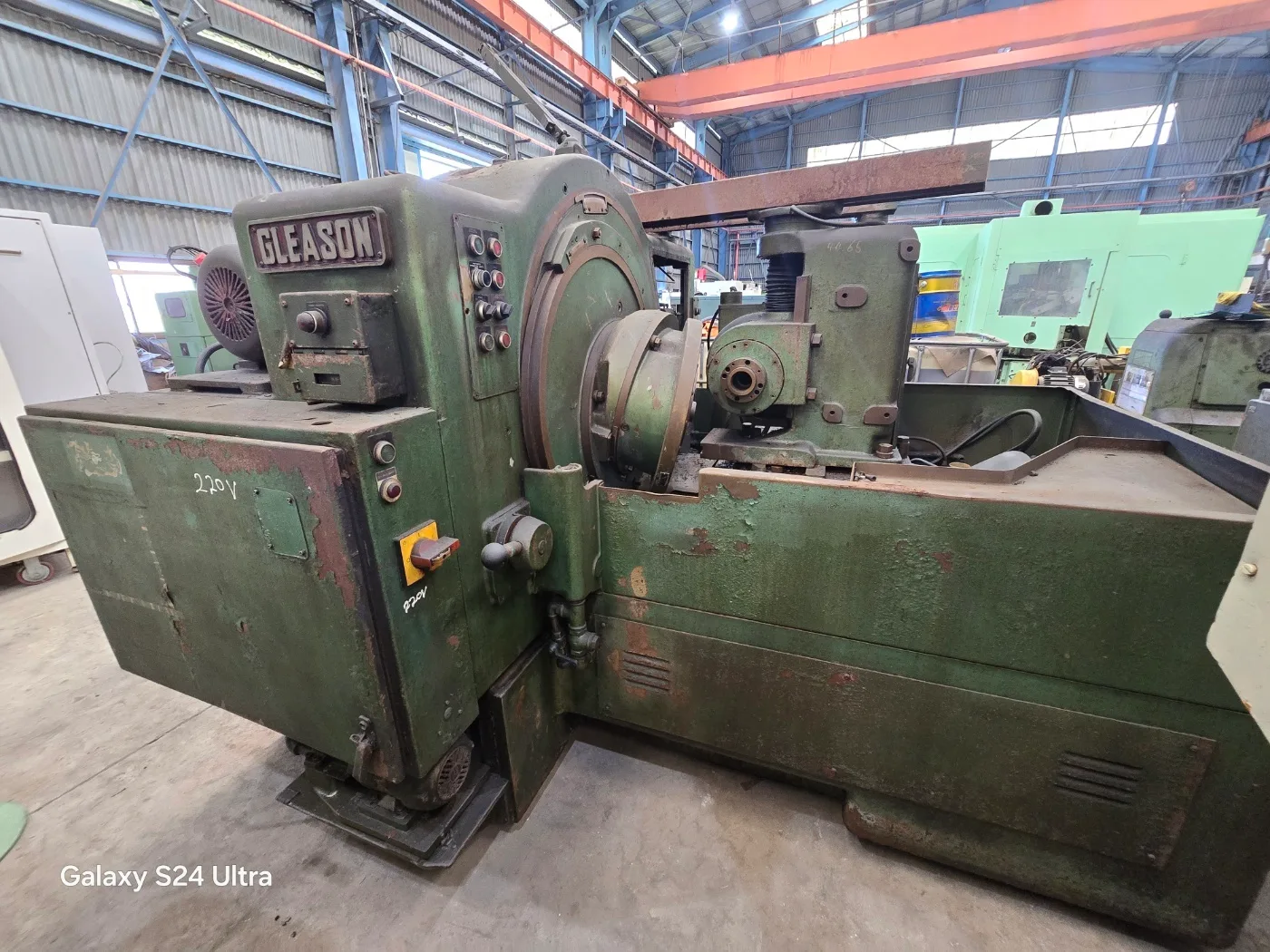

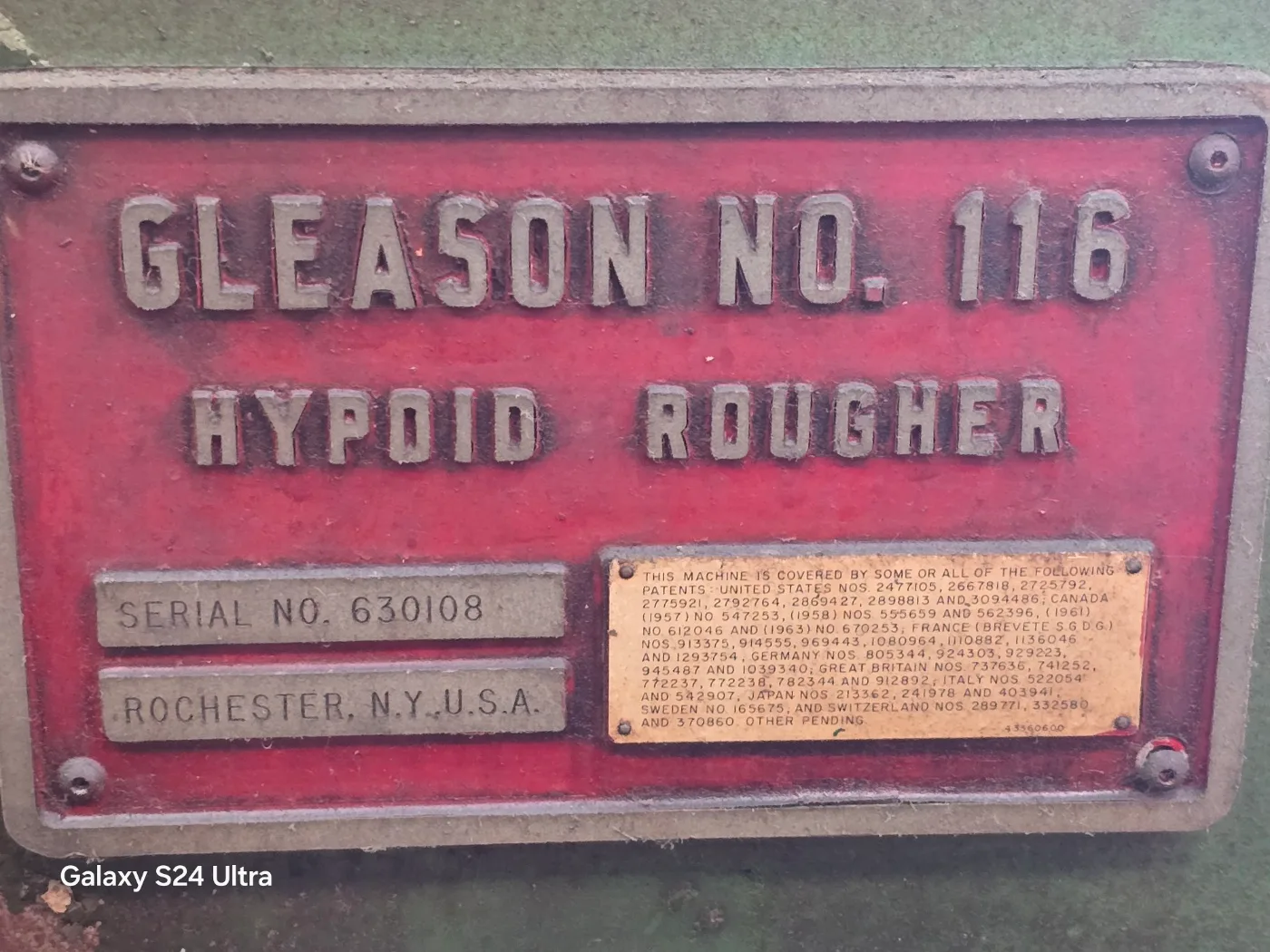

GLEASON 116 GEAR GENERATOR ROUGHER
Ref. No.146
- Brand
- GLEASON
- Model
- 116
- Condition
- used
- Stock number
- NMC/26/155
GLEASON 116 GEAR GENERATOR ROUGHER.
Maximum Pitch Diameter:18" (457.2 mm).
Maximum Face Width:2.75" (69.85 mm).
Diametral Pitch Coarsest:2.
Maximum Cone Distance:9" (228.6 mm).
Extreme Ratio:10:1.
Work Head Angle:5 degrees - 84 degrees.
Number of Teeth:5-175.
Control Manufacturer:Conventional.
Spindle:Diameter of taper hole large end 3-29/32" (99.22 mm), Taper per foot 39/64" (15.48 mm), Depth of taper 6" (152.4 mm), Diameter of hole thru 3-1/16" (77.79 mm), Spindle nose to centerline 5-1/2" (139.7 mm).
Speeds and Feeds:Cutter speeds 20-115 RPM, Feeds 9-80 seconds per tooth.
Electrical Equipment:Feed motor 5 HP (1800 RPM), Hydraulic pump motor 3/4 HP (1800 RPM), Coolant motor 1/2 HP (3600 RPM).
Weight:23,400# (10,614 kg).
Machine specifications
- Manufacturer
- GLEASON
- Model
- 116
- Condition
- used
- Serial / Stock Number
- NMC/26/155
- Type
- Gear Generator Rougher
- Brand
- GLEASON
- Model
- 116
- Weight
- 23,400# (10,614 kg)
- Feed Motor
- 5 HP, 1800 RPM
- Coolant Motor
- 1/2 HP, 3600 RPM
- Extreme Ratio
- 10:1
- Number Of Teeth
- 5-175
- Work Head Angle
- 5° - 84°
- Cutter Speeds RPM
- 20-115
- Maximum Face Width
- 2.75" (69.85 mm)
- Hydraulic Pump Motor
- 3/4 HP, 1800 RPM
- Maximum Cone Distance
- 9" (228.6 mm)
- Maximum Pitch Diameter
- 18" (457.2 mm)
- Spindle Depth Of Taper
- 6" (152.4 mm)
- Spindle Taper Per Foot
- 39/64" (15.48 mm)
- Feeds Seconds Per Tooth
- 9-80
- Diametral Pitch Coarsest
- 2
- Spindle Nose To Centerline
- 5-1/2" (139.7 mm)
- Spindle Diameter Of Hole Thru
- 3-1/16" (77.79 mm)
- Spindle Diameter Of Taper Hole Large End
- 3-29/32" (99.22 mm)
