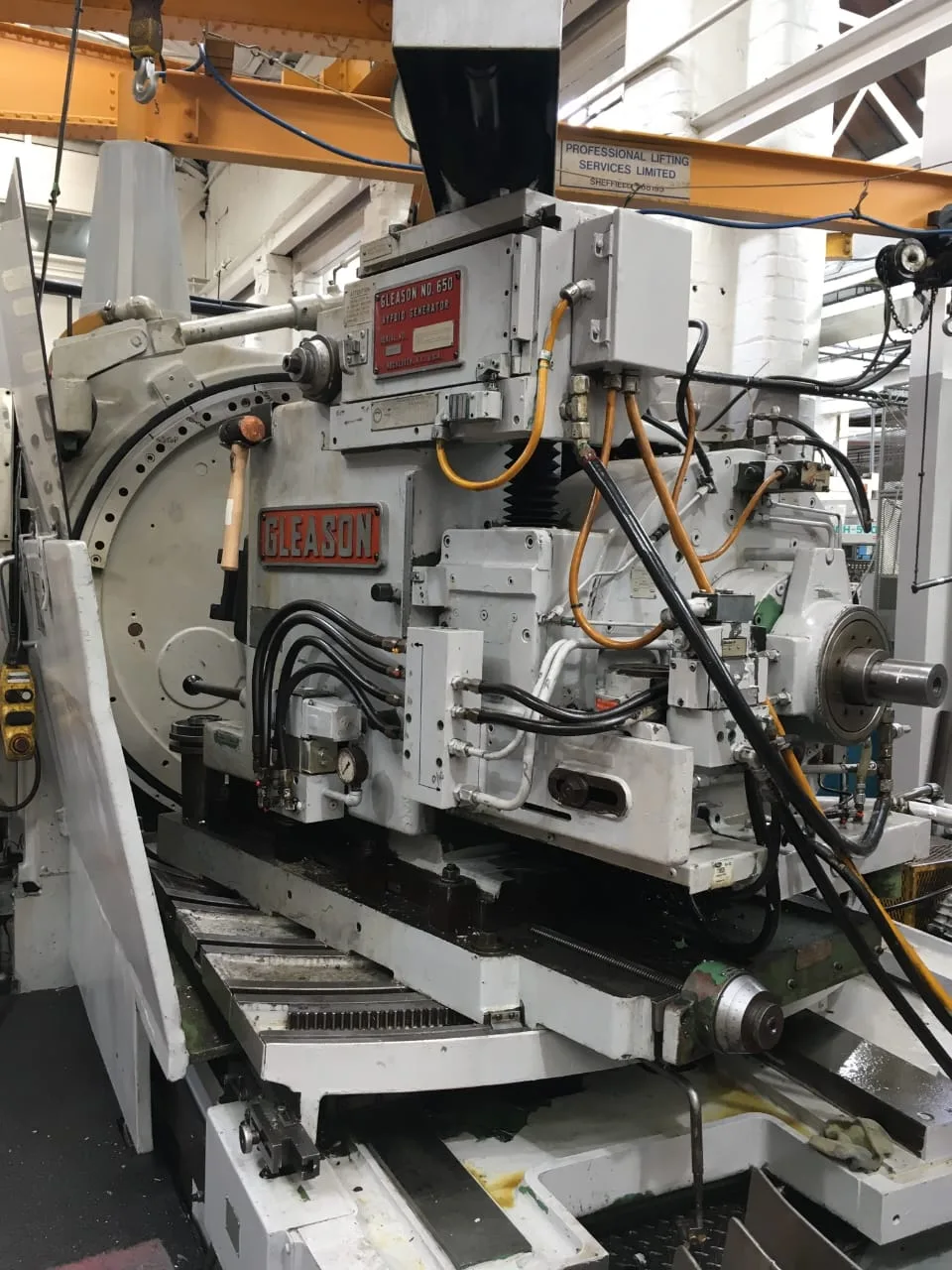

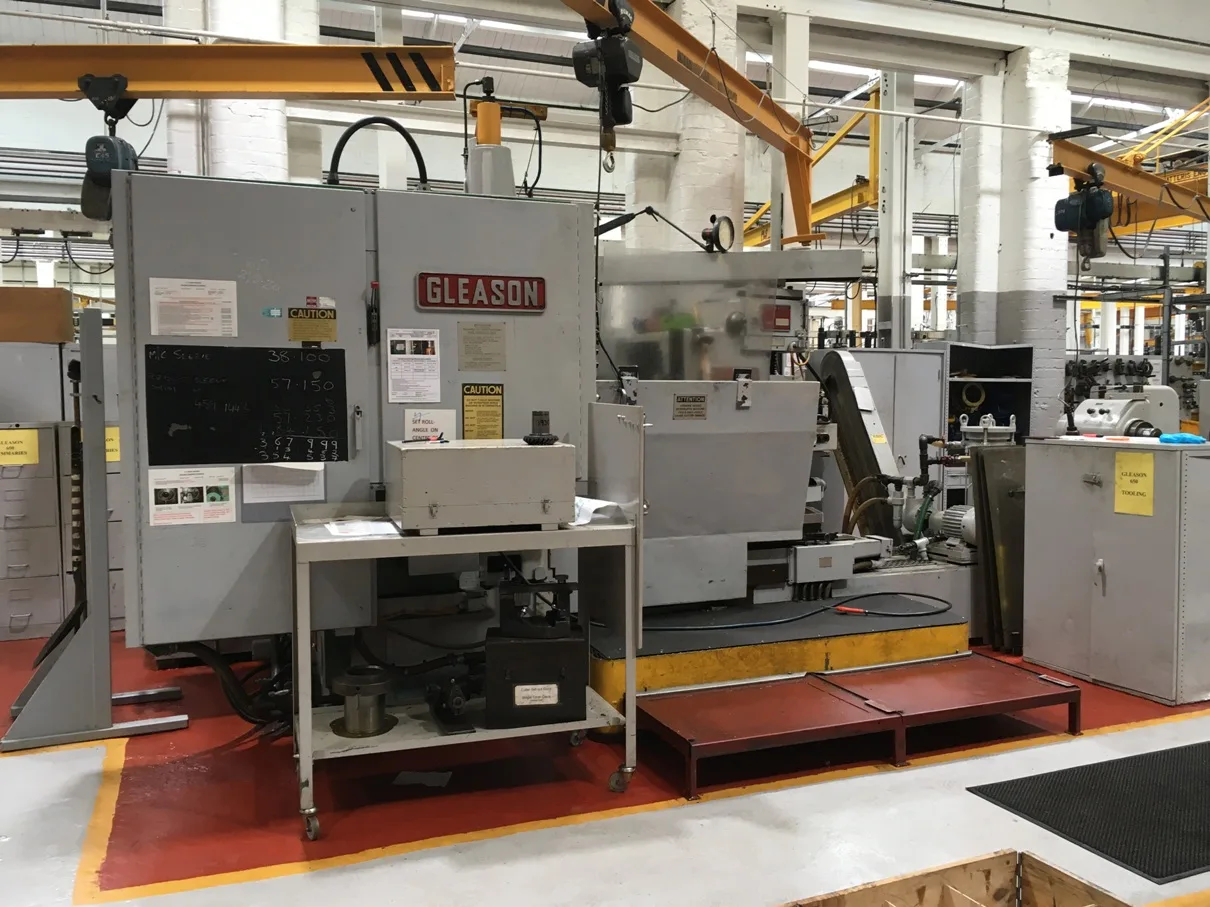

GLEASON 650H HYPOID BEVEL GEAR GENERATOR

Machine specifications

Manufacturer

GLEASON

Model

650H

Condition

used

Serial / Stock Number

NMC/26/126

Name

GLEASON 650H HYPOID BEVEL GEAR GENERATOR

Brand

GLEASON

Model

650H

Category

Gear Machinery

Condition

Used

Description

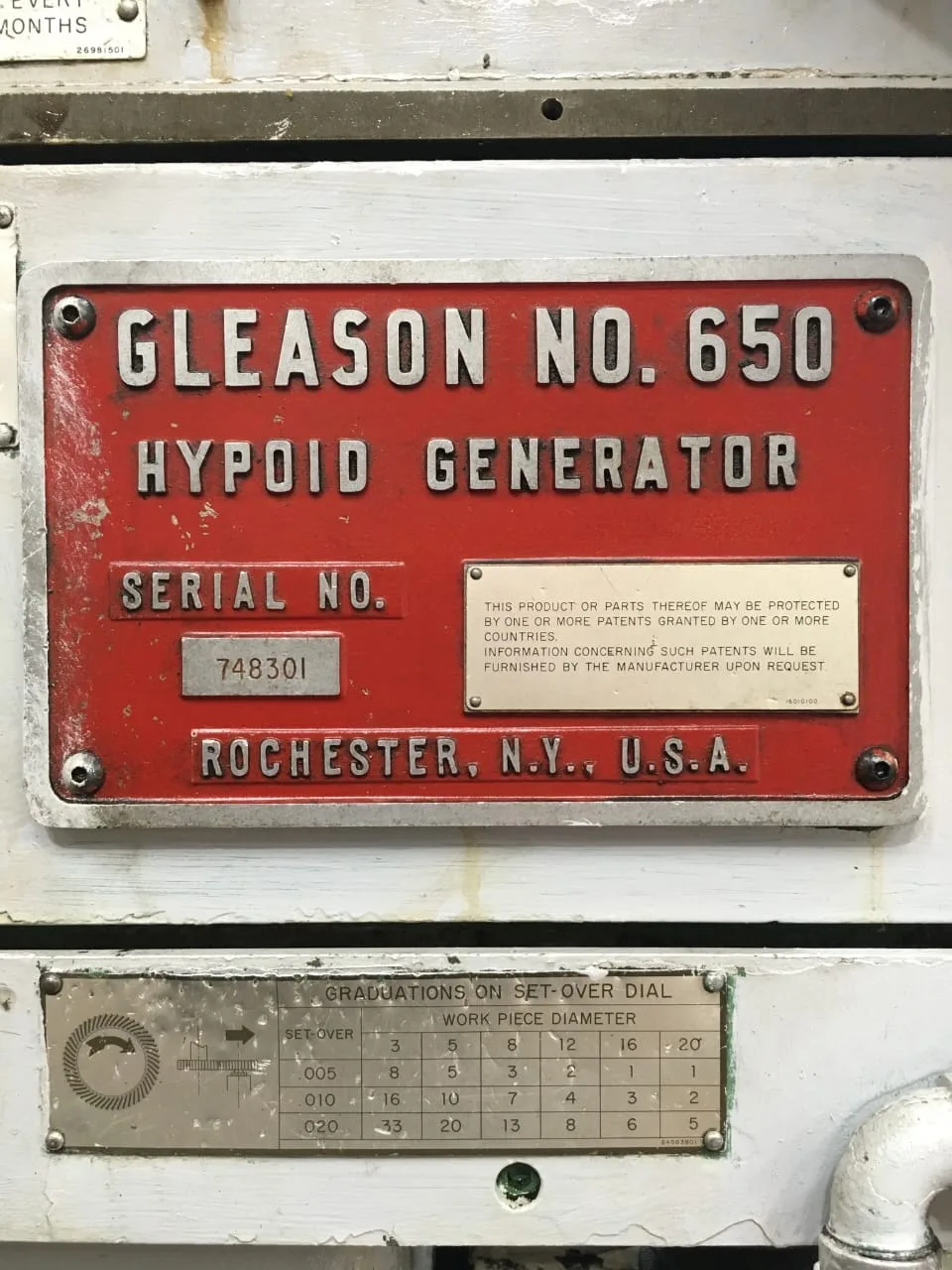

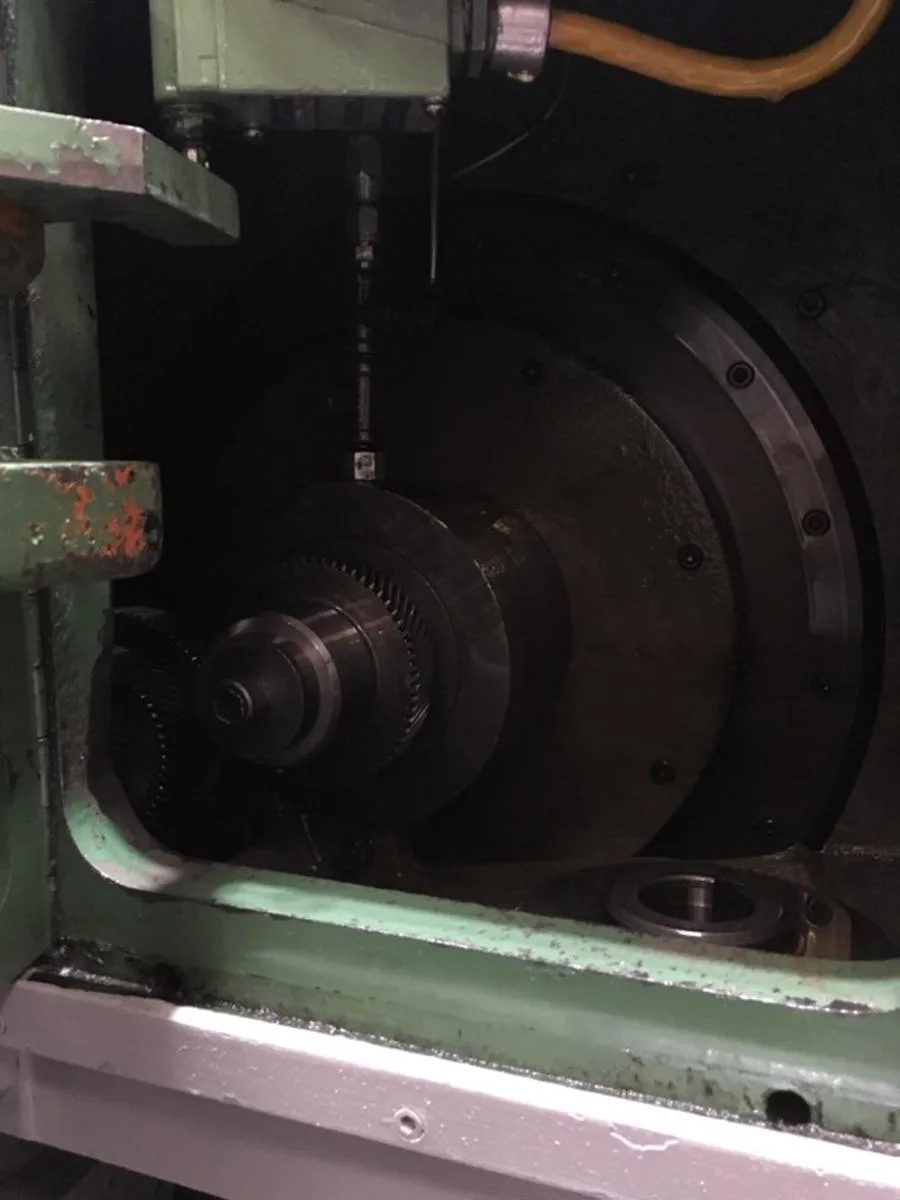

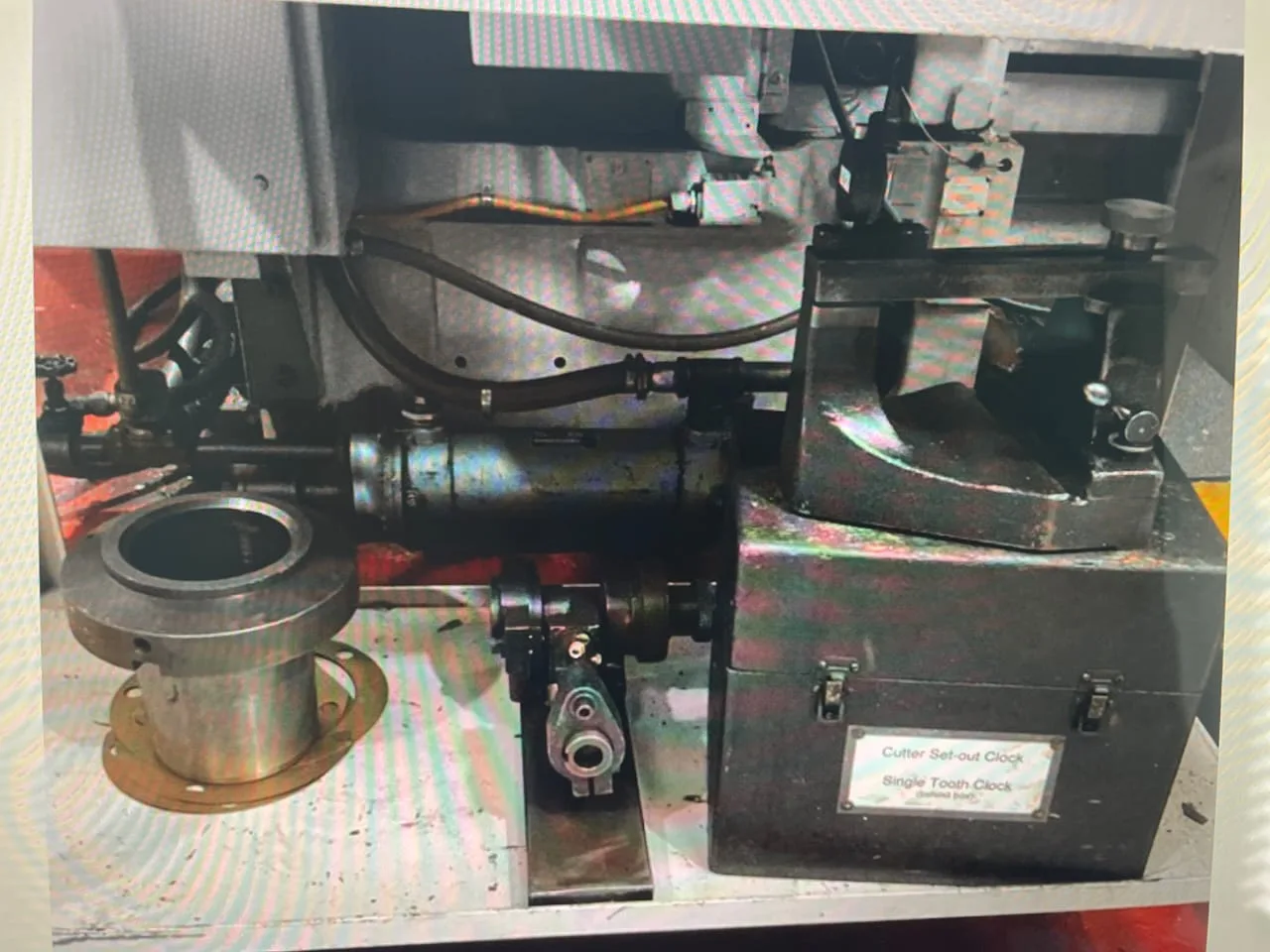

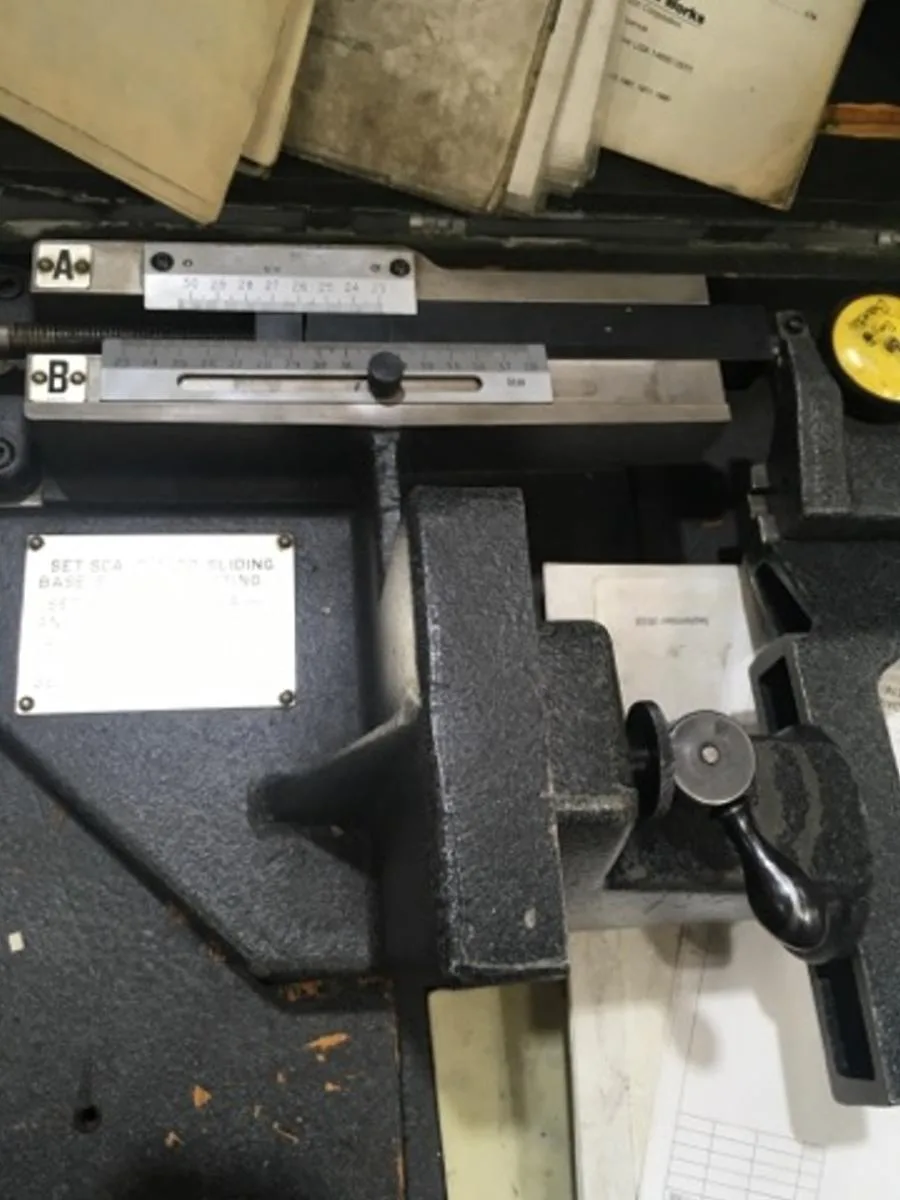

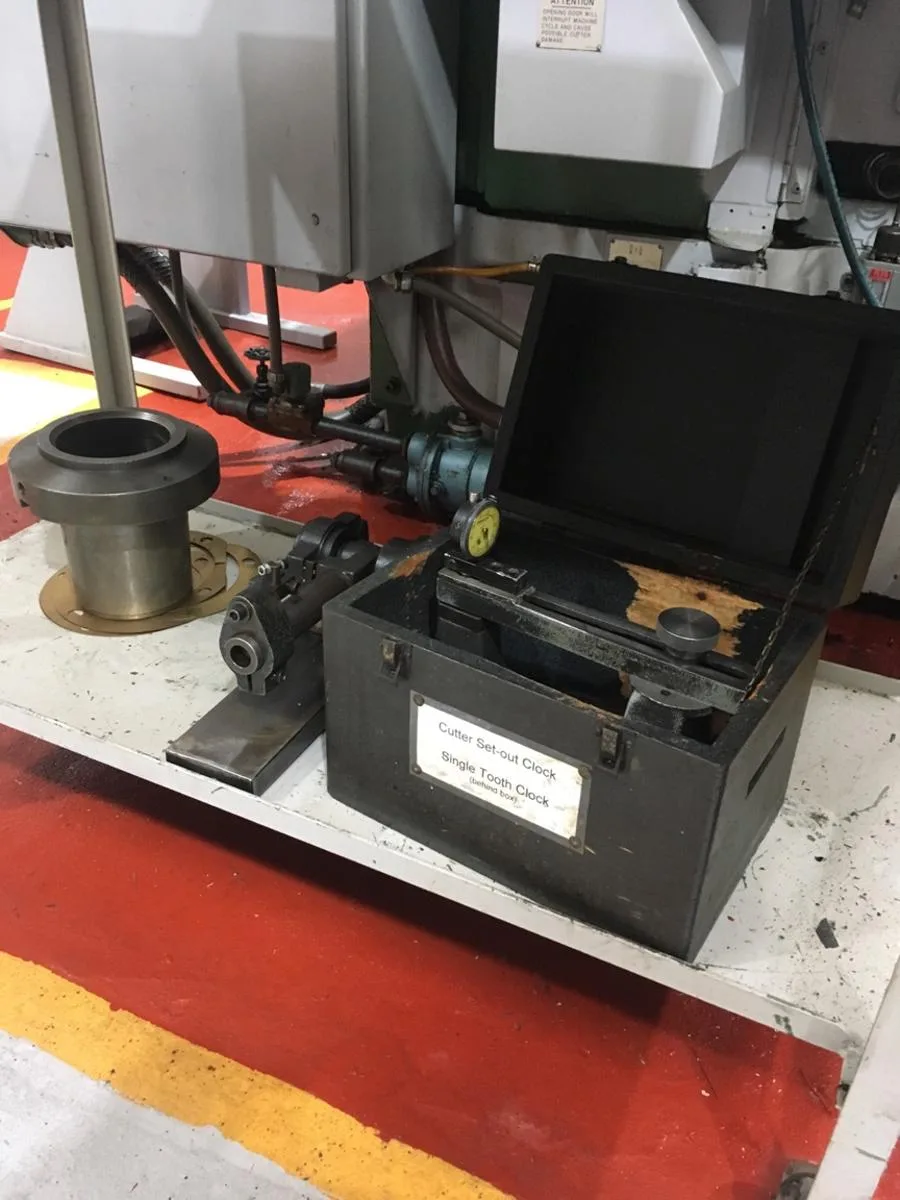

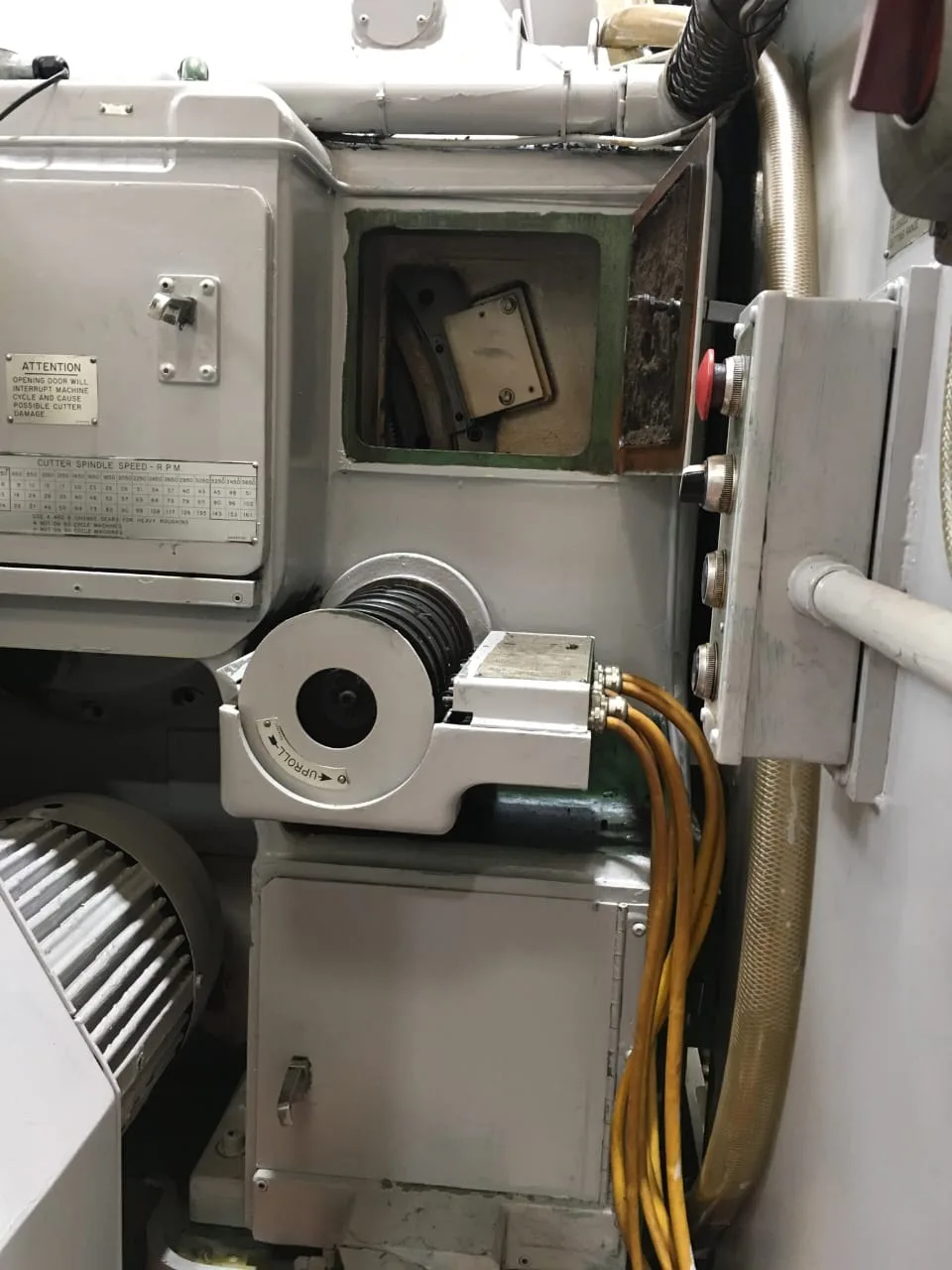

GLEASON 650H Hypoid Bevel Gear Generator with Equipment Rougher/Finisher Machine Suitable for cutting larger spiral bevel, hypoid, and zerol bevel pinions and mating gears CAPACITY: Gear diameter Maximum: 34 inch (863.6mm) Face width Maximum: 5 inch (127mm) Coarsest Pitch: 1.08 DP (23.5 module) Extreme ratio: 10:1 Root angle range: 0 to 90 degrees Maximum radial setting: 15.00 inch (381mm) Full depth Maximum: 1.5 inch (38.1mm) Index Range: 5 to 80 inclusive WORK SPINDLE: Diameter of taper hole at large end: 6 inch (152.4mm) Taper per foot: 0.75 inch (19.0mm) Depth of taper: 6 inch (152.4mm) Diameter through spindle of hole: 5 inch (127mm) Machine Serial No. 748301 CUTTER DIAMETERS: Utilized diameters: 9, 10.5, 12, 14, 16, 18 inch (200, 250, 320, 400 & 500mm) WORKHEAD SETTINGS: Offset above center Maximum: 4.5 inch (114.3mm) Offset below center Maximum: 4.5 inch (114.3mm) Machine center to nose of spindle Maximum: 23.5 inch (596.9mm) SPEEDS & FEEDS: Cutter speeds: 6 to 167 RPM (stepless) Cycle time: infinitely variable from 7 seconds/tooth minimum ELECTRICAL EQUIPMENT: Cutter drive motor: 15HP 1800 RPM Hydraulic motor: 7.5HP 1200 RPM Coolant motor: 2HP 1200 RPM D.C. generating drive motor: 6HP 1200 RPM DIMENSIONS: L x W x H: 235 x 123 x 92.5 inch

Subcategory

Spiral Bevel Gear Generators

Machine Type

Conventional
