Spiral Bevel Gear Generators

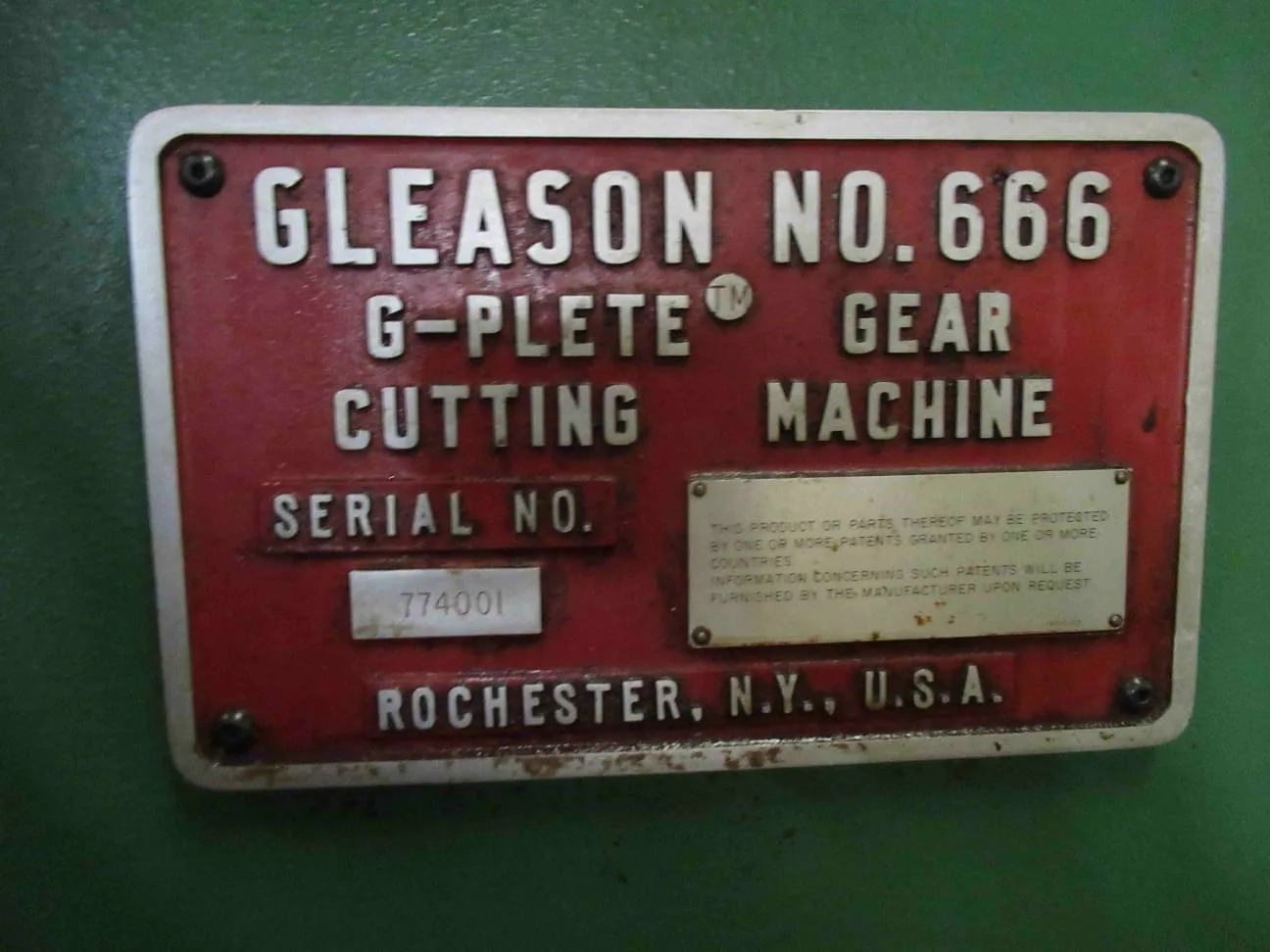

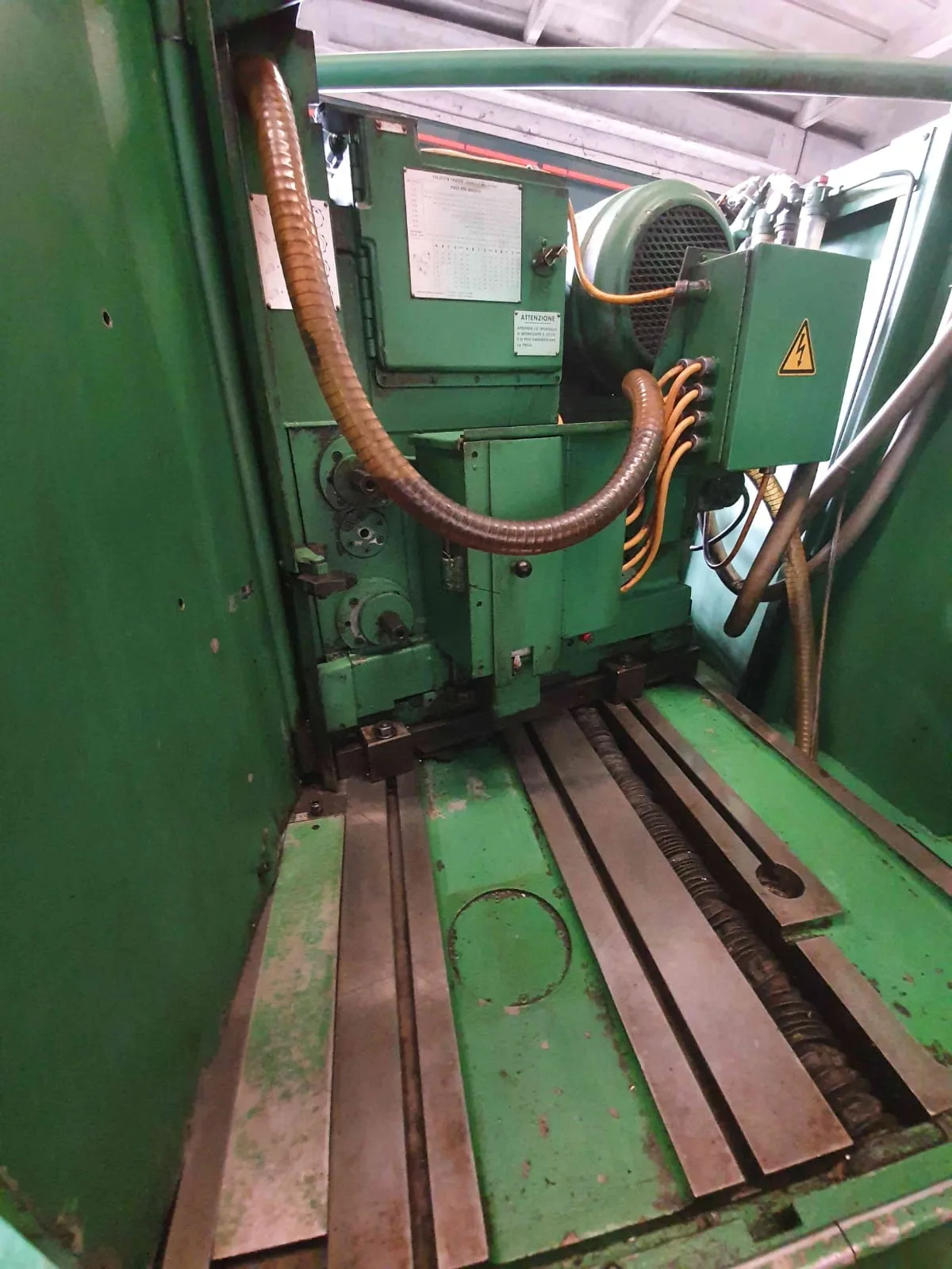

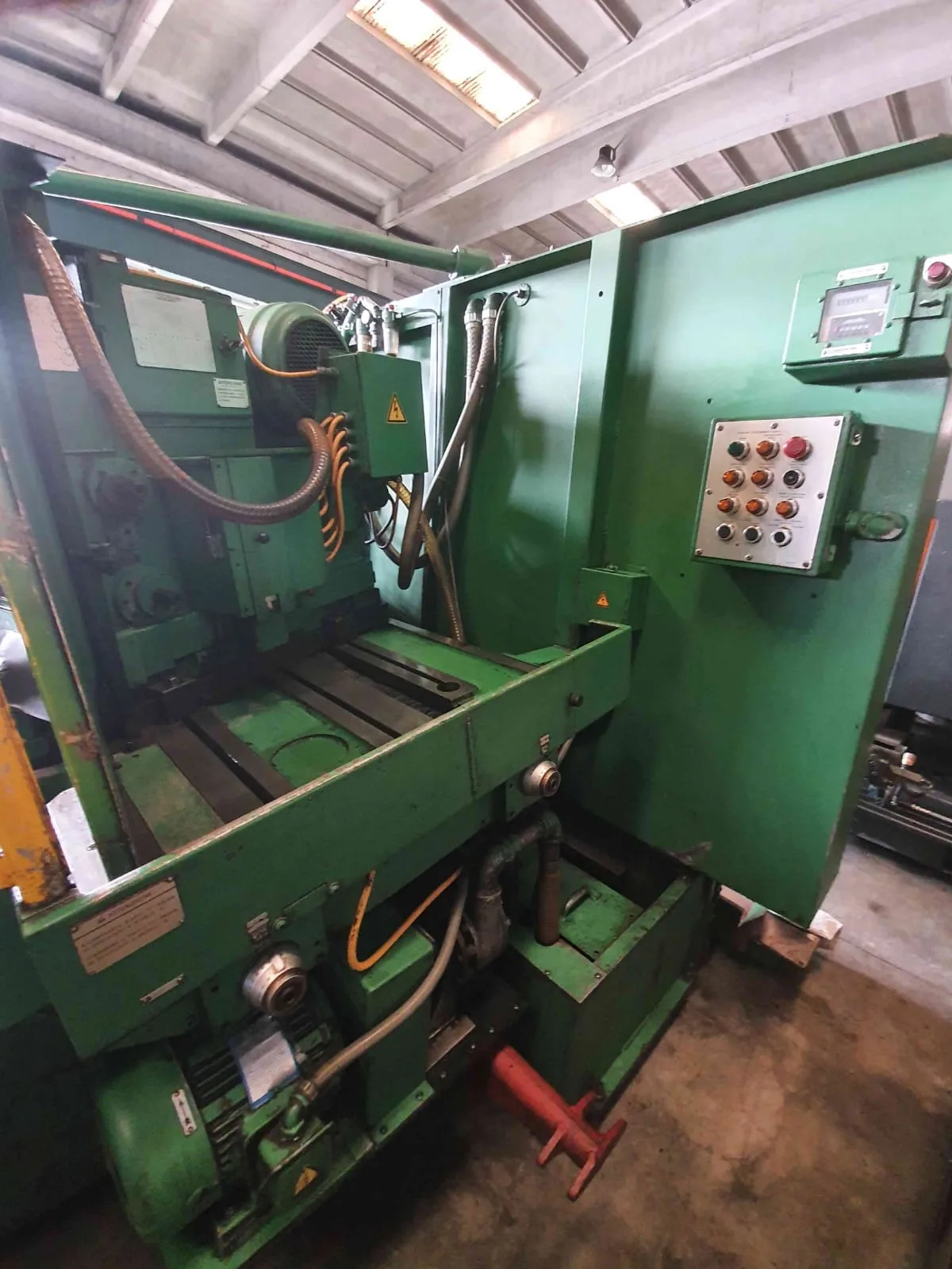

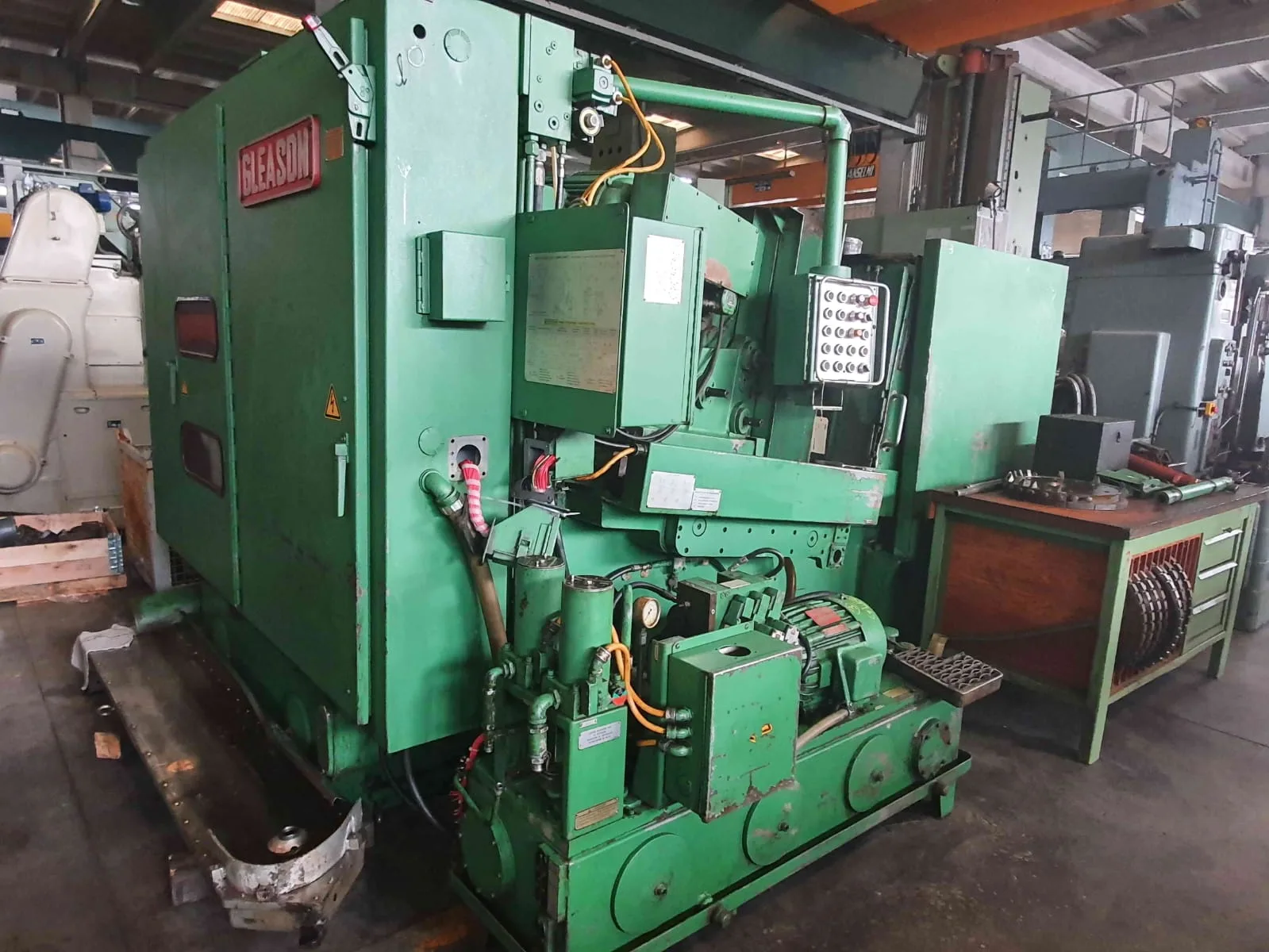

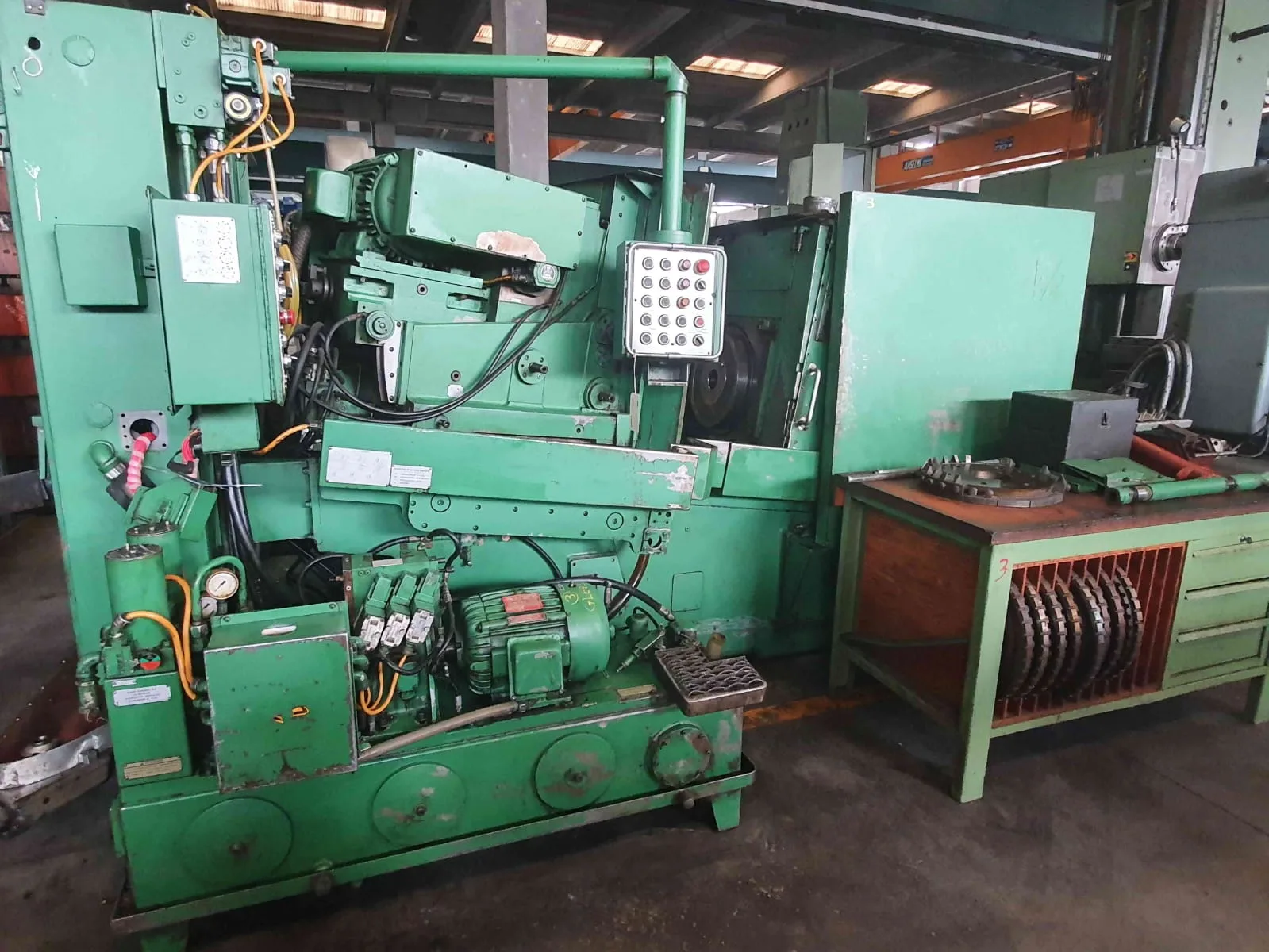

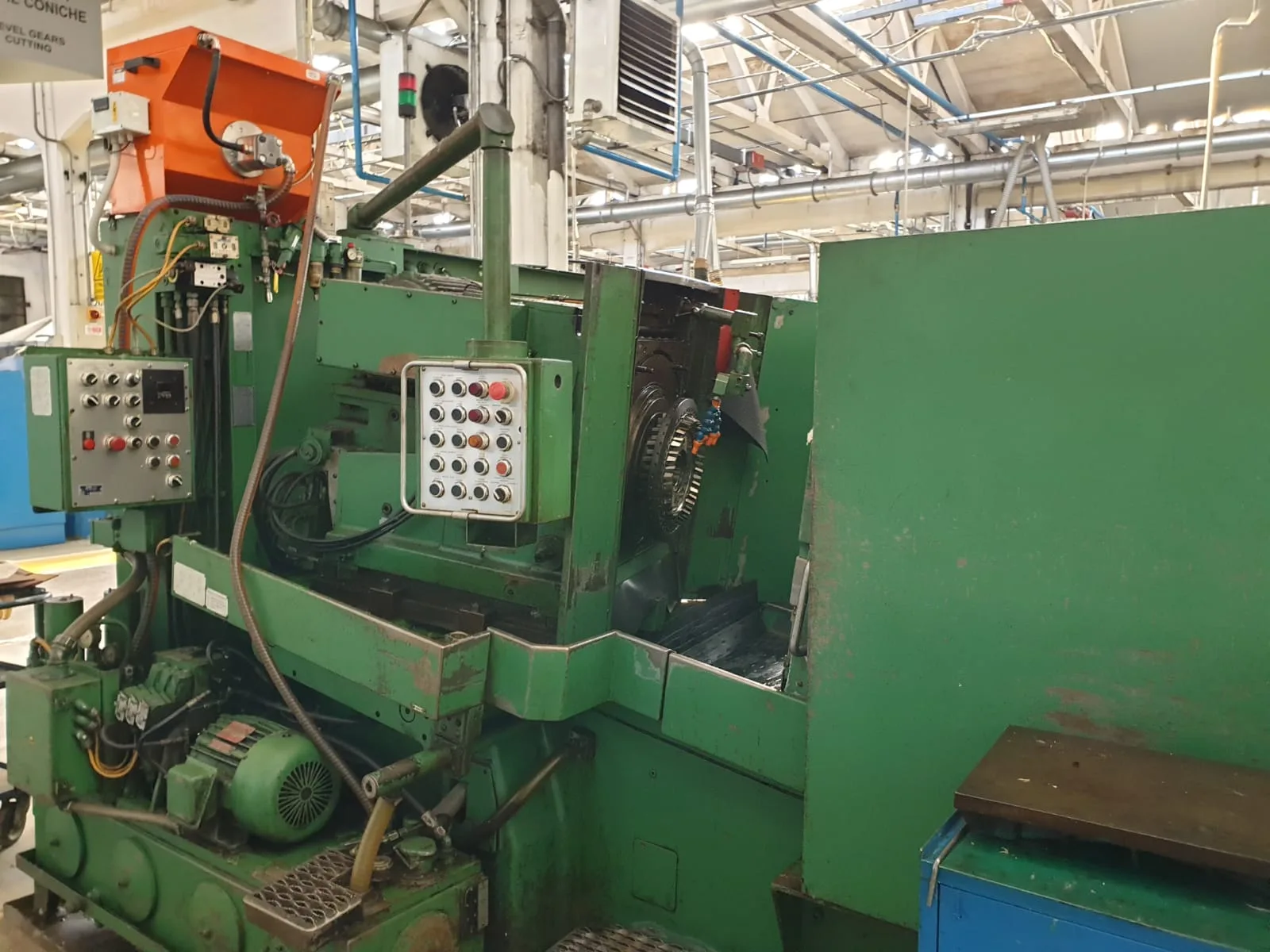

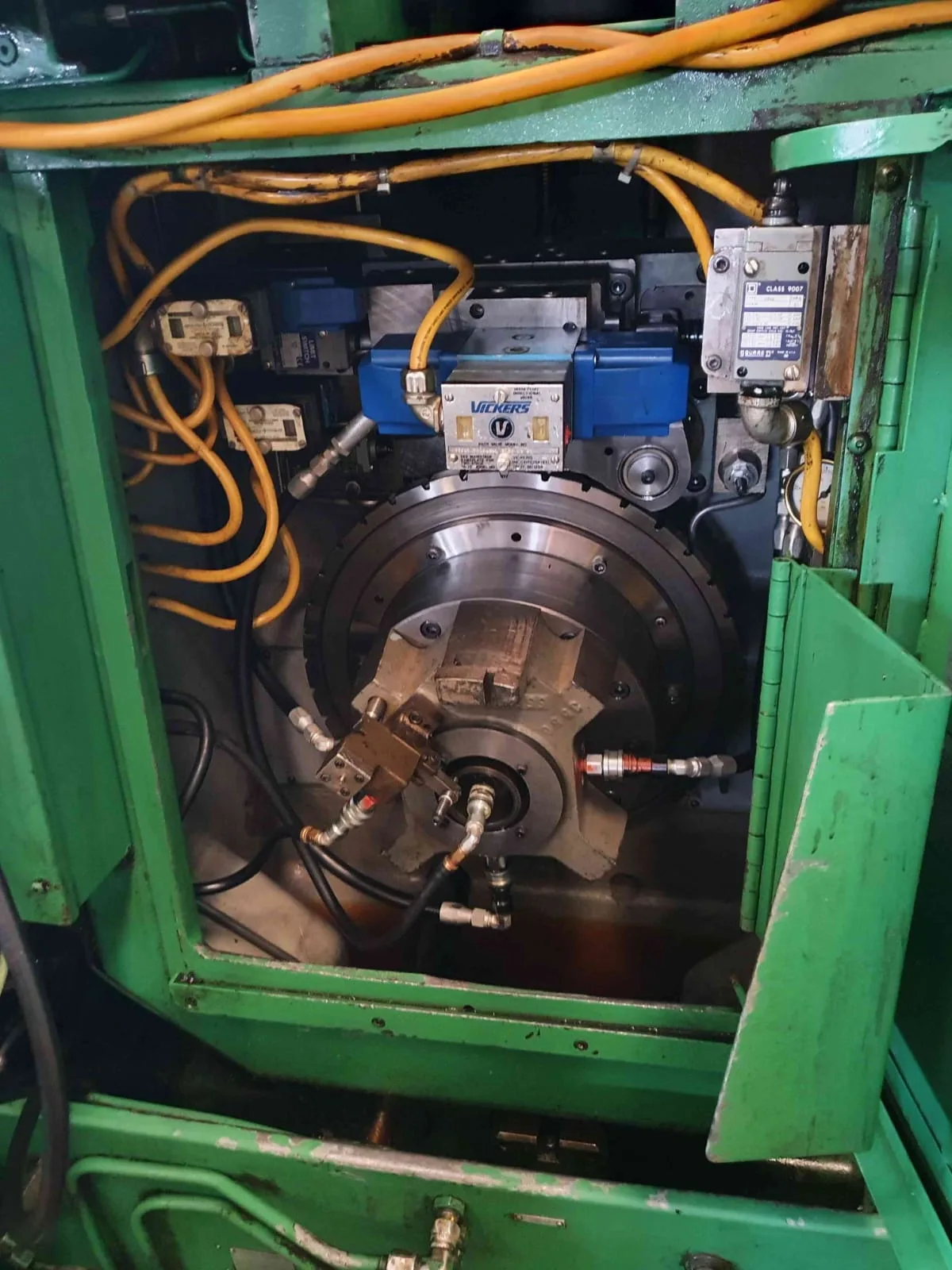

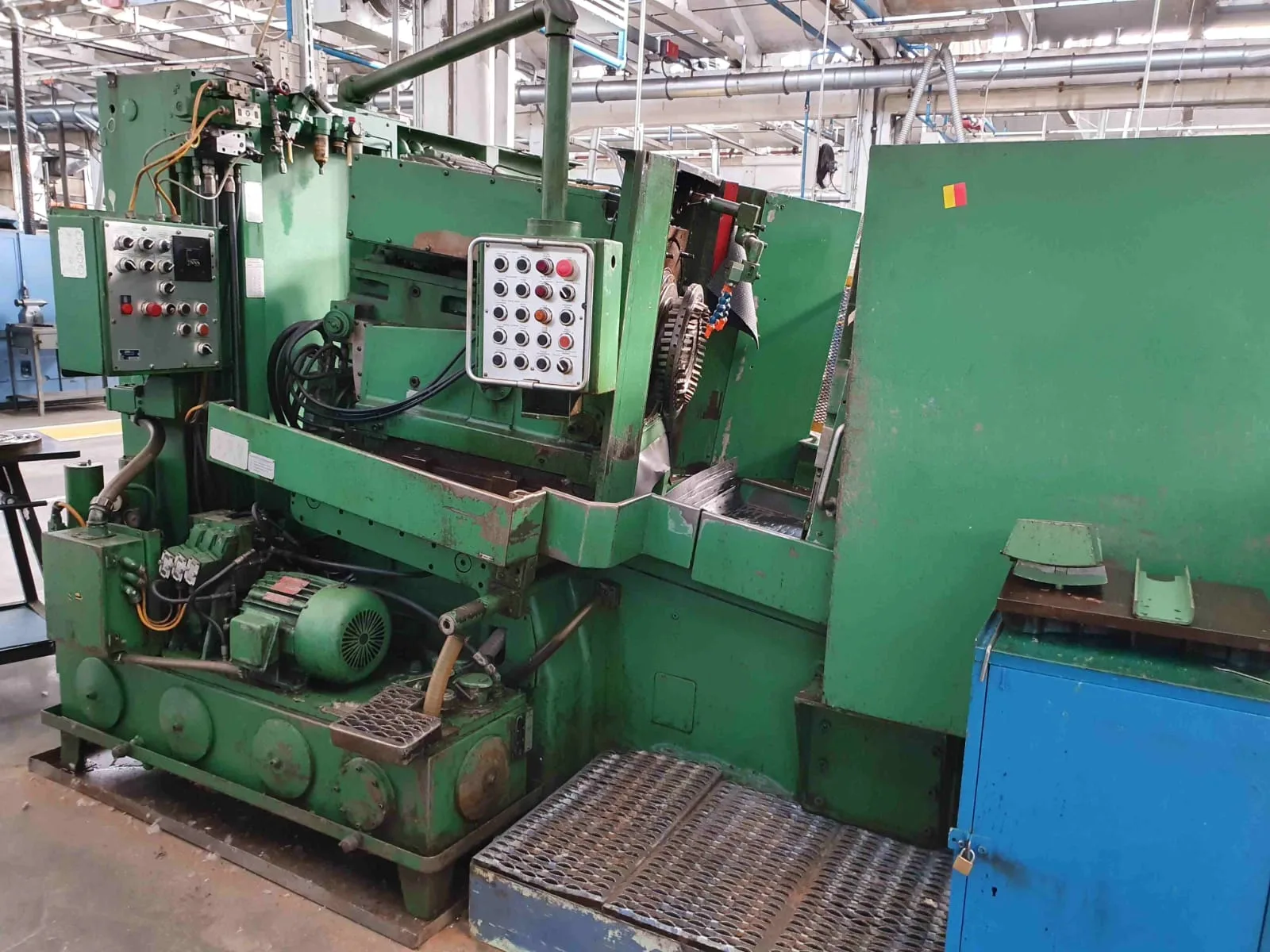

GLEASON 666 SPIRAL BEVEL GEAR GENERATOR
Ref. No.137
- Brand
- GLEASON
- Model
- 666
- Condition
- used
- Stock number
- NMC/26/146
GLEASON 666 SPIRAL BEVEL GEAR GENERATOR
MAX. WORKING 660 MM.
MAX. MODULE 16
MAX. TOOTH WIDTH 106,7 MM.
MAX. FULL DEPTH 31,75 MM.
N. OF TEETH 20 - 75
MAIN MOTOR POWER 20 HP.
TOTAL WEIGHT 16,5 TONS.
BUILT/RETROFITTED IN 1983/2004
COMPLETE WITH:
- DIVIDING UNITS
- CUTTER HEADS
- GAUGE
- TOOLS SETTER DEVICE
Machine specifications
- Manufacturer
- GLEASON
- Model
- 666
- Condition
- used
- Serial / Stock Number
- NMC/26/146
- Model
- 666
- Max Module
- 16
- Total Weight
- 16,5 TONS
- Max Full Depth
- 31,75 MM
- Max Tooth Width
- 106,7 MM
- Number Of Teeth
- 20 - 75
- Main Motor Power
- 20 HP
- Built Retrofitted
- 1983/2004
- Max Working Diameter
- 660 MM
