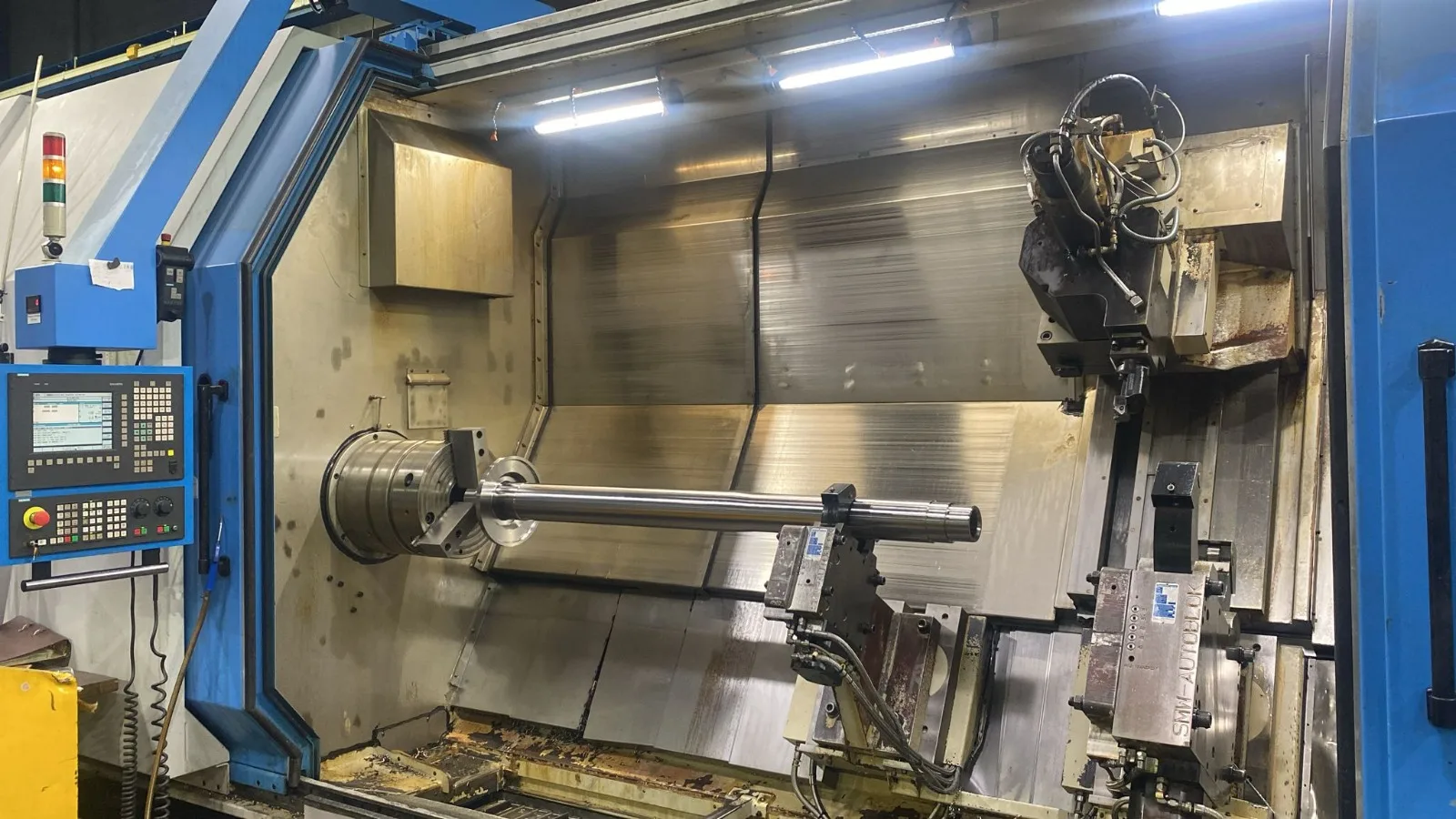

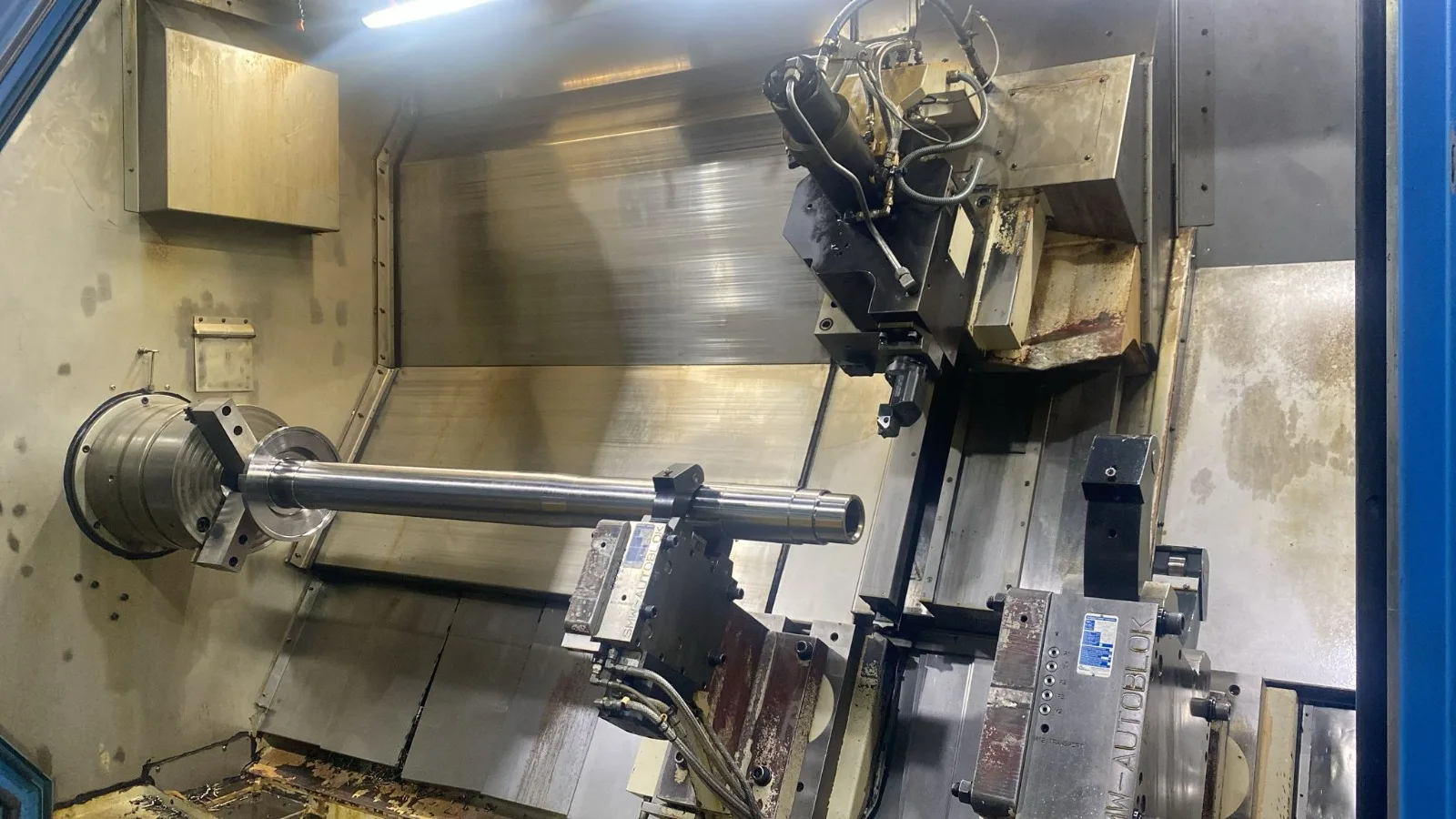

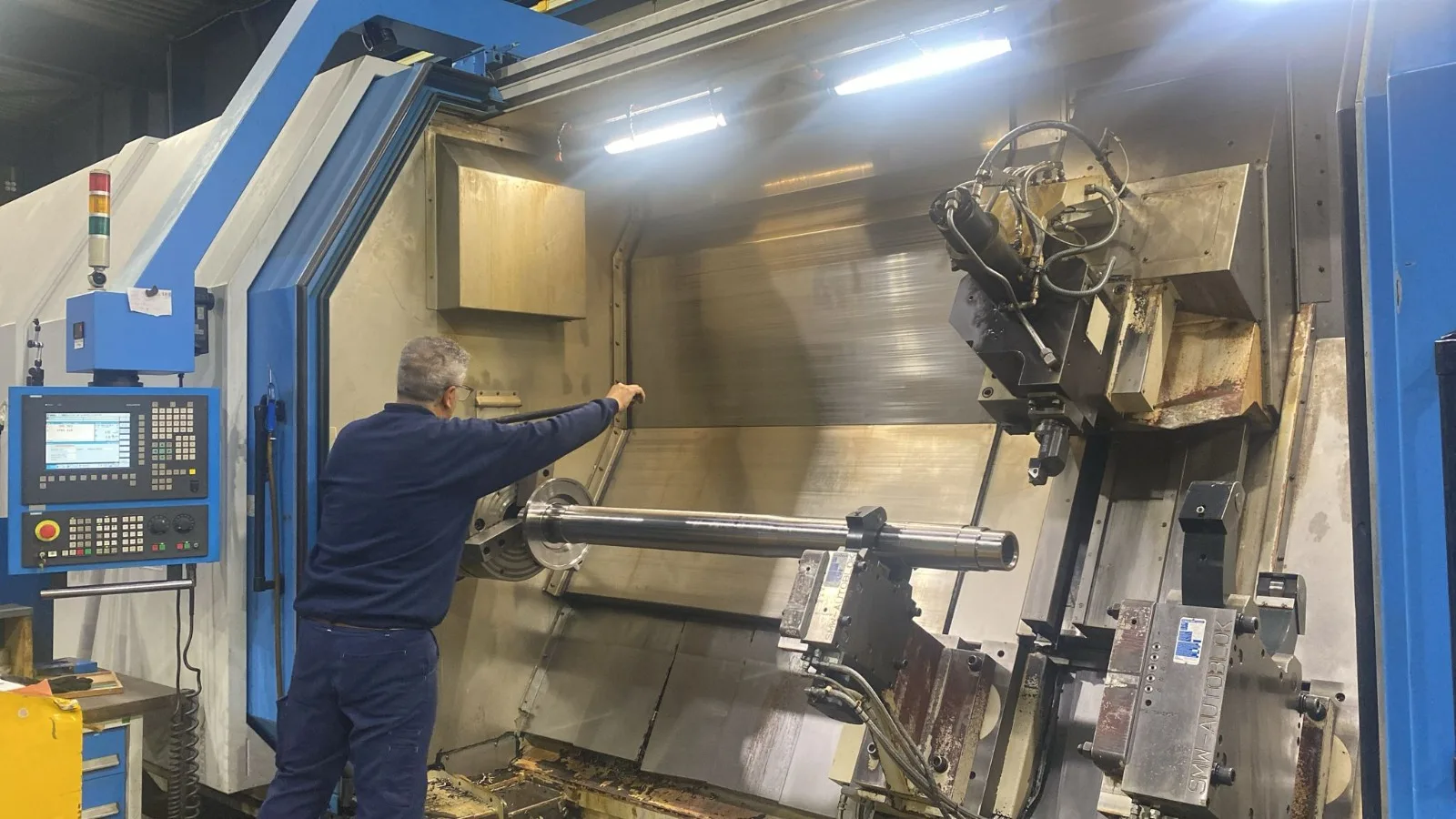

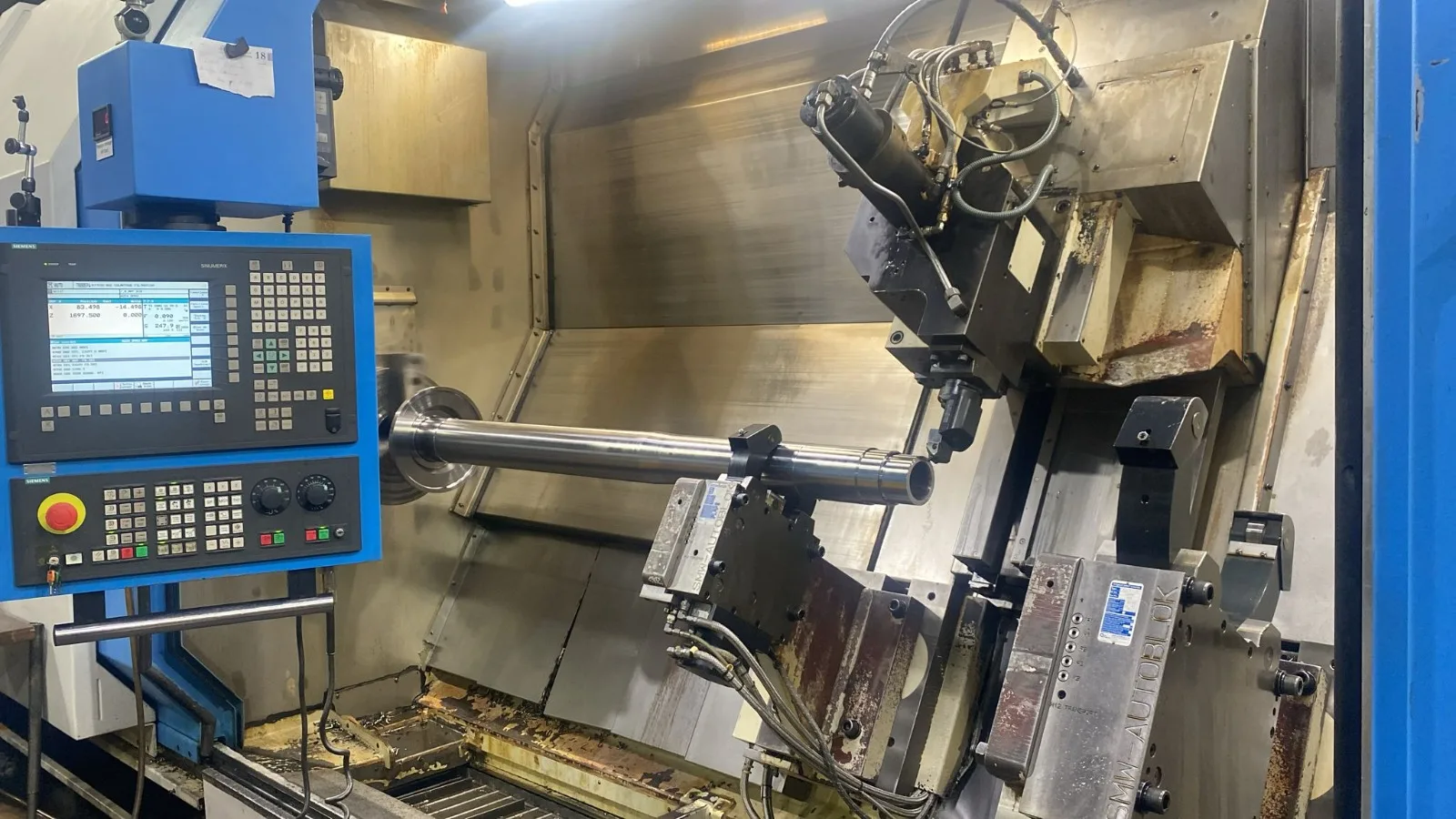

Heavy Duty CNC Lathe JOHNFORD ST-130BX-HP+ATC

Johnford ST-130BX-HP+ATC Heavy Duty CNC Lathe.

X-axis travel 750 mm.

Z-axis travel 3050 mm.

Tailstock travel 2800 mm.

Tailstock quill travel 150 mm.

Spindle bore diameter 132.5 mm.

Spindle bearing diameter 180 mm.

Quill diameter 200 mm.

Maximum swing over bed 1200 mm.

Maximum swing over cross slide 925 mm.

Spindle nose A2-11.

4 automatic gear ranges.

Maximum spindle speed 2000 rpm.

Spindle motor power 30/37 kW.

Turret tool positions 48.

Rapid traverse X-axis 10 m/min.

Rapid traverse Z-axis 10 m/min.

Quill taper MT7 / CM7.

X-axis servo motor 7 kW.

Z-axis servo motor 7 kW.

Machine dimensions 11210 mm length x 4765 mm width x 3345 mm height.

Machine weight 18000 kg.
