Table Type

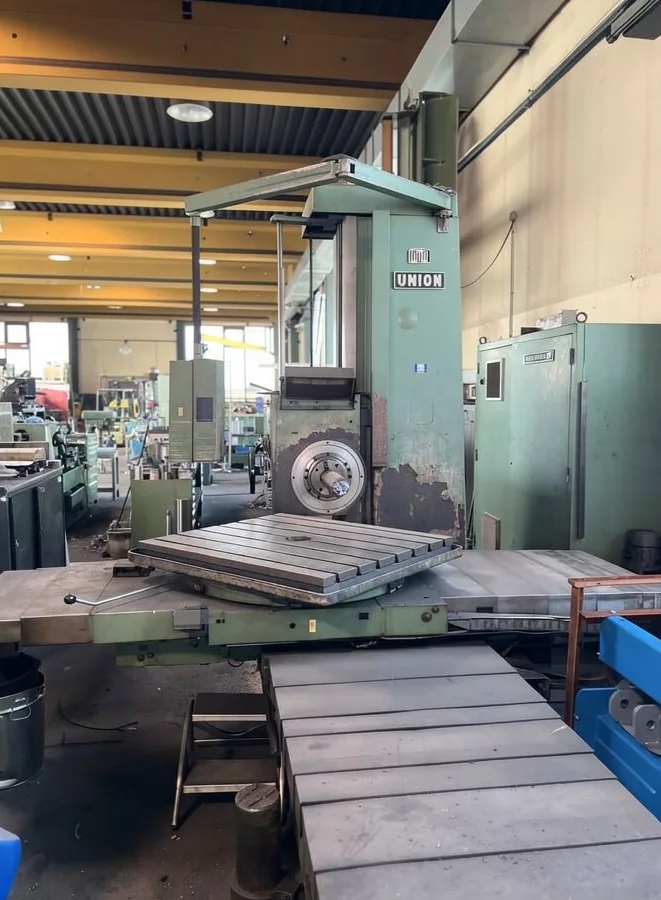

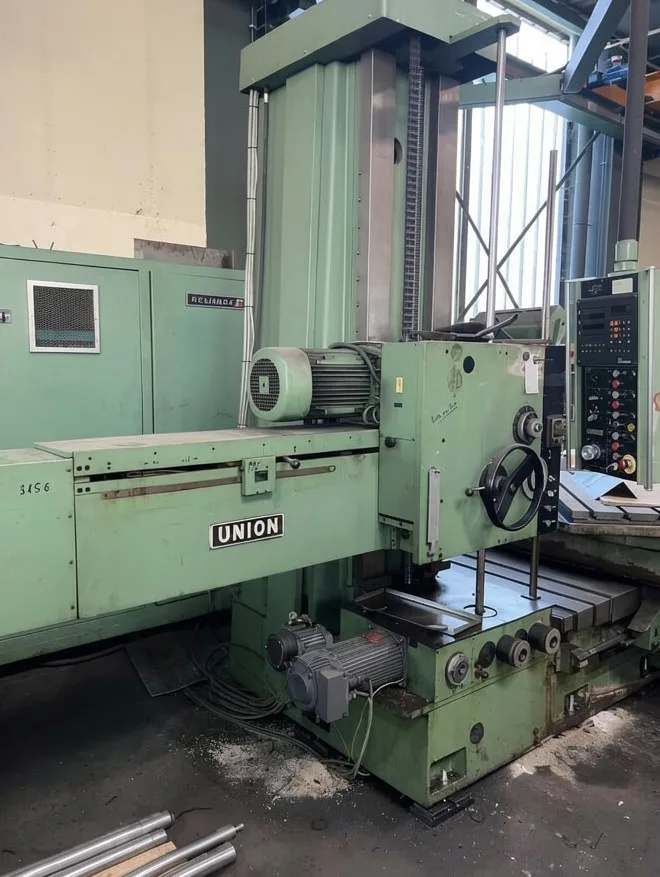

HORIZONTAL BORING MILL – BFT 90/3AT
Ref. No.90
- Brand
- UNION
- Model
- BFT 90/3AT
- Condition
- used
Spindle Diameter:102 mm
X Travel:1000 mm
Y Travel:1250 mm
Z Travel:1600 mm
Spindle Stroke:710 mm
Spindle Speed:8 – 1600 RPM
Table Size:1000 × 1120 mm
Table Rotation:360°
Max Workpiece Weight:2500 kg
Feed Range:0.8 – 2000 mm/min
Rapid Traverse:3.15 m/min
Feed Force:16000 N
Spindle Motor:11 kW
Total Power:23 kW
Machine specifications
- Manufacturer
- UNION
- Model
- BFT 90/3AT
- Condition
- used
- Year
- 1980
- Name
- HORIZONTAL BORING MILL – BFT 90/3AT
- Brand
- UNION
- Model
- BFT 90/3AT

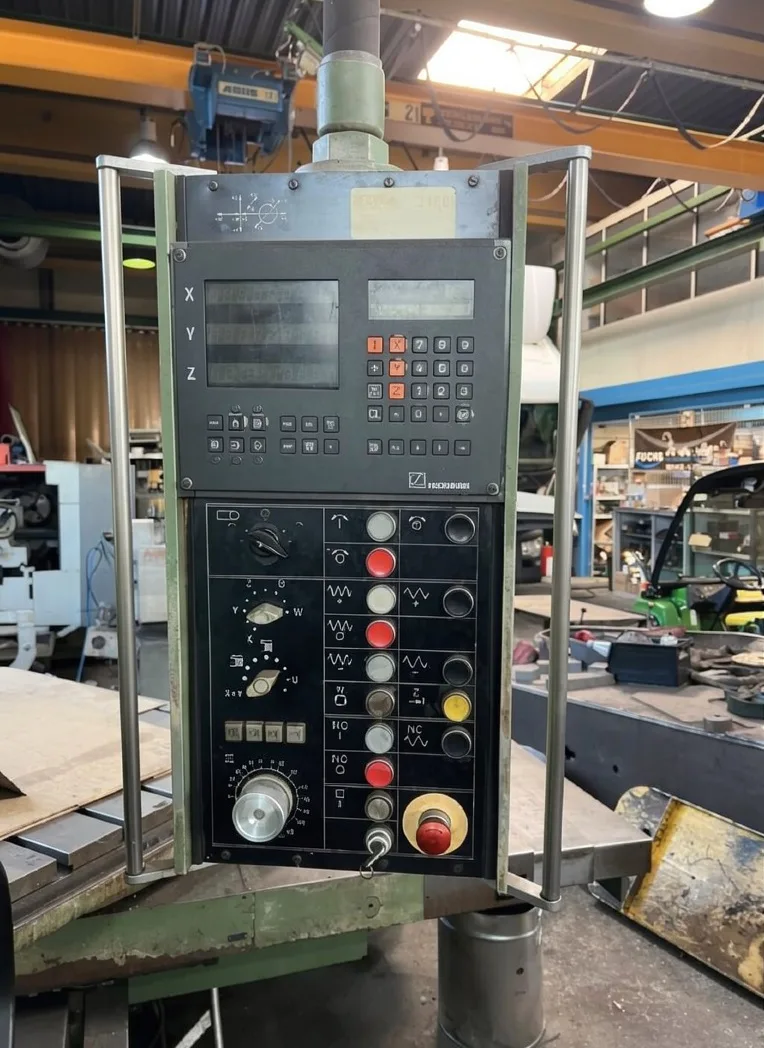

- Control
- HEIDENHAIN TNC 131
- X Travel
- 1000 mm
- Y Travel
- 1250 mm
- Z Travel
- 1600 mm
- Feed Force
- 16000 N
- Feed Range
- 0.8 – 2000 mm/min
- Table Size
- 1000 × 1120 mm
- Total Power
- 23 kW
- MachineType
- Conventional
- Spindle Motor
- 11 kW
- Spindle Speed
- 8 – 1600 RPM
- Rapid Traverse
- 3.15 m/min
- Spindle Stroke
- 710 mm
- Table Rotation
- 360°
- Spindle Diameter
- 102 mm
- Max Workpiece Weight
- 2500 kg
