Horizontal Machining Centres
Horizontal Machining Center DMC 65 H duoBlock
Ref. No.180
- Brand
- DECKEL-MAHO
- Model
- DMC 65 H duoBlock
- Condition
- used

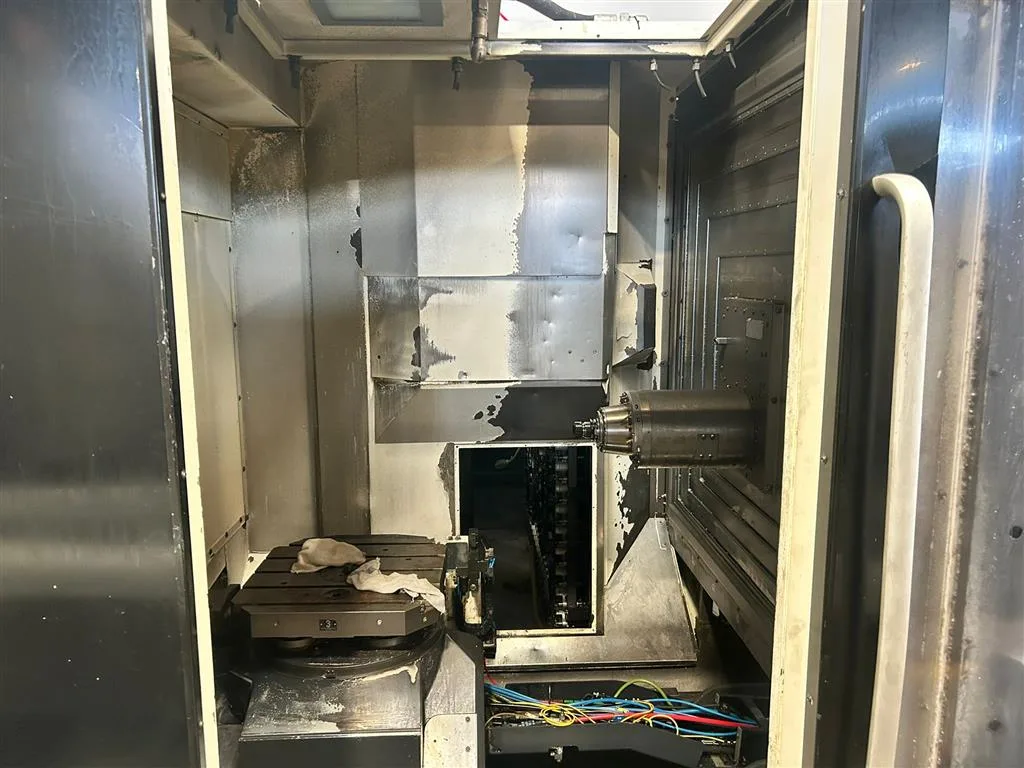

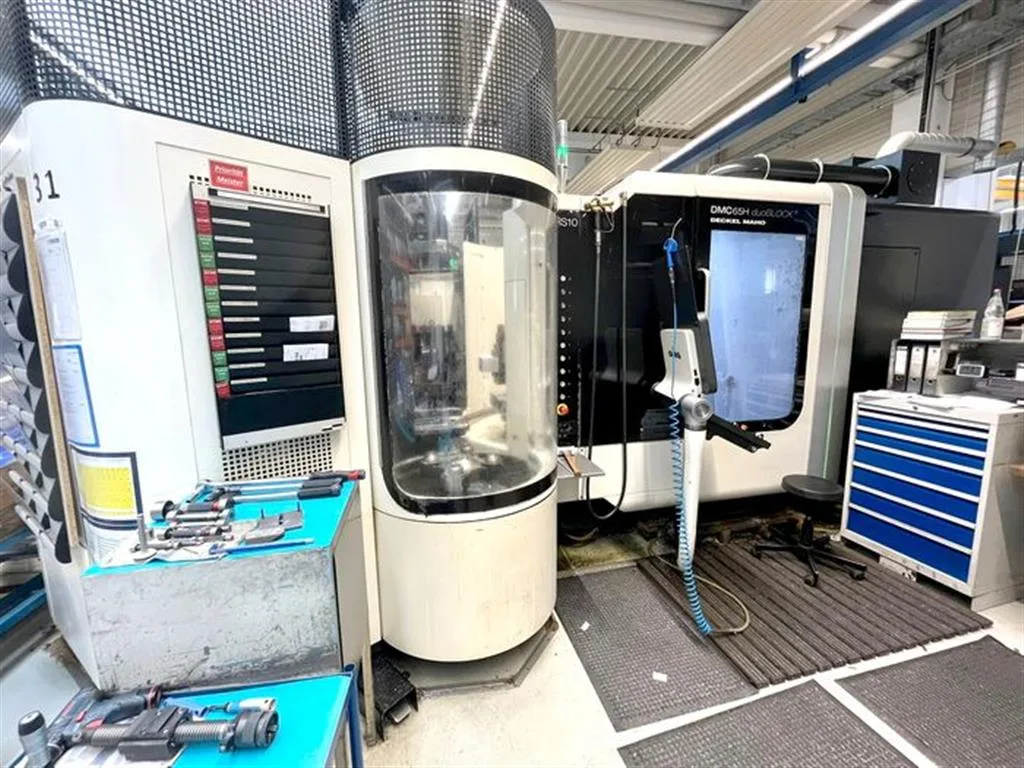

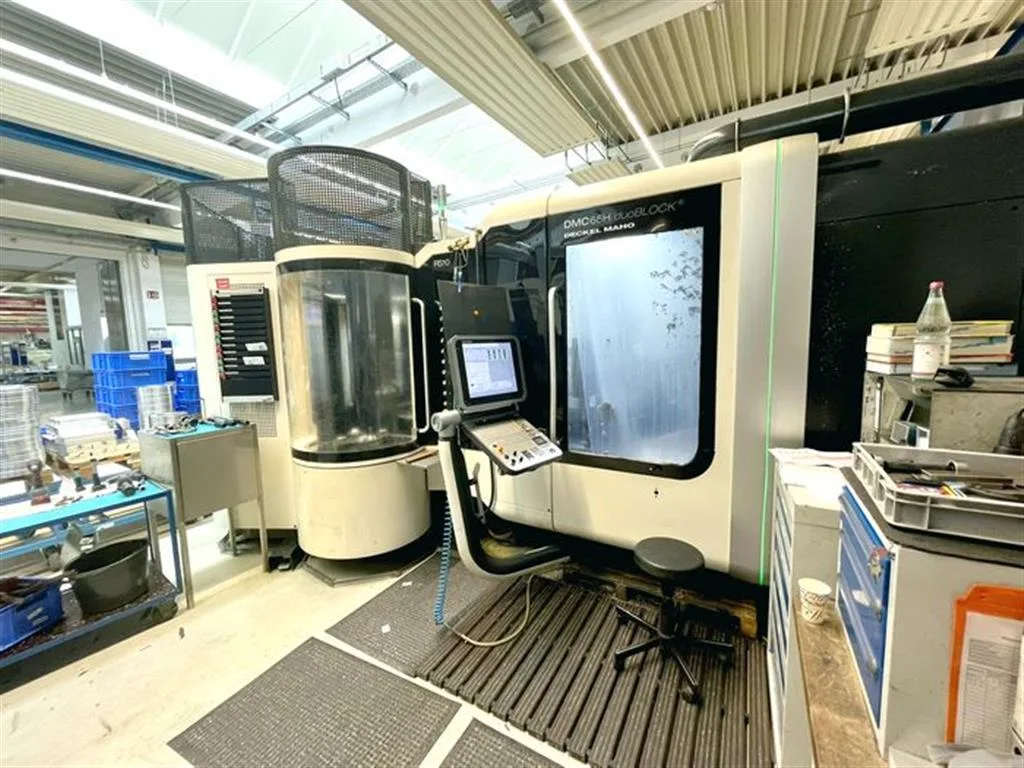

Horizontal Machining Center
DECKEL-MAHO DMG DMC 65 H duoBlock
X-travel:700 mm
Y-travel:700 mm
Z-travel:700 mm
Turning speeds 18000rpm
Max. torque on the spindle 110 / 84 1/min
Nm tool taper control SK

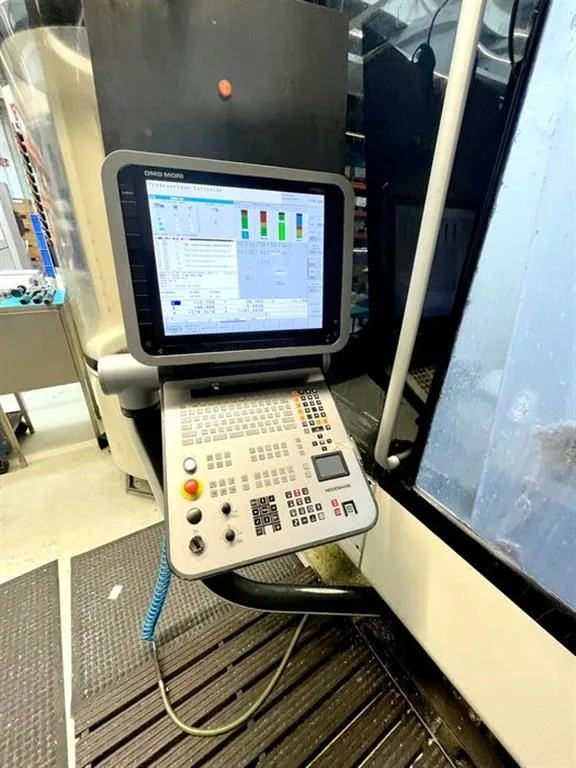

40 HEIDENHAIN iTNC 530
Tool change unit 180 PCS
Size of pallet:500x500
Max. workpiece weight 600 kg
Spindle rapid traverse 34 / 28
Total power requirement weight of the machine ca. 68 10,5 kVA
NC-roundtable, pallet pool RS 10 for totally 12 pallets,

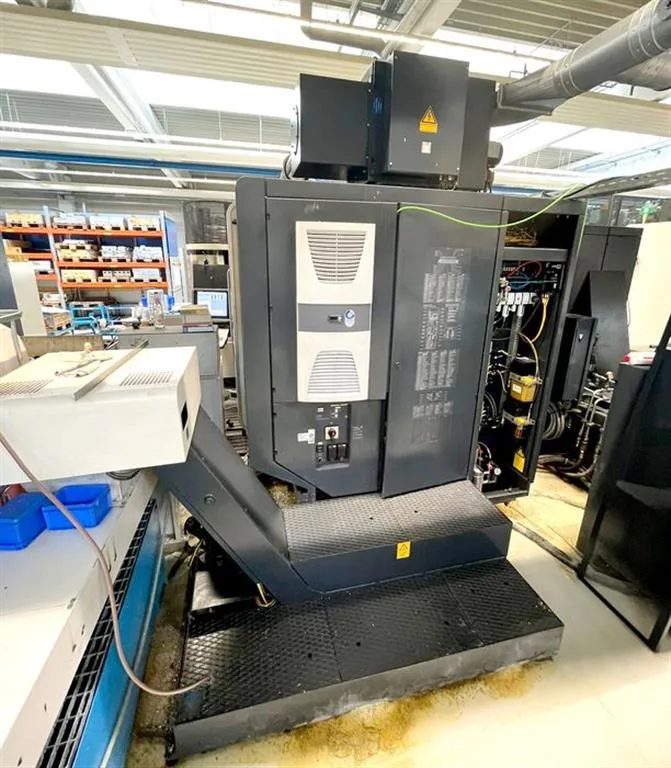

Monitor for workpiece setting-up device, high pressure coolant through spindle 40bar, internal air blast supply, mode 4, hydraulic clamping 2/4 for workpiece setting-up device and working table, BLUM laser, oilmist suction, 3D touch probe TS 649, tool-breackage control, mechanical, SDS spindle diagnosis system, flush gun, el. handwheel, chipconveyor
Machine specifications
- Manufacturer
- DECKEL-MAHO
- Model
- DMC 65 H duoBlock
- Condition
- used
- Type
- Horizontal Machining Center
- Brand
- DECKEL-MAHO (DMG)
- Model
- DMC 65 H duoBlock
- Control
- HEIDENHAIN iTNC 530
- Max Torque
- 110 / 84 Nm
- Tool Taper
- SK 40
- Pallet Pool
- RS 10 (12 Pallets)
- Pallet Size
- 500 x 500 mm
- Spindle Speed
- 18,000 rpm
- Rapid Traverse
- 34 / 28 m/min
- Power Requirement
- 68 kVA
- Travel Range X Y Z
- 700 / 700 / 700 mm
- Max Workpiece Weight
- 600 kg
- Through Spindle Coolant
- 40 bar
