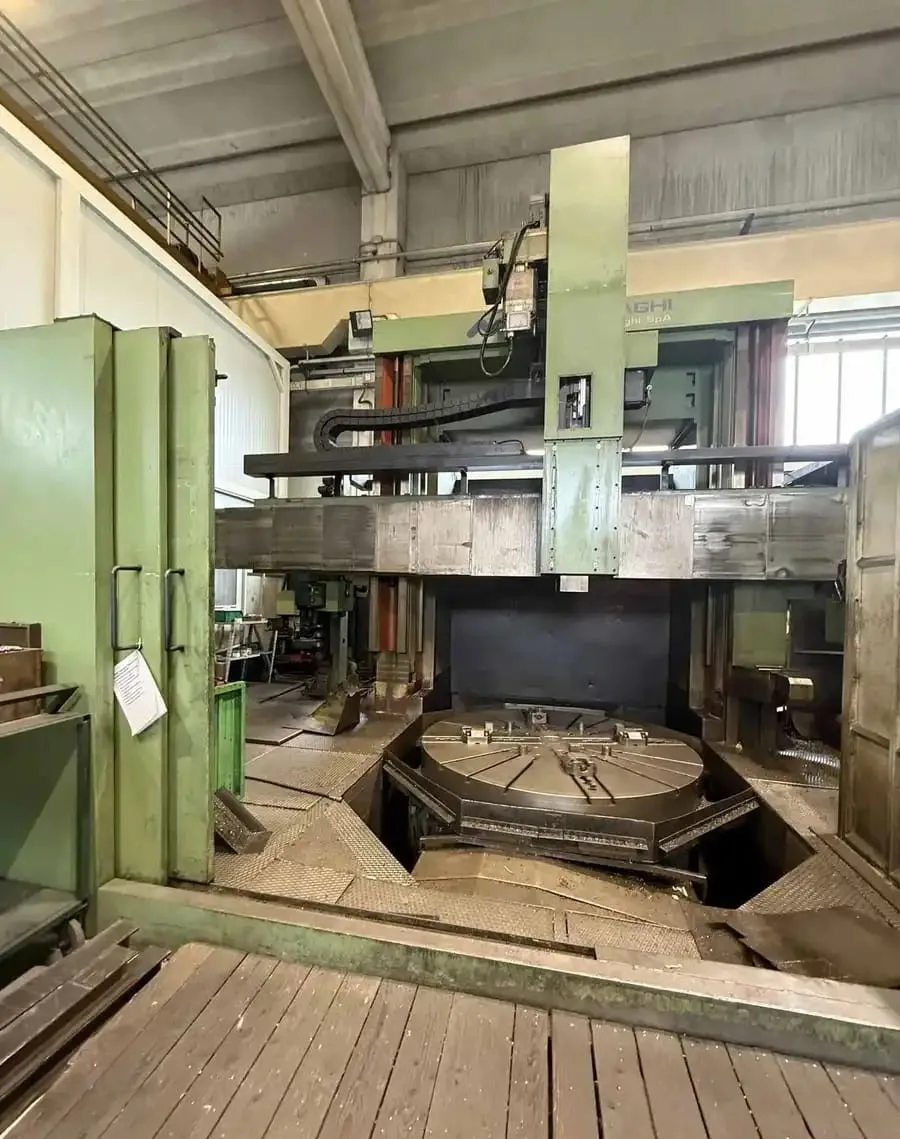

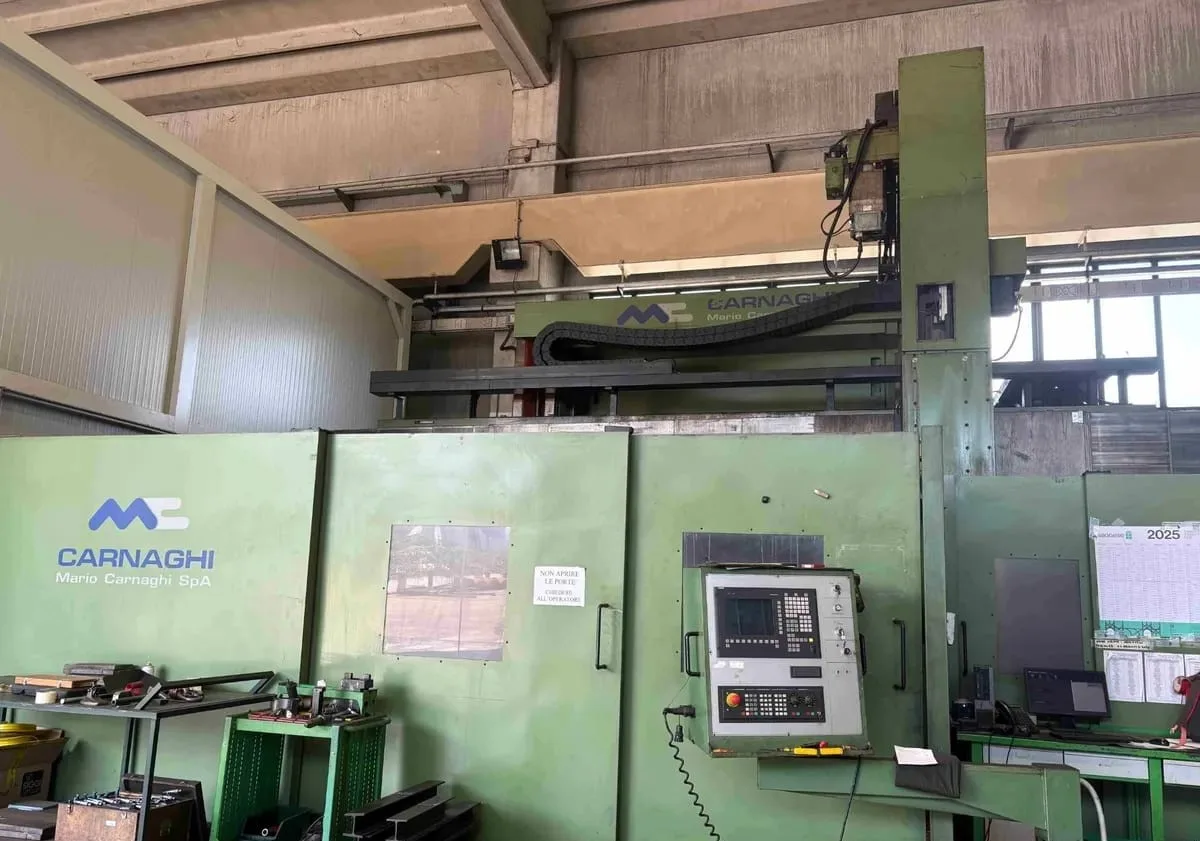

Vertical Turning Lathes
M. CARNAGHI MODEL TPG 20-25
Ref. No.100
- Brand
- M. CARNAGHI
- Model
- TPG 20-25
- Condition
- used
Machining diameter:2997.2 mm

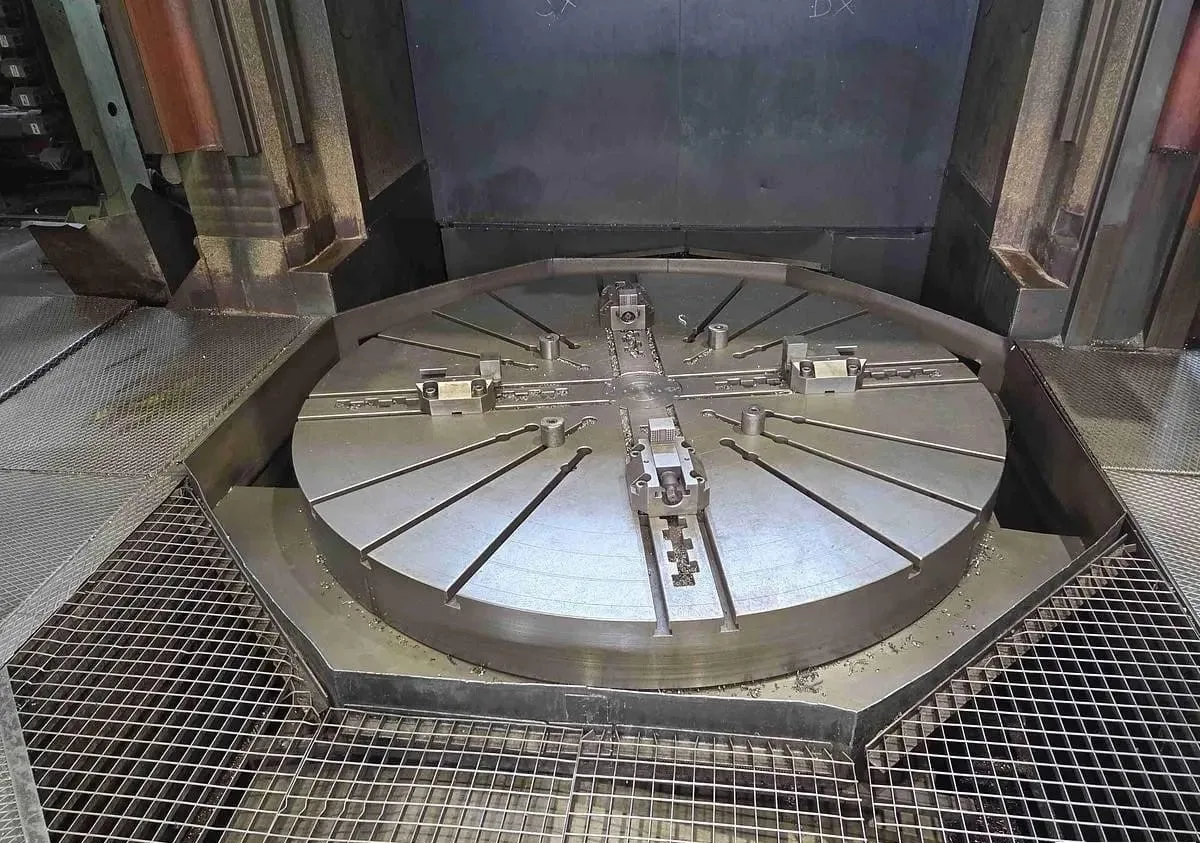

Table diameter:2489.2 mm
Maximum machining height (w/ standard tool installed): 2692.4 mm
Maximum workpiece weight:34926.6 kg

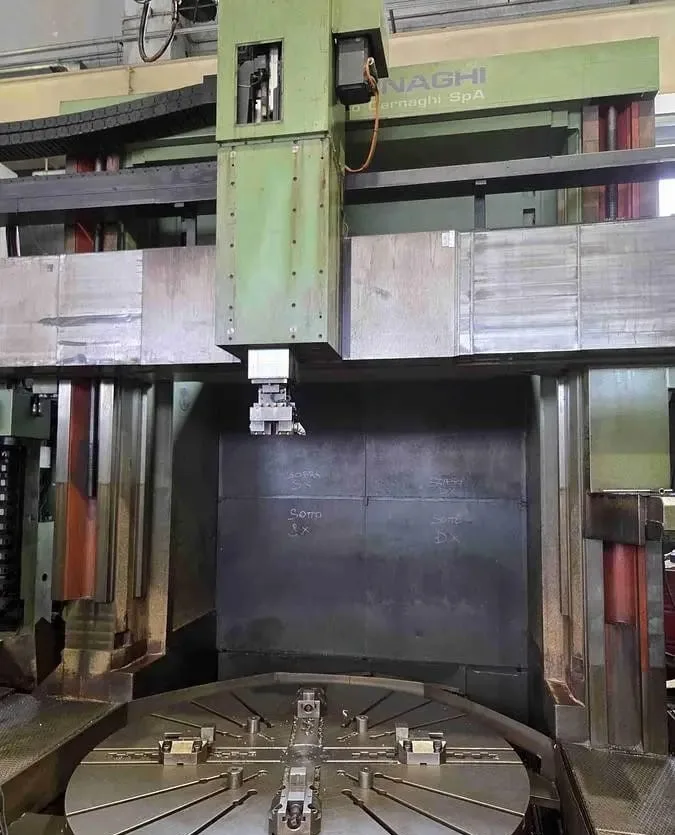

Maximum ram travel (Z-Axis):1524 mm

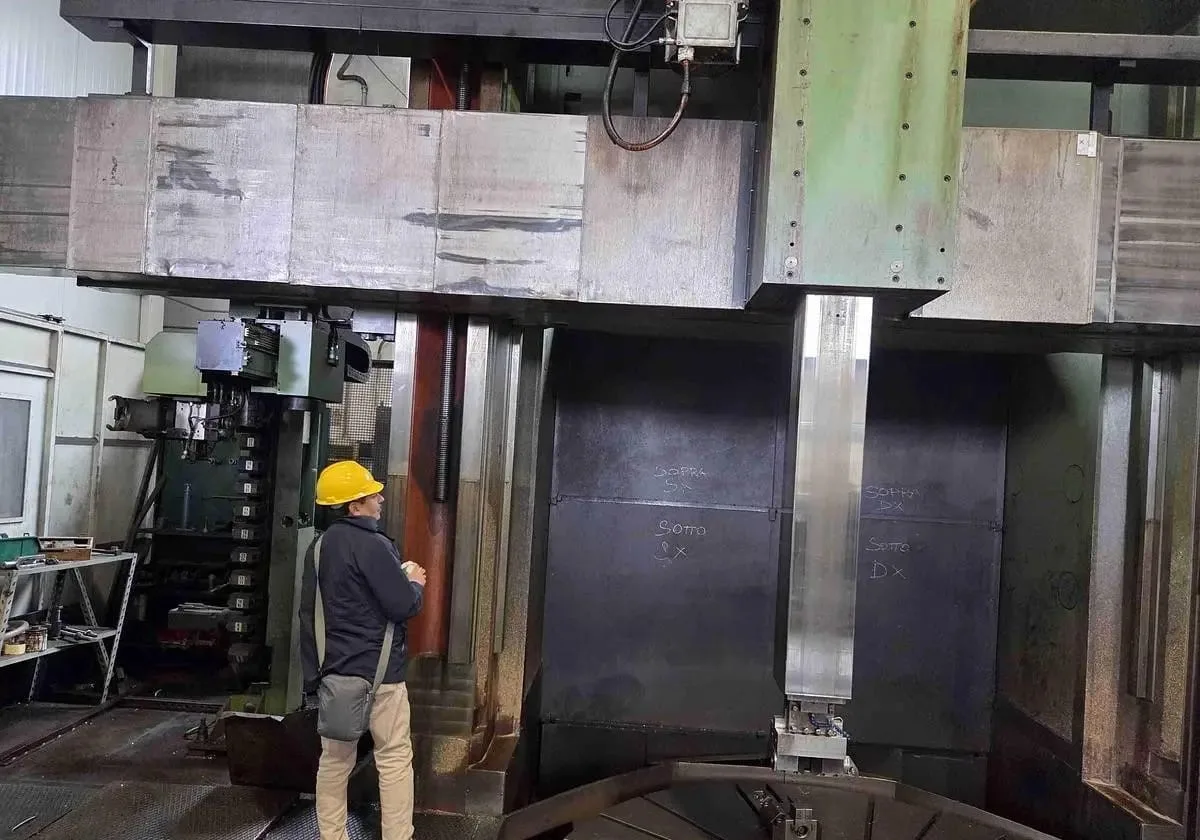

Ram size:248.9 x 248.9 mm
Cross rail travel:1397 mm
Y-Axis Travel:+/- 762 mm (1524 mm)
C-Axis:0.001 deg
Number of tools in automatic tool changers: 12 + 40
Main drive motor capacity:59.7 kW (80 HP)
Table cutting speed range (infinitely variable): 1-170 RPM
Milling Spindle motor:22.4 kW (30 HP)
Rapid feed rate (X):9982.2 mm/min
Rapid feed rate (Z):9982.2 mm/min
Machine Dimensions (W x D):8788.4 x 7315.2 mm (approx.)
Machine Height (maximum w/cross rail in top position): 8026.4 mm
Machine weight:49895.2 kg
Equipped With

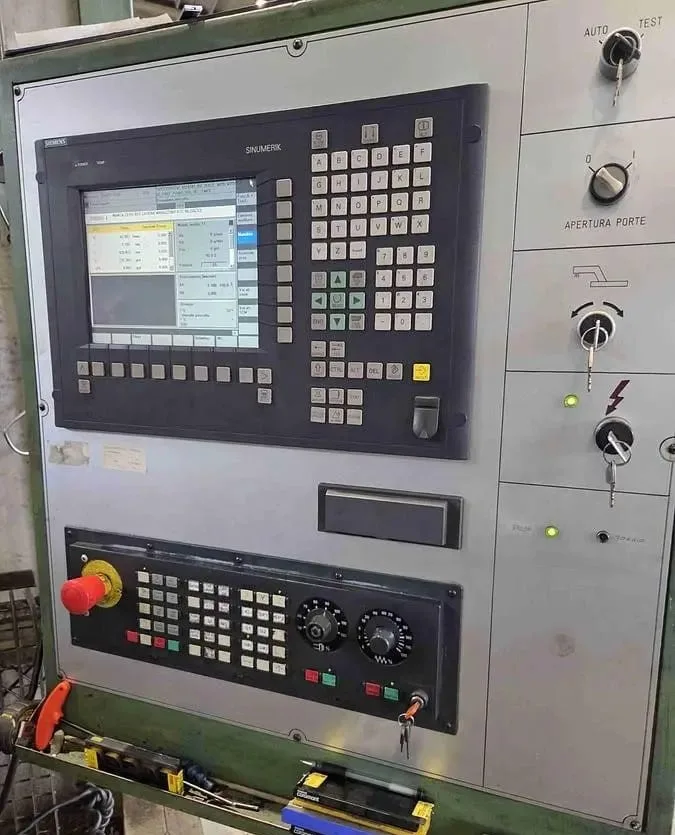

SIEMENS 840D CNC
-40 SEATS ATC FOR MILLING
12 SEATS ATC FOR TURNING

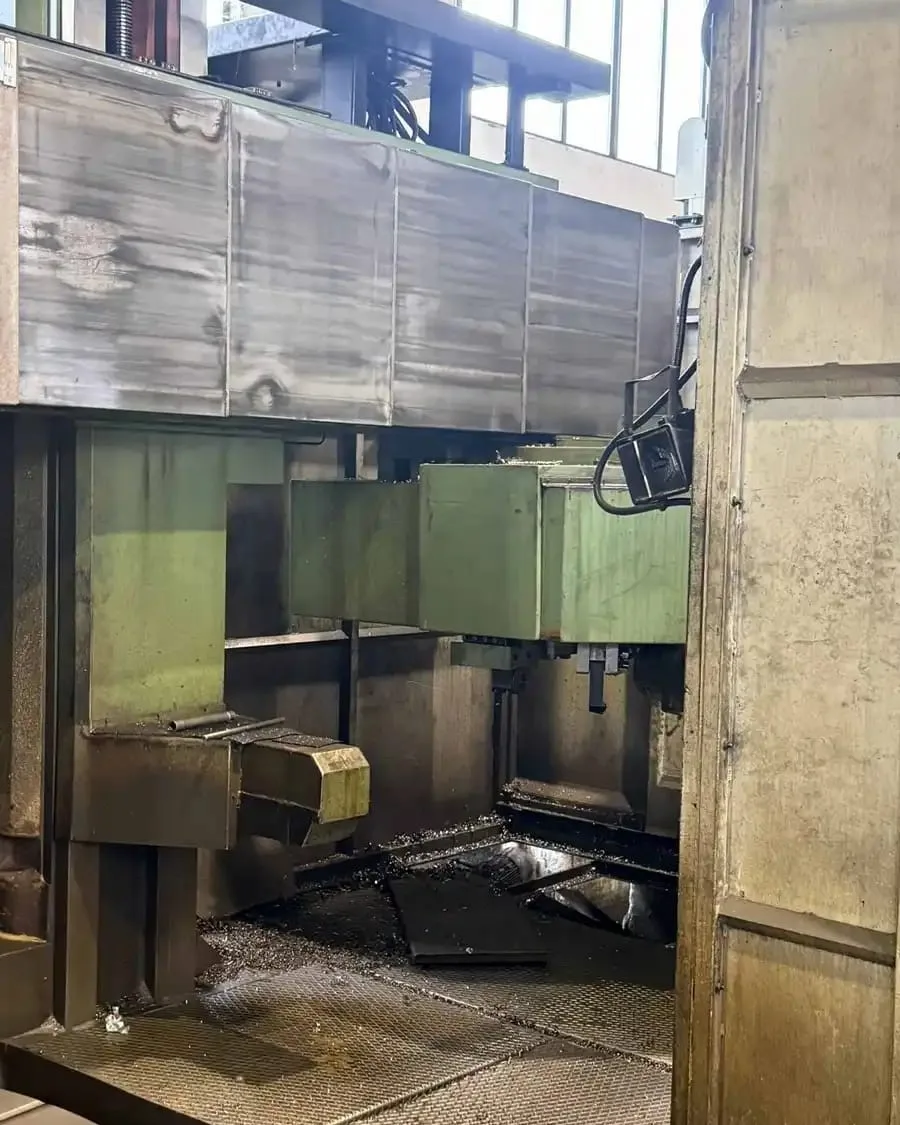

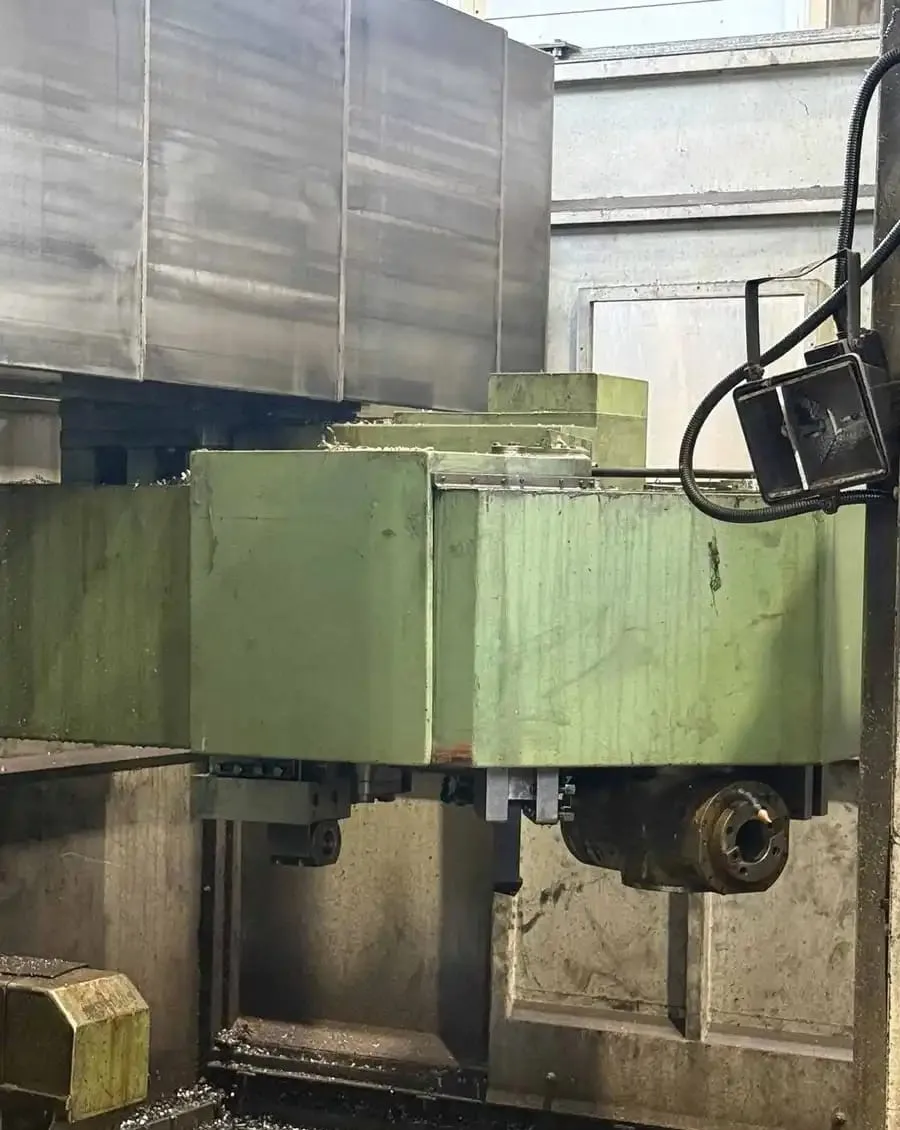

N. 1 ANGULAR MILLING HEAD
N. 1 VERTICAL MILLING HEAD
RENISHAW
TURNING AND MILLING TOOL HOLDERS
CHIP CONVEYOR
ALL AVAILABLE MANUALS
Machine specifications
- Manufacturer
- M. CARNAGHI
- Model
- TPG 20-25
- Condition
- used
- Name
- M. CARNAGHI MODEL TPG 20-25
- Type
- CNC
- Brand
- M. CARNAGHI
- Model
- TPG 20-25
- Category
- Lathes & Turning Machines
- Subcategory
- Vertical Turret Lathes (VTL)
- ControlSystem
- SIEMENS 840D CNC
