Turning and Milling Centres
Multi Axis CNC Turning & Milling Center SCHAUBLIN 42L
Ref. No.208
- Brand
- SCHAUBLIN
- Model
- 42L
- Condition
- used
Twin-spindle / Twin-turret
Year:2000

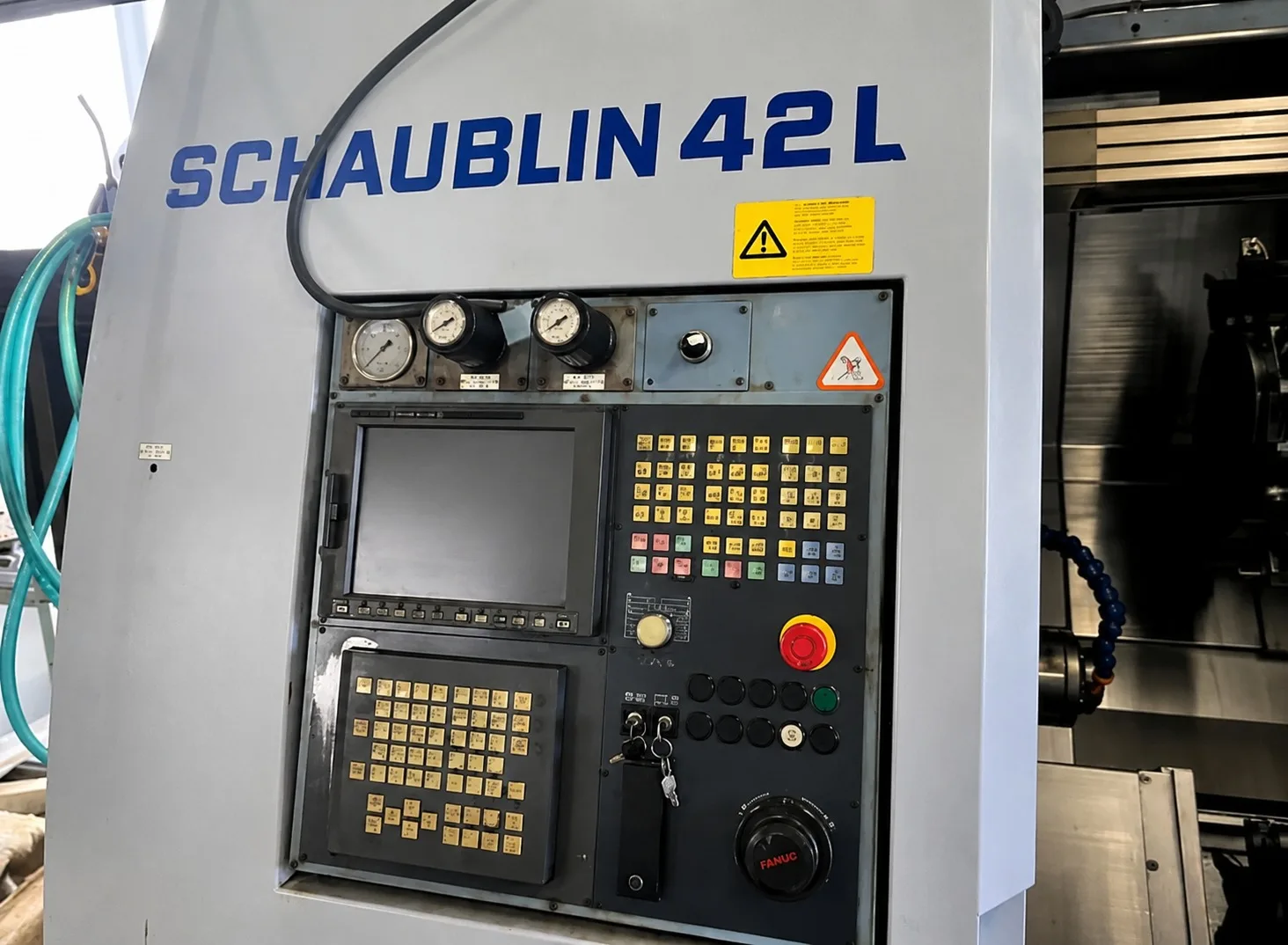

CNC:Fanuc 18i
Turning length:500 mm
Turning diameter:250 mm
Bar capacity (Ø):42 mm
Spindle S1:6,000 rpm
C1-axis resolution:0.001°
Spindle nose:A2-5
X1-axis:200 mm
X1-axis resolution:0.0005 mm
Z1-axis:500 mm / Z1-axis resolution: 0.001 mm
Y1-axis:+/-55 mm
Y1-axis resolution:0.001 mm
12 radial VDI 30 tool stations
Max. rotary tool speed:4,000 rpm
Spindle S2:6,000 rpm
C2-axis resolution:0.001°
Z3-axis:500 mm
Z3-axis resolution:0.001 mm

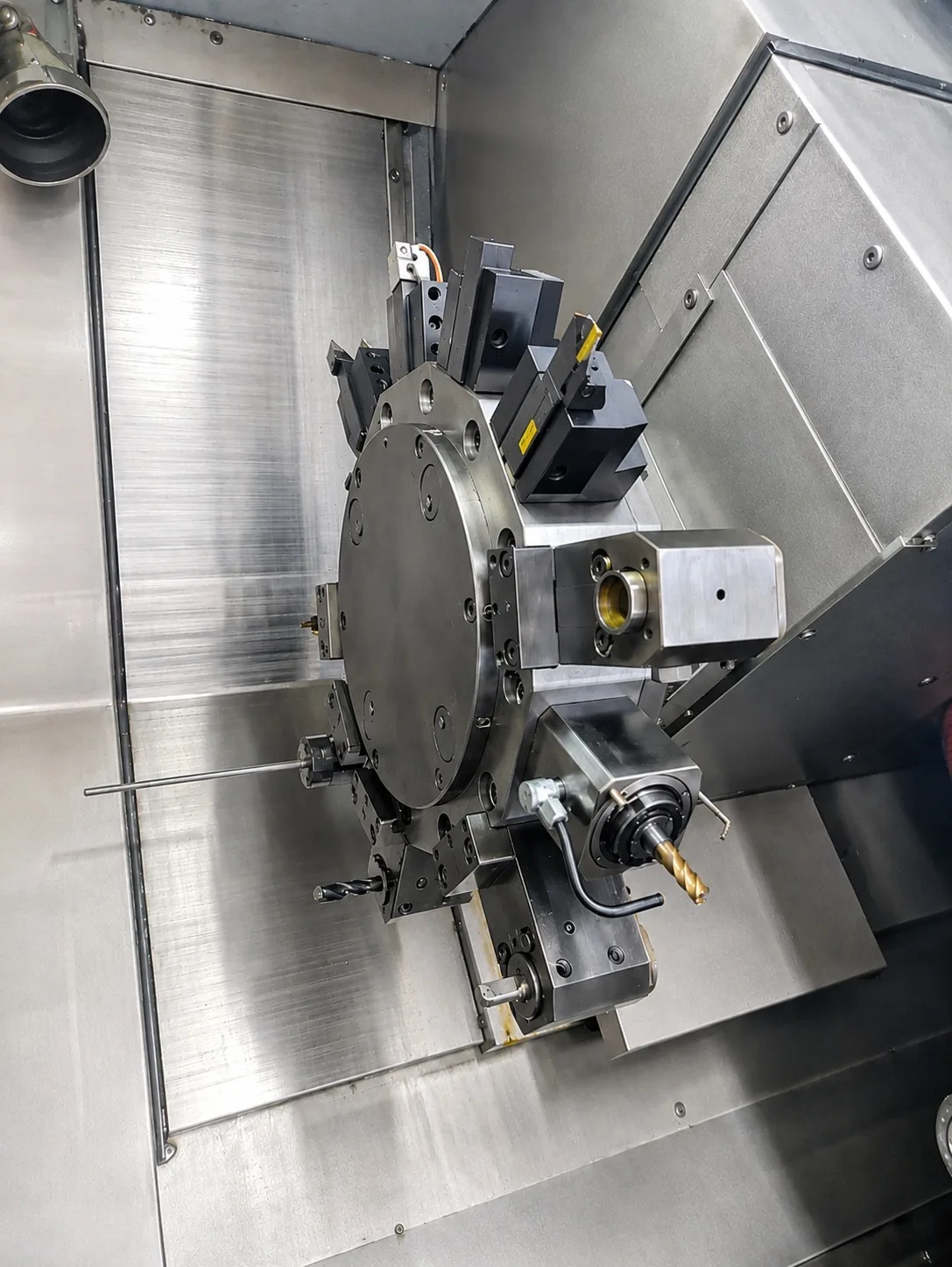

Turret 2
X2-axis:200 mm
X2-axis resolution:0.0005 mm
Z2-axis:500 mm
Z2-axis resolution:0.001 mm
12 radial VDI 30 tools
Machine specifications
- Manufacturer
- SCHAUBLIN
- Model
- 42L
- Condition
- used
- Make
- SCHAUBLIN
- Year
- 2000
- Model
- 42.L
- Control
- Fanuc 18i
- MachineType
- Multi-Axis CNC Turning & Milling Center
- Configuration
- Twin-spindle / Twin-turret
