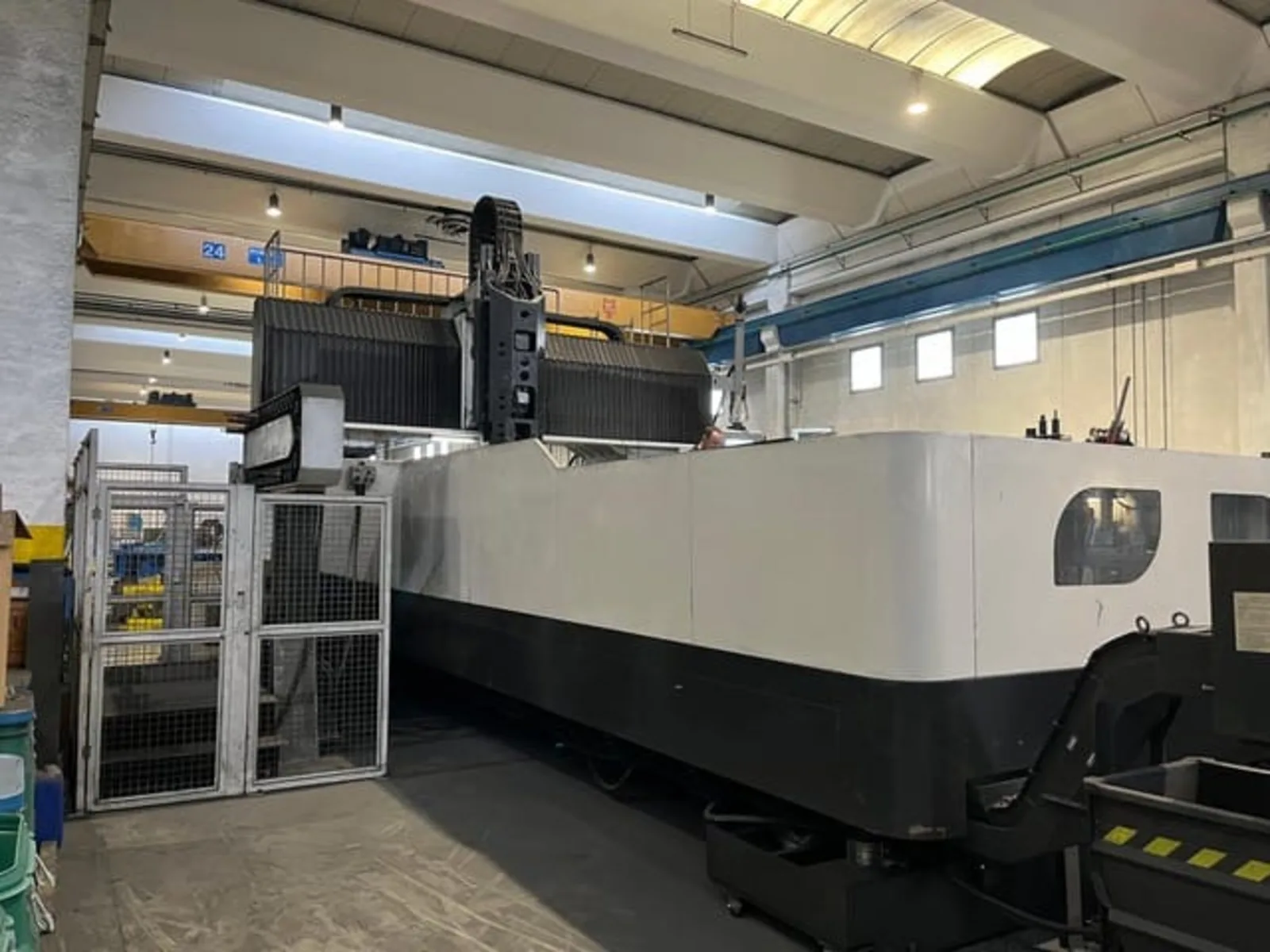

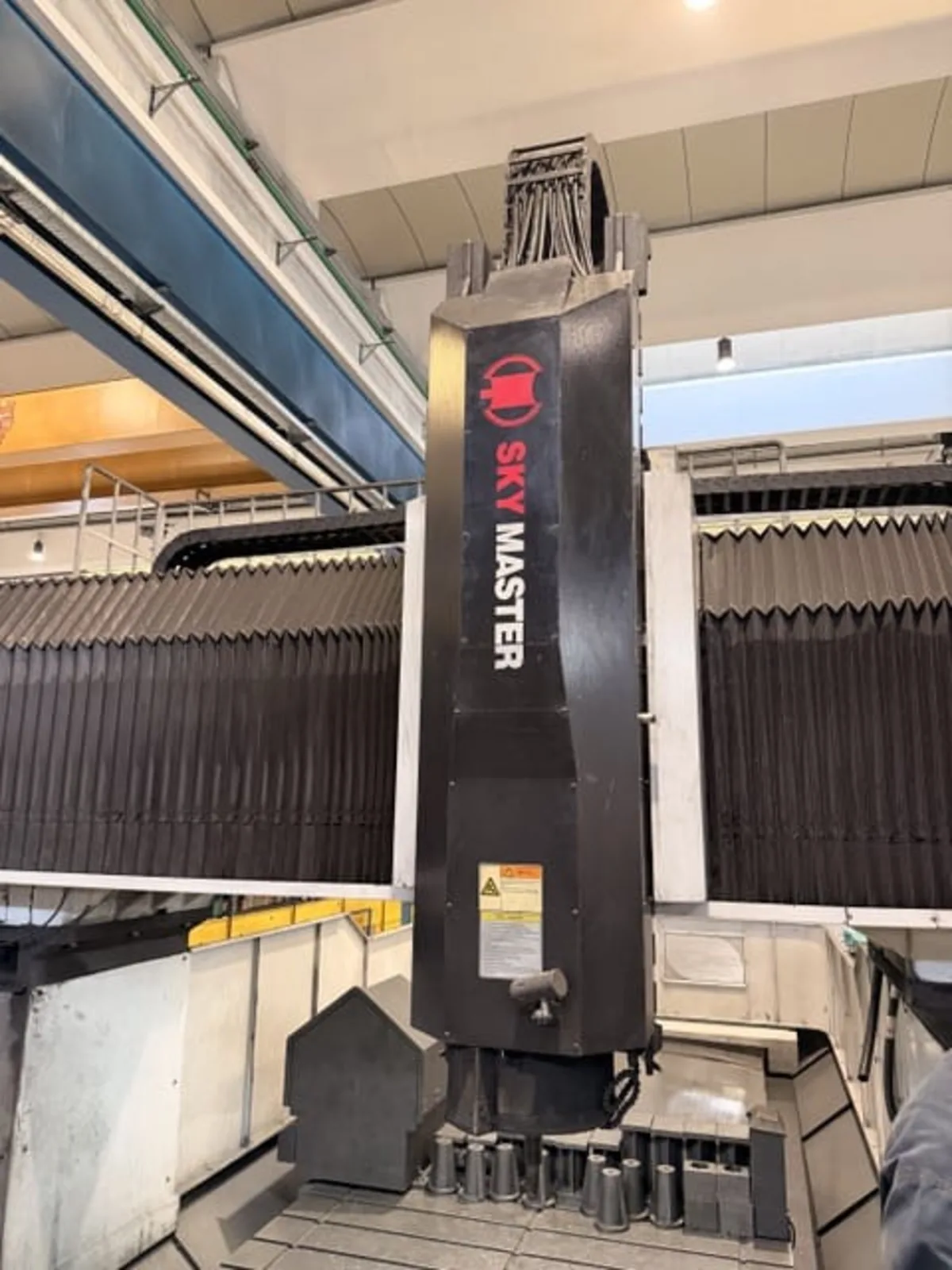

Portal Machining Center (5-Axis)
Ref. No.159

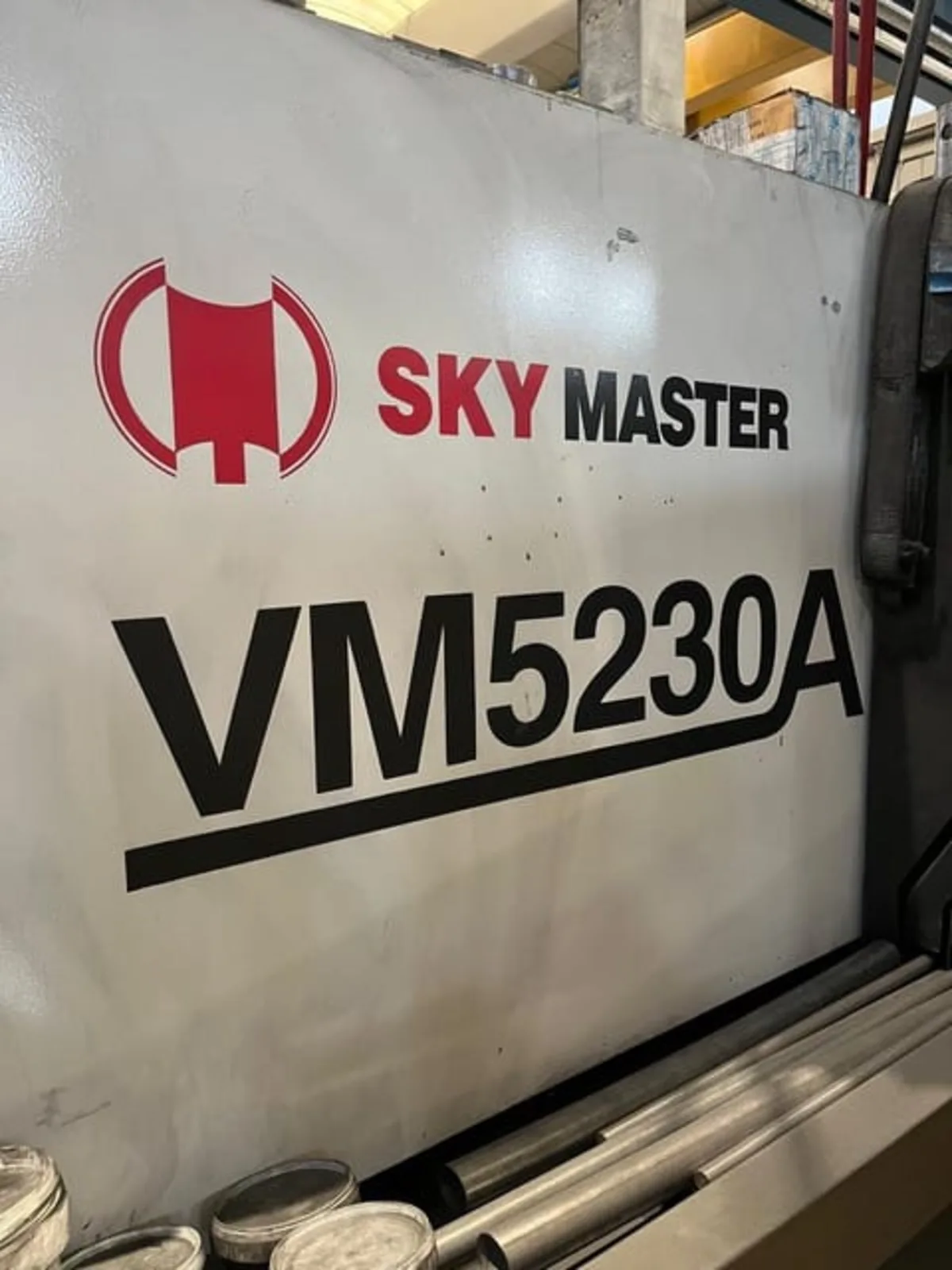

- Brand
- Sky Master
- Model
- KRAFT VM5230A
- Condition
- used
Year of construction:2016

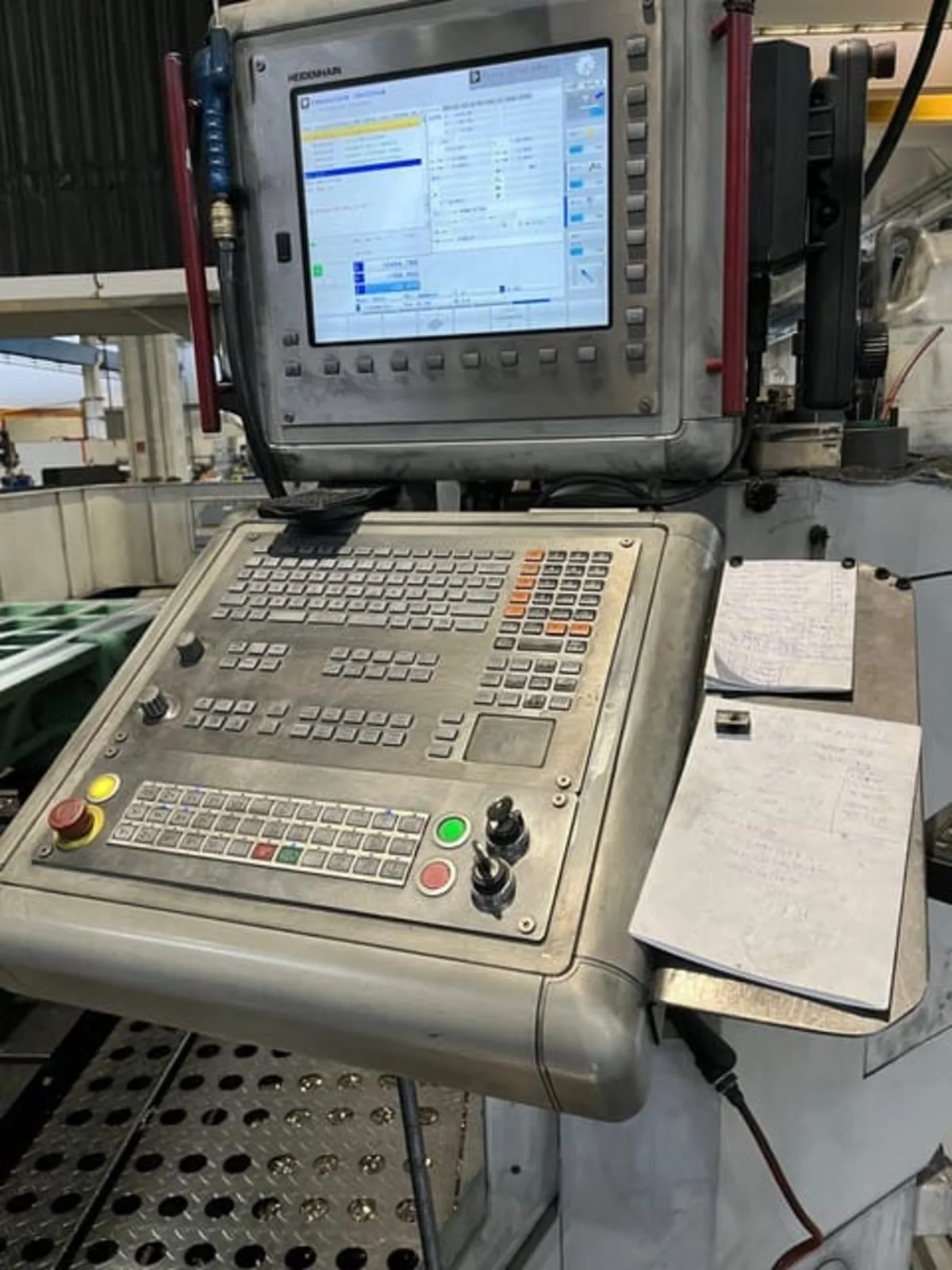

CNC System:Heidenhain TNC620
Machine weight:40,000 kg
Total dimensions (L×W×H):10,125 × 6,840 × 4,515 mm
Axis Travel (X / Y / Z):5,200 mm / 3,400 mm / 1,000 mm (without multidirectional head)
Table Dimensions:5,350 x 2,200 mm
Max. Table Load:21,000 kg
Distance between columns:3,050 mm
Spindle Taper:ISO50
Max. Spindle Speed:6,000 rpm
Spindle Motor Power:24 kW (S1/S6-40%)
Spindle Torque:611.2 Nm
Max. Cutting Feed Rate:1-8,000 mm/min

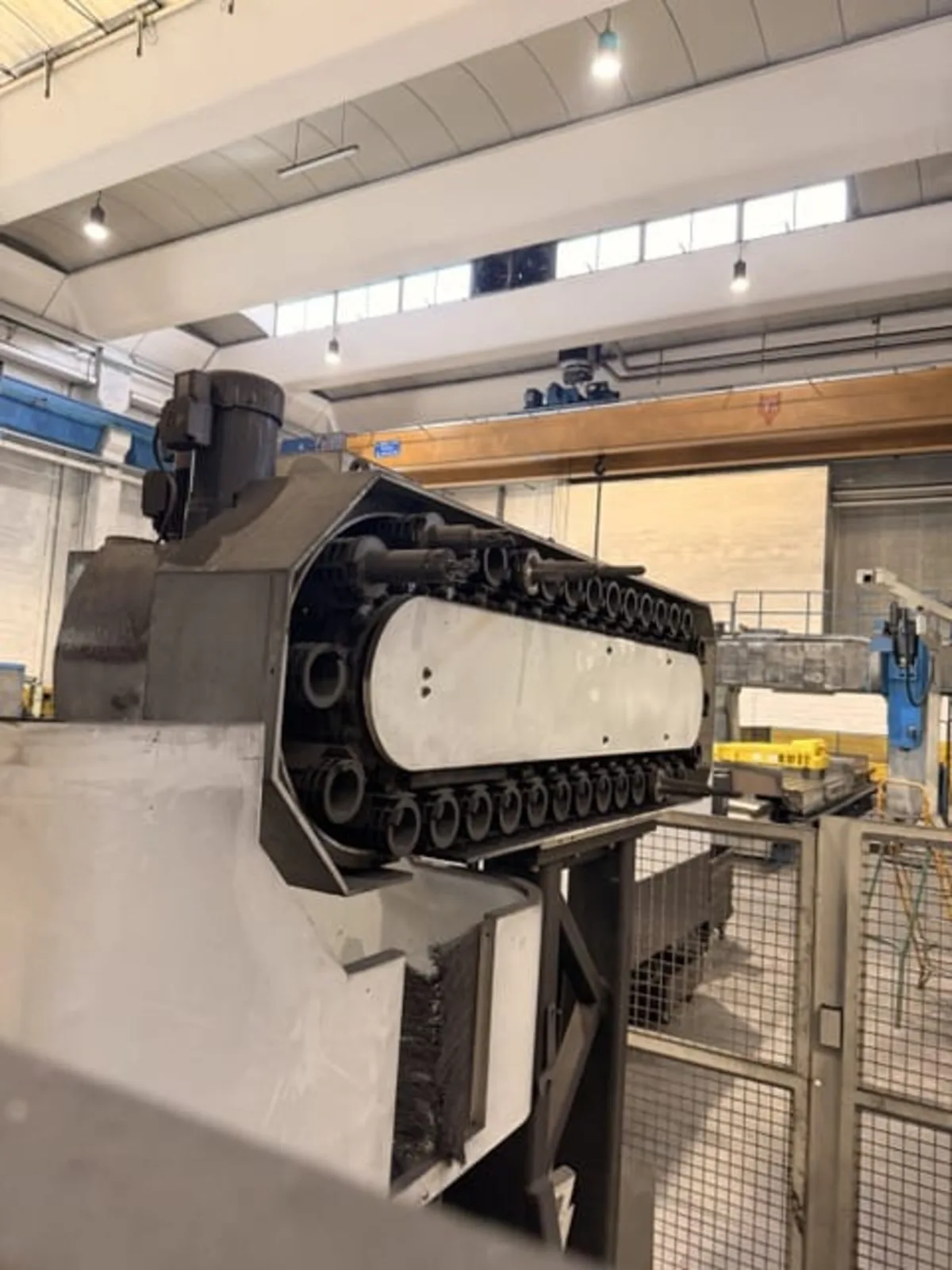

Tool Magazine:32 pcs
Max. Tool Weight:20 kg
Max. Tool Length:350 mm
Positioning Accuracy:P 0.025 mm
Repeatability Accuracy:Ps 0.020 mm
Power Supply:3/PE, AC 380 V, 50 Hz
Required Power:60 kW
Air Pressure:0.6-0.8 MPa
Noise Level:< 80 dB

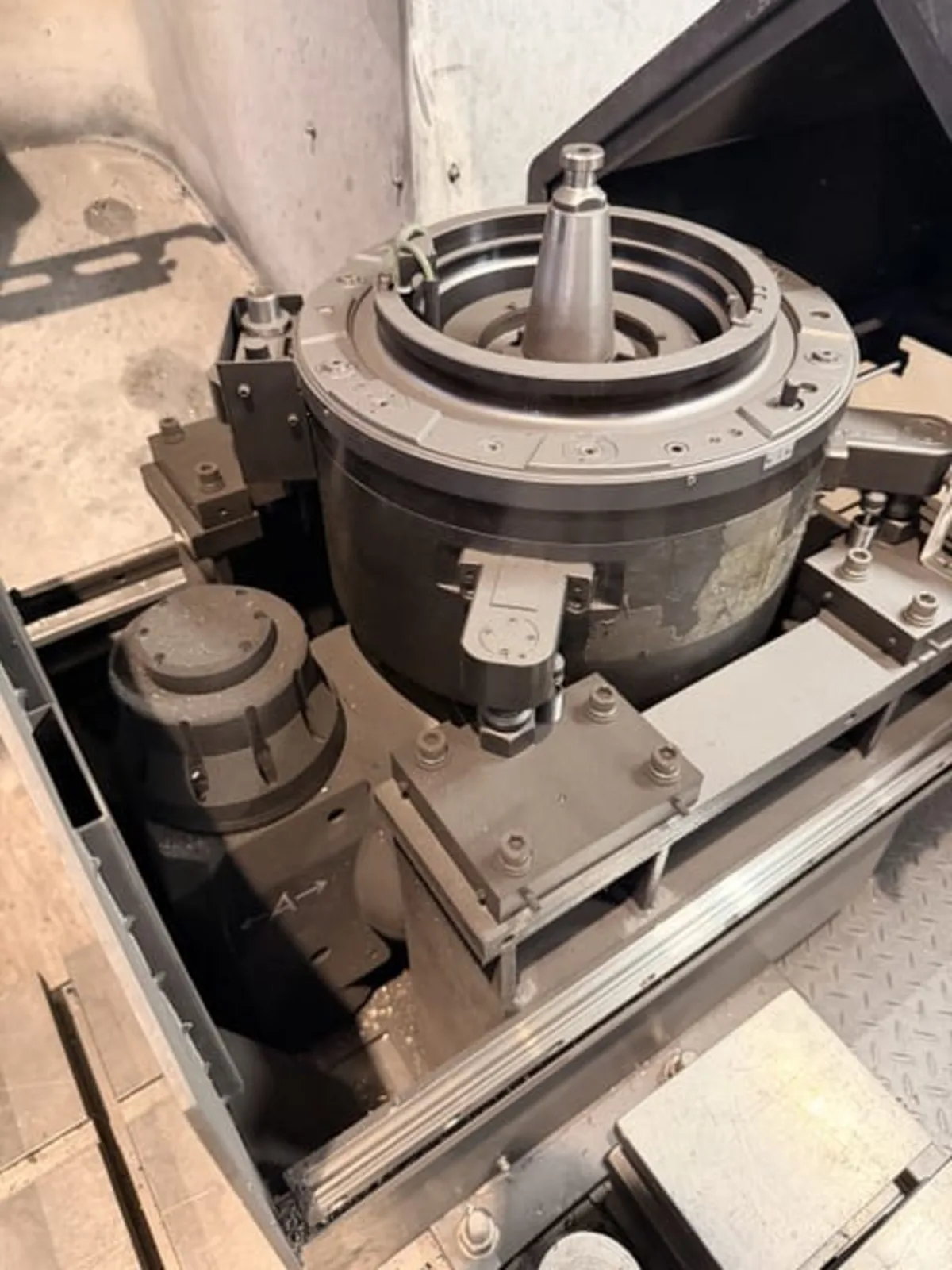

Strenghtening head

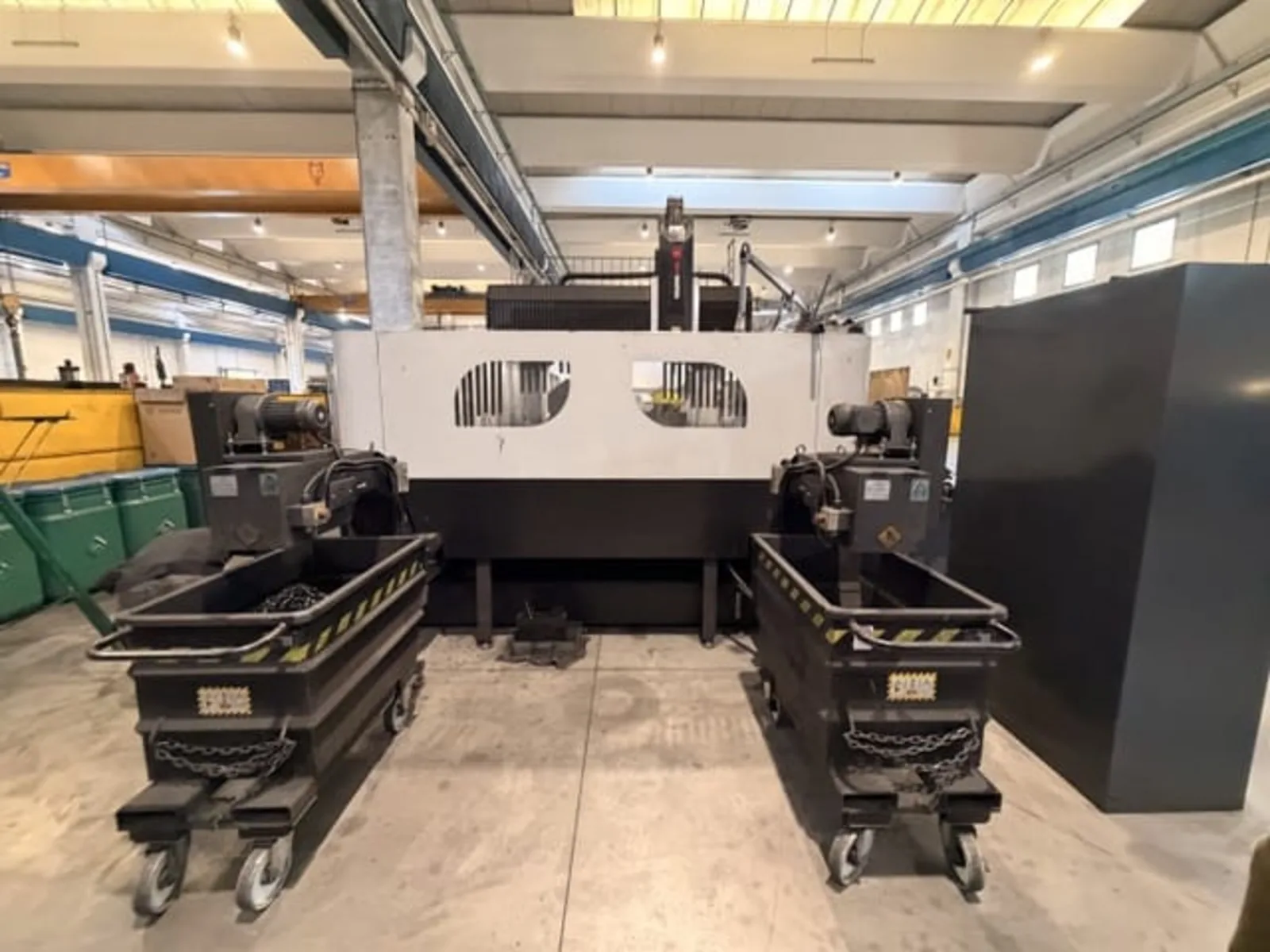

2 conveyors
Machine specifications
- Manufacturer
- Sky Master
- Model
- KRAFT VM5230A
- Condition
- used
- Type
- 5-Axis Portal Machining Center
- Brand
- Sky Master
- Model
- KRAFT VM5230A
- Control
- Heidenhain TNC620
- Table Size
- 5,350 x 2,200 mm
- Max Table Load
- 21,000 kg
- Dimensions L W H
- 10,125 x 6,840 x 4,515 mm
- Travel Range X Y Z
- 5,200 / 3,400 / 1,000 mm
- Distance Between Columns
- 3,050 mm
