Ram-Type Floor Boring and Milling Machine AFP 200 CNC
Ref. No.183
- Brand
- TITAN-PAMA
- Model
- AFP 200 CNC
- Condition
- used

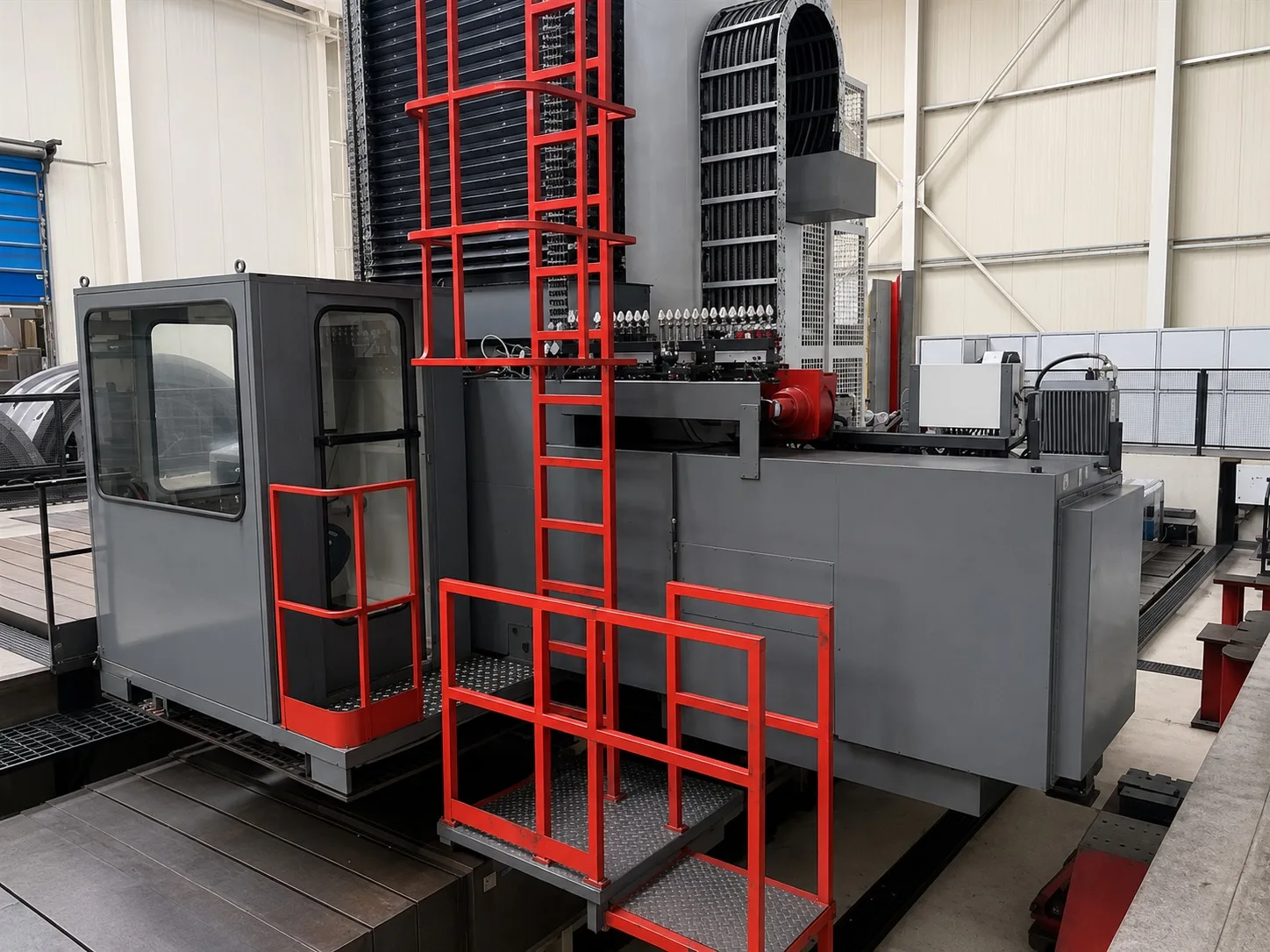

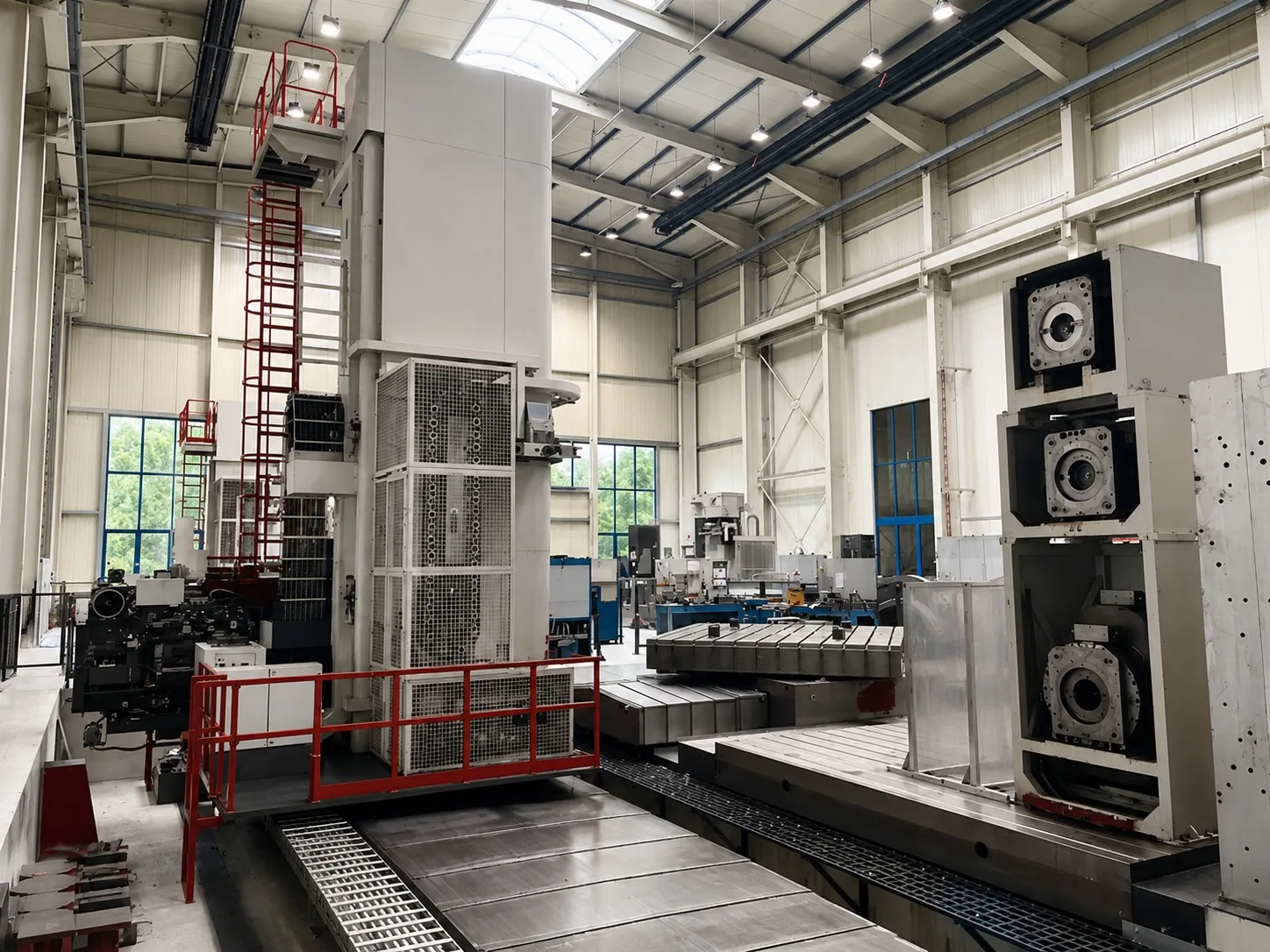

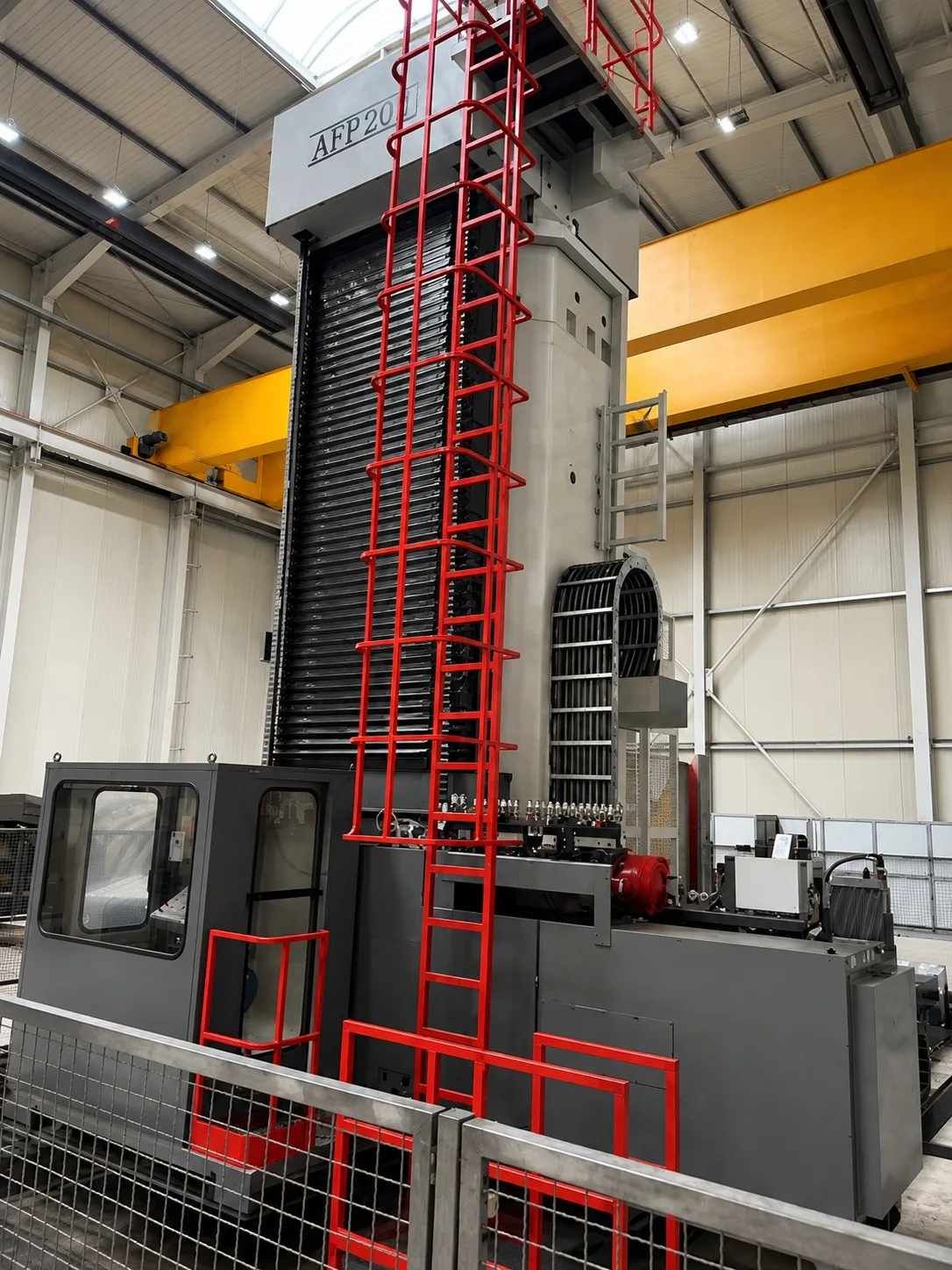

This is a TITAN-PAMA AFP 200 CNC Ram-Type Floor Boring and Milling Machine.
Year of manufacture:2008.

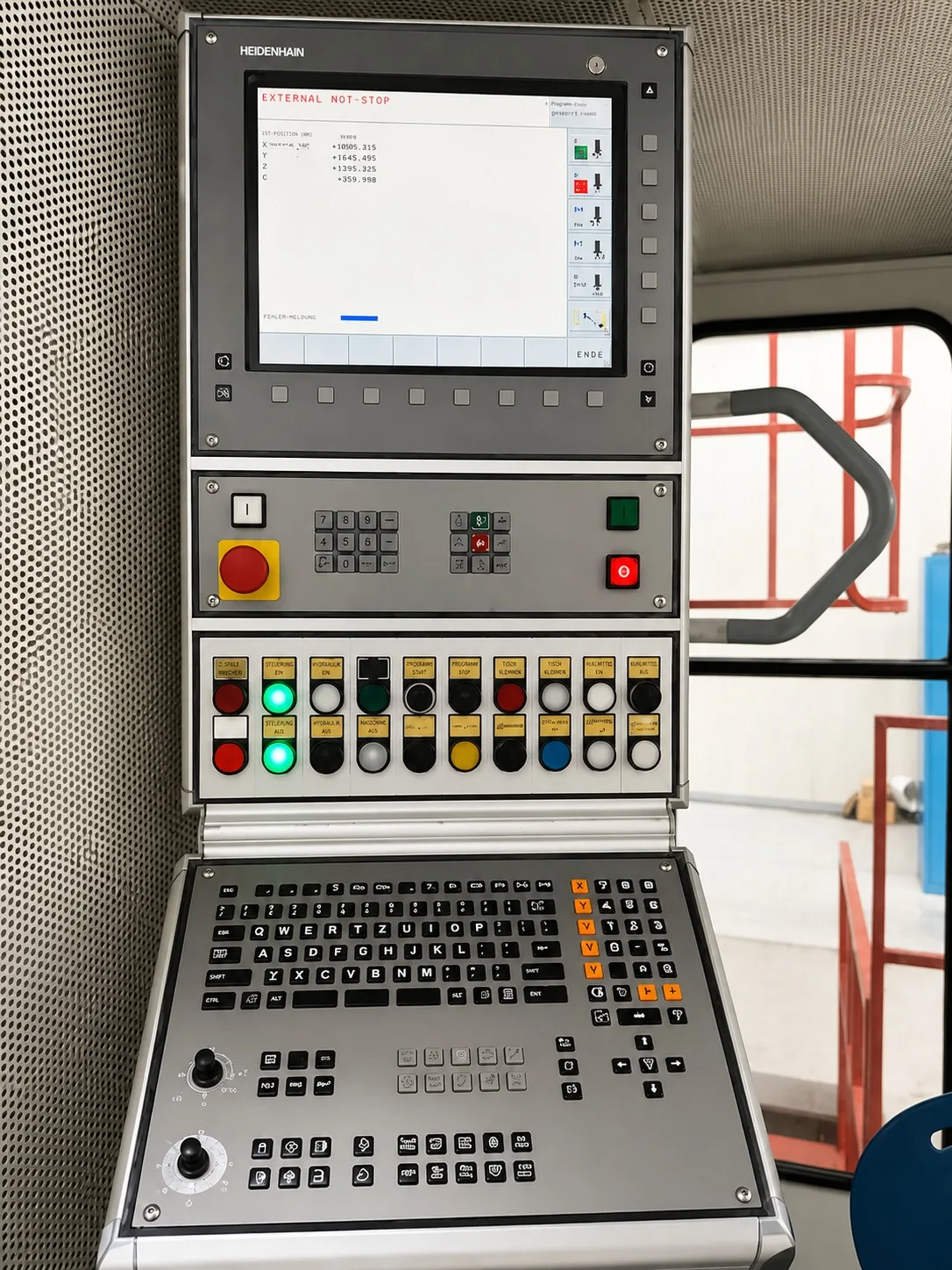

Control system:HEIDENHAIN iTNC 530.
Spindle diameter:200 mm.
X-axis travel:10000 mm.
Y-axis travel:4000 mm.
Z-axis travel:1500 mm.
W-axis travel:1000 mm.
Spindle speed range:1 - 2000 rpm.
Dimension of the ram:600 x 530 mm.
Spindle taper:ISO 60/50.
Rapid motion for X and Y axes:8000 mm/min.
Total power requirement:120 kW.
Features hydrostatic guideways on X and Y axes.
Equipped with an automatic tool changer with 40 pockets.

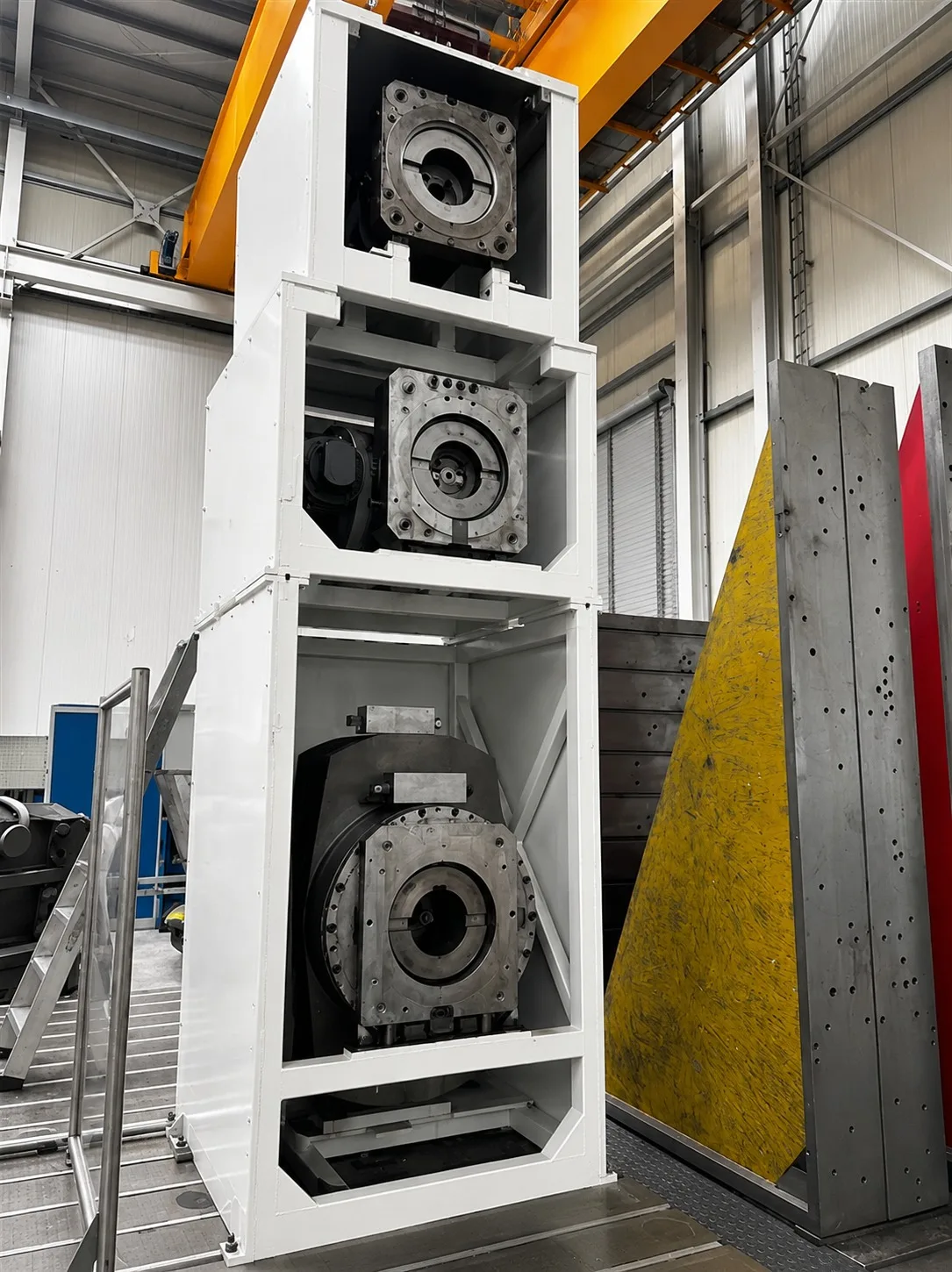

Includes an automatic pickup station for angular milling head, universal milling head, and facing head.

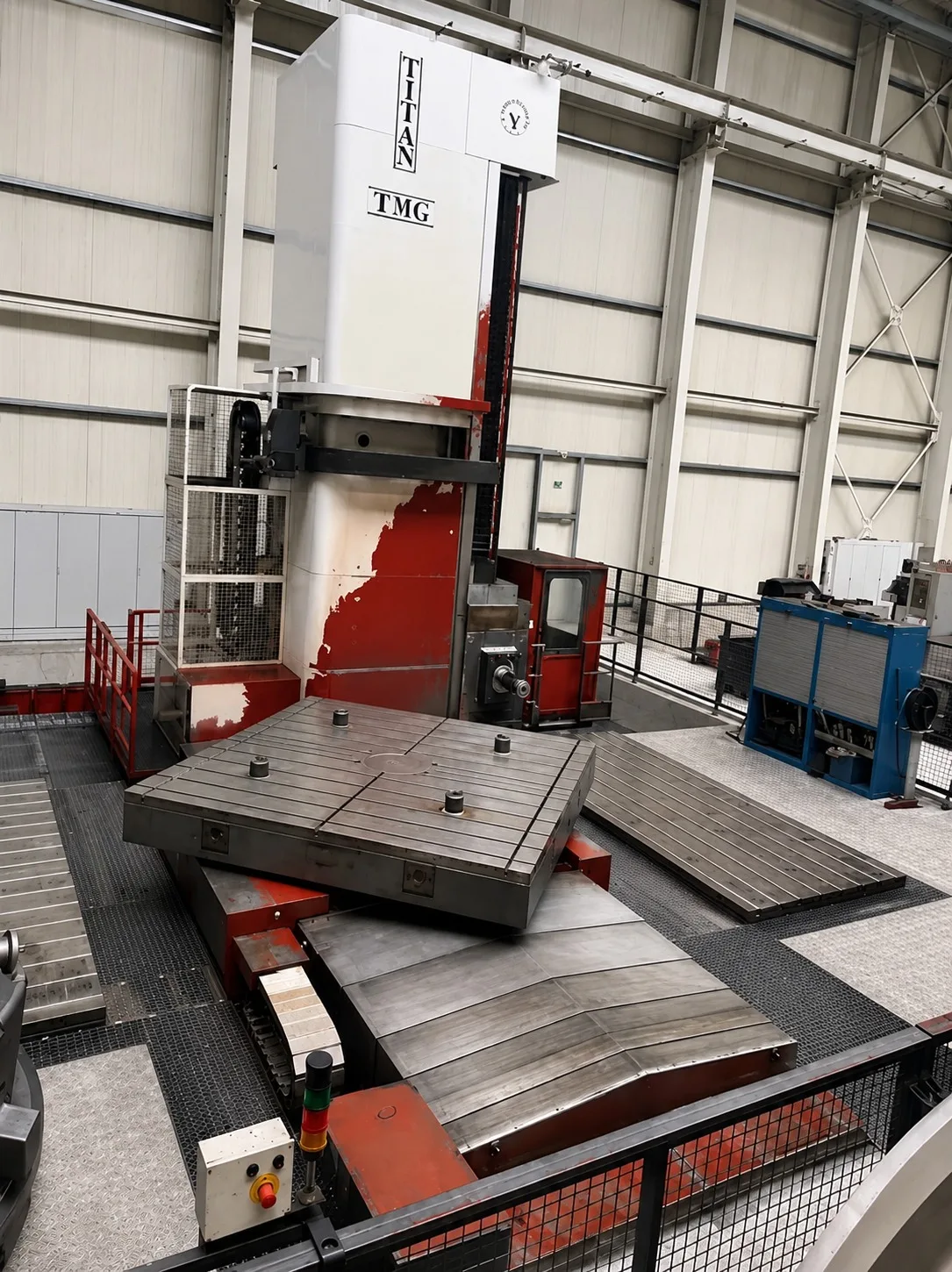

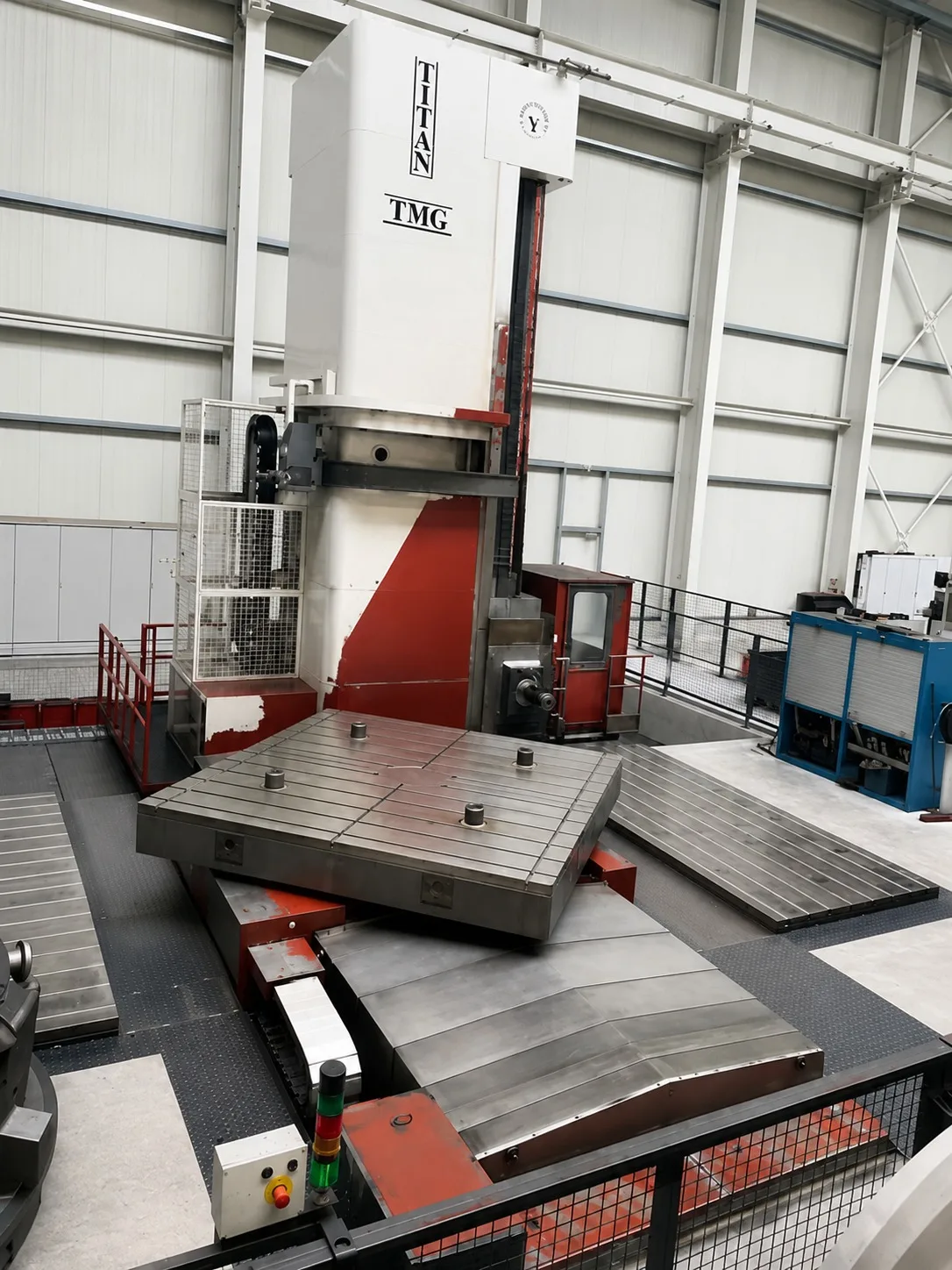

Features a rotary table measuring 3000 x 3000 mm with a maximum load capacity of 60 tons.
V-axis travel:2500 mm.
Includes chip conveyor and coolant attachment.
Total machine weight:135 tons.
Machine specifications
- Manufacturer
- TITAN-PAMA
- Model
- AFP 200 CNC
- Condition
- used
- ATC
- 40 pockets
- Type
- Ram-Type Floor Boring and Milling Machine
- Brand
- TITAN-PAMA
- Model
- AFP 200 CNC
- Travel V
- 2500 mm
- Travel W
- 1000 mm
- Travel X
- 10000 mm
- Travel Y
- 4000 mm
- Travel Z
- 1500 mm
- Spindle Taper
- ISO 60/50
- Control System
- HEIDENHAIN iTNC 530
- Machine Weight
- 135 tons
- Table Max Load
- 60 tons
- Dimension Of Ram
- 600 x 530 mm
- Rapid Motion X Y
- 8000 mm/min
- Spindle Diameter
- 200 mm
- Rotary Table Size
- 3000 x 3000 mm
- Spindle Speed Range
- 1 - 2000 rpm
- Total Power Requirement
- 120 kW
