Floor Type

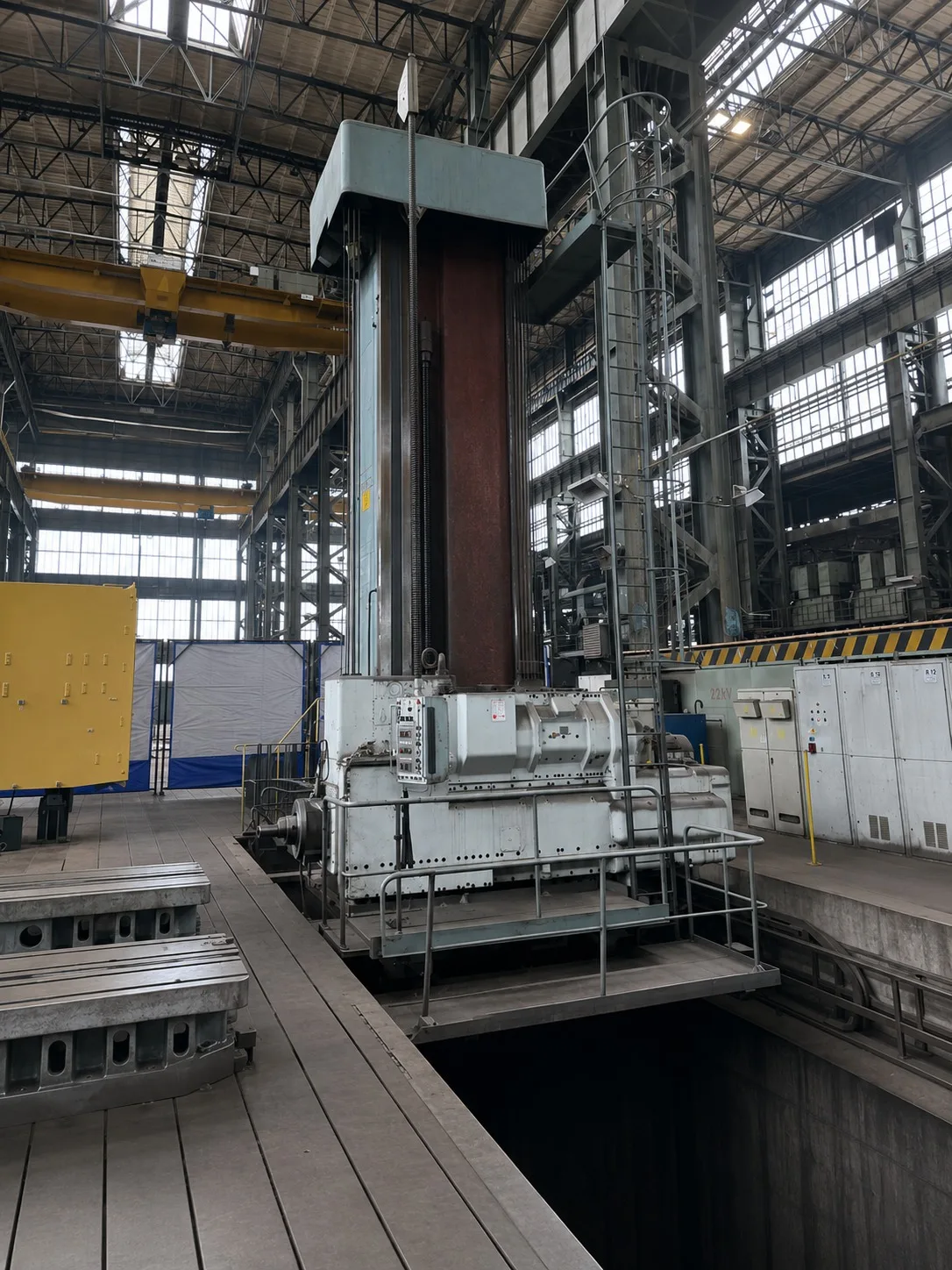

SKODA W 250 H HORIZONTAL BORER FLOOR TYPE
Ref. No.189
- Brand
- SKODA
- Model
- W 250 H
- Condition
- used
ŠKODA W 250 H HORIZONTAL BORER FLOOR TYPE
Brand:Škoda / Škoda Plzeň
Model:W 250 H
YOM:1980
X-axis:5,150 mm
Y-axis:5,150 mm
Z-axis:1,600 mm
W-axis:2,000 mm

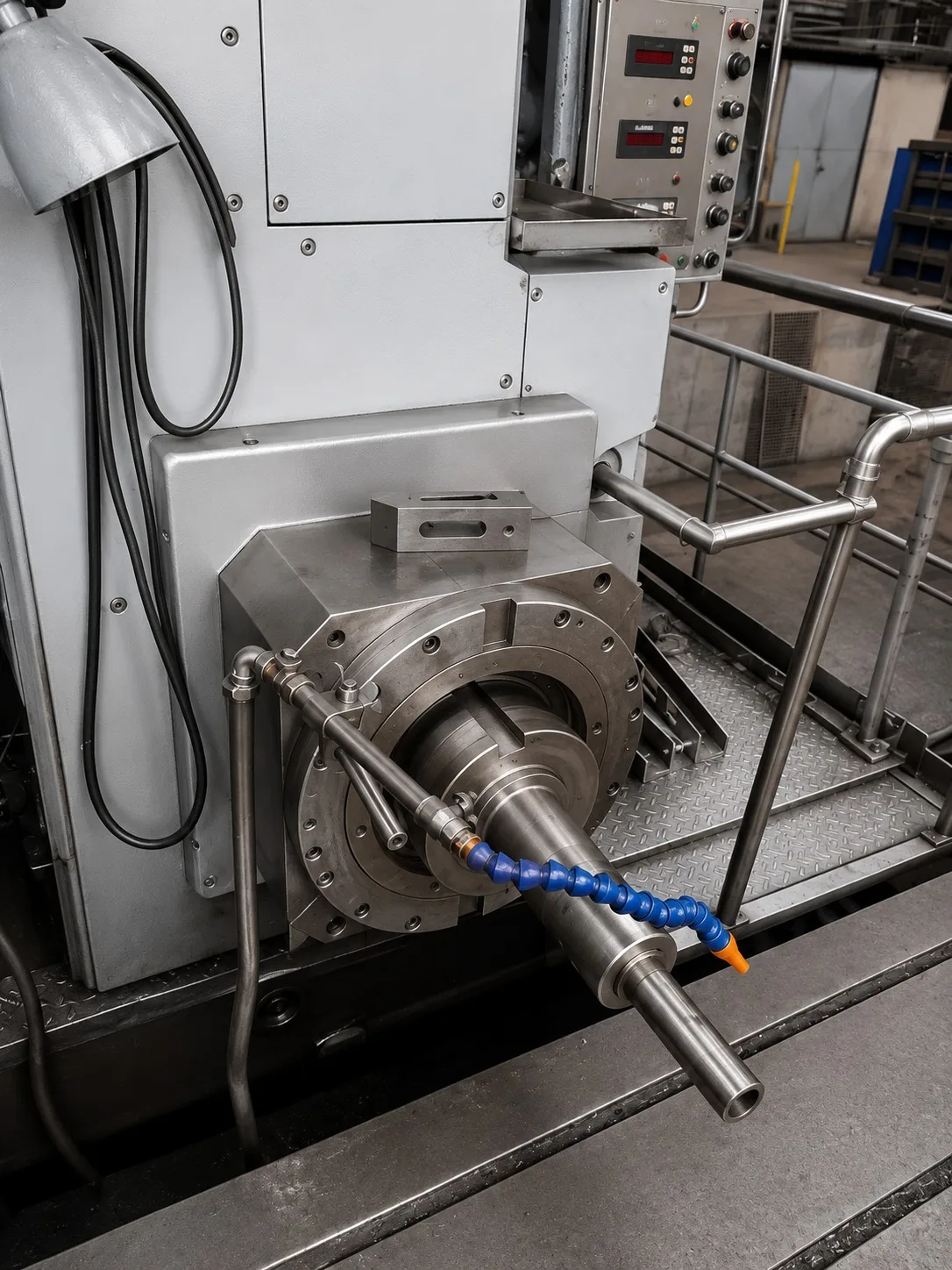

Work spindle diameter:250 mm
Spindle taper:M 140 140 metric
Spindle speed:0.8 – 630 rpm
Maximum torque on spindle axis:34,300 Nm
Bed height:550 mm
Bed guide width:2,500 mm
Lowest spindle axis position above bed guide surface: 1,475 mm
Drilling feeds:0.63 – 125 mm/min, 6.3 – 1,250 mm/min, 12.5 – 2,500 mm/min
Milling feeds spindle head:0.63 – 125 mm/min, 6.3 – 1,250 mm/min, 20 – 4,000 mm/min
Milling feeds column:0.63 – 125 mm/min, 6.3 – 1,250 mm/min, 25 – 5,000 mm/min
Rapid traverse drilling:2,500 mm/min
Rapid traverse milling spindle head:4,000 mm/min
Rapid traverse milling column:5,000 mm/min
Footprint of clamping plates:6,400 x 5,700 mm
Machine footprint without clamping plates: 6,400 x 1,430 mm
Machine height:9,320 mm
Machine weight:105,300 kg
Total machine power consumption:180 kVA

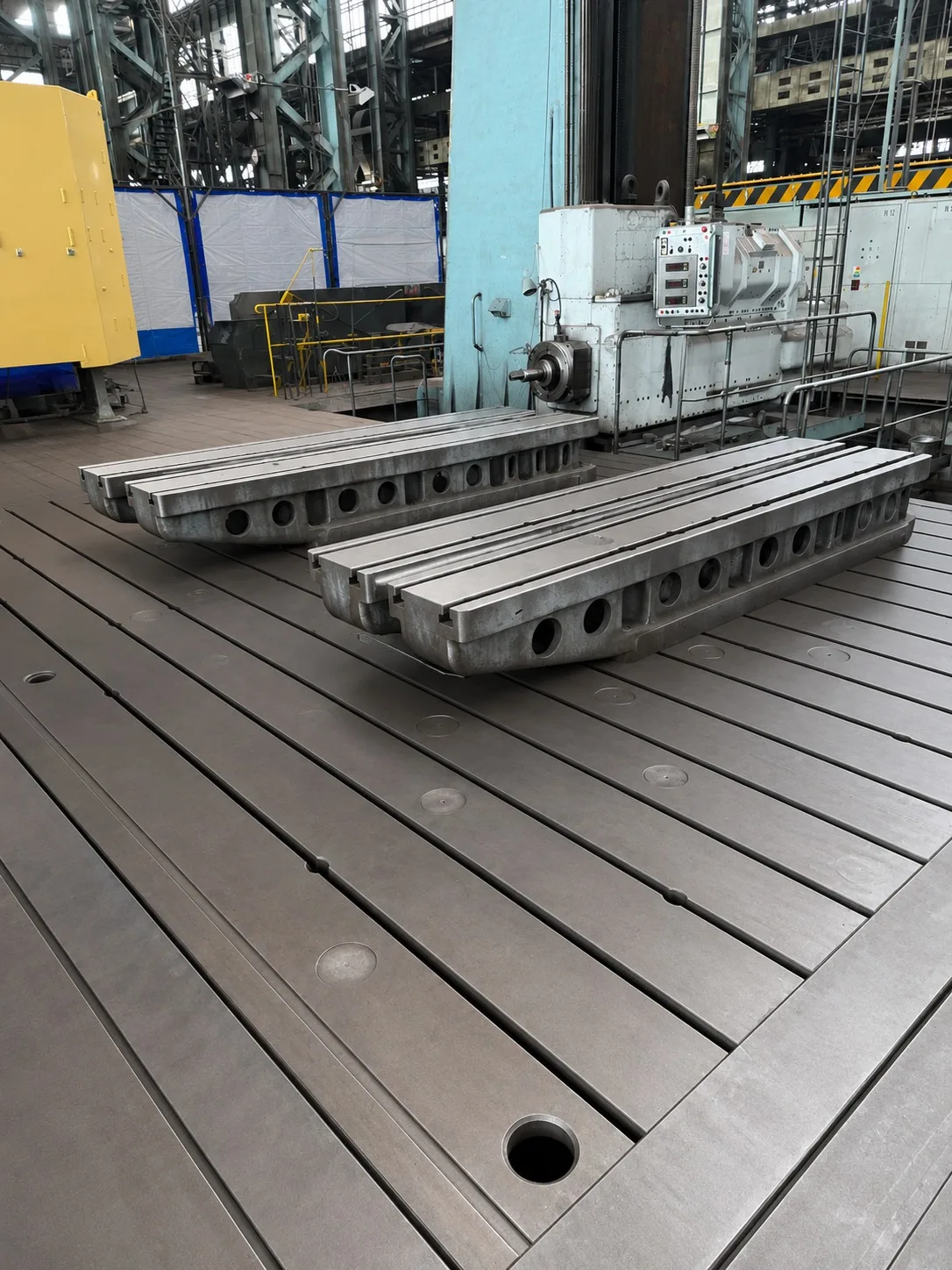

Floor plates:2 pc
Milling head:1 pc
Good technical condition
Machine specifications
- Manufacturer
- SKODA
- Model
- W 250 H
- Condition
- used
- Brand
- Škoda / Škoda Plzeň
- Model
- W 250 H
- Condition
- Good technical condition
- Machine Name
- Horizontal Borer Floor Type
- Machine Weight
- 105300 kg
- Power Consumption
- 180 kVA
- Year Of Manufacture
- 1980
