STRAIGHT BEVEL GEAR GENERATOR (REVACYCLE)
Ref. No.117
- Brand
- GLEASON
- Model
- NO. 725
- Condition
- used
- Stock number
- NMC/26/125

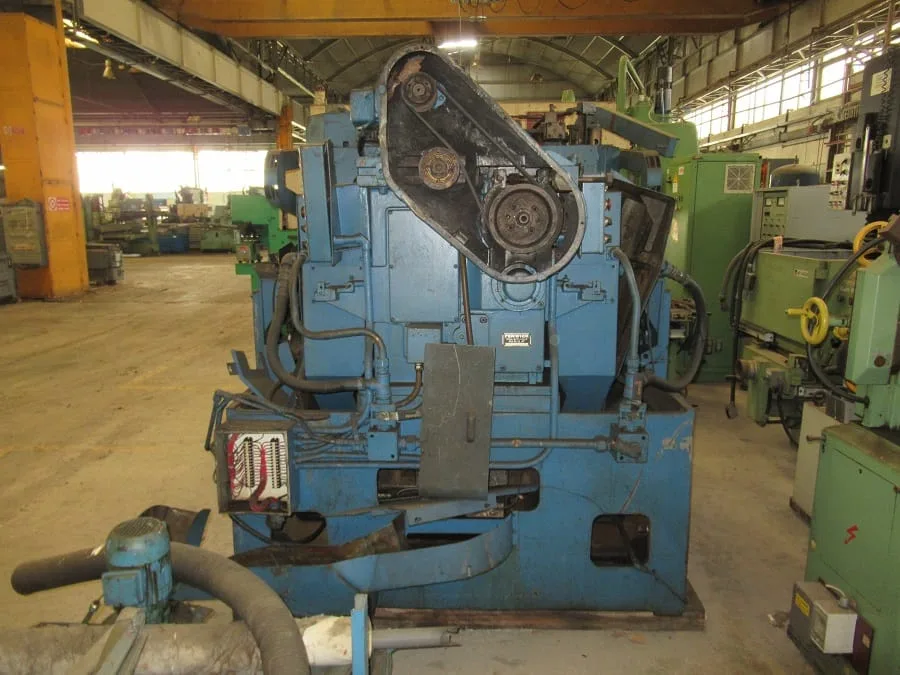

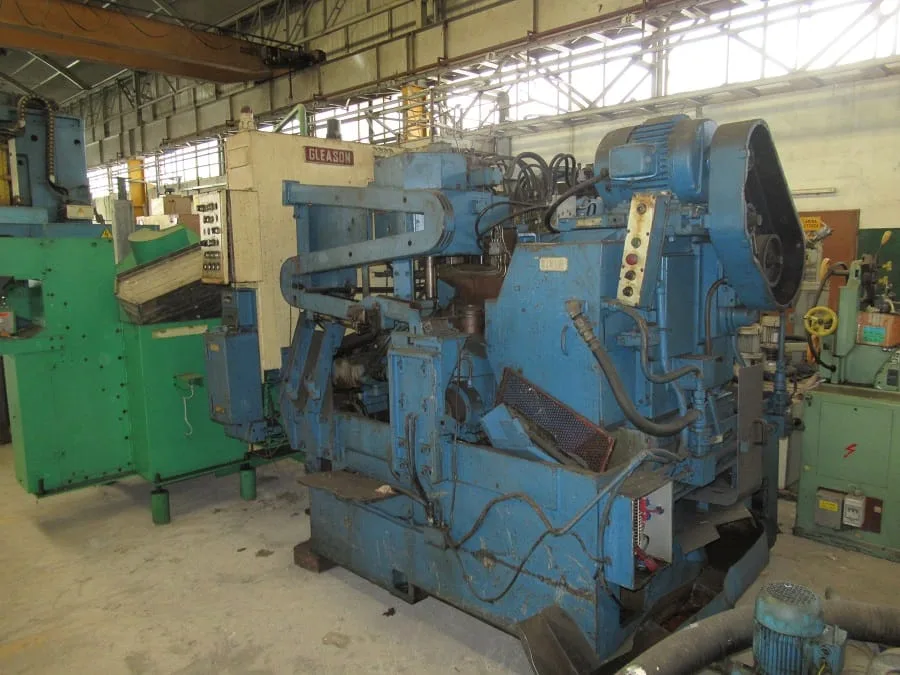

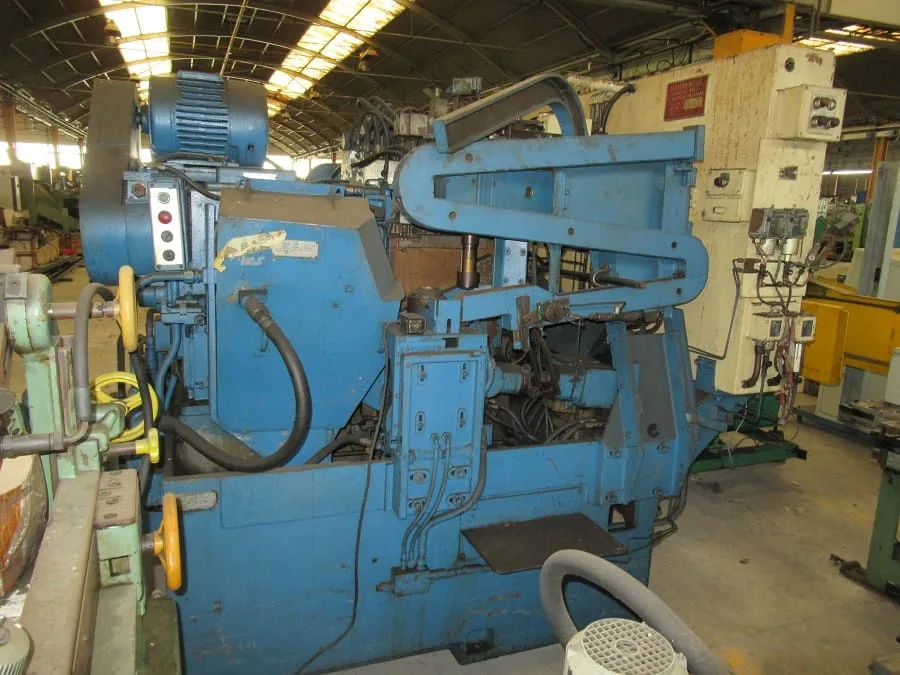

STRAIGHT BEVEL GEAR GENERATOR ( REVACYCLE)
GLEASON NO. 725
SPECIFICATIONS:
Pitch Diameter- Manual:152mm
Gear diameter 152mm
Face Width At Root-21 Inch Cutters:28mm
Index Range:8-50
Work Spindle:
Diameter Of Tapered Hole At Large End:99.22mm
Taper Per Foot:15.48mm
Depth Of Taper:15.8mm
Counterbore Behind Taper:57.2 X 77.9 mm
Diameter Of Hole Through Spindle:22.3mm
Feeds And Speeds:
Cutter Speeds 21 Inch Cutters:107-163 FT/Min.
Feeds 21 Inch Cutters:2.0-3.1 Sec/Tool
Main Drive Motor-10HP:1800 RPM
Hydraulic Motor-7.5HP:1800 RPM
Machine Dimensions L X W Automatic:3.2 X 2.26m
Machine specifications
- Manufacturer
- GLEASON
- Model
- NO. 725
- Condition
- used
- Serial / Stock Number
- NMC/26/125
- Name
- STRAIGHT BEVEL GEAR GENERATOR (REVACYCLE)
- Type
- Manual / Revacycle
- Brand
- GLEASON
- Model
- NO. 725
- Category
- Gear Machinery
- Subcategory
- Gear Generator
