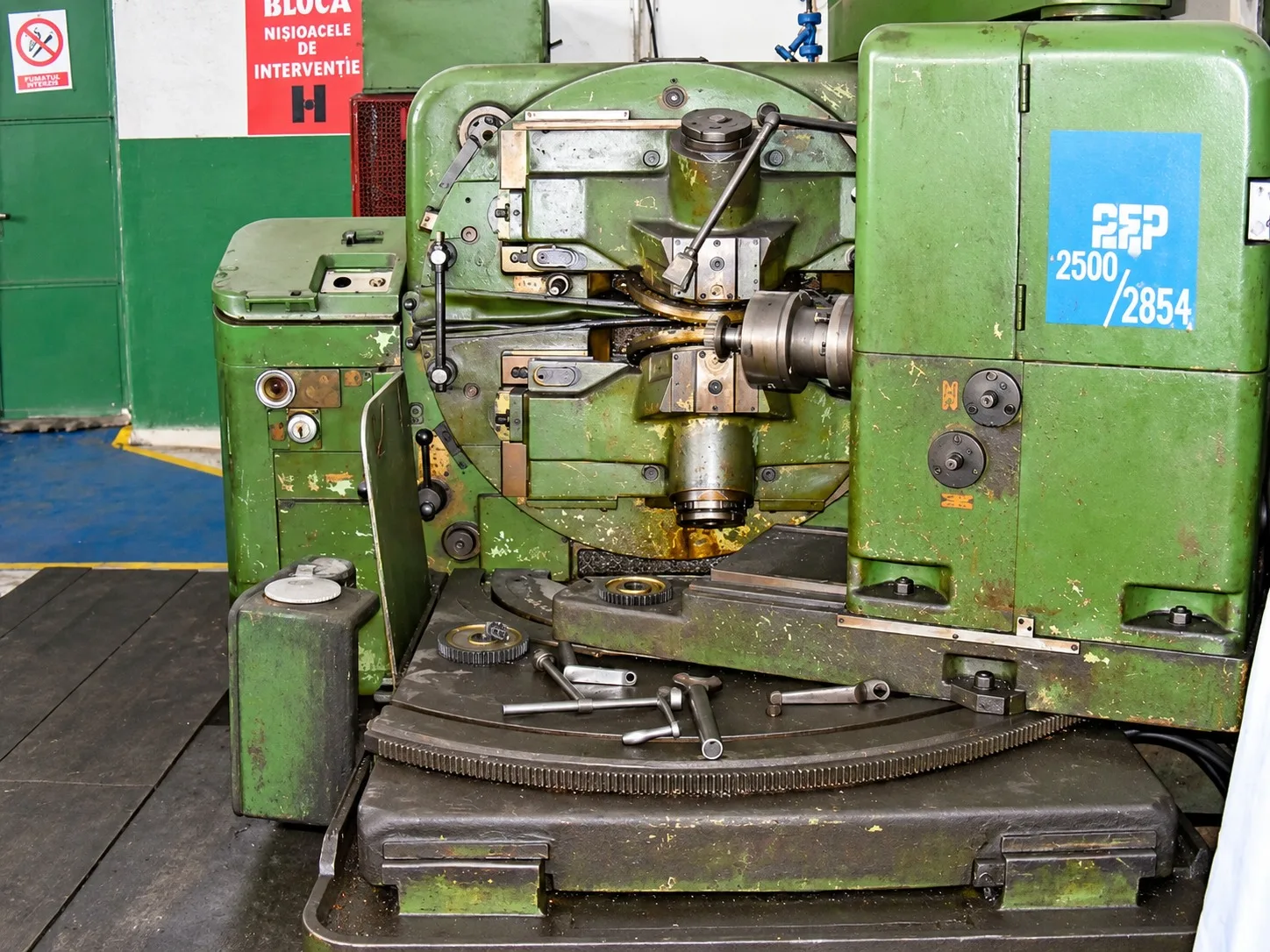

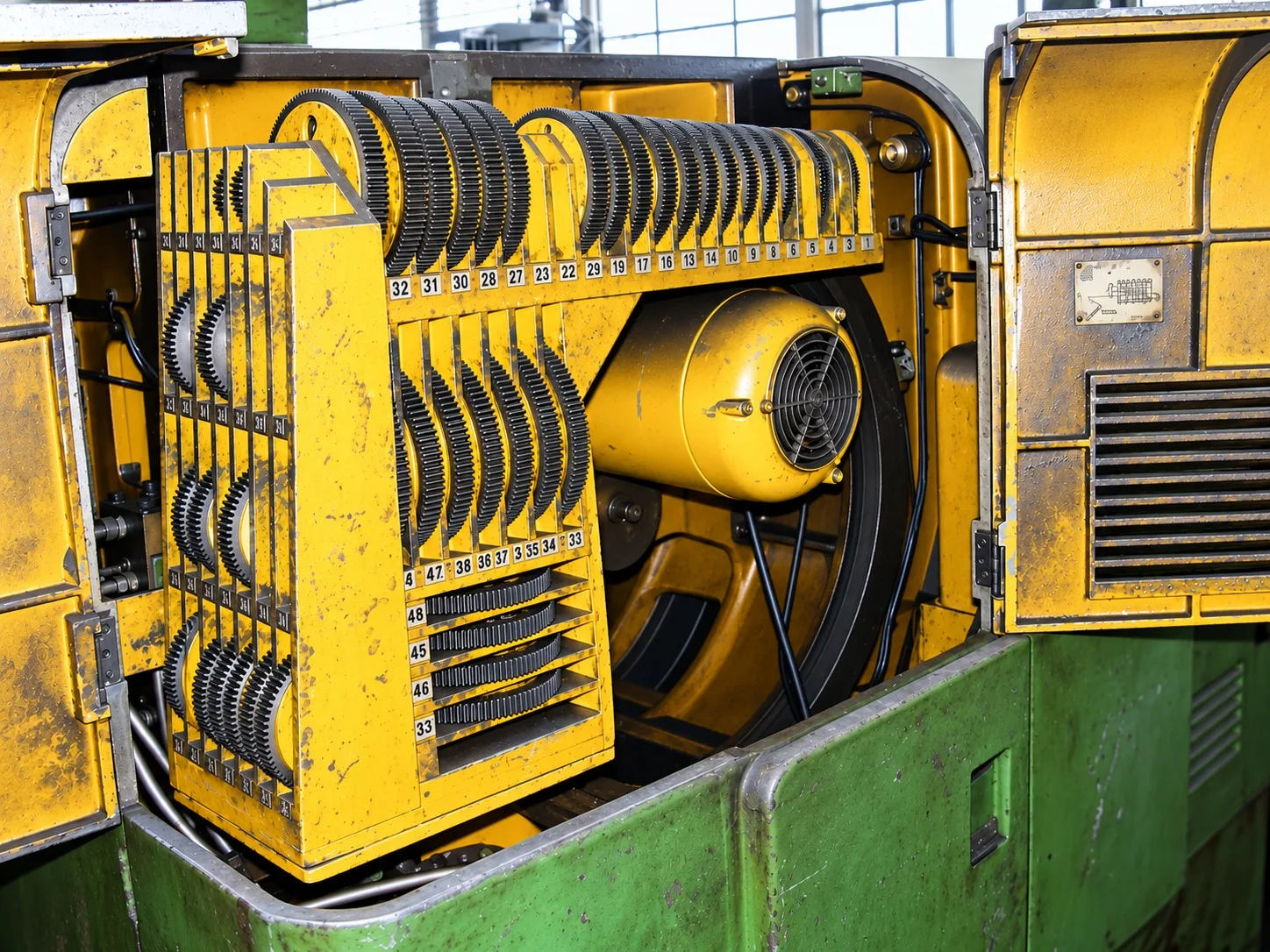

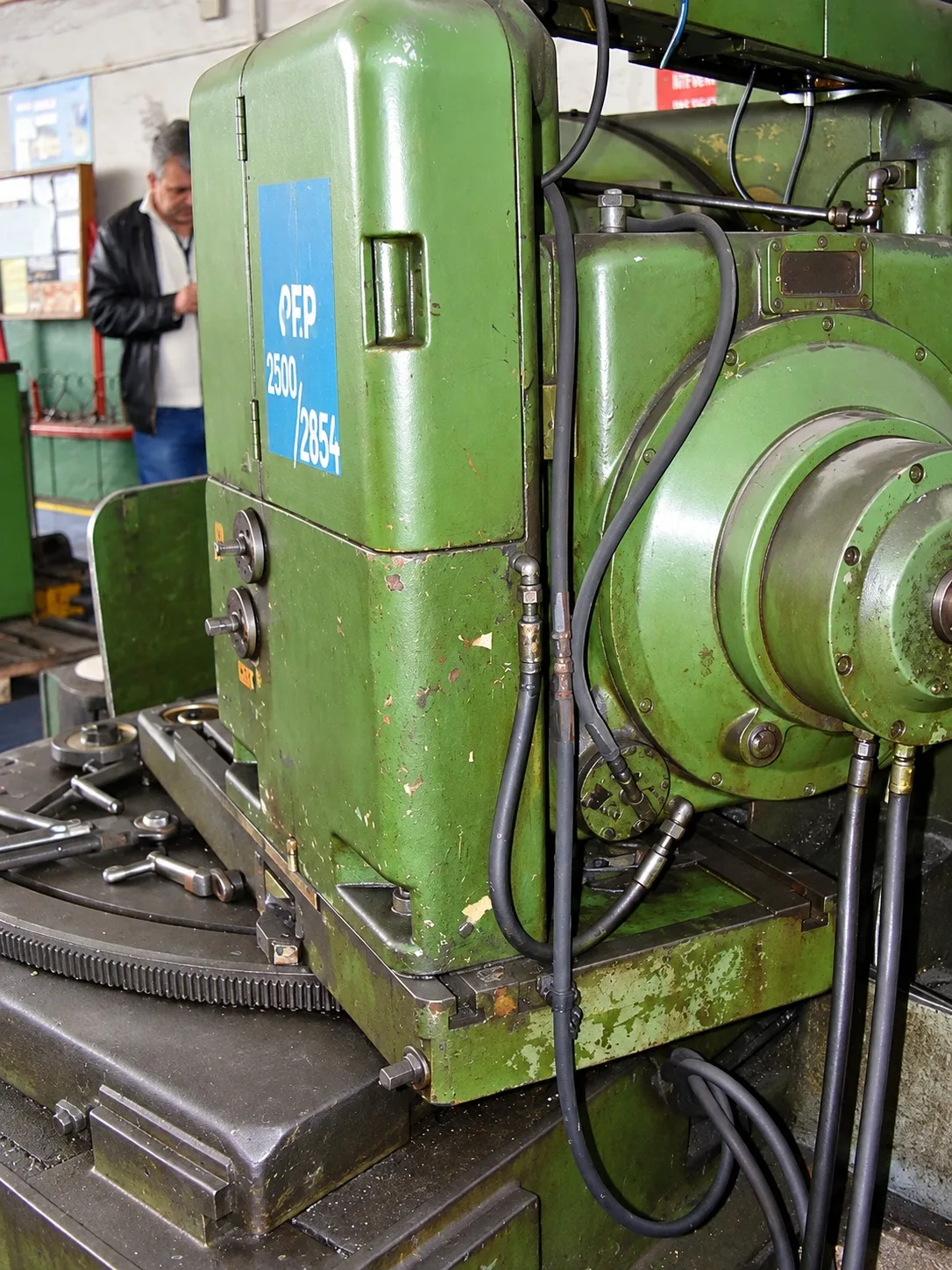

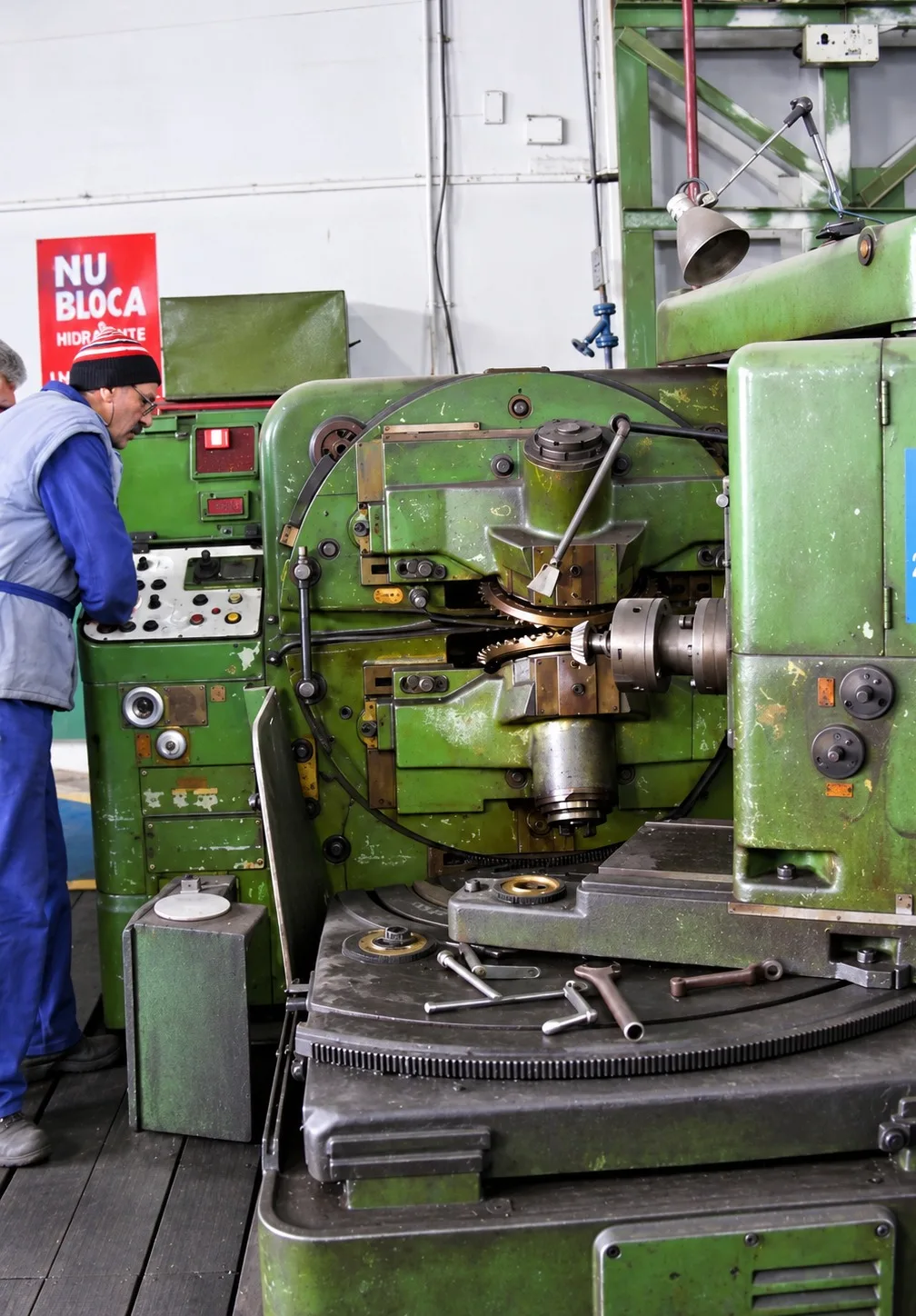

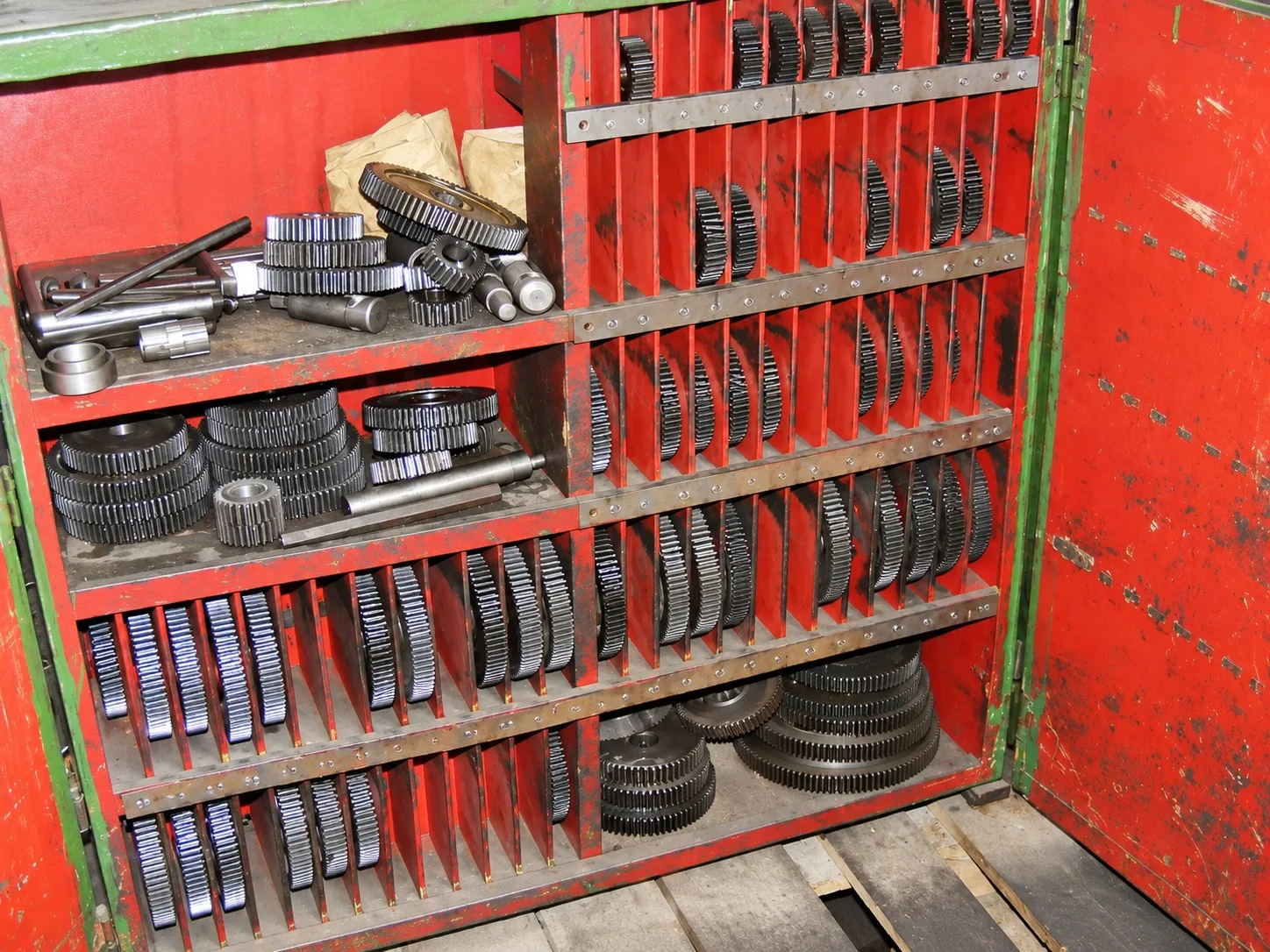

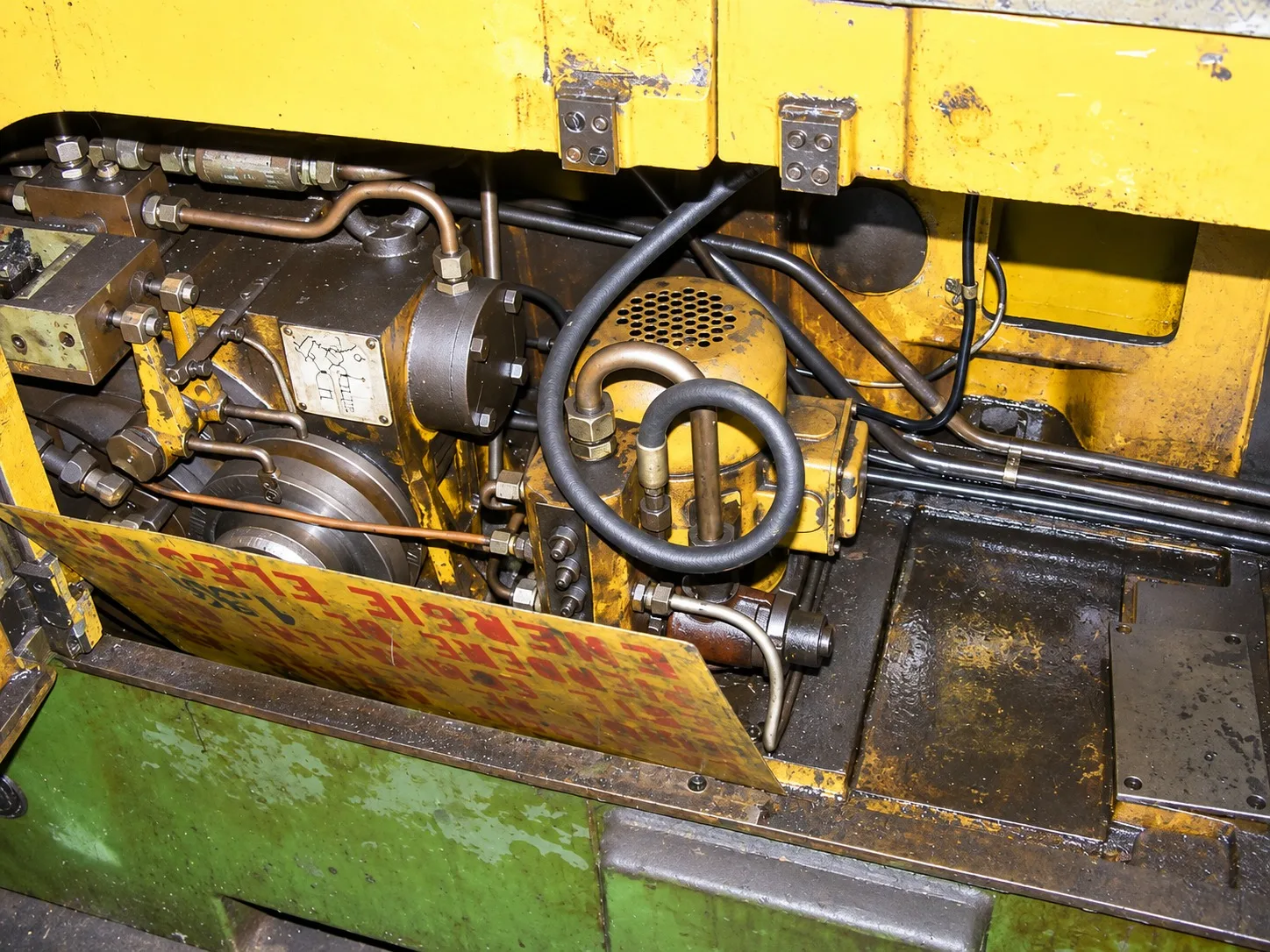

Straight Bevel Gear Generator WMW-Modul ZFTK 500x10
Ref. No.258
- Brand
- WMW-Modul
- Model
- ZFTK 500x10
- Condition
- used

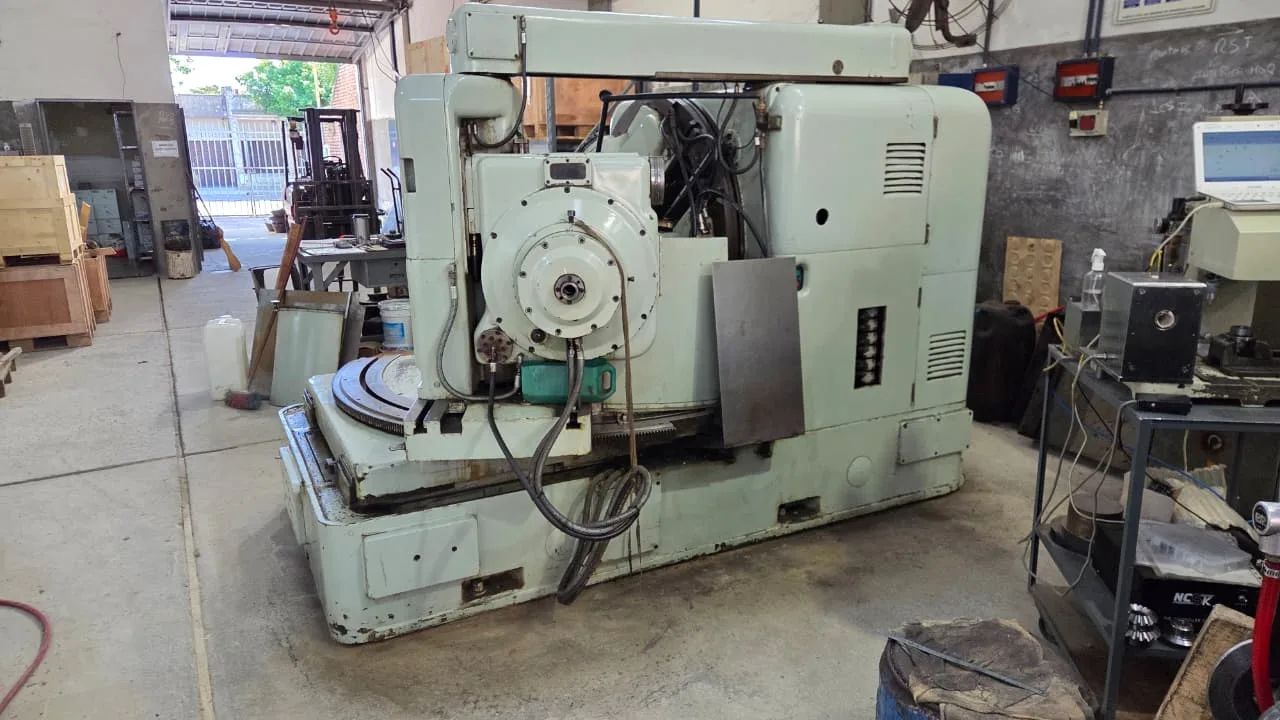

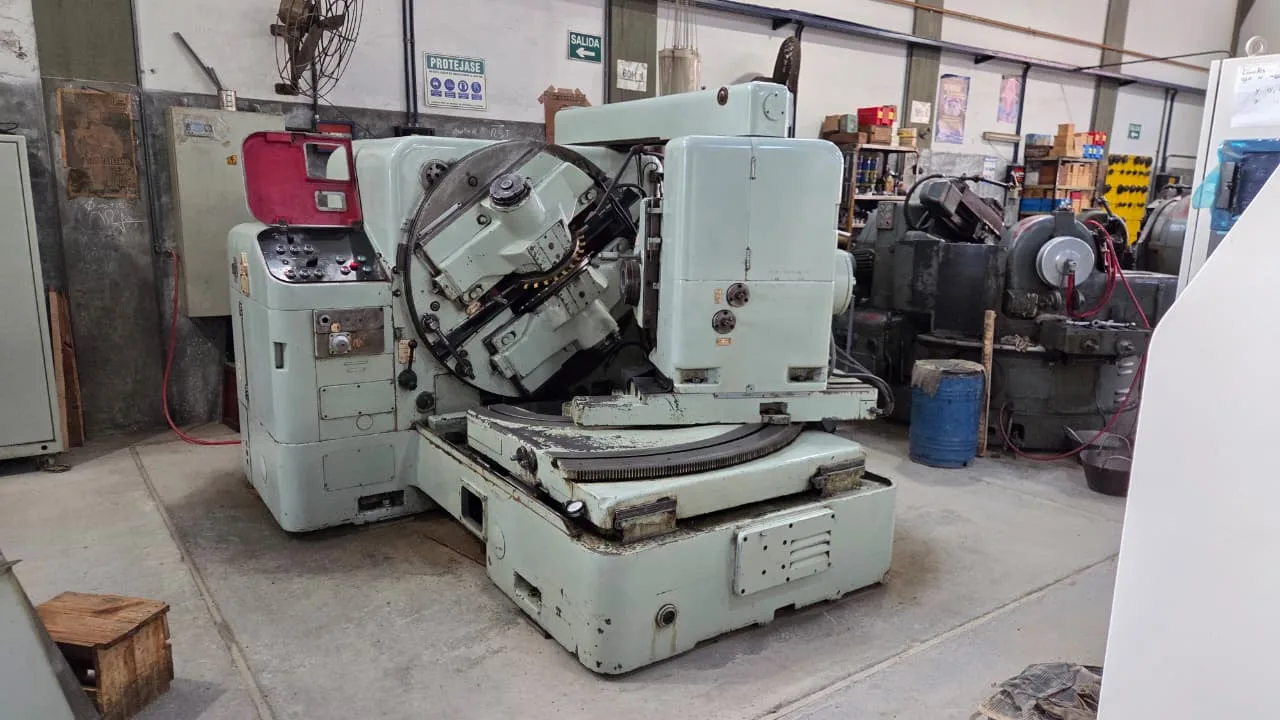

Straight Bevel Gear Generator
Brand:WMW-MODUL
Model:ZFTK 500x10
Maximum Workpiece Diameter:500 mm
Maximum External End Module of the Toothing Gears: 12 mm
Maximum Radial Displacement of the Gear Cutting Heads: 220 mm
Maximum Width of the Gear Frame, of the Toothing Gears: 80 mm
Minimum Angle of Dividing Taper:10 degrees
Number of Teeth of the Toothing Gears:10-150
Headstock Diameter of Spindle Taper Bore: 153 mm
Distance Between End of Spindle Headstock and the Center of Semiautomat: 135-410 mm
Nominal Diameter of the Gear Cutting Heads: 450 mm
Revolution Frequency of the Instrumental Spindles: 23-56 rpm
Angular Velocity of the Running-Feeding:0.54-5.5 deg.
Machine Weight:12 Ton
Condition:Excellent Working Condition
Machine specifications
- Manufacturer
- WMW-Modul
- Model
- ZFTK 500x10
- Condition
- used
- Brand
- WMW-MODUL
- Model
- ZFTK 500x10
- Category
- Gear Cutting Machines
- Condition
- Excellent Working Condition
- Subcategory
- Bevel Gear Generating Machines
- Machine Name
- Straight Bevel Gear Generator
- Machine Weight
- 12 Ton
- Maximum Workpiece Diameter
- 500 mm
- Minimum Angle Of Dividing Taper
- 10 degrees
- Number Of Teeth Of The Toothing Gears
- 10-150
- Angular Velocity Of The Running Feeding
- 0.54-5.5 deg.
- Headstock Diameter Of Spindle Taper Bore
- 153 mm
- Nominal Diameter Of The Gear Cutting Heads
- 450 mm
- Maximum External End Module Of The Toothing Gears
- 12 mm
- Revolution Frequency Of The Instrumental Spindles
- 23-56 rpm
- Maximum Radial Displacement Of The Gear Cutting Heads
- 220 mm
- Maximum Width Of The Gear Frame Of The Toothing Gears
- 80 mm
- Distance Between End Of Spindle Headstock And The Center Of Semiautomat
- 135-410 mm
