USED CNC LATHE HD/3 105H S
Ref. No.141
- Brand
- TACCHI
- Model
- HD/3 105H S
- Condition
- used

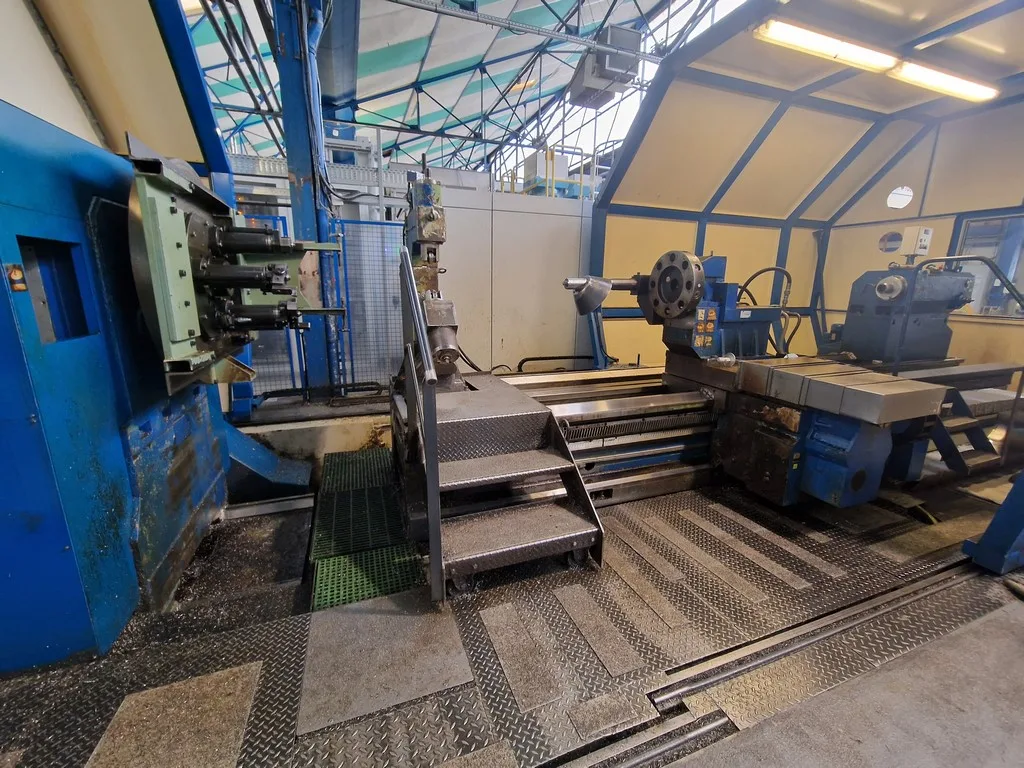

USED CNC LATHE, Brand:TACCHI, Model: HD/3 105H S.
CNC upgraded with Siemens 840 D in 2014.
Center height:800 mm.
Swing diameter on the bed:1500 mm.
Swing diameter on the carriage:1100 mm.
Bed wide:750 mm.
Distance between the centers:6500 mm.

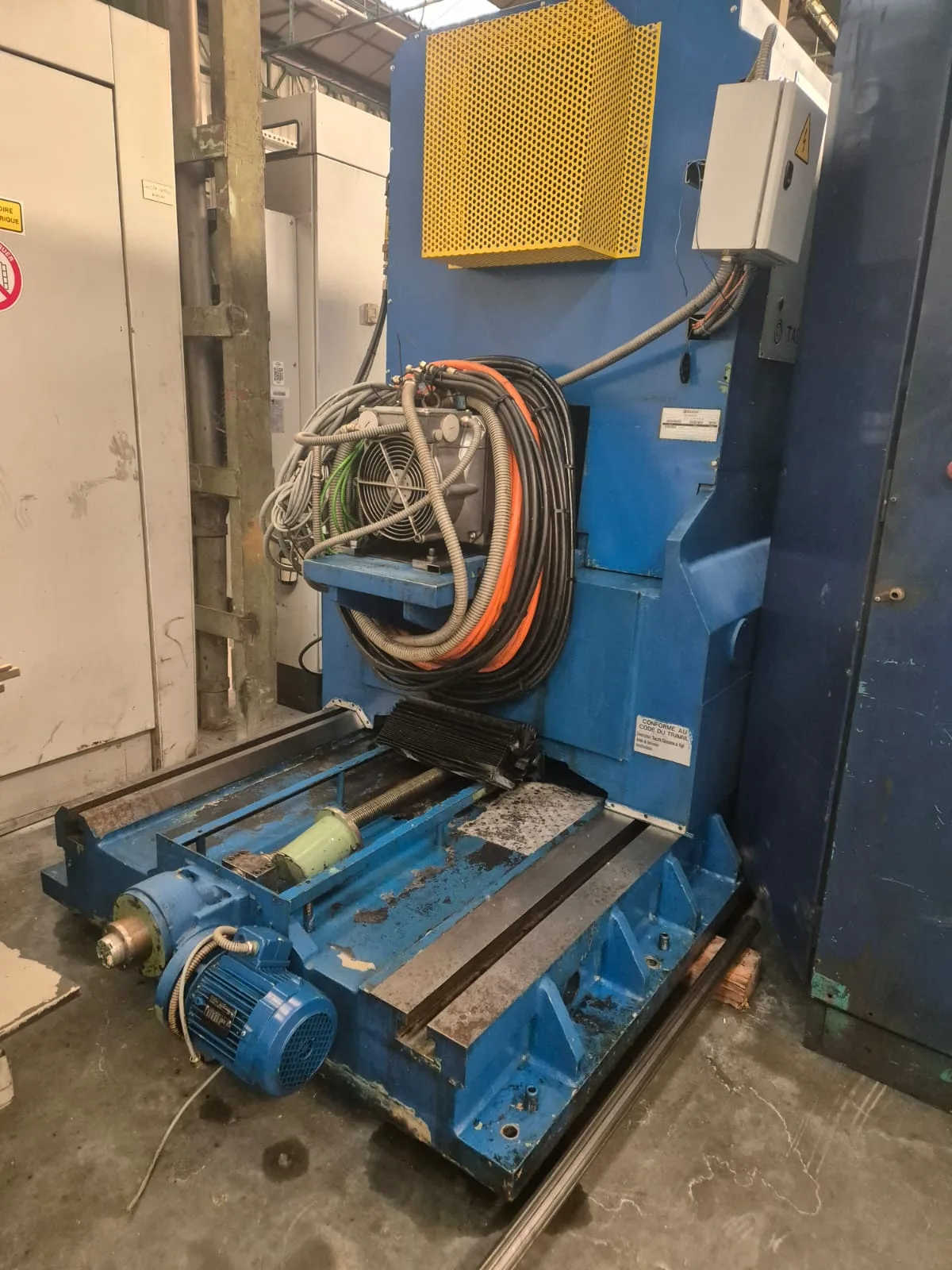

Sliding headstock stroke:1500 mm.
Spindle bore:220 mm.
Spindle nose:15".
Spindle speed:2-720 rpm.
Spindle power:75 kW.
Number of gears:3.
Max power from 26 to 720 rpm.
Torque:1300 Kgm.
Max load without steady:11000 kg.
Max load on the table:2900 kg.
Boring bar support.
Hydraulic follow rest.

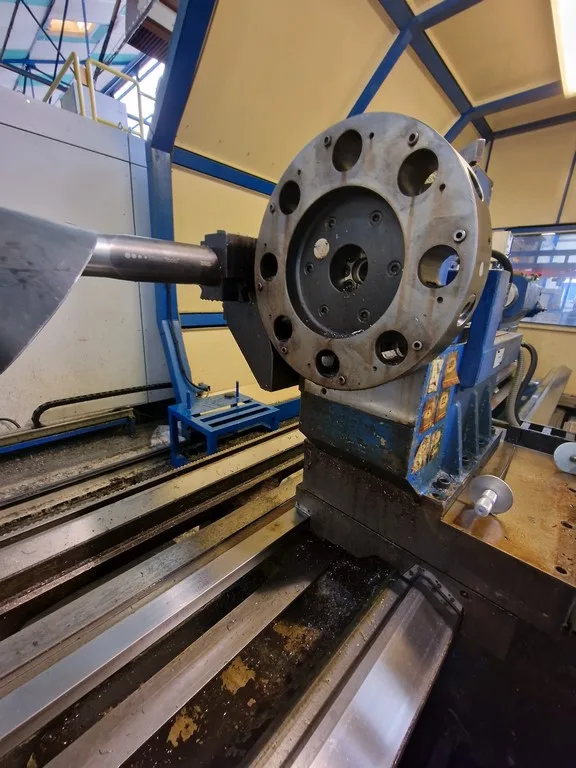

12 positions turret.
Machine specifications
- Manufacturer
- TACCHI
- Model
- HD/3 105H S
- Condition
- used
- Brand
- TACCHI
- Model
- HD/3 105H S
- Bed Width
- 750 mm
- Max Torque
- 1300 Kgm
- CNC Upgrade
- Siemens 840 D (2014)
- Spindle Bore
- 220 mm
- Spindle Nose
- 15"
- Center Height
- 800 mm
- Spindle Power
- 75 kW
- Spindle Speed
- 2-720 rpm
- Number Of Gears
- 3
- Turret Positions
- 12
- Max Load On Table
- 2900 kg
- Swing Diameter On Bed
- 1500 mm
- Max Load Without Steady
- 11000 kg
- Distance Between Centers
- 6500 mm
- Sliding Headstock Stroke
- 1500 mm
- Swing Diameter On Carriage
- 1100 mm
