Vertical Gantry Machining Center
Ref. No.239
- Brand
- WELE
- Model
- SB-316
- Condition
- used

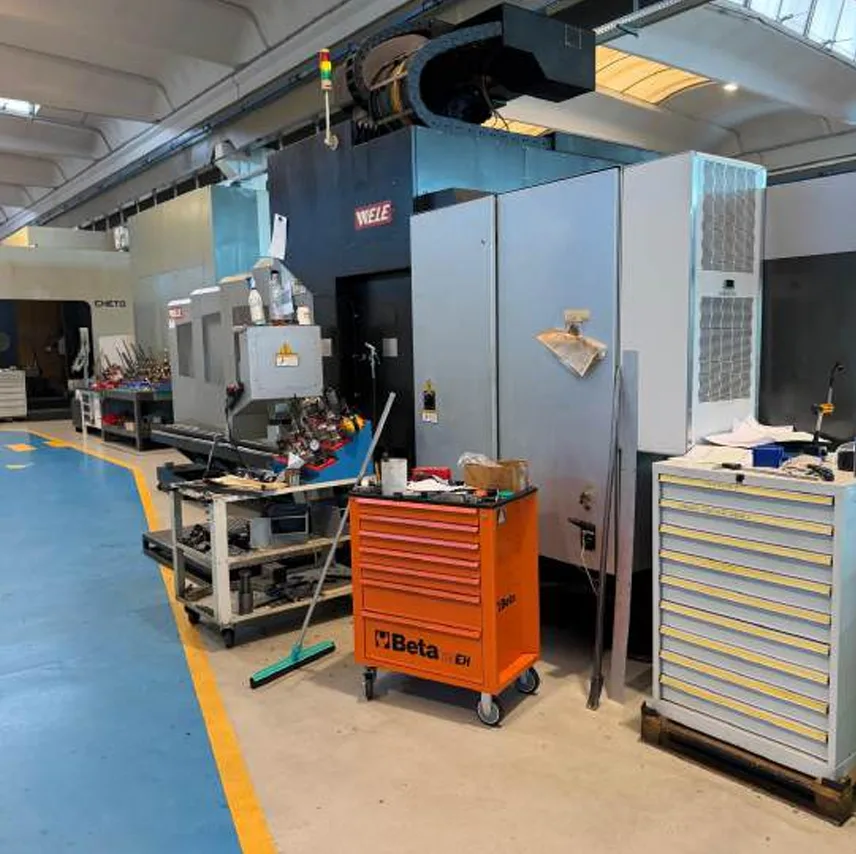

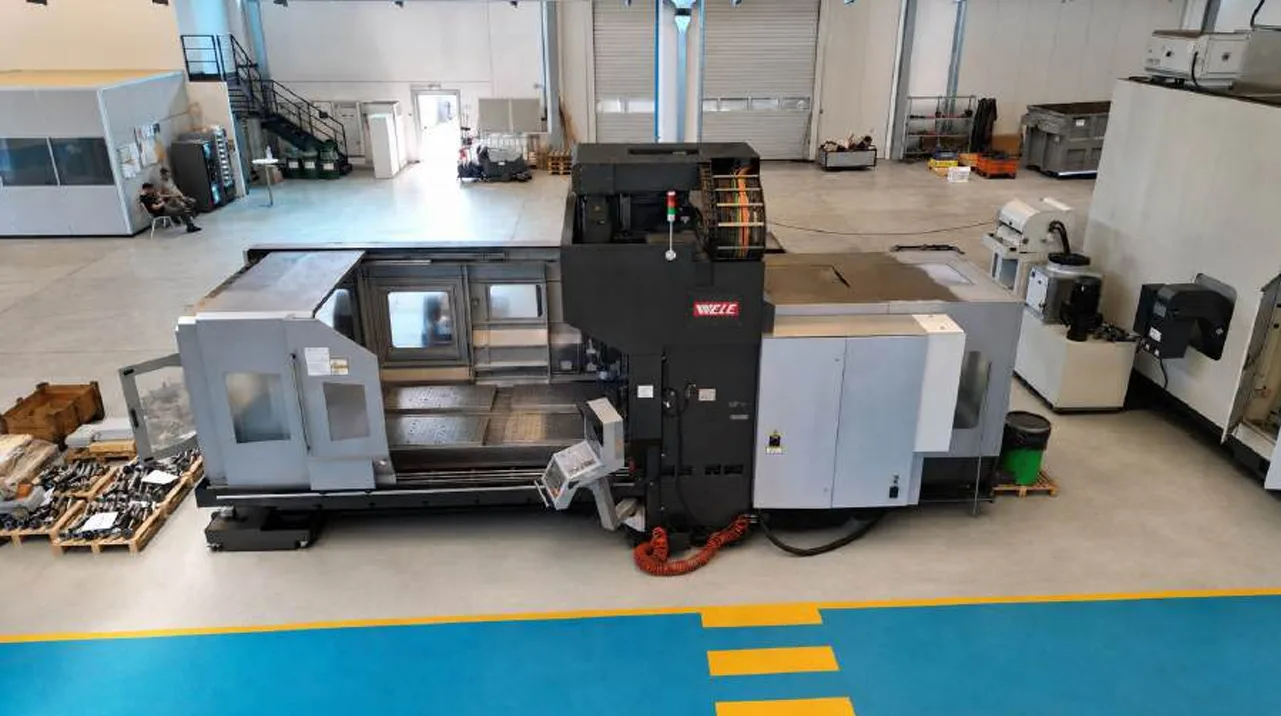

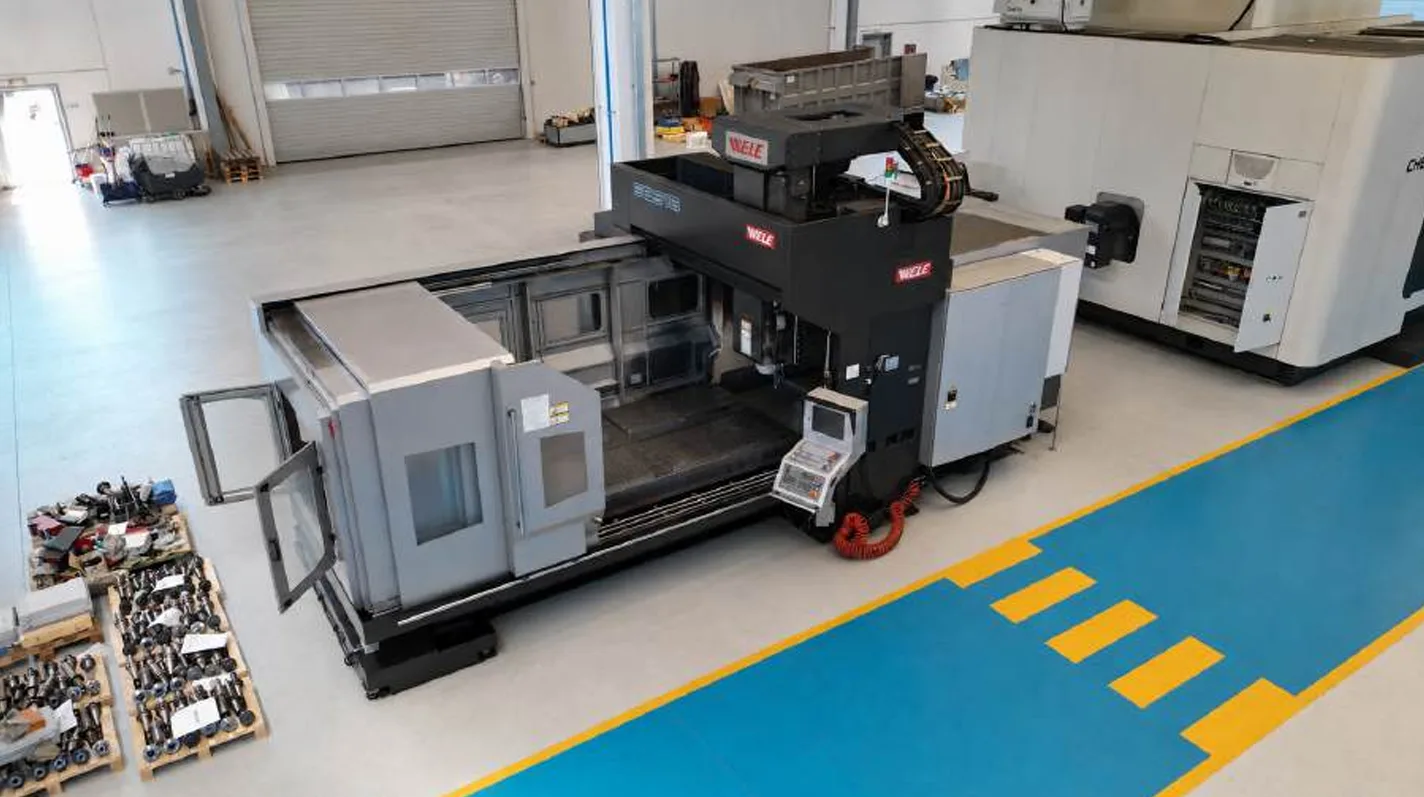

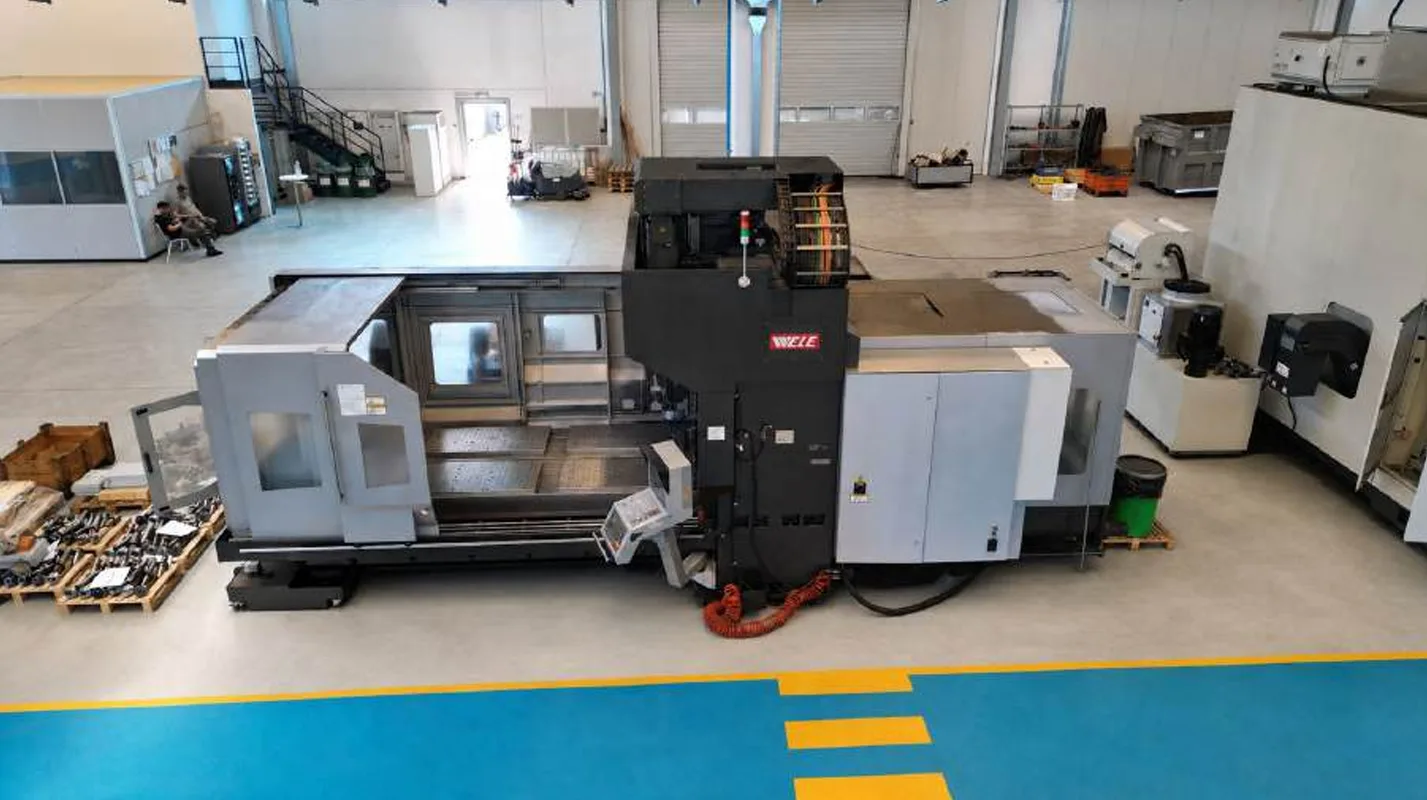

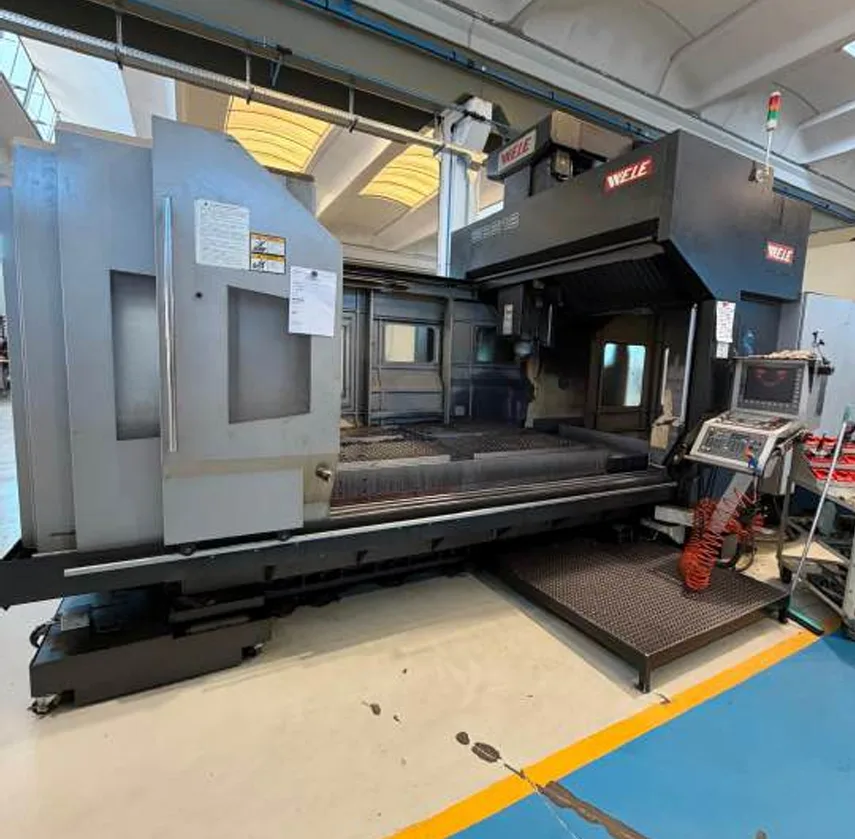

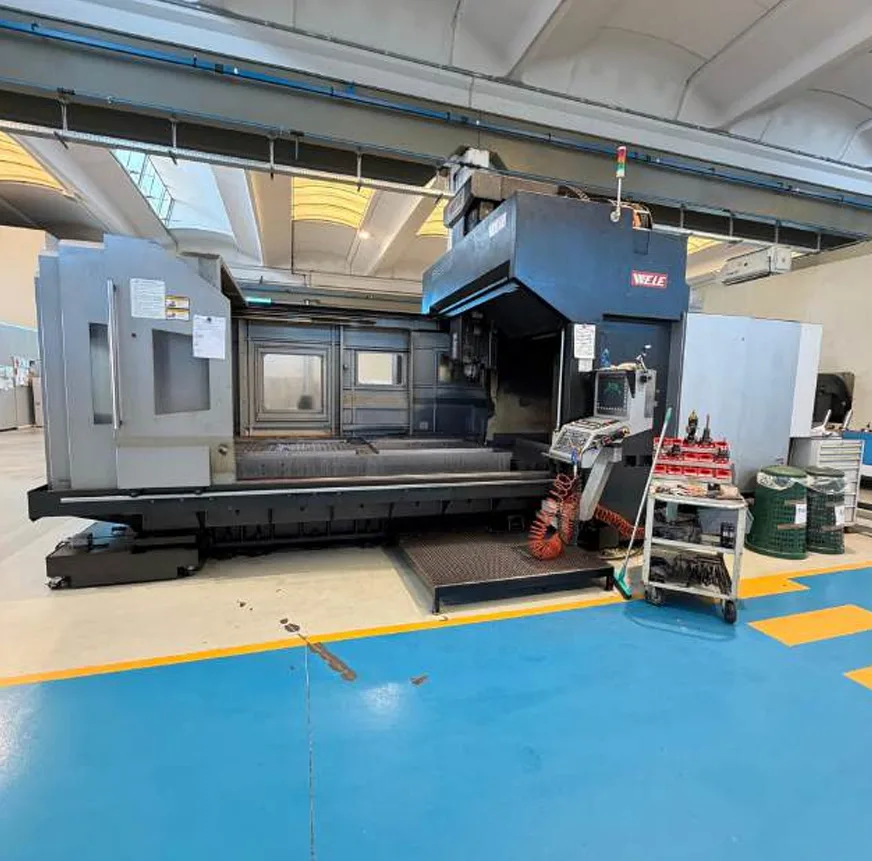

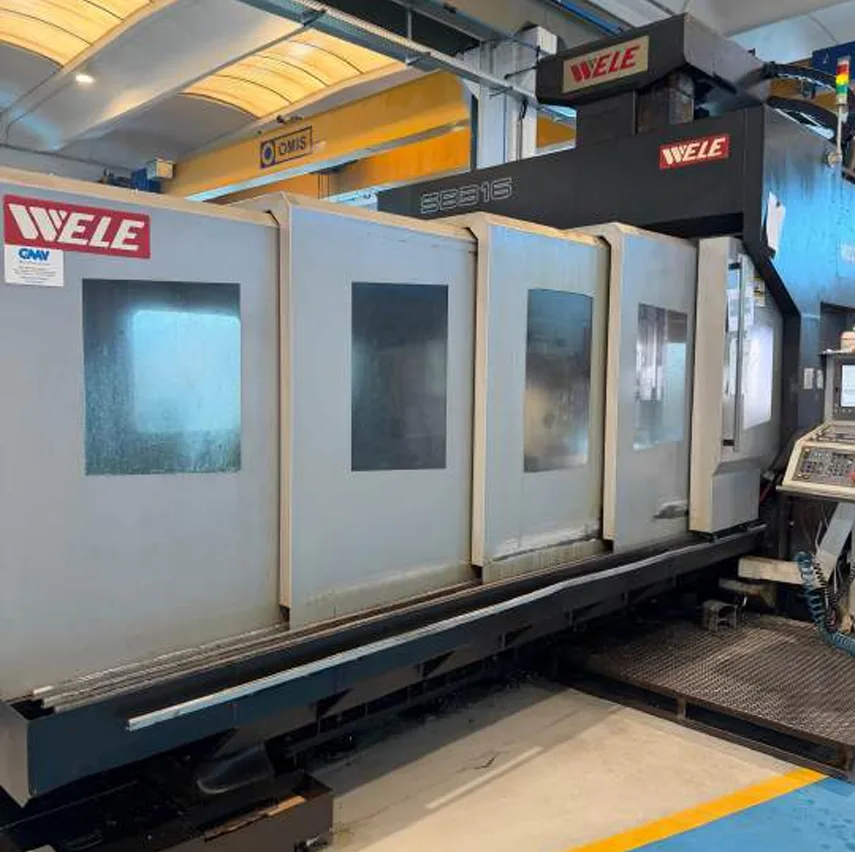

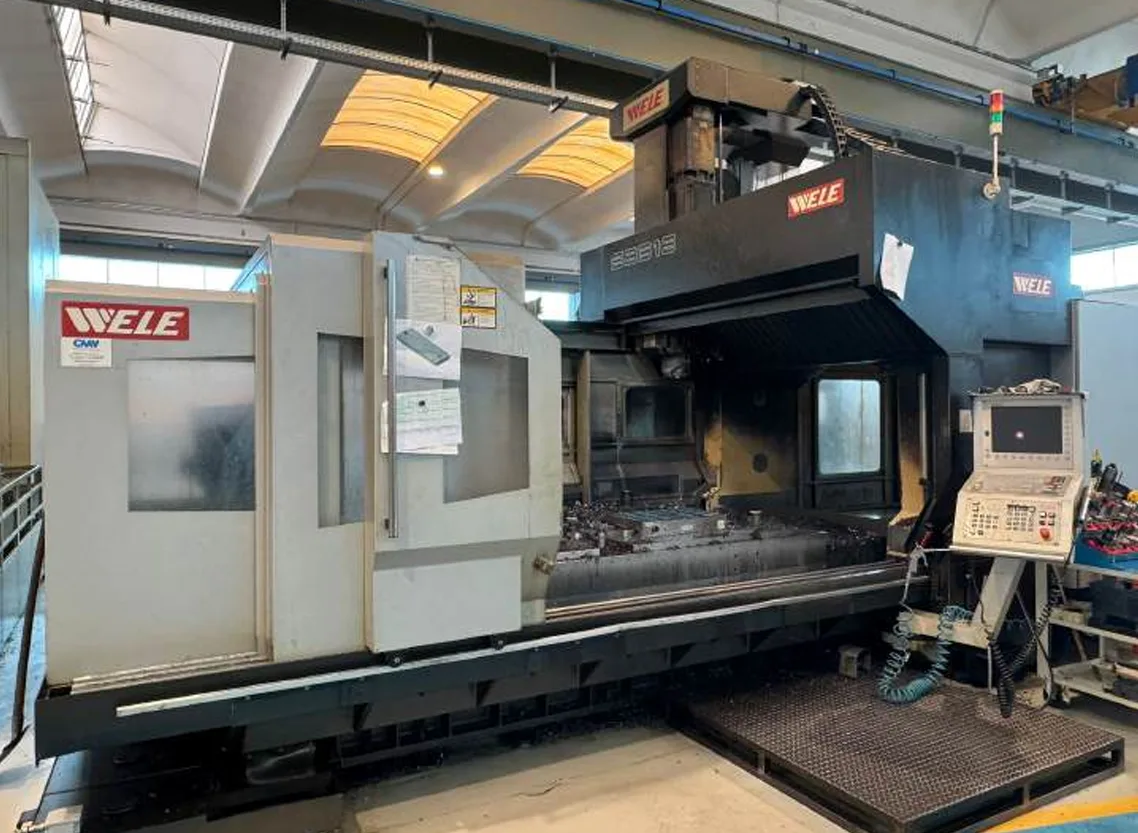

Vertical Gantry Machining Center
Brand:WELE
Model:SB-316
Year:2017
Control:HEIDENHAIN ITNC 530
Table Size:3000 × 1500 mm
T-Slot/Pitch Size:22 × 170 × 9 mm
Table Load Capacity:10000 kg
X-Axis Travel:3060 mm
Y-Axis Travel:1600 mm
Z-Axis Travel:800 mm
Spindle Nose:BT50 ISO
Spindle Speed:10-6000 rpm
Motor Power:22-26 kW
Rapid Traverse X, Y, Z:24000/24000/10000 mm/min
Tool Stations:32 no.
Distance Between Table Surface and Spindle Nose: 400–1200 mm
Distance Between Columns:1700 mm
Positioning Accuracy:±0.005 mm
Repeatability:±0.003 mm
Machine Dimensions (L × W × H):8310 × 3790 × 4350 mm
Machine Weight:27 Ton
Features:
- 200 mm Column Extension
- Rigid Tapping and Helical Interpolation
- Gear-Driven Spindle Head
- 20-Bar High-Pressure Coolant System
- Full Enclosure
- XYZ Linear Scales
- Belt-Type Chip Conveyor
- Through-Spindle Air
Machine specifications
- Manufacturer
- WELE
- Model
- SB-316
- Condition
- used
- Year
- 2017
- Brand
- WELE
- Model
- SB-316
- Control
- HEIDENHAIN ITNC 530
- Category
- CNC Machines
- Features
- 200 mm Column Extension, Rigid Tapping and Helical Interpolation, Gear-Driven Spindle Head, 20-Bar High-Pressure Coolant System, Full Enclosure, XYZ Linear Scales, Belt-Type Chip Conveyor, Through-Spindle Air
- Table Size
- 3000 × 1500 mm
- Motor Power
- 22-26 kW
- Subcategory
- Portal Milling Machines
- Machine Name
- Vertical Gantry Machining Center
- Spindle Nose
- BT50 ISO
- Repeatability
- ±0.003 mm
- Spindle Speed
- 10-6000 rpm
- Tool Stations
- 32 no.
- X Axis Travel
- 3060 mm
- Y Axis Travel
- 1600 mm
- Z Axis Travel
- 800 mm
- Machine Weight
- 27 Ton
- T Slot Pitch Size
- 22 × 170 × 9 mm
- Table Load Capacity
- 10000 kg
- Positioning Accuracy
- ±0.005 mm
- Rapid Traverse X Y Z
- 24000/24000/10000 mm/min
- Distance Between Columns
- 1700 mm
- Machine Dimensions L W H
- 8310 × 3790 × 4350 mm
- Distance Between Table Surface And Spindle Nose
- 400–1200 mm
