Vertical Machining Center Gantry
Ref. No.240
- Brand
- KENT
- Model
- BKV20-42
- Condition
- used

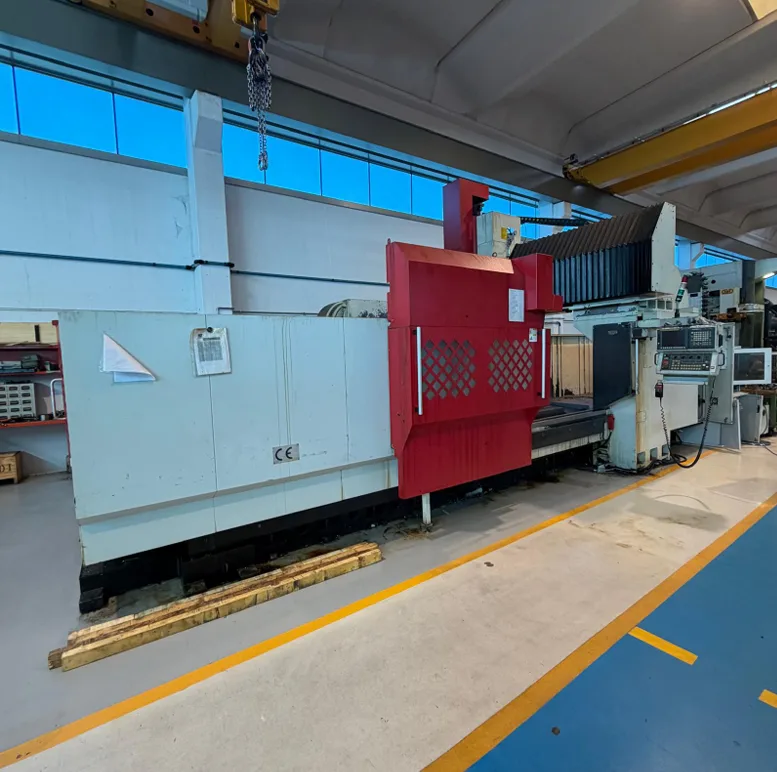

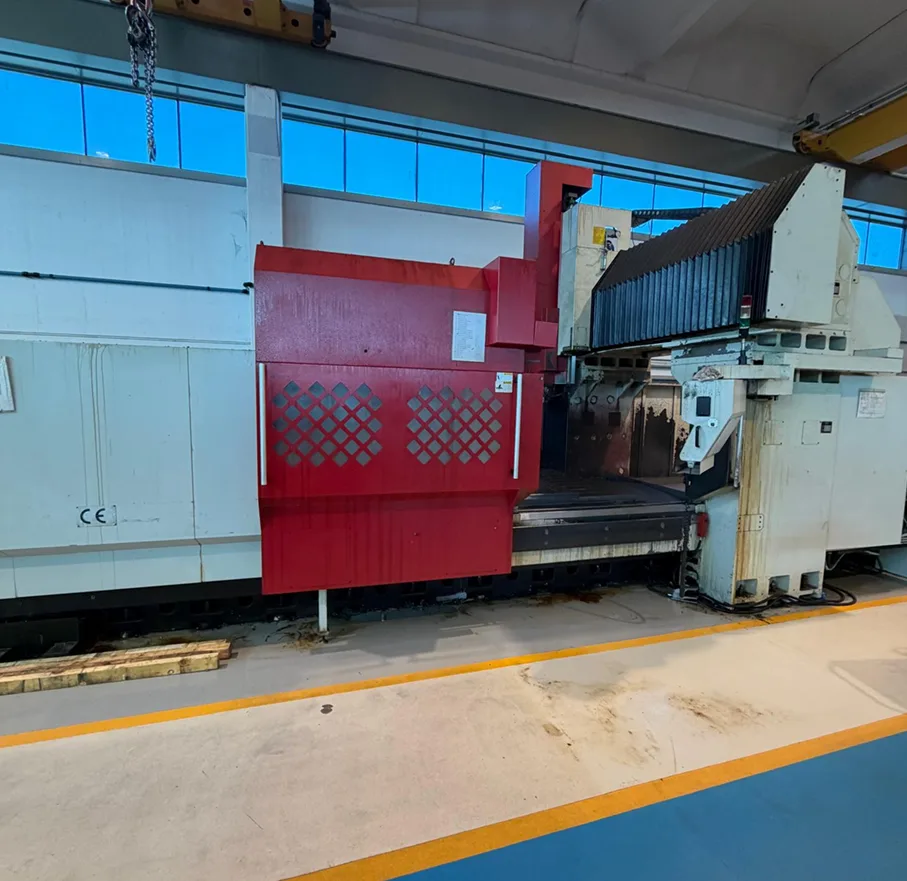

Vertical Machining Center Gantry

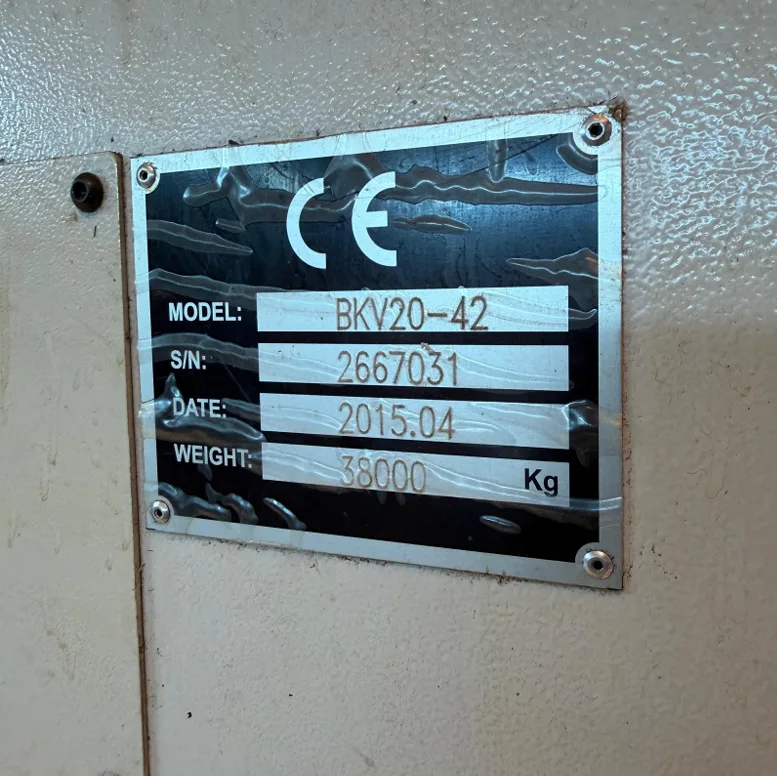

Brand:KENT
Model:BKV20-42
Year:2015

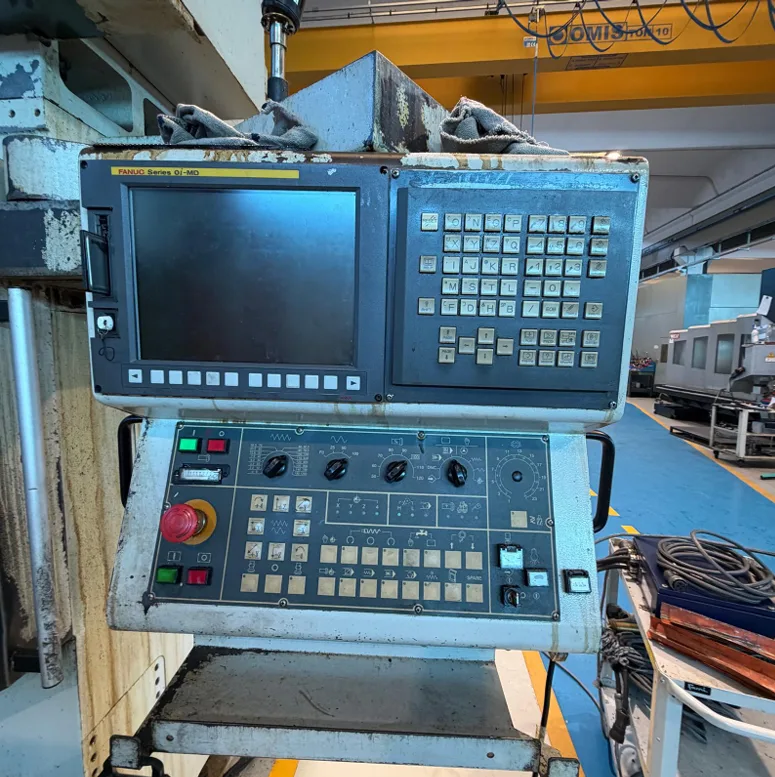

Control:Fanuc 0iMD
Column Rise:200 mm
X-Axis Travel:4200 mm
Y-Axis Travel:2000 mm
Z-Axis Travel:900 mm
Spindle Taper:BT50 ISO
Maximum Spindle Speed:30-4500 rpm
Main Motor Power:18.5-22 kW

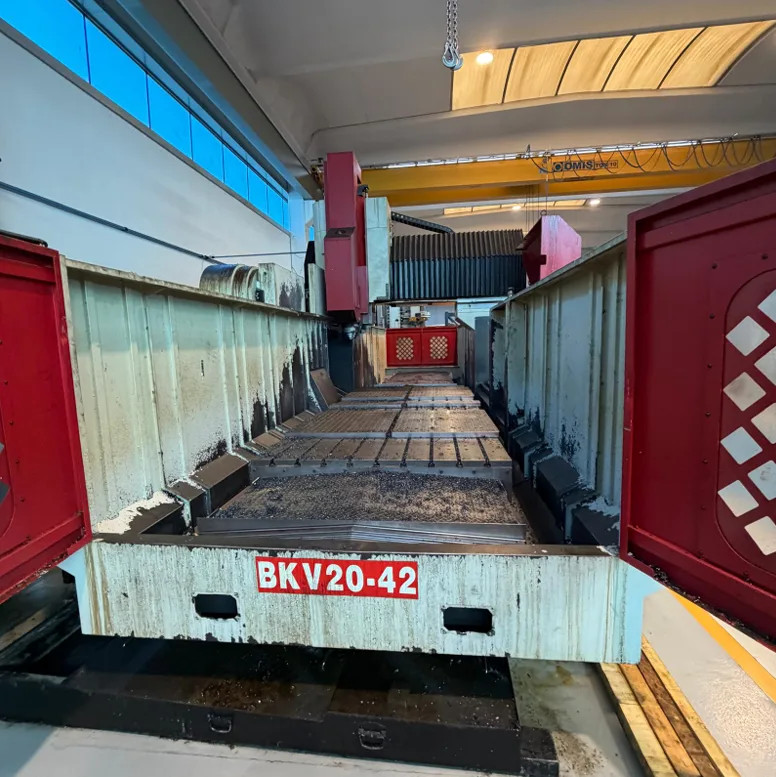

Table Size:4200 × 1650 mm
T-Slot / Pitch Size:22 × 9 × 170 mm
Table Load Capacity:9000 kg
Rapid X, Y, Z Axis:10000/12000/12000 mm/min

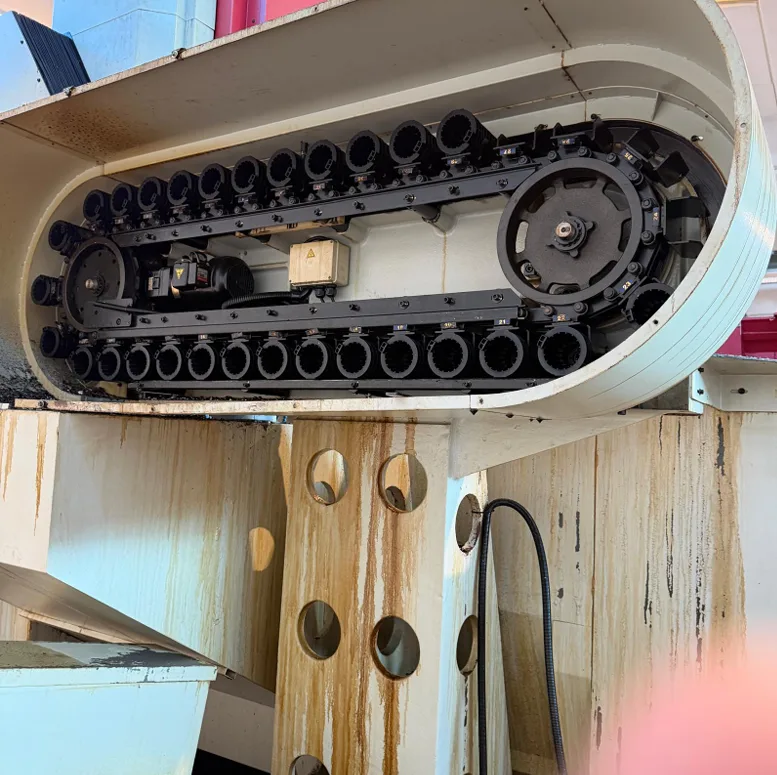

Tool Magazine:32 Stations
Distance Between Columns:2000 mm
Distance from Spindle Nose to Table:40-940 +200 mm
Increased Height:200 mm
Machine Weight:42.5 Ton
Machine Dimensions (L × W × H):10.443 × 4330 × 4518 mm
Machine specifications
- Manufacturer
- KENT
- Model
- BKV20-42
- Condition
- used
- Year
- 2015
- Brand
- KENT
- Model
- BKV20-42
- Control
- Fanuc 0iMD
- Category
- CNC Machines
- Table Size
- 4200 × 1650 mm
- Column Rise
- 200 mm
- Subcategory
- Portal Milling Machines
- Machine Name
- Vertical Machining Center Gantry
- Spindle Taper
- BT50 ISO
- Tool Magazine
- 32 Stations
- X Axis Travel
- 4200 mm
- Y Axis Travel
- 2000 mm
- Z Axis Travel
- 900 mm
- Machine Weight
- 42.5 Ton
- Increased Height
- 200 mm
- Main Motor Power
- 18.5-22 kW
- Rapid X Y Z Axis
- 10000/12000/12000 mm/min
- T Slot Pitch Size
- 22 × 9 × 170 mm
- Table Load Capacity
- 9000 kg
- Maximum Spindle Speed
- 30-4500 rpm
- Distance Between Columns
- 2000 mm
- Machine Dimensions L W H
- 10.443 × 4330 × 4518 mm
- Distance From Spindle Nose To Table
- 40-940 +200 mm
