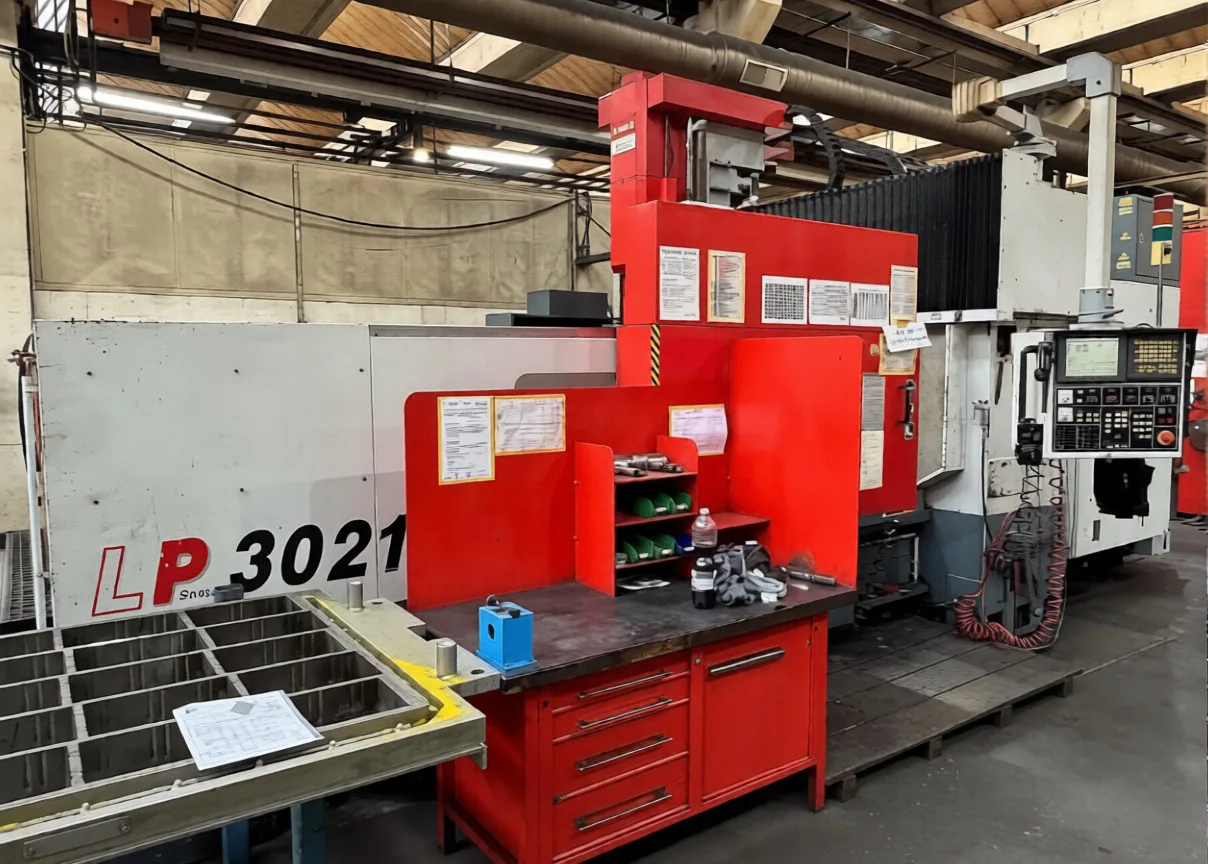

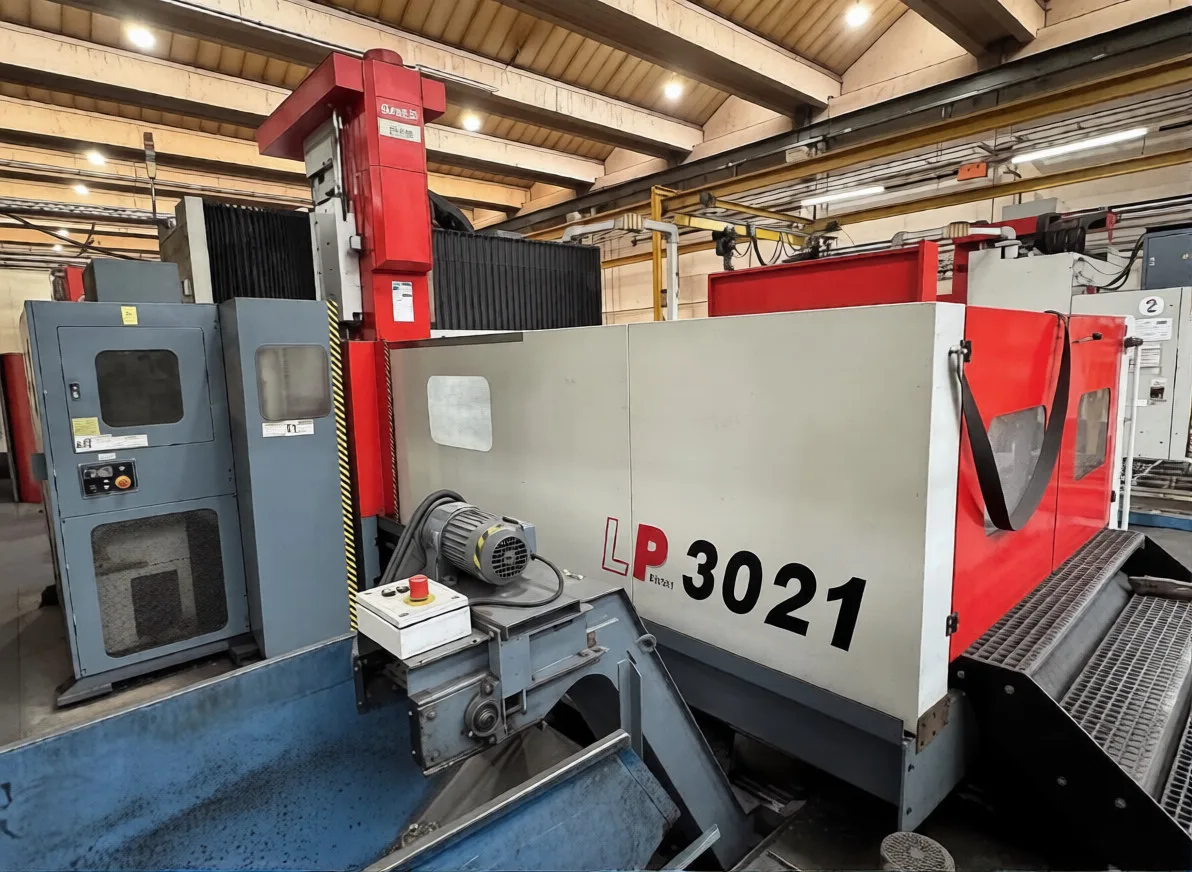

VERTICAL MACHINING CENTRE AWEA LP 3021
Ref. No.184
- Brand
- AWEA
- Model
- LP 3021
- Condition
- used
VERTICAL MACHINING CENTRE AWEA LP 3021
YOM 2004
X-axis travel:3,000 mm
Y-axis travel:2,100 mm
Z-axis travel:760 mm
Max. tool diameter / with empty magazine slot: 127 mm / 215 mm
Rapid feed X-axis:20,000 mm/min
Rapid feed Y-axis:15,000 mm/min
Rapid feed Z-axis:15,000 mm/min
CNC control:FANUC SERIES 18i MB

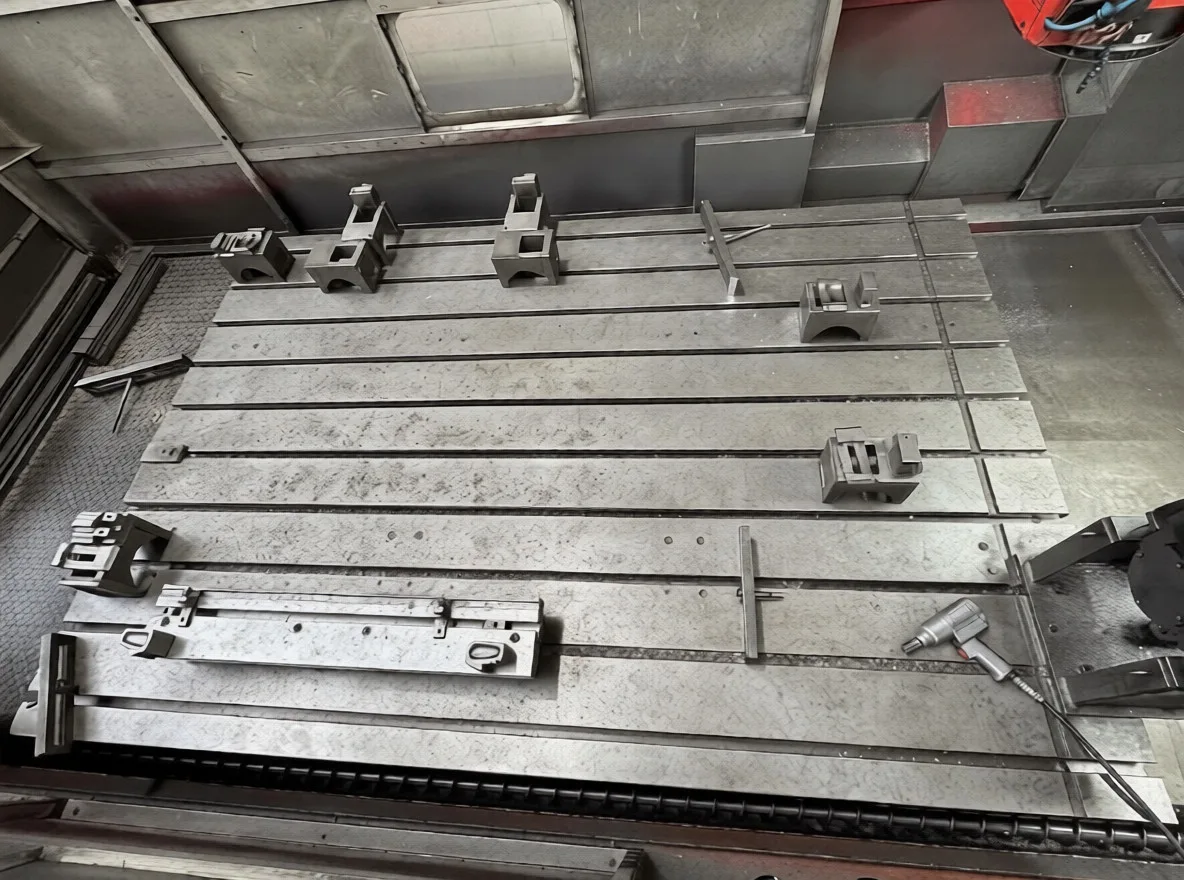

Table size:3,020 mm × 2,010 mm
Max. table load:10,000 kg
Distance between columns:2,300 mm
Spindle taper:ISO-50
Standard spindle speed:6,000 rpm
Spindle motor power (continuous / 30 min): approx. 22 / 26 kW
Max. tool length:350 mm
Max. tool weight:20 kg

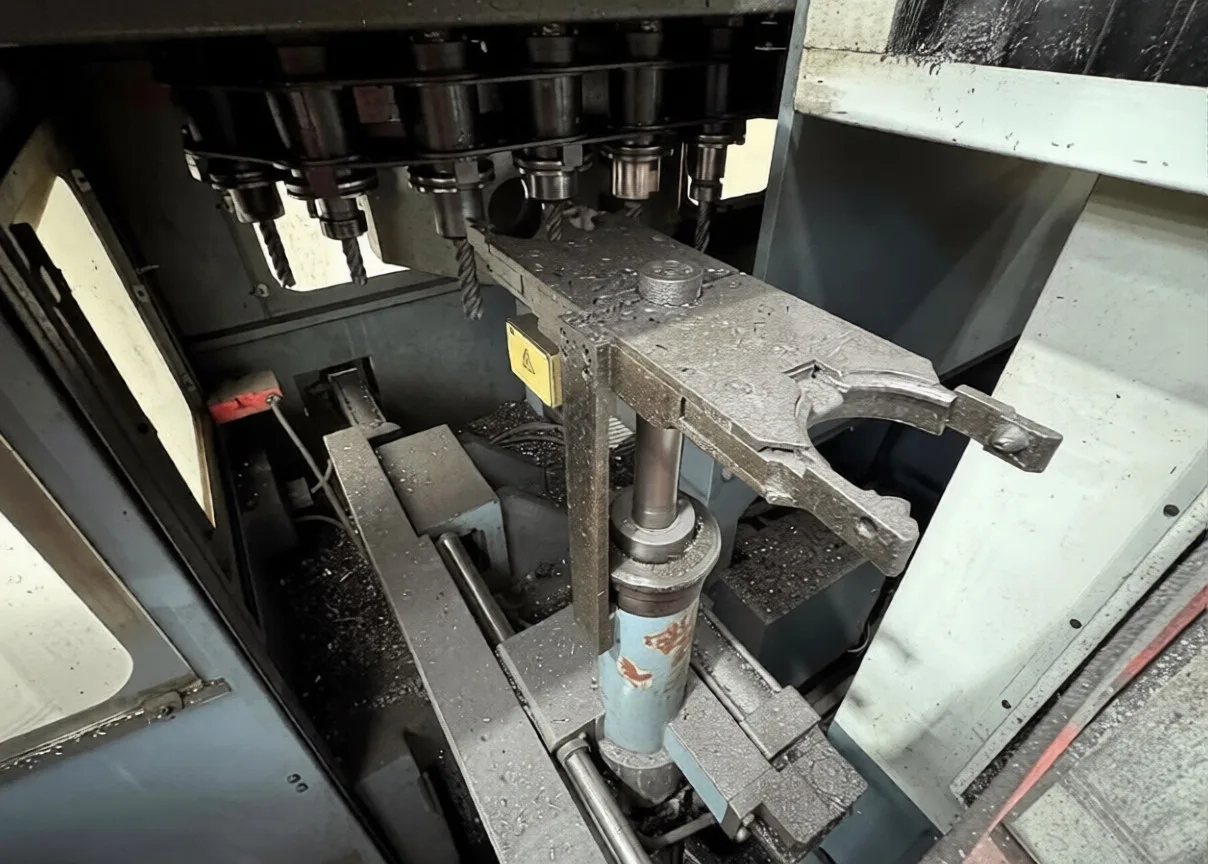

Tool changer capacity:32 tools
Cutting feed rate:approx. 1 – 10,000 mm/min
EQUIPMENT

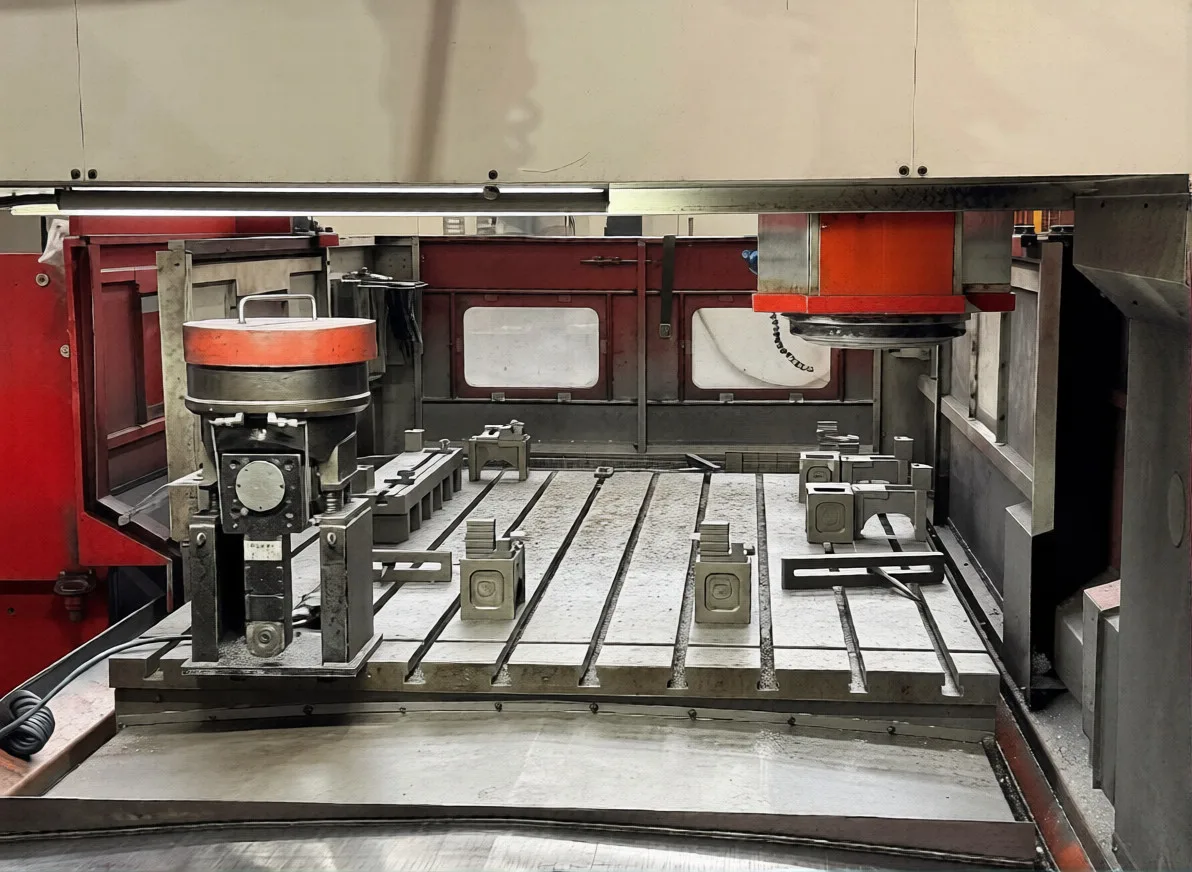

Automatic head changer (with angle milling head)
RENISHAW probe
Machine specifications
- Manufacturer
- AWEA
- Model
- LP 3021
- Condition
- used
- Type
- Vertical Machining Centre
- Year
- 2004
- Brand
- AWEA
- Model
- LP 3021
- Control
- FANUC SERIES 18i MB
- Distance Between Columns
- 2300 mm
